Bostitch SFC34W-E-U Type 1 Compressor Spare Parts

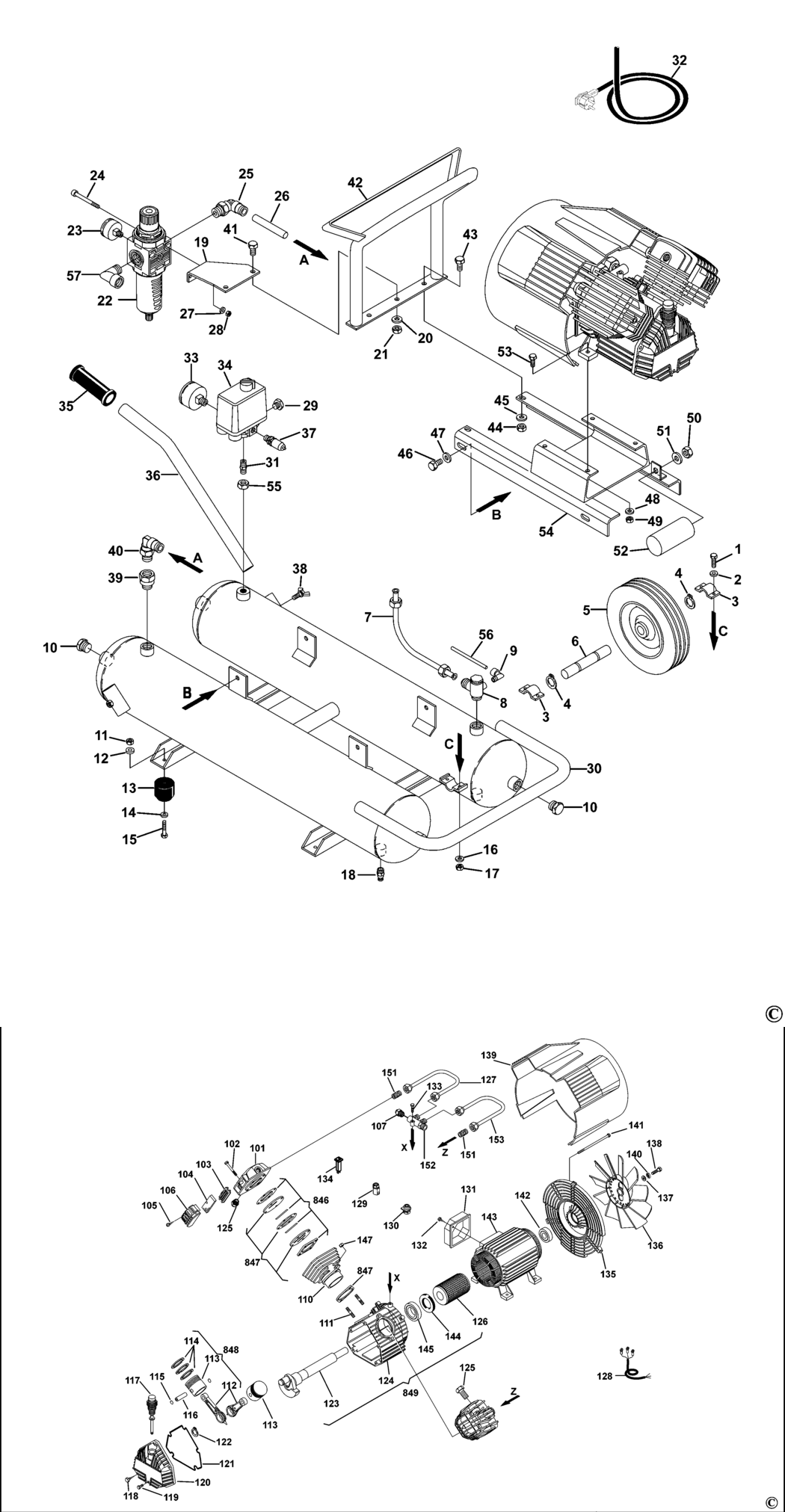

An exploded drawing and spare parts listing for the Bostitch SFC34W-E-U Type 1 Compressor

	Ex VAT	Inc VAT
1 - SCREW BDE-F7011040000.A4 F7011040000	£2.26	£2.71
2 - WASHER BDE-F7030020000.A8 F7030020000	£1.50	£1.80
3 - NO LONGER AVAILABLE BDE-000000-00.A30516 000000-00	-
4 - RETAINER BDE-F7040040000.A5 F7040040000	£3.80	£4.56
5 - WHEEL BDE-F7260080000.A0 F7260080000	£165.92	£199.11
6 - PIN BDE-F7332010000.A0 F7332010000	£58.69	£70.43
7 - TUBE BDE-F7236230000 F7236230000	£37.35	£44.82
8 - VALVE Non Return BDE-F7190090000.A4 F7190090000	£17.48	£20.97
10 - PLUG BDE-F7090030000.A7 F7090030000	£7.18	£8.62
11 - LOCK NUT BDE-F7021010000.A0 F7021010000	£1.50	£1.80
12 - WASHER BDE-F7030020000.A6 F7030020000	£1.50	£1.80
13 - RUBBER BDE-F7360090000.A1 F7360090000	£10.85	£13.02
14 - WASHER BDE-F7030190000.A1 F7030190000	£1.50	£1.80
15 - SCREW BDE-F7011220000.A1 F7011220000	£1.50	£1.80
16 - WASHER BDE-F7030020000.A7 F7030020000	£1.50	£1.80
17 - NUT BDE-F7020200000.A4 F7020200000	£1.82	£2.19
18 - DRAIN COCK BDE-F7130160000.A3 F7130160000	£10.85	£13.02
19 - MOUNTING BRACKET BDE-F7456320000.A0 F7456320000	£60.94	£73.13
20 - WASHER BDE-F7030010000.A0 F7030010000	£1.50	£1.80
21 - NUT BDE-F7020070000.A3 F7020070000	£1.50	£1.80
22 - REGULATOR BDE-F7100410000.A1 F7100410000	£404.44	£485.33
23 - PRESSURE GAUGE BDE-F7110010000 F7110010000	£37.35	£44.82
24 - SCREW BDE-F7014330000.A1 F7014330000	£1.50	£1.80
25 - JOINT BDE-F7084250000.A1 F7084250000	£58.69	£70.43
26 - HOSE BDE-F7230030000.A3 F7230030000	£19.90	£23.88
27 - WASHER BDE-F7030010000.A1 F7030010000	£1.50	£1.80
28 - NUT BDE-F7020050000.A0 F7020050000	£1.50	£1.80
29 - PLUG BDE-F7090070000.A0 F7090070000	£3.30	£3.96
32 - CORDSET (M/PLUG) GB GB BDE-F7329010000.A7 F7329010000	£55.30	£66.36
33 - PRESSURE GAUGE BDE-F7110210000.A0 F7110210000	£38.80	£46.56
34 - SWITCH Pressure BDE-F7250740000.A6 F7250740000	-
35 - HANDLE BDE-F7280030000.A2 F7280030000	£12.17	£14.60
37 - VALVE BDE-F7192010000.A4 F7192010000	£24.39	£29.27
38 - SCREW BDE-F7014100000.A0 F7014100000	£74.15	£88.98
39 - NO LONGER AVAILABLE BDE-000000-00.A30517 000000-00	-
40 - JOINT BDE-F7084250000.A2 F7084250000	£58.69	£70.43
41 - SCREW BDE-F7011090000.A0 F7011090000	£1.50	£1.80
42 - GUARD COVER BDE-F5160060008 F5160060008	£37.35	£44.82
43 - SCREW BDE-F7011090000.A1 F7011090000	£1.50	£1.80
44 - NUT BDE-F7020070000.A4 F7020070000	£1.50	£1.80
45 - WASHER BDE-F7030030000.A2 F7030030000	£1.50	£1.80
46 - SCREW BDE-F7011040000.A3 F7011040000	£2.26	£2.71
47 - WASHER BDE-F7030020000.A9 F7030020000	£1.50	£1.80
48 - WASHER BDE-F7030030000.A1 F7030030000	£1.50	£1.80
49 - NUT BDE-F7020070000.A5 F7020070000	£1.50	£1.80
50 - NUT BDE-F7020070000.A6 F7020070000	£1.50	£1.80
51 - WASHER BDE-F7031010000.A1 F7031010000	£1.82	£2.19
52 - CAPACITOR BDE-F7310410000.A3 F7310410000	£131.46	£157.75
54 - NO LONGER AVAILABLE BDE-000000-00.A30518 000000-00	-
55 - LOCK NUT BDE-F7023050000 F7023050000	£3.80	£4.56
56 - HOSE BDE-F7230010000.A2 F7230010000	£12.17	£14.60
57 - JOINT BDE-F7080010000.A0 F7080010000	£19.90	£23.88
101 - HEAD BDE-F7570090000.A0 F7570090000	£60.94	£73.13
102 - SCREW 8 BDE-F7011220000.A0 F7011220000	£1.50	£1.80
103 - PLATE FILTER BDE-F7458340000.A0 F7458340000	£1.50	£1.80
104 - FILTER BDE-F7210010000.A3 F7210010000	£1.50	£1.80
105 - SCREW BDE-F7012010000.A0 F7012010000	£1.50	£1.80
106 - PRE-FILTER BDE-F7210180000.A1 F7210180000	£3.80	£4.56
110 - CYLINDER BDE-F5060160008.A2 F5060160008	£209.59	£251.51
111 - BOLT BDE-F7015020000.A0 F7015020000	£1.50	£1.80
112 - CON ROD BDE-F5050160008.A1 F5050160008	£19.90	£23.88
113 - PISTON BDE-F7220050000.A2 F7220050000	£60.94	£73.13
114 - PISTON RING BDE-F4080030000.A5 F4080030000	£47.08	£56.49
115 - RING BDE-F7041030000.A4 F7041030000	£1.50	£1.80
116 - PIN BDE-F7050030000.A0 F7050030000	£7.18	£8.62
117 - DIPSTICK BDE-F7181060000.A0 F7181060000	£12.17	£14.60
119 - SCREW BDE-F7011460000.A5 F7011460000	£1.82	£2.19
120 - COVER BDE-F7650010000.A3 F7650010000	£47.08	£56.49
121 - GASKET BDE-F7078440000.A0 F7078440000	£7.85	£9.42
122 - RETAINER BDE-F7040040000.A4 F7040040000	£3.80	£4.56
124 - CRANKCASE BDE-F5070180008.A3 F5070180008	£126.63	£151.96
125 - PLUG BDE-F7090080000.A6 F7090080000	£2.26	£2.71
126 - ROTOR 1 PH BDE-F5090220008 F5090220008	£283.82	£340.58
127 - TUBE BDE-F7237020000.A3 F7237020000	£41.24	£49.49
128 - CABLE 1 PH BDE-F7329900000.A3 F7329900000	£10.85	£13.02
129 - CORD PROTECTOR BDE-F7501050000.A0 F7501050000	£7.18	£8.62
130 - INSERT BDE-F7501060000.A3 F7501060000	£3.80	£4.56
131 - MOTOR COVER BDE-F7382340000.A0 F7382340000	£5.88	£7.06
132 - SCREW BDE-F7012020000.A3 F7012020000	£1.50	£1.80
134 - CUT OUT THERMAL BDE-F7410390000.A0 F7410390000	£58.69	£70.43
135 - COVER BDE-F7640010000.A2 F7640010000	£115.77	£138.92
136 - FAN BDE-F7200020000 F7200020000	£131.46	£157.75
138 - SCREW BDE-F7011090000.A5 F7011090000	£1.50	£1.80
139 - COVER BDE-F7150370000.A3 F7150370000	£78.12	£93.74
140 - WASHER BDE-F7031010000.A2 F7031010000	£1.82	£2.19
142 - BEARING BDE-F7060030000.A3 F7060030000	£25.70	£30.84
143 - MOTOR SA 230V BDE-F4011450000.A0 F4011450000	£804.38	£965.26
144 - SHIM BDE-F7071030000 F7071030000	£12.17	£14.60
145 - BEARING BDE-F7060070000.A1 F7060070000	£38.80	£46.56
147 - NUT BDE-F7020070000.A7 F7020070000	£1.50	£1.80
151 - JOINT BDE-F7081100000.A1 F7081100000	£3.80	£4.56
153 - TUBE BDE-F7237010000.A0 F7237010000	£38.80	£46.56
846 - SERVICE KIT Gasket set BDE-F4082080000.A0 F4082080000	£34.00	£40.80
847 - SERVICE KIT Valve / plate set BDE-F4082730000 F4082730000	£60.94	£73.13

Attribute Name	Value
Brand	Bostitch
