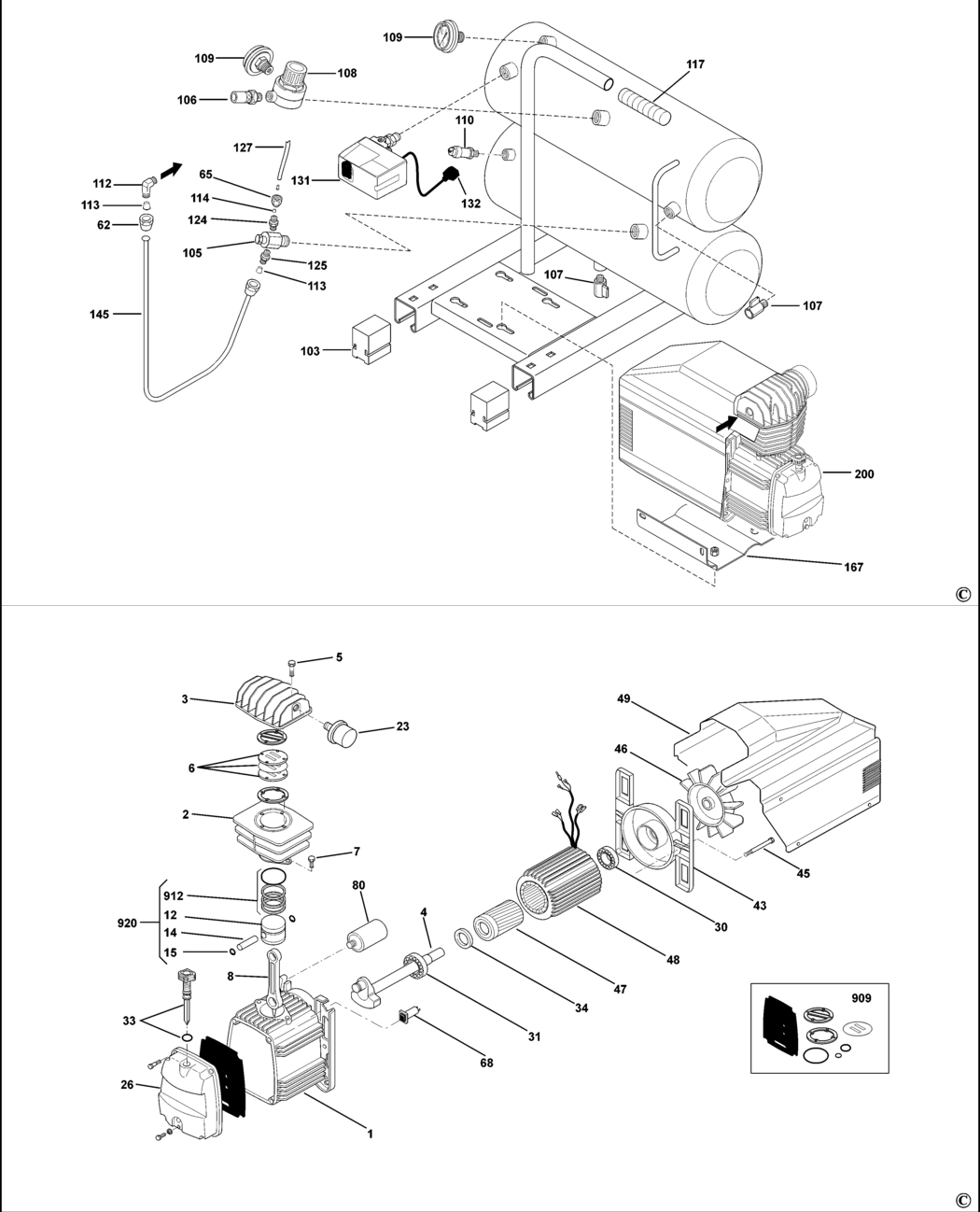

1 - CRANKCASE
BDE-4105370.A1
4105370
|
£165.92
|
£199.11
|
|
|
2 - CYLINDER
BDE-4105576.A1
4105576
|
£65.52
|
£78.62
|
|
|
3 - HEAD
BDE-4105436.A1
4105436
|
£58.69
|
£70.43
|
|
|
4 - CRANKSHAFT
BDE-4106533.A0
4106533
|
£131.46
|
£157.75
|
|
|
5 - SCREW
BDE-14002021.A0
14002021
|
£2.26
|
£2.71
|
|
|
6 - PLATE
BDE-4105451.A1
4105451
|
£17.48
|
£20.97
|
|
|
7 - SCREW
BDE-14011064.A0
14011064
|
£2.26
|
£2.71
|
|
|
8 - CON ROD
BDE-4105009.A1
4105009
|
£12.17
|
£14.60
|
|
|
12 - PISTON
BDE-4105062.A1
4105062
|
£108.20
|
£129.84
|
|
|
14 - PIN
BDE-4105066.A0
4105066
|
£2.78
|
£3.34
|
|
|
15 - CIRCLIP
BDE-4105006.A0
4105006
|
£2.26
|
£2.71
|
|
|
23 - FILTER
BDE-4105461.A0
4105461
|
£2.78
|
£3.34
|
|
|
26 - COVER
BDE-4105371.A0
4105371
|
£34.00
|
£40.80
|
|
|
30 - BEARING
BDE-9170116.A2
9170116
|
-
|
|
|
|
31 - BEARING
BDE-4105002.A1
4105002
|
£5.88
|
£7.06
|
|
|
33 - DIPSTICK
BDE-4105028.A0
4105028
|
£2.78
|
£3.34
|
|
|
34 - SEAL
BDE-4105360.A0
4105360
|
£9.41
|
£11.29
|
|
|
43 - COVER
BDE-4106660.A0
4106660
|
£37.35
|
£44.82
|
|
|
45 - SCREW
BDE-116011038.A0
116011038
|
£2.26
|
£2.71
|
|
|
46 - FAN
BDE-4105447.A0
4105447
|
£17.48
|
£20.97
|
|
|
47 - ROTOR
BDE-4105183.A1
4105183
|
£74.15
|
£88.98
|
|
|
48 - STATOR
BDE-9067526.A0
9067526
|
£371.62
|
£445.95
|
|
|
49 - SHROUD
BDE-4106535.A1
4106535
|
£78.12
|
£93.74
|
|
|
62 - LOCK NUT
BDE-127HQ0110.A1
127HQ0110
|
£9.41
|
£11.29
|
|
|
65 - LOCK NUT
BDE-127HQ0111.A1
127HQ0111
|
£7.18
|
£8.62
|
|
|
80 - CAPACITOR
BDE-4105131.A1
4105131
|
£17.48
|
£20.97
|
|
|
103 - FOOT
BDE-127HQ0276
127HQ0276
|
£7.85
|
£9.42
|
|
|
105 - VALVE
BDE-127QC0400
127QC0400
|
£45.14
|
£54.17
|
|
|
106 - COUPLER (SPLASH)
BDE-22050000.A0
22050000
|
£14.57
|
£17.48
|
|
|
107 - VALVE
BDE-AB-9047062.A0
AB-9047062
|
£17.55
|
£21.06
|
|
|
108 - REDUCER
BDE-127HQ0340
127HQ0340
|
£14.57
|
£17.48
|
|
|
109 - GAUGE
BDE-127HQ0137
127HQ0137
|
£19.90
|
£23.88
|
|
|
110 - VALVE
BDE-47206000.A1
47206000
|
-
|
|
|
|
112 - VALVE
BDE-127QC0184
127QC0184
|
£25.70
|
£30.84
|
|
|
113 - PISTON RING
BDE-127HQ0560.A1
127HQ0560
|
£3.30
|
£3.96
|
|
|
114 - PISTON RING
BDE-127HQ0121.A0
127HQ0121
|
£2.78
|
£3.34
|
|
|
117 - KNOB
BDE-127HQ0130
127HQ0130
|
£3.30
|
£3.96
|
|
|
124 - JOINT
BDE-127QC0183
127QC0183
|
£2.26
|
£2.71
|
|
|
125 - JOINT
BDE-127HQ0549.A0
127HQ0549
|
£47.08
|
£56.49
|
|
|
127 - TUBE
BDE-127QC0304
127QC0304
|
£10.85
|
£13.02
|
|
|
131 - SWITCH
BDE-127HQ0082.A0
127HQ0082
|
-
|
|
|
|
145 - PIPE
BDE-127QC0302
127QC0302
|
£10.85
|
£13.02
|
|
|
167 - BASEPLATE
BDE-4105729022.A1
4105729022
|
£23.75
|
£28.50
|
|
