Bostitch RAB-22-E Type REV B Carton Sealer Spare Parts

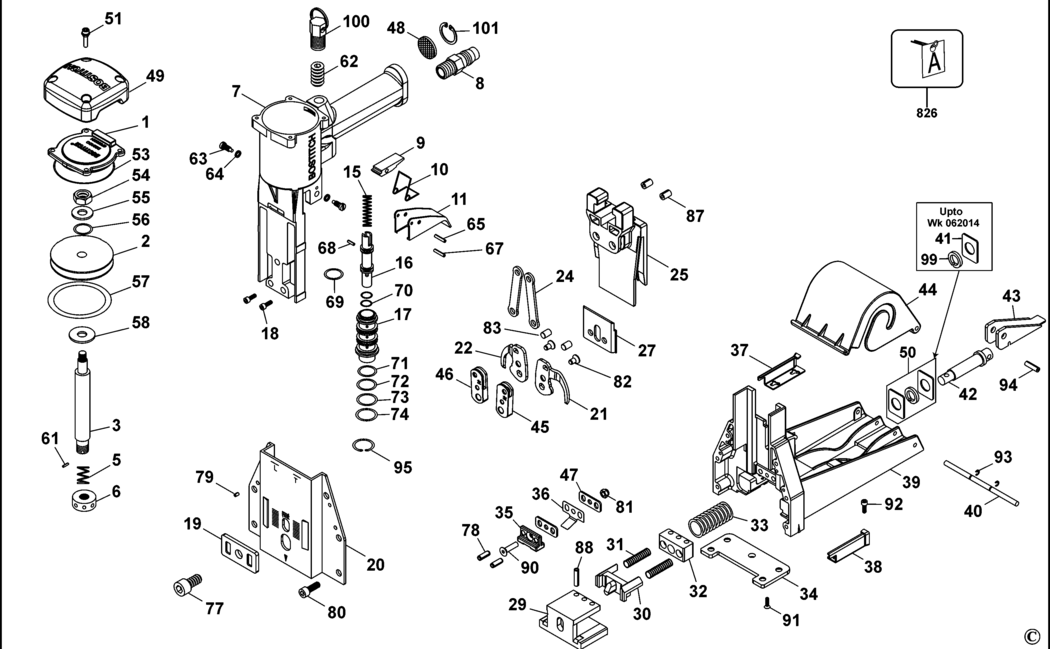

An exploded drawing and spare parts listing for the Bostitch RAB-22-E Type REV B Carton Sealer

	Ex VAT	Inc VAT
1 - CAP BDE-A01200110.A1 A01200110	£17.48	£20.97
2 - PISTON BDE-A03701301.A0 A03701301	£25.70	£30.84
3 - PUSHROD BDE-A03701701.A1 A03701701	£30.08	£36.10
5 - SPRING BDE-A00100501.A1 A00100501	£1.50	£1.80
6 - COLLAR BDE-A00100601.A9 A00100601	£5.88	£7.06
8 - CONNECTOR MALE BDE-A00100805.A3 A00100805	£3.30	£3.96
9 - BLOCK BDE-A00100902.A0 A00100902	£3.80	£4.56
10 - SPRING BDE-A00101001.A10 A00101001	£1.50	£1.80
11 - TRIGGER BDE-A00101101.A0 A00101101	£3.30	£3.96
15 - SPRING COMPRESSION BDE-A00101501.A1 A00101501	£1.50	£1.80
16 - VALVE BDE-A00101601.A9 A00101601	£12.17	£14.60
17 - TUBE BDE-A00101702.A1 A00101702	£16.03	£19.24
18 - ROD BDE-A03701401.A1 A03701401	£4.69	£5.63
19 - PLATE BDE-A00101901.A1 A00101901	£3.30	£3.96
20 - PLATE BDE-A01102503.A0 A01102503	£14.57	£17.48
21 - HOOK LEFT BDE-A03701901.A1 A03701901	£18.91	£22.69
22 - HOOK RIGHT BDE-A03702001.A0 A03702001	£18.91	£22.69
24 - LINK BDE-A03701501.A0 A03701501	£4.69	£5.63
25 - DRIVER BDE-A03701201.A1 A03701201	£96.55	£115.86
27 - GUIDE RAIM2(2.4mm) BDE-A03702102.A1 A03702102	£25.70	£30.84
29 - ANVIL BDE-A02300404.A0 A02300404	£38.80	£46.56
30 - PUSH BLOCK BDE-A03600202.A2 A03600202	£24.39	£29.27
31 - SPRING COMPRESSION BDE-A02201101.A4 A02201101	£2.78	£3.34
32 - CAP BDE-A02200501.A5 A02200501	£17.48	£20.97
33 - SPRING BDE-A02201201.A1 A02201201	£4.69	£5.63
34 - PLATE BDE-A02200901.A4 A02200901	£14.57	£17.48
35 - GUIDE BDE-A02202901.A4 A02202901	£16.03	£19.24
36 - LEAF SPRING BDE-A02201803.A4 A02201803	£2.26	£2.71
37 - GUIDE BDE-A03700601.A1 A03700601	£4.69	£5.63
38 - GUIDE BDE-A03700701.A0 A03700701	£4.69	£5.63
39 - SEAT BDE-A03600505.A0 A03600505	£80.98	£97.18
40 - SHAFT BDE-A02201301.A4 A02201301	£1.50	£1.80
41 - FSO KIT BDE-C0363001.A2 C0363001	£5.88	£7.06
42 - SHAFT BDE-A02200801.A1 A02200801	£10.85	£13.02
43 - LEVER BDE-A02201001.A1 A02201001	£7.85	£9.42
44 - COVER BDE-A02201402.A0 A02201402	£5.88	£7.06
45 - HOLDER RH BDE-A03701001.A2 A03701001	£18.91	£22.69
46 - HOLDER LH BDE-A03701101.A0 A03701101	£18.91	£22.69
47 - WASHER BDE-A02202402.A4 A02202402	£2.78	£3.34
48 - SILENCER BDE-BAI1401.A0 BAI1401	£3.30	£3.96
49 - COVER BDE-A07600801.A8 A07600801	£5.88	£7.06
50 - FSO KIT >062014 BDE-C0363001.A1 C0363001	£5.88	£7.06
51 - BOLT BDE-A07600901.A0 A07600901	£1.50	£1.80
53 - O RING BDE-BAB017537.A9 BAB017537	£1.50	£1.80
54 - NUT BDE-BAD02061.A0 BAD02061	£1.50	£1.80
55 - WASHER BDE-BAE06094.A9 BAE06094	£1.50	£1.80
56 - O RING BDE-BAB017076.A21 BAB017076	£1.50	£1.80
57 - O RING BDE-BAB057476.A0 BAB057476	£1.50	£1.80
58 - WASHER BDE-A00104101.A9 A00104101	£1.50	£1.80
61 - PIN BDE-BAA025014.A0 BAA025014	£1.50	£1.80
62 - BOLT BDE-BAC0312122.A10 BAC0312122	£1.50	£1.80
63 - SCREW BDE-A00104401.A1 A00104401	£1.50	£1.80
64 - WASHER SPRING BDE-BAE01042.A0 BAE01042	£1.50	£1.80
65 - PIN BDE-BAA030020.A0 BAA030020	£1.50	£1.80
67 - PIN BDE-BAA030018.A2 BAA030018	£1.50	£1.80
68 - SPRING BDE-BAA030010.A25 BAA030010	£1.50	£1.80
69 - O RING BDE-BAB017124.A10 BAB017124	£1.50	£1.80
70 - O RING BDE-BAB017076.A20 BAB017076	£1.50	£1.80
71 - O RING BDE-BAB016145.A9 BAB016145	£1.50	£1.80
72 - O RING BDE-BAB016150.A1 BAB016150	£1.50	£1.80
73 - O RING BDE-BAB016155.A9 BAB016155	£1.50	£1.80
74 - O RING BDE-BAB016160.A1 BAB016160	£1.50	£1.80
77 - BOLT BDE-BAC0608162.A0 BAC0608162	£1.50	£1.80
78 - PIN BDE-BAA050014.A0 BAA050014	£1.50	£1.80
79 - SPRING BDE-BAA030010.A24 BAA030010	£1.50	£1.80
80 - BOLT BDE-BAC0605142.A11 BAC0605142	£1.50	£1.80
81 - NUT BDE-BAD01051.A0 BAD01051	£1.50	£1.80
82 - SCREW BDE-A03702201.A0 A03702201	£1.50	£1.80
83 - PIN BDE-A03701801.A0 A03701801	£3.80	£4.56
87 - PIN BDE-BAA060016-R.A12 BAA060016-R	£1.50	£1.80
88 - PIN BDE-BAA040022.A5 BAA040022	£1.50	£1.80
90 - SCREW BDE-BAC0205202.A1 BAC0205202	£1.50	£1.80
91 - SCREW BDE-bac0205082.A4 bac0205082	£1.50	£1.80
92 - SCREW BDE-BAC0703063.A0 BAC0703063	£1.50	£1.80
93 - CIRCLIP BDE-BAF10252.A2 BAF10252	£1.50	£1.80
94 - PIN BDE-BAA040020.A0 BAA040020	£1.50	£1.80
95 - RETAINER BDE-BAF22002.A0 BAF22002	£1.50	£1.80
99 - FSO KIT BDE-C0363001.A0 C0363001	£5.88	£7.06
100 - PLUG BDE-C0011201A.A0 C0011201A	£12.17	£14.60
101 - RETAINER BDE-BAF22002.A1 BAF22002	£1.50	£1.80
826 - SPANNER SPECIAL BDE-C0010701.A0 C0010701	£5.88	£7.06

Attribute Name	Value
Brand	Bostitch

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
