Bostitch DS-3522-E Type REV A Carton Sealer Spare Parts

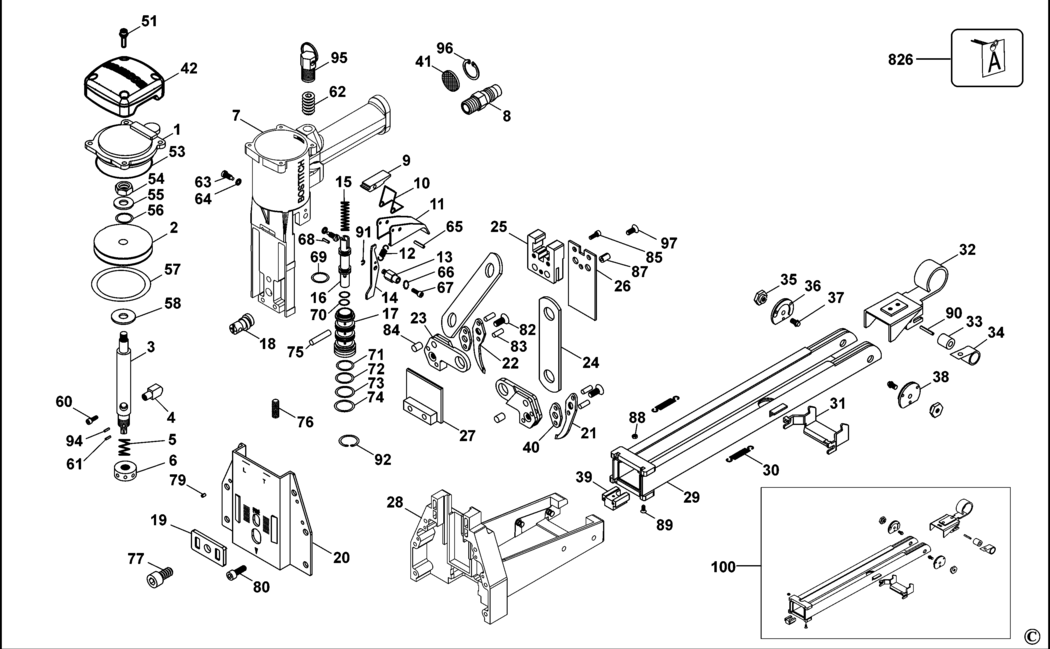

An exploded drawing and spare parts listing for the Bostitch DS-3522-E Type REV A Carton Sealer

	Ex VAT	Inc VAT
1 - CAP BDE-A01200110.A4 A01200110	£17.48	£20.97
2 - PISTON BDE-A02800201.A2 A02800201	£9.41	£11.29
3 - ROD BDE-A02800301.A6 A02800301	£37.35	£44.82
4 - BLOCK BDE-A00100401.A5 A00100401	£9.41	£11.29
5 - SPRING BDE-A00100501.A4 A00100501	£1.50	£1.80
6 - COLLAR BDE-A00100601.A6 A00100601	£5.88	£7.06
9 - BLOCK BDE-A00100902.A6 A00100902	£3.80	£4.56
10 - SPRING BDE-A00101001.A4 A00101001	£1.50	£1.80
11 - TRIGGER BDE-A00101101.A6 A00101101	£3.30	£3.96
12 - SPRING BDE-A00101201.A4 A00101201	£1.50	£1.80
13 - ROD BDE-A00101301.A5 A00101301	£3.30	£3.96
14 - ARM LINK BDE-A00101402.A4 A00101402	£2.78	£3.34
15 - SPRING COMPRESSION BDE-A00101501.A6 A00101501	£1.50	£1.80
16 - VALVE BDE-A00101601.A5 A00101601	£12.17	£14.60
17 - TUBE BDE-A00101702.A5 A00101702	£16.03	£19.24
18 - ROD BDE-A00101801.A5 A00101801	£12.17	£14.60
19 - PLATE BDE-A00101901.A5 A00101901	£3.30	£3.96
20 - PLATE BDE-A01102501.A1 A01102501	£7.85	£9.42
21 - HOOK RIGHT BDE-A01200501.A1 A01200501	£14.57	£17.48
22 - HOOK LEFT BDE-A01200601.A2 A01200601	£14.57	£17.48
23 - SEAT BDE-A00102301.A5 A00102301	£24.39	£29.27
24 - LINK BDE-A00102401.A8 A00102401	£2.26	£2.71
25 - BLOCK BDE-A00102502.A4 A00102502	£10.85	£13.02
26 - DRIVER DS-3522 BDE-A01201708.A3 A01201708	£10.85	£13.02
27 - COVER BDE-A00102703A.A4 A00102703A	£14.57	£17.48
28 - SEAT >wk042013 sn13016031 BDE-A02100407A.A4 A02100407A	£99.47	£119.36
28 - SEAT BDE-A02100405A.A5 A02100405A	£84.42	£101.30
29 - REPAIR KIT BDE-C0213001.A3 C0213001	£232.38	£278.85
29 - MAGAZINE >wk042013 sn13016031 BDE-HAA-19-35-P7-SD.A1 HAA-19-35-P7-SD	£135.36	£162.43
30 - SPRING TORSION BDE-A01102403.A9 A01102403	£1.50	£1.80
31 - BRACKET BDE-A01102201.A0 A01102201	£4.69	£5.63
32 - PUSHER DS-3522 BDE-A00103709A.A4 A00103709A	£18.91	£22.69
33 - ROLLER BDE-A00103501.A0 A00103501	£1.82	£2.19
34 - SPRING BDE-A00103401.A10 A00103401	£9.41	£11.29
35 - NUT BDE-A00607101.A12 A00607101	£2.78	£3.34
36 - GUIDE BDE-A00103903A.A1 A00103903A	£3.30	£3.96
37 - ROD BDE-A00103203.A0 A00103203	£2.78	£3.34
38 - GUIDE BDE-A00103904A.A13 A00103904A	£3.30	£3.96
39 - BRACKET BDE-A00105601.A1 A00105601	£10.85	£13.02
40 - WASHER BDE-A00105001.A8 A00105001	£2.26	£2.71
41 - SILENCER BDE-BAI1401.A9 BAI1401	£3.30	£3.96
42 - COVER BDE-A07600801.A7 A07600801	£5.88	£7.06
51 - BOLT BDE-A07600901.A1 A07600901	£1.50	£1.80
53 - O RING BDE-BAB017537.A0 BAB017537	£1.50	£1.80
54 - NUT BDE-BAD02061.A6 BAD02061	£1.50	£1.80
55 - WASHER BDE-BAE06094.A5 BAE06094	£1.50	£1.80
56 - O RING BDE-BAB017076.A2 BAB017076	£1.50	£1.80
57 - O RING BDE-BAB057476.A5 BAB057476	£1.50	£1.80
58 - WASHER BDE-A00104101.A0 A00104101	£1.50	£1.80
60 - BOLT BDE-BAC0604102.A3 BAC0604102	£1.50	£1.80
61 - PIN BDE-BAA025014.A5 BAA025014	£1.50	£1.80
62 - BOLT BDE-BAC0312122.A5 BAC0312122	£1.50	£1.80
63 - SCREW BDE-A00104401.A10 A00104401	£1.50	£1.80
64 - WASHER SPRING BDE-BAE01042.A8 BAE01042	£1.50	£1.80
65 - PIN BDE-BAA030020.A4 BAA030020	£1.50	£1.80
66 - WASHER LOCK BDE-BAE02042.A8 BAE02042	£1.50	£1.80
67 - BOLT BDE-BAC0404102.A9 BAC0404102	£1.50	£1.80
68 - SPRING BDE-BAA030010.A11 BAA030010	£1.50	£1.80
69 - O RING BDE-BAB017124.A3 BAB017124	£1.50	£1.80
70 - O RING BDE-BAB017076.A3 BAB017076	£1.50	£1.80
71 - O RING BDE-BAB016145.A0 BAB016145	£1.50	£1.80
72 - O RING BDE-BAB016150.A10 BAB016150	£1.50	£1.80
73 - O RING BDE-BAB016155.A0 BAB016155	£1.50	£1.80
74 - O RING BDE-BAB016160.A10 BAB016160	£1.50	£1.80
75 - ROD BDE-A00104701.A0 A00104701	£1.50	£1.80
76 - BOLT BDE-BAC0306142.A3 BAC0306142	£1.50	£1.80
77 - BOLT BDE-BAC0608162.A9 BAC0608162	£1.50	£1.80
79 - SPRING BDE-BAA030010.A12 BAA030010	£1.50	£1.80
80 - BOLT BDE-BAC0605142.A16 BAC0605142	£1.50	£1.80
82 - SCREW BDE-A00106201.A8 A00106201	£1.50	£1.80
83 - PIN BDE-A00104501.A0 A00104501	£1.50	£1.80
84 - PIN BDE-A00104602.A12 A00104602	£1.50	£1.80
85 - BOLT BDE-BAC0604102.A2 BAC0604102	£1.50	£1.80
87 - PIN BDE-BAA060016-R.A4 BAA060016-R	£1.50	£1.80
88 - NUT BDE-BAD01041.A4 BAD01041	£1.50	£1.80
89 - BOLT BDE-BAC0404202.A0 BAC0404202	£1.50	£1.80
90 - PIN BDE-BAA040016.A1 BAA040016	£1.50	£1.80
91 - CIRCLIP BDE-BAF10252.A8 BAF10252	£1.50	£1.80
92 - RETAINER BDE-BAF22002.A5 BAF22002	£1.50	£1.80
94 - PIN BDE-A00104901.A4 A00104901	£1.50	£1.80
95 - PLUG BDE-C0011201A.A4 C0011201A	£12.17	£14.60
96 - RETAINER BDE-BAF22002.A7 BAF22002	£1.50	£1.80
97 - SCREW BDE-BAC0204062.A10 BAC0204062	£1.50	£1.80
100 - MAGAZINE SA >wk042013 sn13016031 BDE-HAA-19-35-P7.A2 HAA-19-35-P7	£183.42	£220.10
826 - SPANNER SPECIAL BDE-C0010701.A11 C0010701	£5.88	£7.06

Attribute Name	Value
Brand	Bostitch
