Bostitch DS-3519-E Type REV A Carton Sealer Spare Parts

Home Details Reviews Delivery

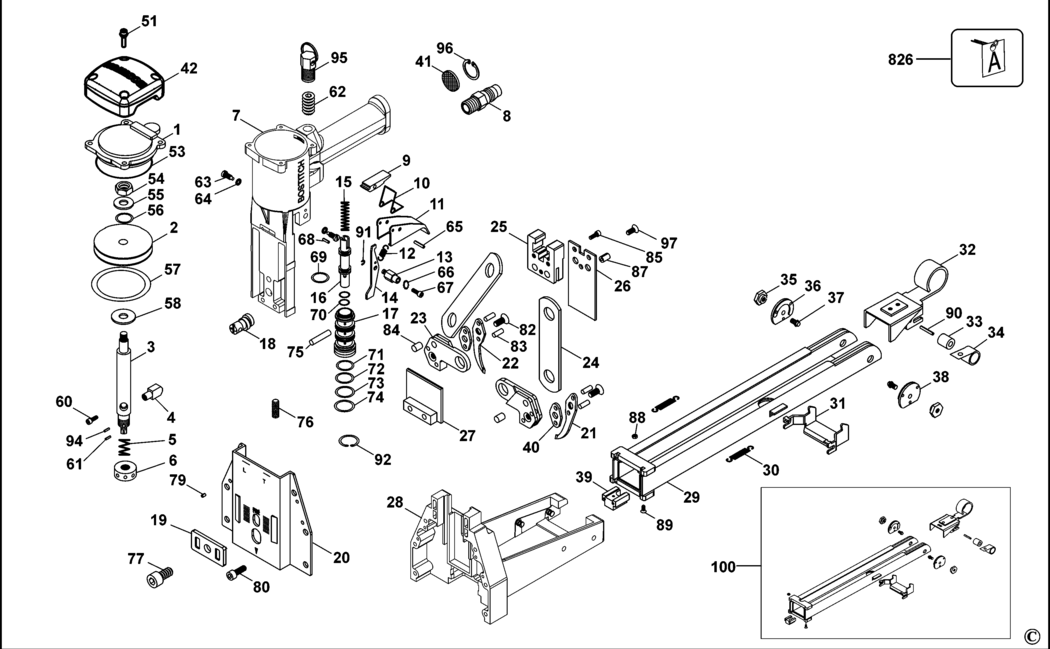

An exploded drawing and spare parts listing for the Bostitch DS-3519-E Type REV A Carton Sealer

	Ex VAT	Inc VAT
1 - CAP BDE-A01200110.A5 A01200110	£18.00	£21.60
2 - PISTON BDE-A02800201.A3 A02800201	£9.69	£11.63
3 - ROD BDE-A02800301.A5 A02800301	£38.48	£46.17
4 - BLOCK BDE-A00100401.A6 A00100401	£9.69	£11.63
5 - SPRING BDE-A00100501.A3 A00100501	£1.66	£1.99
6 - COLLAR BDE-A00100601.A7 A00100601	£6.06	£7.27
9 - BLOCK BDE-A00100902.A5 A00100902	£3.92	£4.70
10 - SPRING BDE-A00101001.A5 A00101001	£1.66	£1.99
11 - TRIGGER BDE-A00101101.A5 A00101101	£3.39	£4.07
12 - SPRING BDE-A00101201.A5 A00101201	£1.66	£1.99
13 - ROD BDE-A00101301.A4 A00101301	£3.39	£4.07
14 - ARM LINK BDE-A00101402.A5 A00101402	£2.87	£3.44
15 - SPRING COMPRESSION BDE-A00101501.A5 A00101501	£1.66	£1.99
16 - VALVE BDE-A00101601.A6 A00101601	£12.53	£15.04
17 - TUBE BDE-A00101702.A4 A00101702	£16.52	£19.82
18 - ROD BDE-A00101801.A6 A00101801	£12.53	£15.04
19 - PLATE BDE-A00101901.A4 A00101901	£3.39	£4.07
20 - PLATE BDE-A01102501.A0 A01102501	£8.08	£9.70
21 - HOOK RIGHT BDE-A00102102.A2 A00102102	£7.40	£8.88
22 - HOOK LEFT BDE-A00102202.A4 A00102202	£7.40	£8.88
23 - SEAT BDE-A00102301.A4 A00102301	£25.12	£30.15
24 - LINK BDE-A00102401.A9 A00102401	£2.32	£2.78
25 - BLOCK BDE-A00102502.A3 A00102502	£11.18	£13.41
26 - DRIVER DS-3519 BDE-A00102605.A0 A00102605	£11.18	£13.41
27 - COVER BDE-A00102703A.A3 A00102703A	£15.01	£18.01
28 - SEAT BDE-A02100405A.A6 A02100405A	£86.95	£104.34
28 - SEAT >wk042013 sn13016031 BDE-A02100407A.A3 A02100407A	£102.45	£122.94
29 - MAGAZINE >wk042013 sn13016031 BDE-HAA-19-35-P7-SD.A0 HAA-19-35-P7-SD	£139.42	£167.30
29 - REPAIR KIT BDE-C0213001.A2 C0213001	£239.35	£287.22
30 - SPRING TORSION BDE-A01102403.A8 A01102403	£1.66	£1.99
31 - BRACKET BDE-A01102201.A1 A01102201	£4.83	£5.80
32 - PUSHER DS-3519 BDE-A00103709A.A3 A00103709A	£19.48	£23.37
33 - ROLLER BDE-A00103501.A1 A00103501	£1.88	£2.26
34 - SPRING BDE-A00103401.A9 A00103401	£9.69	£11.63
35 - NUT BDE-A00607101.A11 A00607101	£2.87	£3.44
36 - GUIDE BDE-A00103903A.A2 A00103903A	£3.39	£4.07
37 - ROD BDE-A00103203.A1 A00103203	£2.87	£3.44
38 - GUIDE BDE-A00103904A.A12 A00103904A	£3.39	£4.07
39 - BRACKET BDE-A00105601.A0 A00105601	£11.18	£13.41
40 - WASHER BDE-A00105001.A9 A00105001	£2.32	£2.78
41 - SILENCER BDE-BAI1401.A8 BAI1401	£3.39	£4.07
42 - COVER BDE-A07600801.A6 A07600801	£6.06	£7.27
51 - BOLT BDE-A07600901.A2 A07600901	£1.66	£1.99
53 - O RING BDE-BAB017537.A1 BAB017537	£1.66	£1.99
54 - NUT BDE-BAD02061.A5 BAD02061	£1.66	£1.99
55 - WASHER BDE-BAE06094.A6 BAE06094	£1.66	£1.99
56 - O RING BDE-BAB017076.A5 BAB017076	£1.66	£1.99
57 - O RING BDE-BAB057476.A4 BAB057476	£1.66	£1.99
58 - WASHER BDE-A00104101.A1 A00104101	£1.66	£1.99
60 - BOLT BDE-BAC0604102.A1 BAC0604102	£1.66	£1.99
61 - PIN BDE-BAA025014.A4 BAA025014	£1.66	£1.99
62 - BOLT BDE-BAC0312122.A6 BAC0312122	£1.66	£1.99
63 - SCREW BDE-A00104401.A9 A00104401	£1.66	£1.99
64 - WASHER SPRING BDE-BAE01042.A9 BAE01042	£1.66	£1.99
65 - PIN BDE-BAA030020.A3 BAA030020	£1.66	£1.99
66 - WASHER LOCK BDE-BAE02042.A7 BAE02042	£1.66	£1.99
67 - BOLT BDE-BAC0404102.A8 BAC0404102	£1.66	£1.99
68 - SPRING BDE-BAA030010.A14 BAA030010	£1.66	£1.99
69 - O RING BDE-BAB017124.A2 BAB017124	£1.66	£1.99
70 - O RING BDE-BAB017076.A4 BAB017076	£1.66	£1.99
71 - O RING BDE-BAB016145.A1 BAB016145	£1.66	£1.99
72 - O RING BDE-BAB016150.A9 BAB016150	£1.66	£1.99
73 - O RING BDE-BAB016155.A1 BAB016155	£1.66	£1.99
74 - O RING BDE-BAB016160.A9 BAB016160	£1.66	£1.99
75 - ROD BDE-A00104701.A1 A00104701	£1.66	£1.99
76 - BOLT BDE-BAC0306142.A2 BAC0306142	£1.66	£1.99
77 - BOLT BDE-BAC0608162.A8 BAC0608162	£1.66	£1.99
79 - SPRING BDE-BAA030010.A13 BAA030010	£1.66	£1.99
80 - BOLT BDE-BAC0605142.A17 BAC0605142	£1.66	£1.99
82 - SCREW BDE-A00106201.A9 A00106201	£1.66	£1.99
83 - PIN BDE-A00104501.A1 A00104501	£1.66	£1.99
84 - PIN BDE-A00104602.A11 A00104602	£1.66	£1.99
85 - BOLT BDE-BAC0604102.A0 BAC0604102	£1.66	£1.99
87 - PIN BDE-BAA060016-R.A3 BAA060016-R	£1.66	£1.99
88 - NUT BDE-BAD01041.A5 BAD01041	£1.66	£1.99
89 - BOLT BDE-BAC0404202.A1 BAC0404202	£1.66	£1.99
90 - PIN BDE-BAA040016.A2 BAA040016	£1.66	£1.99
91 - CIRCLIP BDE-BAF10252.A7 BAF10252	£1.66	£1.99
92 - RETAINER BDE-BAF22002.A6 BAF22002	£1.66	£1.99
94 - PIN BDE-A00104901.A3 A00104901	£1.66	£1.99
95 - PLUG BDE-C0011201A.A3 C0011201A	£12.53	£15.04
96 - RETAINER BDE-BAF22002.A8 BAF22002	£1.66	£1.99
97 - SCREW BDE-BAC0204062.A11 BAC0204062	£1.66	£1.99
100 - MAGAZINE SA >wk042013 sn13016031 BDE-HAA-19-35-P7.A3 HAA-19-35-P7	£188.92	£226.70
826 - SPANNER SPECIAL BDE-C0010701.A12 C0010701	£6.06	£7.27

Attribute Name	Value
Brand	Bostitch
