Bostitch D62ADC Type Rev K Carton Sealer Spare Parts

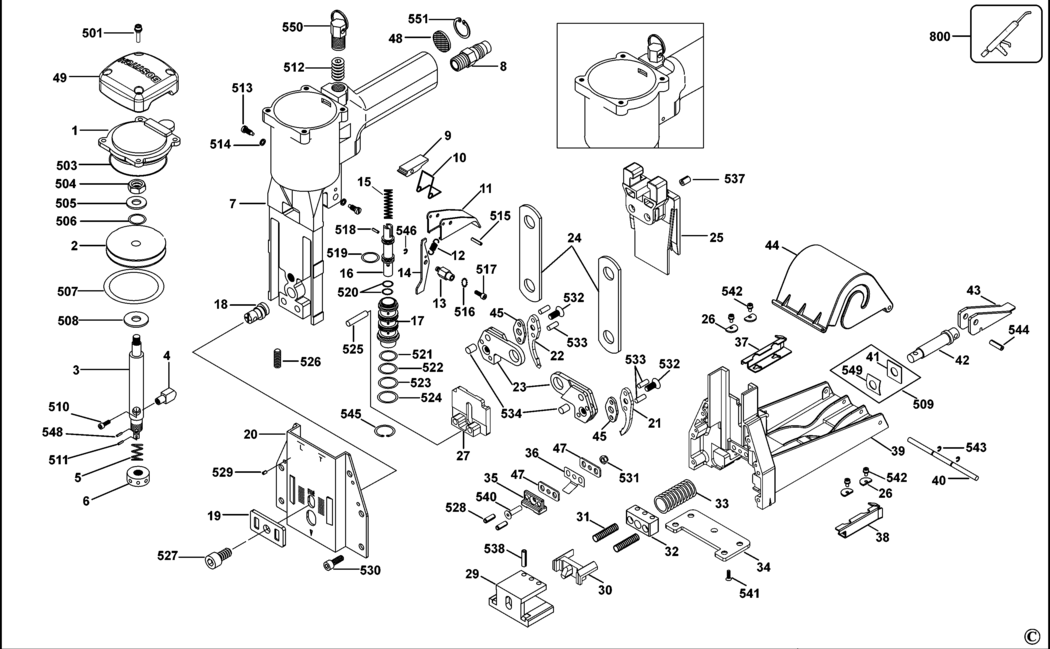

An exploded drawing and spare parts listing for the Bostitch D62ADC Type Rev K Carton Sealer

	Ex VAT	Inc VAT
1 - CAP BDE-A01200110.A7 A01200110	£17.48	£20.97
2 - PISTON BDE-A02800201.A0 A02800201	£9.41	£11.29
3 - ROD BDE-A02800301.A8 A02800301	£37.35	£44.82
4 - BLOCK BDE-A00100401.A3 A00100401	£9.41	£11.29
5 - SPRING BDE-A00100501.A7 A00100501	£1.50	£1.80
6 - COLLAR BDE-A00100601.A3 A00100601	£5.88	£7.06
8 - CONNECTOR MALE BDE-A00100802.A1 A00100802	£3.30	£3.96
9 - BLOCK BDE-A00100902.A7 A00100902	£3.80	£4.56
10 - SPRING BDE-A00101001.A3 A00101001	£1.50	£1.80
11 - TRIGGER BDE-A00101101.A7 A00101101	£3.30	£3.96
12 - SPRING BDE-A00101201.A3 A00101201	£1.50	£1.80
13 - ROD BDE-A00101301.A6 A00101301	£3.30	£3.96
14 - ARM LINK BDE-A00101402.A3 A00101402	£2.78	£3.34
15 - SPRING COMPRESSION BDE-A00101501.A7 A00101501	£1.50	£1.80
16 - VALVE BDE-A00101601.A4 A00101601	£12.17	£14.60
17 - TUBE BDE-A00101702.A6 A00101702	£16.03	£19.24
18 - ROD BDE-A00101801.A4 A00101801	£12.17	£14.60
19 - PLATE BDE-A00101901.A6 A00101901	£3.30	£3.96
20 - PLATE BDE-A01102501.A3 A01102501	£7.85	£9.42
21 - JAW BDE-A01900503.A0 A01900503	£5.88	£7.06
22 - JAW BDE-A01900503.A1 A01900503	£5.88	£7.06
23 - SEAT BDE-A00102301.A8 A00102301	£24.39	£29.27
24 - LINK BDE-A00102401.A6 A00102401	£2.26	£2.71
25 - DRIVER SA BDE-A02202802.A2 A02202802	£113.07	£135.68
26 - WASHER BDE-A07601001 A07601001	£1.50	£1.80
27 - GUIDE BLOCK BDE-A02200202.A1 A02200202	£30.08	£36.10
29 - ANVIL BDE-A02200603.A0 A02200603	£38.80	£46.56
30 - PUSHER BDE-A02200702.A1 A02200702	£30.08	£36.10
31 - SPRING COMPRESSION BDE-A02201101.A3 A02201101	£2.78	£3.34
32 - CAP BDE-A02200501.A1 A02200501	£17.48	£20.97
33 - SPRING BDE-A02201201.A2 A02201201	£4.69	£5.63
34 - PLATE BDE-A02200901.A3 A02200901	£14.57	£17.48
35 - GUIDE BDE-A02202901.A0 A02202901	£16.03	£19.24
36 - LEAF SPRING BDE-A02201803.A3 A02201803	£2.26	£2.71
37 - GUIDE BDE-A07600601.A1 A07600601	£4.69	£5.63
38 - GUIDE BDE-A07600701.A0 A07600701	£4.69	£5.63
40 - SHAFT BDE-A02201301.A3 A02201301	£1.50	£1.80
41 - WASHER 1MM BDE-A02201909 A02201909	£2.26	£2.71
42 - SHAFT BDE-A02200801.A2 A02200801	£10.85	£13.02
43 - LEVER BDE-A02201001.A2 A02201001	£7.85	£9.42
44 - COVER BDE-A02201402.A1 A02201402	£5.88	£7.06
45 - SPACER BDE-A02300801.A0 A02300801	£2.78	£3.34
47 - WASHER BDE-A02202402.A0 A02202402	£2.78	£3.34
48 - SILENCER BDE-BAI1401.A10 BAI1401	£3.30	£3.96
49 - COVER BDE-9R189951 9R189951	£7.85	£9.42
501 - BOLT BDE-9R189952 9R189952	£1.50	£1.80
503 - O RING BDE-BAB017537.A4 BAB017537	£1.50	£1.80
504 - NUT BDE-BAD02061.A2 BAD02061	£1.50	£1.80
505 - WASHER BDE-BAE06094.A4 BAE06094	£1.50	£1.80
506 - O RING BDE-BAB017076.A10 BAB017076	£1.50	£1.80
507 - O RING BDE-BAB057476.A6 BAB057476	£1.50	£1.80
508 - WASHER BDE-A00104101.A4 A00104101	£1.50	£1.80
509 - REPAIR KIT BDE-9R207418 9R207418	£7.18	£8.62
510 - BOLT BDE-BAC0404102.A10 BAC0404102	£1.50	£1.80
511 - PIN BDE-BAA025014.A6 BAA025014	£1.50	£1.80
512 - BOLT BDE-BAC0312122.A4 BAC0312122	£1.50	£1.80
513 - SCREW BDE-A00104401.A6 A00104401	£1.50	£1.80
514 - WASHER SPRING BDE-BAE01042.A12 BAE01042	£1.50	£1.80
515 - PIN BDE-BAA030020.A5 BAA030020	£1.50	£1.80
516 - WASHER LOCK BDE-BAE02042.A9 BAE02042	£1.50	£1.80
517 - BOLT BDE-BAC0404102.A11 BAC0404102	£1.50	£1.80
518 - SPRING BDE-BAA030010.A9 BAA030010	£1.50	£1.80
519 - O RING BDE-BAB017124.A4 BAB017124	£1.50	£1.80
520 - O RING BDE-BAB017076.A11 BAB017076	£1.50	£1.80
521 - O RING BDE-BAB016145.A4 BAB016145	£1.50	£1.80
522 - O RING BDE-BAB016150.A6 BAB016150	£1.50	£1.80
523 - O RING BDE-BAB016155.A4 BAB016155	£1.50	£1.80
524 - O RING BDE-BAB016160.A6 BAB016160	£1.50	£1.80
525 - ROD BDE-A00104702.A4 A00104702	£1.50	£1.80
526 - BOLT BDE-BAC0306142.A4 BAC0306142	£1.50	£1.80
527 - BOLT BDE-BAC0608162.A7 BAC0608162	£1.50	£1.80
528 - PIN BDE-BAA050014.A4 BAA050014	£1.50	£1.80
529 - SPRING BDE-BAA030010.A10 BAA030010	£1.50	£1.80
530 - BOLT BDE-BAC0605142.A18 BAC0605142	£1.50	£1.80
531 - NUT BDE-BAD01051.A8 BAD01051	£1.50	£1.80
532 - SCREW BDE-A00106301.A0 A00106301	£1.50	£1.80
533 - PIN BDE-A00104501.A2 A00104501	£1.50	£1.80
534 - PIN BDE-A00104602.A10 A00104602	£1.50	£1.80
537 - PIN BDE-BAA060016-R.A0 BAA060016-R	£1.50	£1.80
538 - PIN BDE-BAA040022.A0 BAA040022	£1.50	£1.80
540 - SCREW BDE-BAC0205202.A2 BAC0205202	£1.50	£1.80
541 - SCREW BDE-bac0205082.A2 bac0205082	£1.50	£1.80
542 - BOLT BDE-BAC0603082.A1 BAC0603082	£1.50	£1.80
543 - CIRCLIP BDE-BAF10252.A11 BAF10252	£1.50	£1.80
544 - PIN BDE-BAA040020.A5 BAA040020	£1.50	£1.80
545 - RETAINER BDE-BAF22002.A4 BAF22002	£1.50	£1.80
546 - CIRCLIP BDE-BAF10252.A12 BAF10252	£1.50	£1.80
548 - PIN BDE-A00104901.A0 A00104901	£1.50	£1.80
549 - WASHER. CUP BDE-A02203102 A02203102	£1.50	£1.80
550 - HOOK BDE-C0011201.A1 C0011201	£14.57	£17.48
551 - RETAINER BDE-BAF22002.A3 BAF22002	£1.50	£1.80
800 - GREASE BDE-100653.A10 100653	£2.26	£2.71
800 - GREASE BDE-100679.A7 100679	£78.12	£93.74

Attribute Name	Value
Brand	Bostitch
