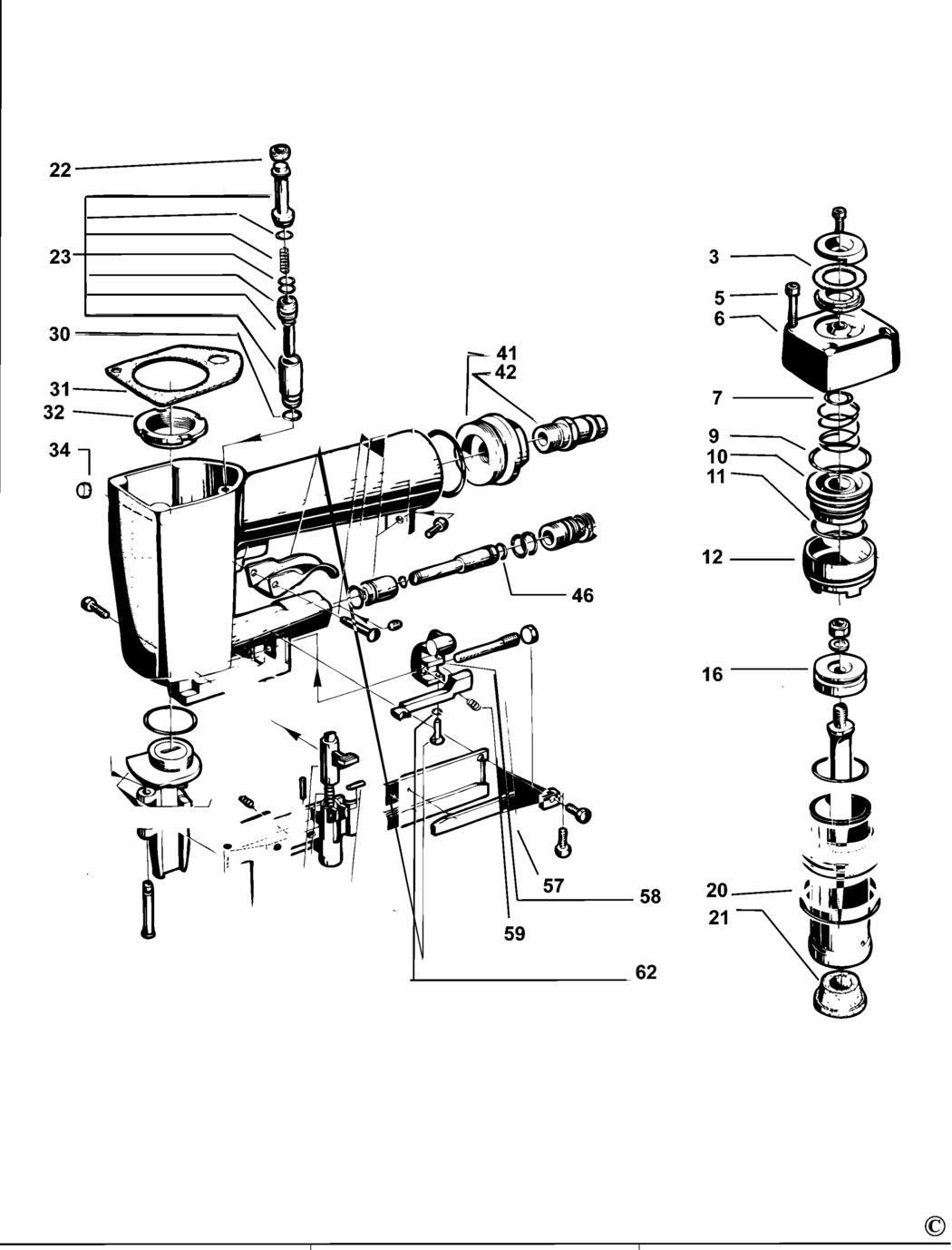

An exploded drawing and spare parts listing for the Bostitch MINI CF ROLL Type REV 0 Nailer

	Ex VAT	Inc VAT
3 - O RING BDE-3099760.A3 3099760	-
5 - NO LONGER AVAILABLE BDE-000000-00.A65231 000000-00	-
6 - CAP BDE-3397010.A1 3397010	-
7 - O RING BDE-3091011.A4 3091011	£1.42	£1.70
9 - O RING BDE-3091058.A21 3091058	£1.42	£1.70
10 - VALVE BDE-3397020.A0 3397020	£44.00	£52.80
11 - O RING BDE-3091052.A13 3091052	£1.50	£1.80
12 - COVER BDE-3397031.A1 3397031	-
16 - PISTON BDE-3397180 3397180	-
20 - O RING BDE-3090566.A5 3090566	-
21 - SHOCK ABSORBER BDE-3397210.A0 3397210	-
22 - NO LONGER AVAILABLE BDE-000000-00.A65232 000000-00	-
23 - CONTROL SA BDE-3397110.A0 3397110	£50.60	£60.72
30 - NO LONGER AVAILABLE BDE-000000-00.A65233 000000-00	-
31 - GASKET BDE-3098120.A0 3098120	-
32 - NUT BDE-3397550.A1 3397550	-
34 - GASKET BDE-3099950.A17 3099950	-
41 - PLUG BDE-3551440.A10 3551440	-
42 - NO LONGER AVAILABLE BDE-000000-00.A65234 000000-00	-
46 - O RING BDE-3090621.A0 3090621	-
57 - PIN BDE-3397410.A1 3397410	-
58 - SUPPORT BDE-3397430.A0 3397430	£59.41	£71.29
59 - SPRING BDE-3050640.A0 3050640	-
62 - CIRCLIP BDE-3030106.A0 3030106	-

Attribute Name	Value
Brand	Bostitch
