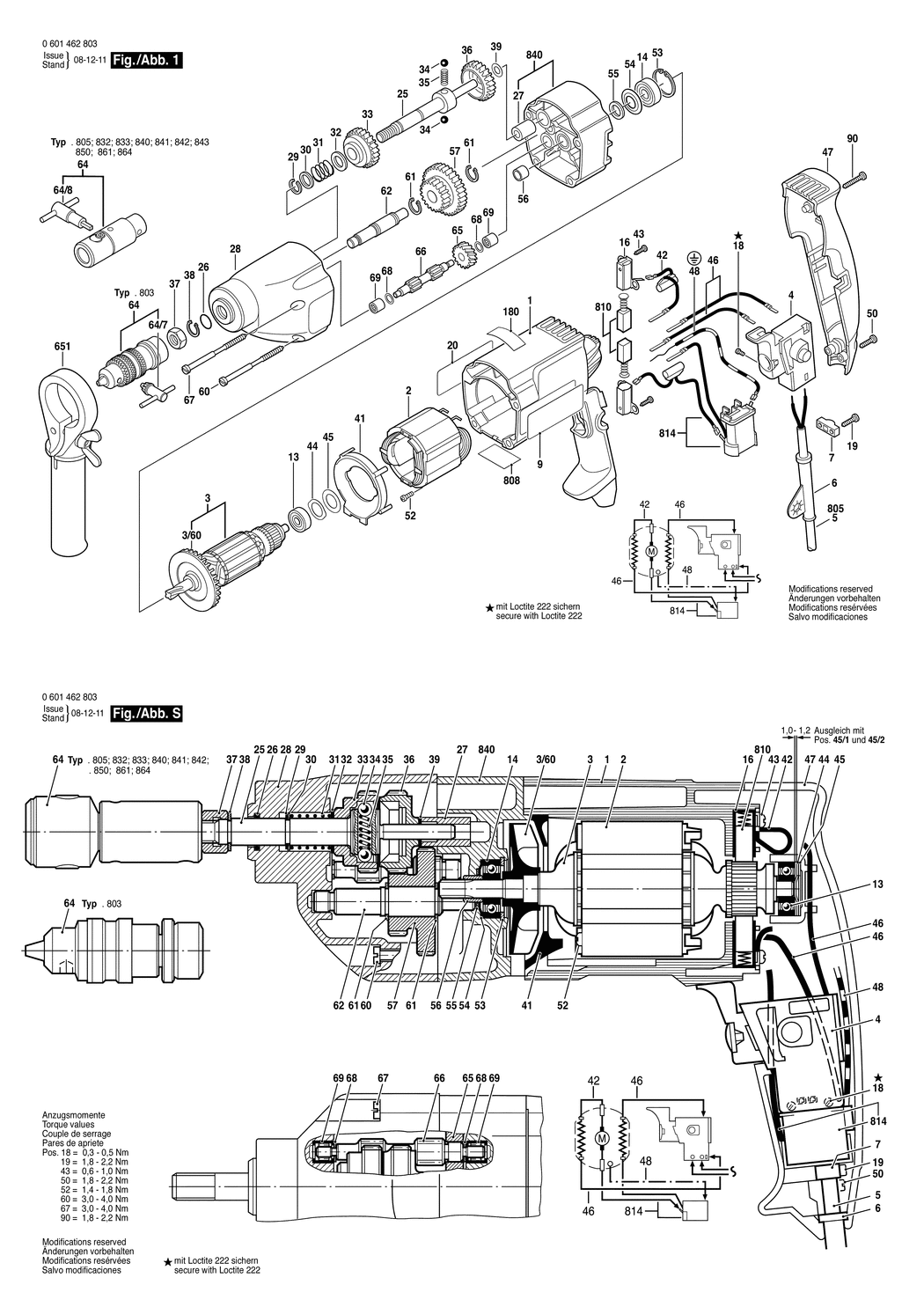

1 - MOTOR HOUSING
BSD-2605104309.A45
2605104309
|
£23.86
|
£28.63
|
|
|
2 - FIELD 220-230V
BSD-2604220445.A46
2604220445
|
£27.23
|
£32.68
|
|
|
3 - ARMATURE 220-230V
BSD-2604010612.A6
2604010612
|
-
|
|
|
|
3/60 - FAN
BSD-2606610049.A479
2606610049
|
£1.95
|
£2.34
|
|
|
4 - SWITCH
BSD-2607200184.A73
2607200184
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A343
2600707059
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A327
2601035001
|
£1.66
|
£1.99
|
|
|
9 - STICKER
BSD-3601110341.A0
3601110341
|
£4.75
|
£5.70
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A802
1900905018
|
£18.96
|
£22.75
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A453
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A296
2604337003
|
£1.95
|
£2.34
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A190
2603410001
|
£1.66
|
£1.99
|
|
|
19 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1623
2910211019
|
£1.66
|
£1.99
|
|
|
20 - STICKER
BSD-3601110342.A5
3601110342
|
-
|
|
|
|
25 - DRILLING SPINDLE 1/2
BSD-3606135003.A5
3606135003
|
£98.11
|
£117.73
|
|
|
26 - O-RING 13.0x2.0 MM
BSD-3600210065.A0
3600210065
|
-
|
|
|
|
27 - BUSHING
BSD-3600328036.A6
3600328036
|
-
|
|
|
|
28 - GEAR HOUSING
BSD-3605190131.A5
3605190131
|
£129.38
|
£155.25
|
|
|
29 - SPRING RETAINING RING
BSD-3600118009.A3
3600118009
|
£1.66
|
£1.99
|
|
|
30 - PLAIN WASHER
BSD-3600101043.A3
3600101043
|
£3.72
|
£4.47
|
|
|
31 - COMPRESSION SPRING
BSD-3604616016.A3
3604616016
|
-
|
|
|
|
32 - SHIM
BSD-3600101044.A2
3600101044
|
£2.33
|
£2.80
|
|
|
33 - CYLINDRICAL GEAR Z=42
BSD-3606316071.A1
3606316071
|
£81.81
|
£98.17
|
|
|
34 - BALL DIN 5401-6 G28
BSD-1903230011.A227
1903230011
|
£1.66
|
£1.99
|
|
|
35 - COMPRESSION SPRING
BSD-3604610018.A9
3604610018
|
£1.95
|
£2.34
|
|
|
36 - CYLINDRICAL GEAR Z=42
BSD-3606316020.A7
3606316020
|
£81.81
|
£98.17
|
|
|
37 - NUT
BSD-3603300007.A3
3603300007
|
-
|
|
|
|
38 - SPRING RETAINING RING
BSD-3600118010.A3
3600118010
|
-
|
|
|
|
39 - SHIM 0.5 MM
BSD-2600100505.A42
2600100505
|
£1.32
|
£1.58
|
|
|
41 - COVER DISC
BSD-2601328033.A56
2601328033
|
-
|
|
|
|
42 - SUPPRESSION FILTER
BSD-2604465068.A15
2604465068
|
-
|
|
|
|
43 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A333
1613435034
|
£1.66
|
£1.99
|
|
|
44 - SHIM
BSD-2600150004.A69
2600150004
|
£1.95
|
£2.34
|
|
|
45 - SHIM 0.3 MM
BSD-2600101023.A129
2600101023
|
£1.66
|
£1.99
|
|
|
45 - SHIM 0.2 MM
BSD-2600101022.A521
2600101022
|
£1.66
|
£1.99
|
|
|
45 - SHIM 0.5 MM
BSD-2600101020.A129
2600101020
|
£1.66
|
£1.99
|
|
|
46 - CABLE L=130 MM
BSD-2604448005.A365
2604448005
|
£1.66
|
£1.99
|
|
|
47 - HOUSING COVER
BSD-2605132049.A5
2605132049
|
£7.36
|
£8.83
|
|
|
48 - EARTH CONDUCTOR
BSD-2604448097.A129
2604448097
|
£1.66
|
£1.99
|
|
|
50 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1621
2910211019
|
£1.66
|
£1.99
|
|
|
52 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A21
2603435015
|
£1.66
|
£1.99
|
|
|
53 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A559
2916660008
|
£1.95
|
£2.34
|
|
|
54 - CUPPED WASHER
BSD-2600500002.A283
2600500002
|
£1.66
|
£1.99
|
|
|
55 - FELT WASHER
BSD-2600108077.A210
2600108077
|
£1.66
|
£1.99
|
|
|
56 - RECEPTACLE
BSD-2600400008.A75
2600400008
|
£1.66
|
£1.99
|
|
|
57 - CYLINDRICAL GEAR Z=33/56
BSD-3606328000.A10
3606328000
|
£98.11
|
£117.73
|
|
|
60 - TAPPING SCREW 4.8x78 MM. TORX T-20
BSD-1603435036.A110
1603435036
|
£1.66
|
£1.99
|
|
|
61 - SPRING RETAINING RING DIN 471-12x1-FSTM
BSD-2916650903.A104
2916650903
|
£1.66
|
£1.99
|
|
|
62 - AXLE
BSD-3603124000.A1
3603124000
|
£46.37
|
£55.64
|
|
|
64 - CHUCK M4-M12
BSD-2608573003.A4
2608573003
|
-
|
|
|
|
64/8 - CHUCK WRENCH
BSD-2607950012.A7
2607950012
|
£16.41
|
£19.69
|
|
|
65 - CYLINDRICAL GEAR Z=28
BSD-3606316021.A3
3606316021
|
£46.37
|
£55.64
|
|
|
66 - SPINDLE WITH GEAR Z=11
BSD-3606337062.A0
3606337062
|
£46.37
|
£55.64
|
|
|
67 - TAPPING SCREW 79 MM
BSD-2603435012.A132
2603435012
|
-
|
|
|
|
68 - SHIM 0.50 MM
BSD-2600100613.A151
2600100613
|
£1.66
|
£1.99
|
|
|
69 - NEEDLE BEARING
BSD-9001140359.A50
9001140359
|
£6.52
|
£7.83
|
|
|
90 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A44
2910211022
|
£1.66
|
£1.99
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A174
1607000385
|
£14.91
|
£17.89
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1123
160111A3H3
|
£2.33
|
£2.80
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A560
2604321905
|
£11.30
|
£13.56
|
|
|
814 - SERVICE KIT
BSD-2607329010.A4
2607329010
|
£21.52
|
£25.83
|
|
|
840 - INTERMEDIATE FLANGE
BSD-3605700054.A7
3605700054
|
£134.16
|
£160.99
|
|
