Bosch ELECTRONIC / 0601462742 / GB 240 Volt Spare Parts

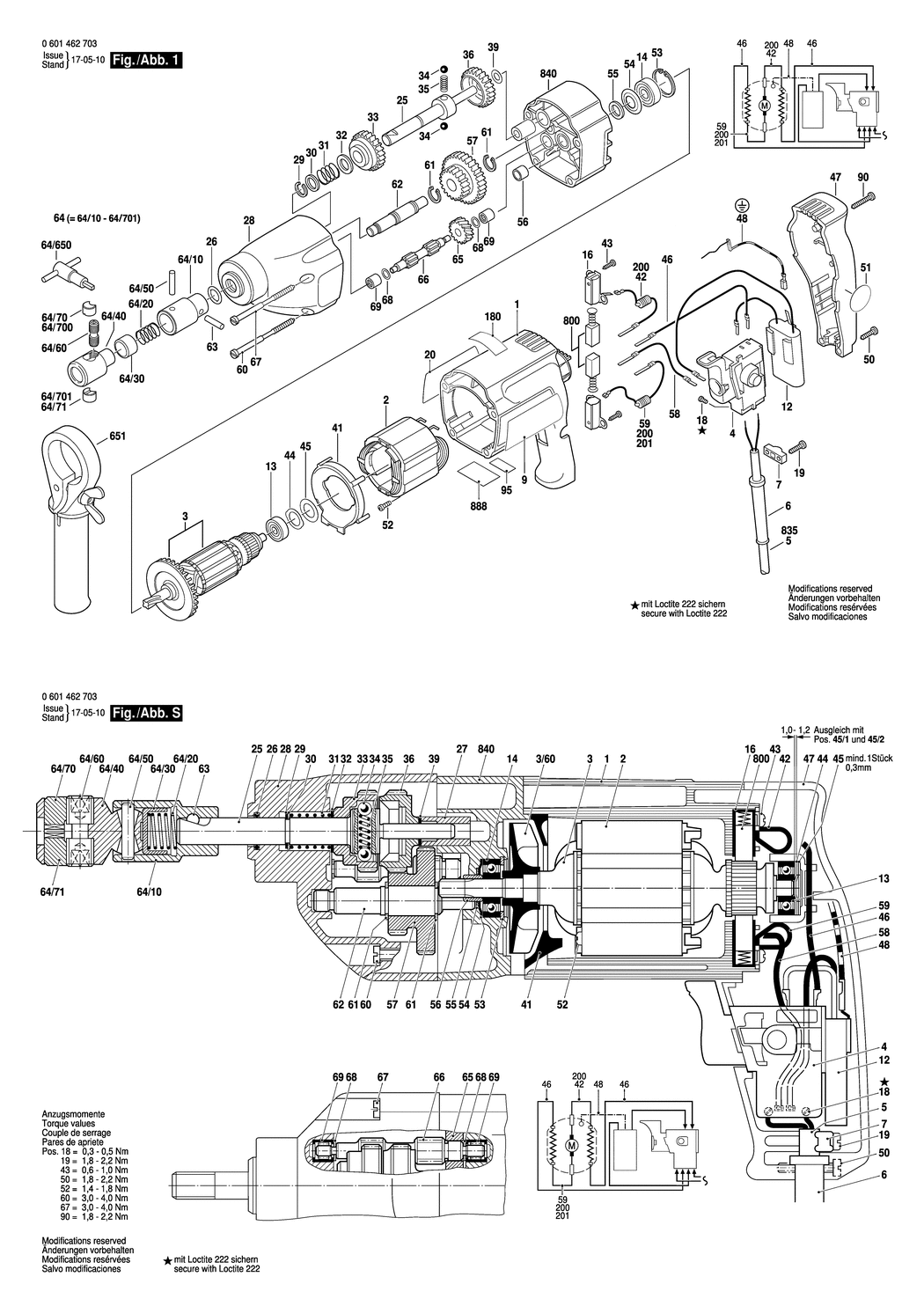

An exploded drawing and listing for the Bosch ELECTRONIC / 0601462742 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104116.A54 2605104116	-
2 - FIELD 240V BSD-2604220430.A10 2604220430	£27.23	£32.68
3 - ARMATURE 240V BSD-2604010613.A1 2604010613	£57.02	£68.42
4 - ON-OFF SWITCH BSD-2607200137.A95 2607200137	-
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A5 3604460069	£37.72	£45.27
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1328 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A315 2601035001	£1.75	£2.10
12 - SUPPRESSION CAPACITOR BSD-2607329110.A3 2607329110	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A827 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A462 2600905021	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604337003.A307 2604337003	£2.16	£2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A205 2603410001	£1.75	£2.10
19 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1653 2910211019	£1.75	£2.10
20 - STICKER BSD-2601110093.A109 2601110093	-
25 - DRILLING SPINDLE BSD-3606135000.A3 3606135000	-
26 - O-RING 12x2 MM BSD-1900210009.A7 1900210009	-
28 - GEAR HOUSING BSD-3605190091.A0 3605190091	-
29 - RETAINING RING BSD-1600224025.A68 1600224025	£2.61	£3.13
30 - PLAIN WASHER BSD-2600101513.A57 2600101513	£1.75	£2.10
31 - COMPRESSION SPRING BSD-3604616007.A5 3604616007	-
32 - SHIM BSD-2600101601.A35 2600101601	£1.75	£2.10
33 - CYLINDRICAL GEAR Z=42 BSD-3606316019.A1 3606316019	-
34 - BALL DIN 5401-6 G28 BSD-1903230011.A226 1903230011	£2.61	£3.13
35 - COMPRESSION SPRING BSD-3604610018.A3 3604610018	£1.95	£2.34
36 - CYLINDRICAL GEAR Z=42 BSD-3606316020.A3 3606316020	£81.81	£98.17
39 - SHIM 0.5 MM BSD-2600100505.A49 2600100505	£1.32	£1.58
41 - COVER DISC BSD-2601328033.A54 2601328033	-
42 - SUPPRESSION FILTER BSD-2604465068.A22 2604465068	-
43 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1211 2603490017	£2.16	£2.59
44 - SHIM BSD-2600150004.A95 2600150004	£2.16	£2.59
45 - SHIM 0.3 MM BSD-2600101023.A111 2600101023	£1.75	£2.10
45 - SHIM 0.2 MM BSD-2600101022.A539 2600101022	£1.75	£2.10
45 - SHIM 0.5 MM BSD-2600101020.A111 2600101020	£1.75	£2.10
46 - CABLE L=130 MM BSD-2604448005.A358 2604448005	£1.75	£2.10
47 - HOUSING COVER BSD-2605132040.A107 2605132040	-
48 - CABLE BSD-2604448003.A216 2604448003	-
50 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A667 2910211021	£1.75	£2.10
51 - STICKER BSD-2601110230.A117 2601110230	-
52 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A4 2603435015	£2.16	£2.59
53 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A542 2916660008	£2.16	£2.59
54 - CUPPED WASHER BSD-2600500002.A303 2600500002	£1.75	£2.10
55 - FELT WASHER BSD-2600108077.A216 2600108077	£1.75	£2.10
56 - RECEPTACLE BSD-2600400008.A60 2600400008	£1.75	£2.10
57 - CYLINDRICAL GEAR Z=33/56 BSD-3606328000.A4 3606328000	£102.57	£123.08
58 - CONNECTING CABLE L=98 MM BSD-2604448074.A58 2604448074	£2.16	£2.59
59 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A101 2604465086	£5.58	£6.70
60 - TAPPING SCREW BZ 4.8x78 MM BSD-1603435019.A2 1603435019	-
61 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A247 2916650003	£1.75	£2.10
62 - AXLE BSD-3603124000.A8 3603124000	£48.38	£58.06
63 - GRIPPING WEDGE dia 5x18 MM/3.6 MM BSD-1603110000.A27 1603110000	-
63 - GRIPPING WEDGE dia 5x18 MM/3.0 MM BSD-1603110003.A5 1603110003	-
63 - GRIPPING WEDGE dia 5x18 MM/3.3 MM BSD-1603110004.A11 1603110004	-
64 - TWO-JAW DRILL JUCK M4-M12 BSD-2608573000.A6 2608573000	£134.16	£160.99
64/10 - CARRIER BSD-1600328021.A10 1600328021	£68.42	£82.10
64/20 - COMPRESSION SPRING BSD-1604617002.A13 1604617002	£2.80	£3.36
64/30 - SPRING RETAINER BSD-1600506000.A15 1600506000	£8.49	£10.19
64/40 - CARRIER BSD-1603219006.A14 1603219006	£116.15	£139.38
64/50 - STRAIGHT PIN BSD-1613100012.A267 1613100012	£2.61	£3.13
64/60 - STUD BOLT BSD-1603502000.A4 1603502000	£21.52	£25.83
64/70 - CLAMPING JAWS M 12x1.5 BSD-1600390002.A18 1600390002	-
64/71 - CLAMPING JAWS M 12x1.5 BSD-1600390003.A15 1600390003	-
64/650 - CHUCK WRENCH BSD-2607950012.A1 2607950012	£16.41	£19.69
64/700 - CLAMPING JAWS M 12x1.5 BSD-1600390004.A6 1600390004	-
64/701 - CLAMPING JAWS M 12x1.5 BSD-1600390005.A15 1600390005	-
65 - CYLINDRICAL GEAR Z=28 BSD-3606316021.A7 3606316021	£48.38	£58.06
66 - SPINDLE WITH GEAR Z=11 BSD-3606337062.A6 3606337062	£48.38	£58.06
67 - TAPPING SCREW 79 MM BSD-2603435012.A138 2603435012	-
68 - SHIM 0.50 MM BSD-2600100613.A170 2600100613	£1.75	£2.10
69 - NEEDLE BEARING BSD-9001140359.A58 9001140359	£6.52	£7.83
90 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A36 2910211022	£1.75	£2.10
180 - NAMEPLATE BSD-1601110449.A7 1601110449	-
800 - CARBON-BRUSH SET BSD-2604321905.A547 2604321905	£11.30	£13.56
840 - INTERMEDIATE FLANGE BSD-3605700054.A2 3605700054	£134.16	£160.99
888 - NAMEPLATE BSD-160111A3H3.A1100 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
