Bosch GGS 28 LCE / 3601B21100 / EU 230 Volt Spare Parts

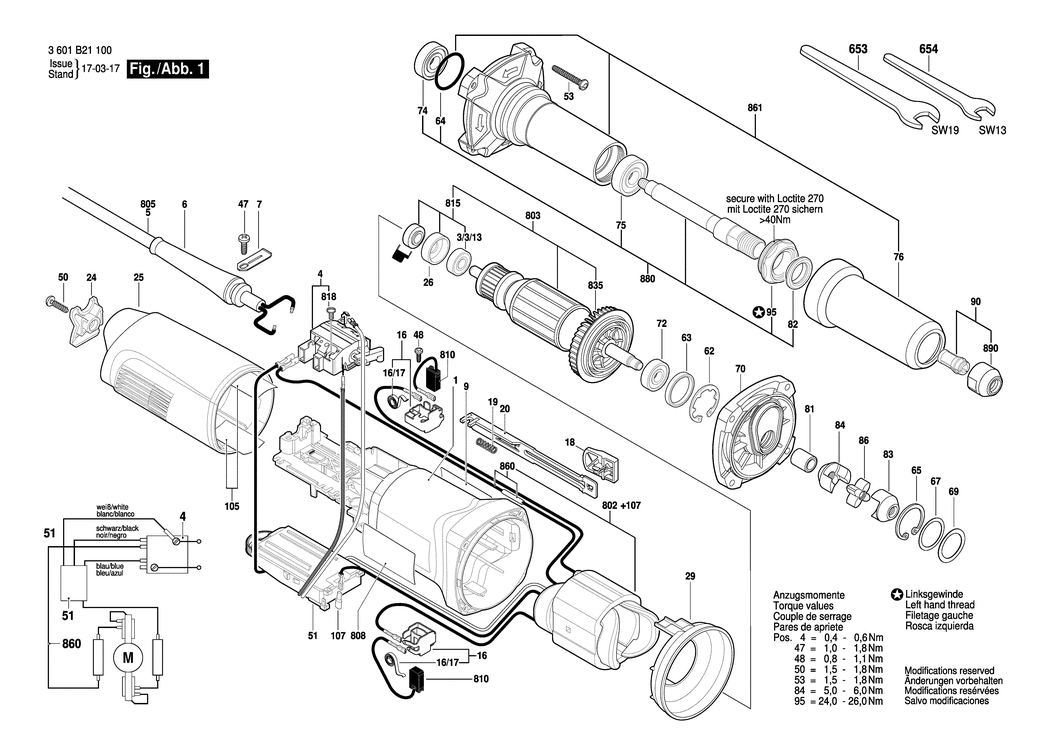

An exploded drawing and listing for the Bosch GGS 28 LCE / 3601B21100 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108224.A15 3605108224	£10.10	£12.12
3/3/13 - BALL BEARING 7x19x6 BSD-2600905032.A1808 2600905032	£5.30	£6.36
4 - SWITCH BSD-1607200199.A38 1607200199	£16.41	£19.69
6 - GROMMET BSD-1600703040.A1 1600703040	£2.16	£2.59
7 - FASTENING CLAMP BSD-1601302017.A231 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601110594.A3 3601110594	£2.61	£3.13
16 - BRUSH HOLDER BSD-1601323025.A17 1601323025	£3.72	£4.47
16/17 - SPIRAL SPRING BSD-1604652013.A437 1604652013	£1.75	£2.10
18 - SWITCH HANDLE BSD-1602026088.A0 1602026088	£1.75	£2.10
19 - COMPRESSION SPRING BSD-1604611026.A143 1604611026	£1.75	£2.10
20 - ADJUSTING SLIDE BSD-1602319010.A17 1602319010	£1.75	£2.10
24 - COVER BSD-1605500227.A24 1605500227	£2.16	£2.59
25 - HOUSING COVER BSD-1605500251.A55 1605500251	£7.36	£8.83
26 - RUBBER RING BSD-1600206036.A374 1600206036	£1.75	£2.10
29 - AIR-DEFLECTOR RING BSD-1600591025.A310 1600591025	£2.61	£3.13
47 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A20 2603490021	£1.75	£2.10
48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A517 1613435034	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A65 2603490023	£1.75	£2.10
51 - SPEED GOVERNOR BSD-1607233452.A2 1607233452	£68.42	£82.10
53 - LENS HEAD SCREW 4x32 BSD-2603490026.A222 2603490026	£1.75	£2.10
62 - RETAINING CLIP BSD-1600119011.A10 1600119011	£2.16	£2.59
63 - RUBBER RING BSD-1600206025.A212 1600206025	£2.16	£2.59
64 - O-RING 26.0x2.0 MM BSD-1610210101.A49 1610210101	£2.80	£3.36
65 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A86 2916660010	£1.75	£2.10
67 - SHIM BSD-3600150011.A19 3600150011	£1.75	£2.10
69 - SHIM 0.10 MM BSD-1710102601.A13 1710102601	£1.75	£2.10
70 - INTERMEDIATE FLANGE BSD-3605700186.A7 3605700186	£46.82	£56.18
72 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A123 1600905032	£5.58	£6.70
74 - GROOVE BALL BEARING 10x26x8 BSD-3600905156.A7 3600905156	£12.04	£14.45
75 - GROOVE BALL BEARING BSD-3600905157.A7 3600905157	£12.04	£14.45
76 - PROTECTIVE SLEEVE BSD-3605500194.A3 3605500194	£12.04	£14.45
81 - SPACER SLEEVE BSD-3600400034.A5 3600400034	£5.30	£6.36
82 - SEALING DISK BSD-3600103020.A7 3600103020	£5.30	£6.36
83 - COUPLING HALF BSD-3606445047.A6 3606445047	£21.68	£26.01
84 - COUPLING HALF BSD-3606445047.A7 3606445047	£21.68	£26.01
86 - CARRIER BSD-3606337242.A5 3606337242	£5.30	£6.36
90 - CLAMPING UNIT dia6 MM BSD-3607030474.A8 3607030474	£21.68	£26.01
95 - FLANGE BSD-3600328043.A6 3600328043	£23.86	£28.63
105 - INSULATING PLATE BSD-1601008005.A165 1601008005	£4.26	£5.11
107 - INSULATING PART BSD-1600712030.A10 1600712030	£1.75	£2.10
653 - SINGLE-HEAD ENG. WRENCH SW19 BSD-3607950024.A13 3607950024	£8.67	£10.41
654 - SINGLE-HEAD ENG. WRENCH SW13 BSD-3607950025.A1 3607950025	£7.36	£8.83
802 - POLE SHOE 230V BSD-3607030475.A7 3607030475	£54.42	£65.30
803 - ARMATURE 230V BSD-3607030476.A3 3607030476	£72.18	£86.62
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A10 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3H3.A2902 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014176.A129 1607014176	£13.12	£15.75
810 - CARBON-BRUSH SET 10 x 1 607 014 176 BSD-1607000482.A10 1607000482	£93.88	£112.65
815 - PARTS SET BSD-1607000378.A79 1607000378	£6.52	£7.83
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A149 2910110048	£1.75	£2.10
835 - FAN BSD-1606610129.A98 1606610129	£2.16	£2.59
860 - CONNECTING CABLE BSD-1604448023.A48 1604448023	£1.75	£2.10
861 - SPINDLE HOUSING BSD-3607031668.A1 3607031668	£68.42	£82.10
880 - GRINDING SPINDLE BSD-3607031667.A5 3607031667	£120.11	£144.13
890 - ROUND NUT BSD-3603313006.A14 3603313006	£10.10	£12.12
