Bosch GGS 27 L / 0601215042 / GB 240 Volt Spare Parts

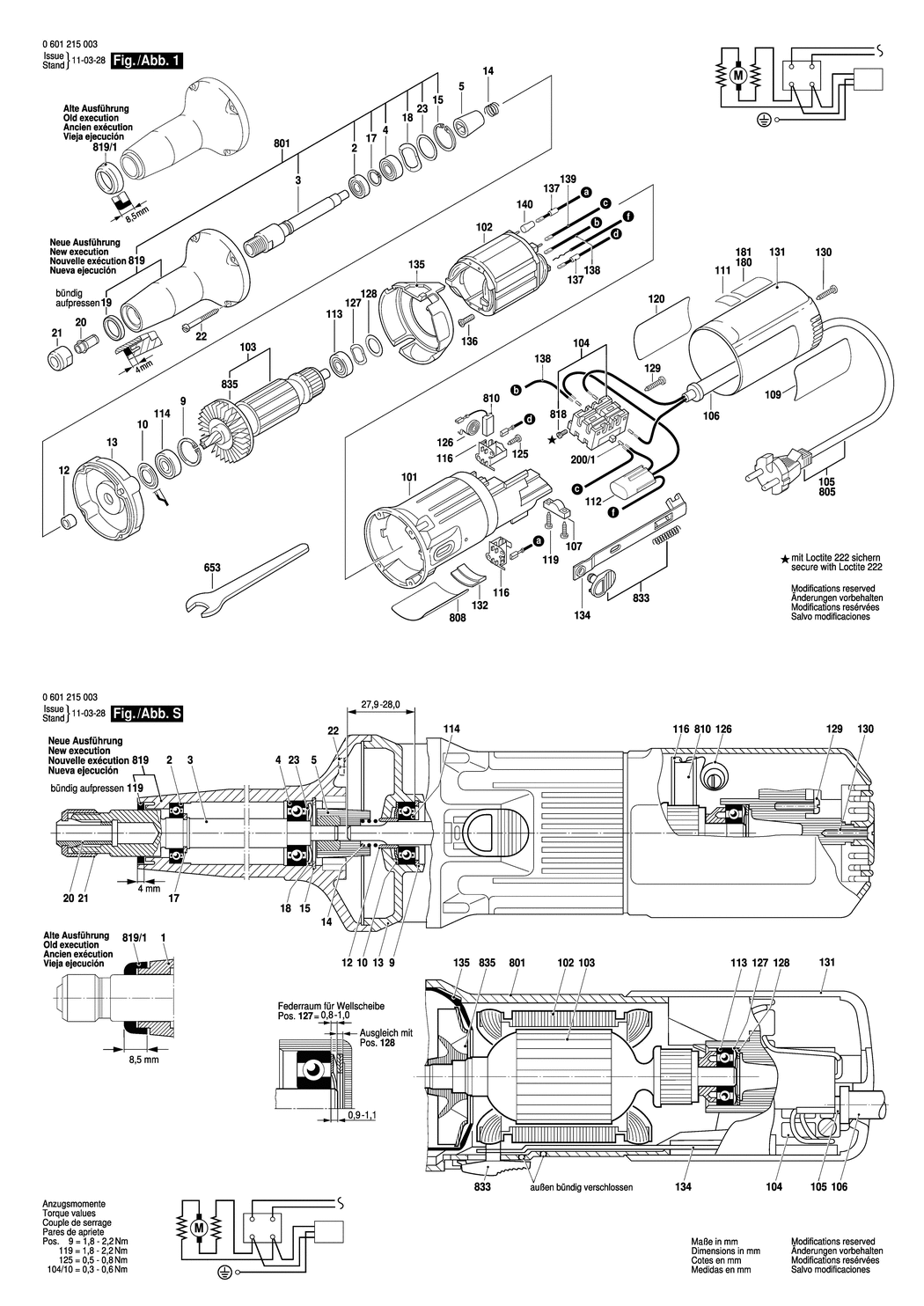

An exploded drawing and listing for the Bosch GGS 27 L / 0601215042 / GB 240 Volt

	Ex VAT	Inc VAT
2 - GROOVE BALL BEARING BSD-3600900020.A18 3600900020	£13.12	£15.75
3 - GRINDING SPINDLE M15x1. SW17 BSD-3603523008.A12 3603523008	£81.81	£98.17
4 - GROOVE BALL BEARING BSD-3600900021.A9 3600900021	£21.52	£25.83
5 - COUPLING HALF BSD-2606446002.A19 2606446002	£8.67	£10.41
9 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A313 2916660008	£2.16	£2.59
10 - CUPPED WASHER BSD-2600500002.A582 2600500002	£1.75	£2.10
12 - RECEPTACLE BSD-2600400008.A551 2600400008	£1.75	£2.10
13 - INTERMEDIATE FLANGE BSD-2605700215.A32 2605700215	£45.67	£54.80
14 - COMPRESSION SPRING BSD-2604630001.A8 2604630001	£2.16	£2.59
15 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A142 2916660010	£1.75	£2.10
17 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A26 2916650903	£1.75	£2.10
18 - SHIM BSD-3600150011.A35 3600150011	£1.75	£2.10
19 - COVER RING BSD-3600300074.A8 3600300074	£14.91	£17.89
20 - COLLET dia 3 MM BSD-2608570077.A19 2608570077	£21.68	£26.01
20 - COLLET dia 6 MM BSD-2608570129.A23 2608570129	£18.96	£22.75
20 - COLLET dia 8 MM BSD-2608570081.A74 2608570081	£21.68	£26.01
20 - COLLET dia 1/8 (3.175 MM) BSD-2608570078.A22 2608570078	£33.74	£40.49
21 - ROUND NUT BSD-3603342009.A101 3603342009	£14.91	£17.89
22 - TAPPING SCREW DIN 7971-BZ3.9x38 BSD-2910211093.A22 2910211093	£1.75	£2.10
23 - SHIM 0.10 MM BSD-1710102601.A21 1710102601	£1.75	£2.10
101 - MOTOR HOUSING BSD-2605108051.A33 2605108051	£21.52	£25.83
102 - FIELD 240V BSD-2604220441.A8 2604220441	£31.64	£37.97
103 - ARMATURE 240V BSD-2604010659.A3 2604010659	£63.50	£76.20
104 - SWITCH BSD-2607200674.A162 2607200674	£16.41	£19.69
105 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460168.A25 2604460168	£21.52	£25.83
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A301 2600703012	£2.80	£3.36
107 - CABLE CLIP BSD-2601035001.A1693 2601035001	£1.75	£2.10
109 - STICKER BSD-3601110353.A4 3601110353	£3.72	£4.47
112 - SUPPRESSION FILTER BSD-2607329104.A6 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A287 1900905018	£18.96	£22.75
114 - BALL BEARING 9x24x7 BSD-2600905095.A230 2600905095	£12.04	£14.45
116 - BRUSH HOLDER BSD-1600A003G4.A123 1600A003G4	£3.72	£4.47
119 - SCREW 4x16 BSD-2603490022.A2109 2603490022	£1.75	£2.10
120 - STICKER BSD-3601110375.A6 3601110375	£3.72	£4.47
125 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A547 1613435034	£1.75	£2.10
126 - SPIRAL SPRING BSD-2604652009.A44 2604652009	£1.75	£2.10
127 - SHIM BSD-2600150004.A642 2600150004	£2.16	£2.59
128 - SHIM 0.3 MM BSD-2600101023.A411 2600101023	£1.75	£2.10
128 - SHIM 0.2 MM BSD-2600101022.A136 2600101022	£1.75	£2.10
128 - SHIM 0.5 MM BSD-2600101020.A496 2600101020	£1.75	£2.10
129 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A188 2910211007	£1.75	£2.10
130 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A34 2910601321	-
131 - HOUSING COVER BSD-2600508036.A4 2600508036	£10.10	£12.12
132 - INTERMEDIATE PIECE BSD-1600026000.A51 1600026000	£1.75	£2.10
134 - ADJUSTING SLIDE BSD-2602319005.A151 2602319005	£1.75	£2.10
135 - COVER DISC BSD-2601328045.A255 2601328045	£2.16	£2.59
136 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A664 2603435015	£2.16	£2.59
137 - SUPPRESSION FILTER BSD-1619P15513.A8 1619P15513	£4.75	£5.70
138 - CONNECTING CABLE L=125MM BSD-2604448040.A79 2604448040	£2.61	£3.13
139 - CONNECTING CABLE L=68MM BSD-2604448039.A7 2604448039	£2.16	£2.59
140 - SHRINKABLE TUBE 25-1MM BSD-2600409014.A21 2600409014	£1.75	£2.10
653 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A72 2607950511	£4.26	£5.11
801 - GRINDING SPINDLE BSD-3607031168.A12 3607031168	£218.41	£262.09
808 - NAMEPLATE BSD-160111A3H3.A4928 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-3607031630.A8 3607031630	-
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2003 2603410001	£1.75	£2.10
819 - SPINDLE BEARING BSD-3607030418.A21 3607030418	£59.53	£71.44
819/1 - COVER RING 8.5 mm BSD-2600501001.A2 2600501001	-
833 - SWITCH HANDLE BSD-2602026910.A23 2602026910	£3.80	£4.56
835 - FAN BSD-2606610050.A62 2606610050	-
