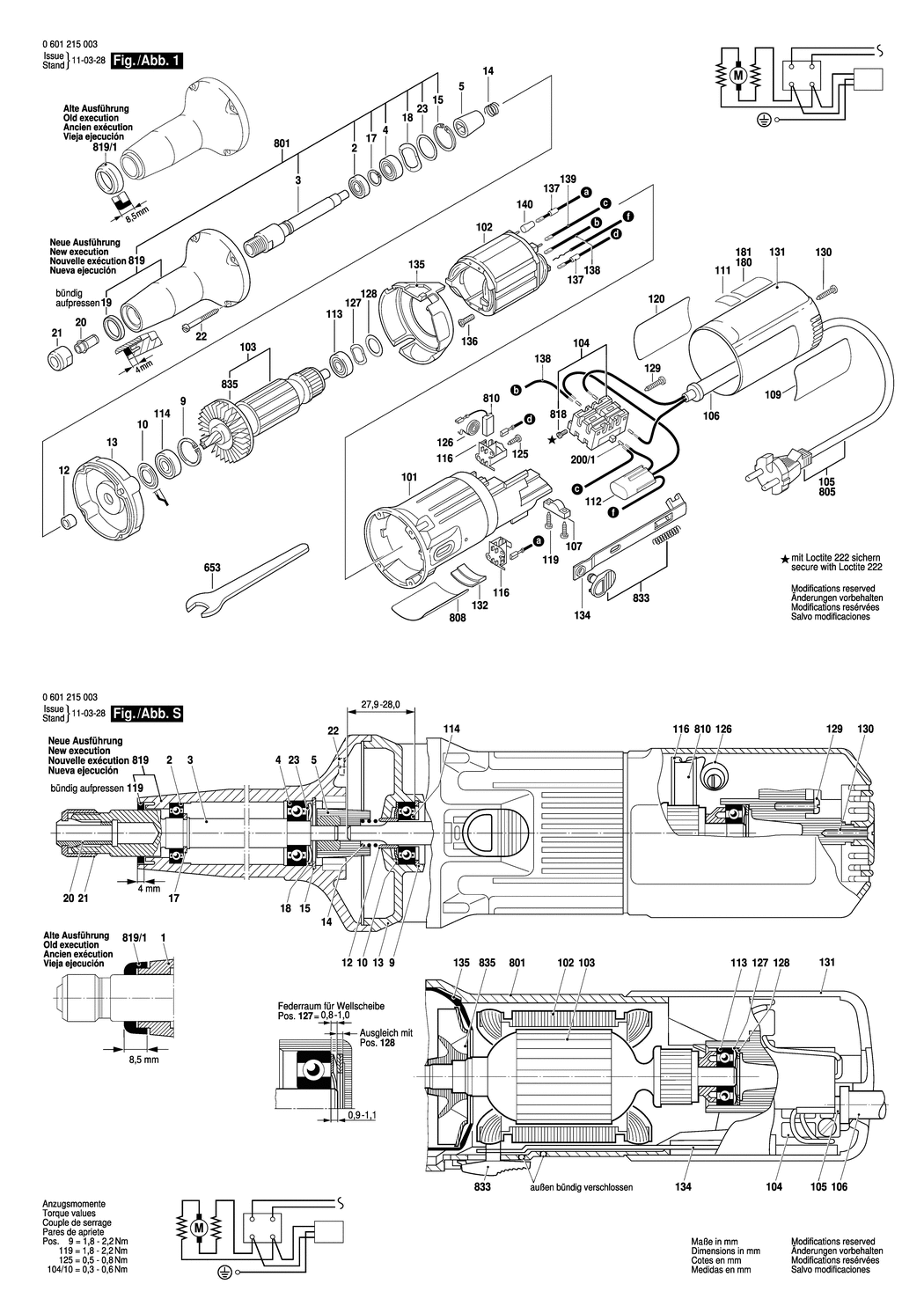

2 - GROOVE BALL BEARING
BSD-3600900020.A36
3600900020
|
£13.12
|
£15.75
|
|
|
3 - GRINDING SPINDLE M15x1. SW17
BSD-3603523008.A21
3603523008
|
£81.81
|
£98.17
|
|
|
4 - GROOVE BALL BEARING
BSD-3600900021.A1
3600900021
|
£21.52
|
£25.83
|
|
|
5 - COUPLING HALF
BSD-2606446002.A1
2606446002
|
£8.67
|
£10.41
|
|
|
9 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A745
2916660008
|
£2.16
|
£2.59
|
|
|
10 - CUPPED WASHER
BSD-2600500002.A137
2600500002
|
£1.75
|
£2.10
|
|
|
12 - RECEPTACLE
BSD-2600400008.A304
2600400008
|
£1.75
|
£2.10
|
|
|
13 - INTERMEDIATE FLANGE
BSD-2605700215.A1
2605700215
|
£45.67
|
£54.80
|
|
|
14 - COMPRESSION SPRING
BSD-2604630001.A28
2604630001
|
£2.16
|
£2.59
|
|
|
15 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A264
2916660010
|
£1.75
|
£2.10
|
|
|
17 - SPRING RETAINING RING DIN 471-12x1-FSTM
BSD-2916650903.A93
2916650903
|
£1.75
|
£2.10
|
|
|
18 - SHIM
BSD-3600150011.A5
3600150011
|
£1.75
|
£2.10
|
|
|
19 - COVER RING
BSD-3600300074.A34
3600300074
|
£14.91
|
£17.89
|
|
|
20 - COLLET dia 3 MM
BSD-2608570077.A28
2608570077
|
£21.68
|
£26.01
|
|
|
20 - COLLET dia 6 MM
BSD-2608570129.A52
2608570129
|
£18.96
|
£22.75
|
|
|
20 - COLLET dia 8 MM
BSD-2608570081.A31
2608570081
|
£21.68
|
£26.01
|
|
|
20 - COLLET dia 1/8 (3.175 MM)
BSD-2608570078.A13
2608570078
|
£33.74
|
£40.49
|
|
|
21 - ROUND NUT
BSD-3603342009.A64
3603342009
|
£14.91
|
£17.89
|
|
|
22 - TAPPING SCREW DIN 7971-BZ3.9x38
BSD-2910211093.A18
2910211093
|
£1.75
|
£2.10
|
|
|
23 - SHIM 0.10 MM
BSD-1710102601.A31
1710102601
|
£1.75
|
£2.10
|
|
|
101 - MOTOR HOUSING
BSD-2605108051.A12
2605108051
|
£21.52
|
£25.83
|
|
|
102 - FIELD 220-230V
BSD-2604220438.A18
2604220438
|
£27.23
|
£32.68
|
|
|
103 - ARMATURE 220-230V
BSD-2604010639.A4
2604010639
|
£57.05
|
£68.46
|
|
|
104 - SWITCH
BSD-2607200674.A93
2607200674
|
£16.41
|
£19.69
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1542
2600703012
|
£2.80
|
£3.36
|
|
|
107 - CABLE CLIP
BSD-2601035001.A1274
2601035001
|
£1.75
|
£2.10
|
|
|
109 - STICKER
BSD-3601110353.A1
3601110353
|
£3.72
|
£4.47
|
|
|
112 - SUPPRESSION FILTER
BSD-2607329104.A85
2607329104
|
£10.10
|
£12.12
|
|
|
113 - BALL BEARING 7x22x7
BSD-1900905018.A1077
1900905018
|
£18.96
|
£22.75
|
|
|
114 - BALL BEARING 9x24x7
BSD-2600905095.A1
2600905095
|
£12.04
|
£14.45
|
|
|
116 - BRUSH HOLDER
BSD-1600A003G4.A496
1600A003G4
|
£3.72
|
£4.47
|
|
|
119 - SCREW 4x16
BSD-2603490022.A260
2603490022
|
£1.75
|
£2.10
|
|
|
120 - STICKER
BSD-3601110375.A0
3601110375
|
£3.72
|
£4.47
|
|
|
125 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A419
1613435034
|
£1.75
|
£2.10
|
|
|
126 - SPIRAL SPRING
BSD-2604652009.A116
2604652009
|
£1.75
|
£2.10
|
|
|
127 - SHIM
BSD-2600150004.A337
2600150004
|
£2.16
|
£2.59
|
|
|
128 - SHIM 0.3 MM
BSD-2600101023.A253
2600101023
|
£1.75
|
£2.10
|
|
|
128 - SHIM 0.2 MM
BSD-2600101022.A346
2600101022
|
£1.75
|
£2.10
|
|
|
128 - SHIM 0.5 MM
BSD-2600101020.A286
2600101020
|
£1.75
|
£2.10
|
|
|
129 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A126
2910211007
|
£1.75
|
£2.10
|
|
|
130 - TAPPING SCREW DIN 7982-ST3.9x22C-H
BSD-2910601321.A224
2910601321
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508036.A50
2600508036
|
£10.10
|
£12.12
|
|
|
132 - INTERMEDIATE PIECE
BSD-1600026000.A131
1600026000
|
£1.75
|
£2.10
|
|
|
134 - ADJUSTING SLIDE
BSD-2602319005.A23
2602319005
|
£1.75
|
£2.10
|
|
|
135 - COVER DISC
BSD-2601328045.A198
2601328045
|
£2.16
|
£2.59
|
|
|
136 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A131
2603435015
|
£2.16
|
£2.59
|
|
|
137 - SUPPRESSION FILTER
BSD-1619P15513.A97
1619P15513
|
£4.75
|
£5.70
|
|
|
138 - CONNECTING CABLE L=125MM
BSD-2604448040.A46
2604448040
|
£2.61
|
£3.13
|
|
|
139 - CONNECTING CABLE L=68MM
BSD-2604448039.A21
2604448039
|
£2.16
|
£2.59
|
|
|
140 - SHRINKABLE TUBE 25-1MM
BSD-2600409014.A0
2600409014
|
£1.75
|
£2.10
|
|
|
653 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A558
2607950511
|
£4.26
|
£5.11
|
|
|
801 - GRINDING SPINDLE
BSD-3607031168.A25
3607031168
|
£218.41
|
£262.09
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A243
1607000385
|
£14.91
|
£17.89
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2253
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-3607031630.A21
3607031630
|
-
|
|
|
|
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A974
2603410001
|
£1.75
|
£2.10
|
|
|
819 - SPINDLE BEARING
BSD-3607030418.A2
3607030418
|
£59.53
|
£71.44
|
|
|
819/1 - COVER RING 8.5 mm
BSD-2600501001.A25
2600501001
|
-
|
|
|
|
833 - SWITCH HANDLE
BSD-2602026910.A0
2602026910
|
£3.80
|
£4.56
|
|
|
835 - FAN
BSD-2606610050.A38
2606610050
|
-
|
|
|
