Bosch 1215 / 0601215034 / --- 115 Volt Spare Parts

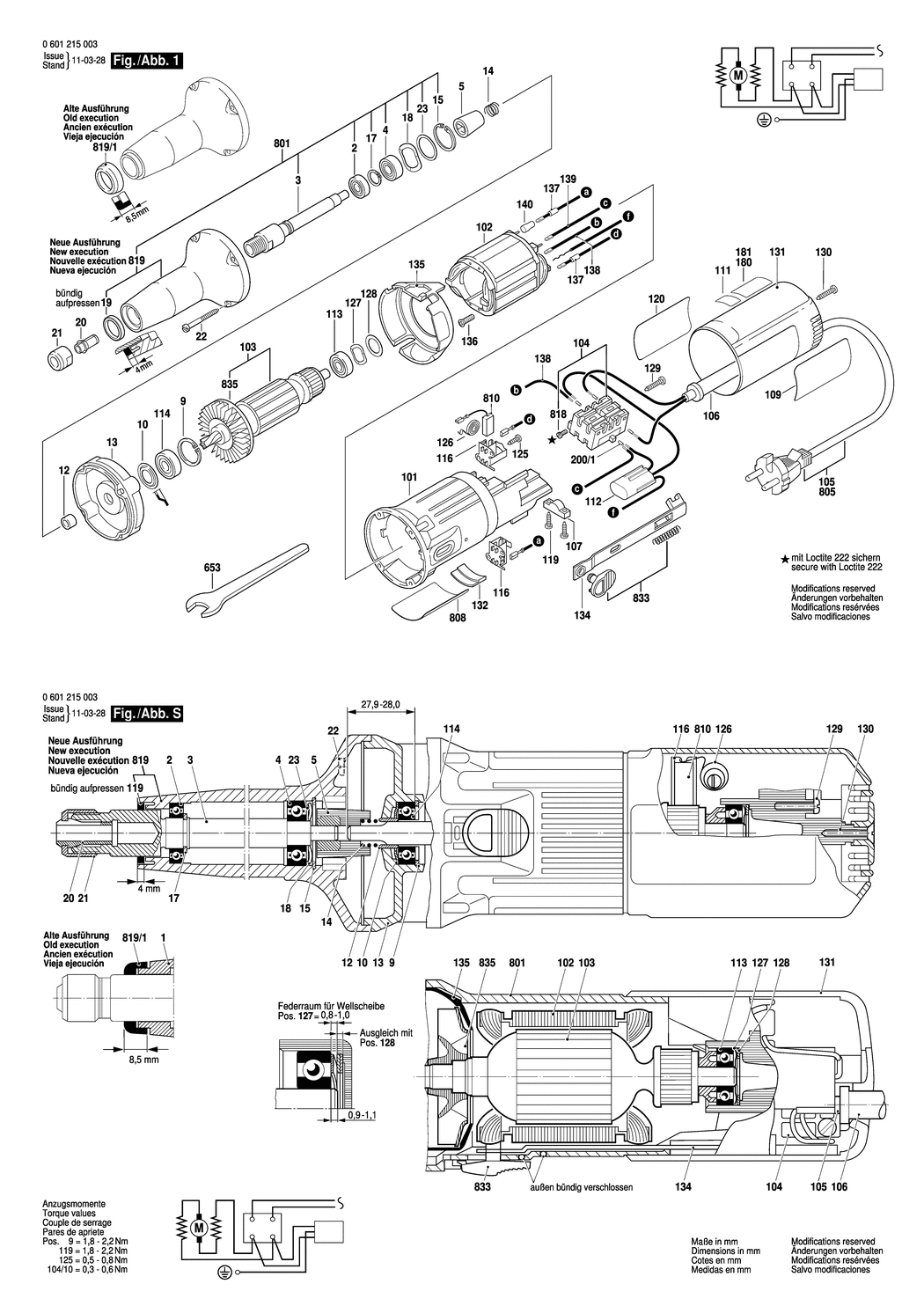

An exploded drawing and listing for the Bosch 1215 / 0601215034 / --- 115 Volt

	Ex VAT	Inc VAT
2 - GROOVE BALL BEARING BSD-3600900020.A9 3600900020	£13.12	£15.75
3 - GRINDING SPINDLE M15x1. SW17 BSD-3603523008.A17 3603523008	£81.81	£98.17
4 - GROOVE BALL BEARING BSD-3600900021.A18 3600900021	£21.52	£25.83
5 - COUPLING HALF BSD-2606446002.A15 2606446002	£8.67	£10.41
9 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A317 2916660008	£2.16	£2.59
10 - CUPPED WASHER BSD-2600500002.A573 2600500002	£1.75	£2.10
12 - RECEPTACLE BSD-2600400008.A542 2600400008	£1.75	£2.10
13 - INTERMEDIATE FLANGE BSD-2605700215.A23 2605700215	£45.67	£54.80
14 - COMPRESSION SPRING BSD-2604630001.A4 2604630001	£2.16	£2.59
15 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A138 2916660010	£1.75	£2.10
17 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A22 2916650903	£1.75	£2.10
18 - SHIM BSD-3600150011.A27 3600150011	£1.75	£2.10
19 - COVER RING BSD-3600300074.A16 3600300074	£14.91	£17.89
20 - COLLET dia 3 MM BSD-2608570077.A10 2608570077	£21.68	£26.01
20 - COLLET dia 8 MM BSD-2608570081.A65 2608570081	£21.68	£26.01
20 - COLLET dia 1/8 (3.175 MM) BSD-2608570078.A31 2608570078	£33.74	£40.49
20 - COLLET dia 1/4 (6.35 MM) BSD-2608570132.A2 2608570132	£21.52	£25.83
21 - ROUND NUT BSD-3603342009.A98 3603342009	£14.91	£17.89
22 - TAPPING SCREW DIN 7971-BZ3.9x38 BSD-2910211093.A27 2910211093	£1.75	£2.10
23 - SHIM 0.10 MM BSD-1710102601.A16 1710102601	£1.75	£2.10
101 - MOTOR HOUSING BSD-2605108051.A30 2605108051	£21.52	£25.83
102 - FIELD 110-120V BSD-2604220443.A0 2604220443	-
103 - ARMATURE 110-120V BSD-2604010637.A2 2604010637	£54.42	£65.30
104 - SWITCH BSD-2607200674.A159 2607200674	£16.41	£19.69
105 - POWER SUPPLY CORD SAM 4.15m 2 x 0.82mm SJ 18/2 BSD-3604460057.A0 3604460057	£21.68	£26.01
106 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A808 2600703013	£2.61	£3.13
107 - CABLE CLIP BSD-2601035001.A1690 2601035001	£1.75	£2.10
109 - STICKER BSD-2610906971.A0 2610906971	-
111 - STICKER BSD-1601110357.A0 1601110357	-
112 - SUPPRESSION FILTER BSD-2607329104.A1 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A292 1900905018	£18.96	£22.75
114 - BALL BEARING 9x24x7 BSD-2600905095.A221 2600905095	£12.04	£14.45
116 - BRUSH HOLDER BSD-1600A003G4.A113 1600A003G4	£3.72	£4.47
119 - SCREW 4x16 BSD-2603490022.A2101 2603490022	£1.75	£2.10
120 - NAMEPLATE BSD-1618B0030L.A0 1618B0030L	£2.61	£3.13
125 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A538 1613435034	£1.75	£2.10
126 - SPIRAL SPRING BSD-2604652009.A47 2604652009	£1.75	£2.10
127 - SHIM BSD-2600150004.A637 2600150004	£2.16	£2.59
128 - SHIM 0.3 MM BSD-2600101023.A408 2600101023	£1.75	£2.10
128 - SHIM 0.2 MM BSD-2600101022.A139 2600101022	£1.75	£2.10
128 - SHIM 0.5 MM BSD-2600101020.A493 2600101020	£1.75	£2.10
129 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A181 2910211007	£1.75	£2.10
130 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A37 2910601321	-
131 - HOUSING COVER BSD-2605500073.A7 2605500073	£11.30	£13.56
132 - INTERMEDIATE PIECE BSD-1600026000.A48 1600026000	£1.75	£2.10
134 - ADJUSTING SLIDE BSD-2602319005.A149 2602319005	£1.75	£2.10
135 - COVER DISC BSD-2601328045.A252 2601328045	£2.16	£2.59
136 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A662 2603435015	£2.16	£2.59
137 - CONNECTING CABLE L=88 MM BSD-2604448034.A144 2604448034	£1.75	£2.10
138 - CONNECTING CABLE L=125MM BSD-2604448040.A86 2604448040	£2.61	£3.13
139 - CONNECTING CABLE L=68MM BSD-2604448039.A0 2604448039	£2.16	£2.59
140 - SHRINKABLE TUBE 25-1MM BSD-2600409014.A33 2600409014	£1.75	£2.10
200/1 - END SPLICE BSD-3604477011.A7 3604477011	£1.75	£2.10
653 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A80 2607950511	£4.26	£5.11
801 - GRINDING SPINDLE BSD-3607031168.A17 3607031168	£218.41	£262.09
808 - NAMEPLATE BSD-160111A3H3.A4921 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604320910.A7 2604320910	£10.10	£12.12
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1995 2603410001	£1.75	£2.10
819 - SPINDLE BEARING BSD-3607030418.A16 3607030418	£59.53	£71.44
819/1 - COVER RING 8.5 mm BSD-2600501001.A13 2600501001	-
833 - SWITCH HANDLE BSD-2602026910.A17 2602026910	£3.80	£4.56
835 - FAN BSD-2606610050.A65 2606610050	-
