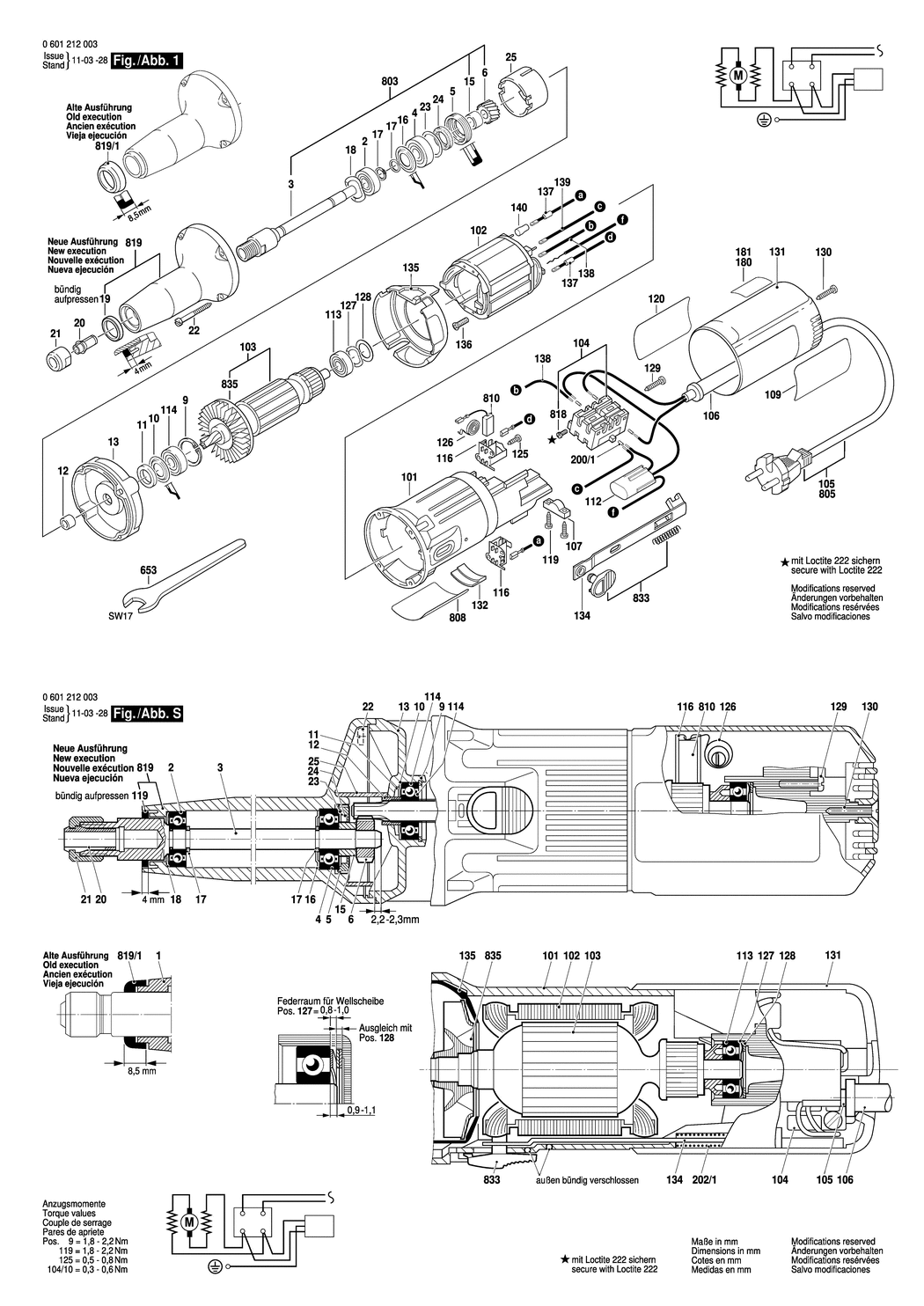

An exploded drawing and listing for the Bosch ---- / 0601212042 / GB 240 Volt
Ex VAT Inc VAT
2 - GROOVE BALL BEARING BSD-3600900026.A24 3600900026 £5.01 £6.01
3 - GRINDING SPINDLE M15x1. SW 17 BSD-3603523010.A11 3603523010 -
4 - GROOVE BALL BEARING BSD-3600900025.A2 3600900025 £8.67 £10.41
5 - THREADED RING BSD-1603344003.A6 1603344003 £21.68 £26.01
6 - CYLINDRICAL GEAR Z=19 BSD-3606319012.A4 3606319012 -
9 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A750 2916660008 £2.16 £2.59
10 - CUPPED WASHER BSD-2600500002.A130 2600500002 £1.75 £2.10
11 - FELT WASHER BSD-2600108002.A20 2600108002 £2.16 £2.59
12 - RECEPTACLE BSD-2600400008.A297 2600400008 £1.75 £2.10
13 - INTERMEDIATE FLANGE BSD-2605700215.A10 2605700215 £45.67 £54.80
15 - SPACER SLEEVE BSD-3600300020.A8 3600300020 £13.12 £15.75
16 - CUPPED WASHER BSD-2600500009.A5 2600500009 £1.75 £2.10
17 - SPRING RETAINING RING DIN 471 9x1MM BSD-2916640006.A111 2916640006 £1.75 £2.10
18 - SHIM BSD-2600150005.A29 2600150005 £1.75 £2.10
19 - COVER RING BSD-3600300074.A22 3600300074 £14.91 £17.89
20 - COLLET dia 3 MM BSD-2608570077.A37 2608570077 £21.68 £26.01
20 - COLLET dia 6 MM BSD-2608570129.A68 2608570129 £18.96 £22.75
20 - COLLET dia 8 MM BSD-2608570081.A22 2608570081 £21.68 £26.01
20 - COLLET dia 1/8 (3.175 MM) BSD-2608570078.A4 2608570078 £33.74 £40.49
20 - COLLET dia 6 MM BSD-2608570129.A67 2608570129 £18.96 £22.75
20 - COLLET dia 1/4 (6.35 MM) BSD-2608570080.A25 2608570080 -
21 - ROUND NUT BSD-3603342009.A66 3603342009 £14.91 £17.89
22 - TAPPING SCREW DIN 7971-3.9x38 BSD-2910215093.A71 2910215093 -
23 - SHIM BSD-2600101514.A6 2600101514 £1.75 £2.10
24 - FELT WASHER BSD-1600205013.A5 1600205013 £1.75 £2.10
25 - SCREENING SLEEVE BSD-3600400010.A9 3600400010 £6.52 £7.83
101 - MOTOR HOUSING BSD-2605108051.A14 2605108051 £21.52 £25.83
102 - FIELD 240V BSD-2604220441.A1 2604220441 £31.64 £37.97
103 - ARMATURE 240V BSD-2604010596.A0 2604010596 £63.50 £76.20
104 - SWITCH BSD-2607200674.A100 2607200674 £16.41 £19.69
105 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460168.A7 2604460168 £21.52 £25.83
106 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A101 2600703011 £2.80 £3.36
107 - CABLE CLIP BSD-2601035001.A1281 2601035001 £1.75 £2.10
109 - STICKER BSD-3601110355.A0 3601110355 £2.80 £3.36
112 - SUPPRESSION FILTER BSD-2607329104.A87 2607329104 £10.10 £12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A1083 1900905018 £18.96 £22.75
114 - BALL BEARING 9x24x7 BSD-2600905095.A14 2600905095 £12.04 £14.45
116 - BRUSH HOLDER BSD-1600A003G4.A504 1600A003G4 £3.72 £4.47
119 - SCREW 4x16 BSD-2603490022.A272 2603490022 £1.75 £2.10
120 - STICKER BSD-3601110374.A5 3601110374 £5.30 £6.36
125 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A428 1613435034 £1.75 £2.10
126 - SPIRAL SPRING BSD-2604652009.A127 2604652009 £1.75 £2.10
127 - SHIM BSD-2600150004.A334 2600150004 £2.16 £2.59
128 - SHIM 0.5 MM BSD-2600101020.A289 2600101020 £1.75 £2.10
128 - SHIM 0.2 MM BSD-2600101022.A343 2600101022 £1.75 £2.10
128 - SHIM 0.3 MM BSD-2600101023.A256 2600101023 £1.75 £2.10
129 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A123 2910211007 £1.75 £2.10
130 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A222 2910601321 -
131 - HOUSING COVER BSD-2600508036.A48 2600508036 £10.10 £12.12
132 - INTERMEDIATE PIECE BSD-1600026000.A128 1600026000 £1.75 £2.10
134 - ADJUSTING SLIDE BSD-2602319005.A16 2602319005 £1.75 £2.10
135 - COVER DISC BSD-2601328045.A188 2601328045 £2.16 £2.59
136 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A134 2603435015 £2.16 £2.59
137 - SUPPRESSION FILTER BSD-1619P15513.A94 1619P15513 £4.75 £5.70
138 - CONNECTING CABLE L=125MM BSD-2604448040.A48 2604448040 £2.61 £3.13
139 - CONNECTING CABLE L=68MM BSD-2604448039.A19 2604448039 £2.16 £2.59
140 - SHRINKABLE TUBE 25-1MM BSD-2600409014.A6 2600409014 £1.75 £2.10
653 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A551 2607950511 £4.26 £5.11
803 - GRINDING SPINDLE BSD-3607031173.A4 3607031173 -
808 - NAMEPLATE BSD-160111A3H3.A2240 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-3607031630.A16 3607031630 -
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A972 2603410001 £1.75 £2.10
819 - SPINDLE BEARING BSD-3607030417.A7 3607030417 £59.53 £71.44
819/1 - COVER RING 8.5 mm BSD-2600501001.A35 2600501001 -
833 - SWITCH HANDLE BSD-2602026910.A6 2602026910 £3.80 £4.56
835 - FAN BSD-2606610049.A363 2606610049 £2.16 £2.59
