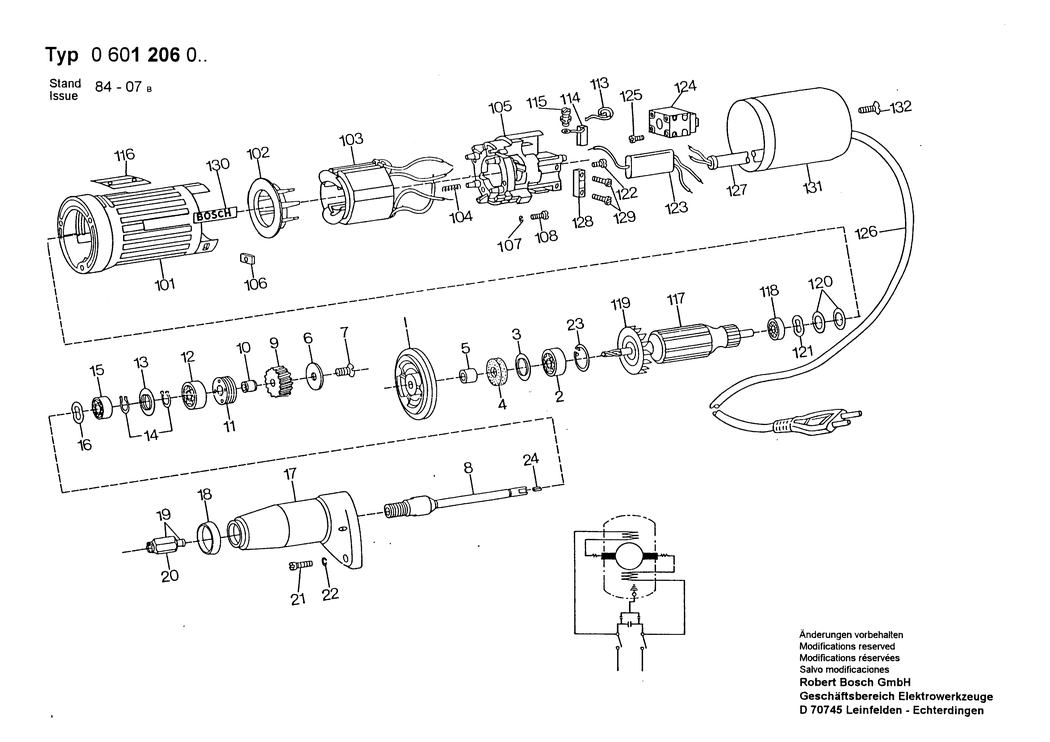

1 - BEARING FLANGE
BSD-2605700179.A0
2605700179
|
-
|
|
|
|
2 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A154
2600905007
|
-
|
|
|
|
3 - CUPPED WASHER
BSD-2600500008.A165
2600500008
|
-
|
|
|
|
4 - FELT DISC
BSD-2600108020.A145
2600108020
|
-
|
|
|
|
5 - BEARING SLEEVE
BSD-2600300043.A34
2600300043
|
-
|
|
|
|
6 - DISC CAM
BSD-2600130001.A1
2600130001
|
-
|
|
|
|
7 - COUNTERSUNK-HEAD SCREW
BSD-2603421010.A1
2603421010
|
-
|
|
|
|
8 - GRINDING SPINDLE
BSD-2603523036.A3
2603523036
|
-
|
|
|
|
9 - TOOTHED GEAR Z=23
BSD-2606320008.A4
2606320008
|
-
|
|
|
|
10 - SPACER SLEEVE
BSD-2600300012.A4
2600300012
|
-
|
|
|
|
11 - THREADED RING
BSD-1603344004.A2
1603344004
|
-
|
|
|
|
12 - GROOVE BALL BEARING
BSD-3600900025.A19
3600900025
|
£8.67
|
£10.41
|
|
|
13 - CUPPED WASHER
BSD-2600500009.A14
2600500009
|
£1.75
|
£2.10
|
|
|
14 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A193
2916640006
|
£1.75
|
£2.10
|
|
|
15 - GROOVE BALL BEARING
BSD-3600900026.A10
3600900026
|
£5.01
|
£6.01
|
|
|
16 - SHIM
BSD-2600150005.A66
2600150005
|
£1.75
|
£2.10
|
|
|
17 - SPINDLE BEARING
BSD-2605806946.A1
2605806946
|
-
|
|
|
|
17 - GEAR HOUSING
BSD-2605806221.A3
2605806221
|
-
|
|
|
|
18 - COVER RING 8.5 mm
BSD-2600501001.A49
2600501001
|
-
|
|
|
|
19 - COLLET dia 6 MM
BSD-2608570129.A102
2608570129
|
£18.96
|
£22.75
|
|
|
19 - COLLET dia 6.35 MM = 1/4
BSD-2608570085.A11
2608570085
|
£29.38
|
£35.26
|
|
|
19 - COLLET dia 8 MM
BSD-2608570081.A6
2608570081
|
£21.68
|
£26.01
|
|
|
19 - COLLET dia 3 MM
BSD-2608570082.A10
2608570082
|
£29.38
|
£35.26
|
|
|
19 - COLLET dia 3.175 MM = 1/8
BSD-2608570083.A6
2608570083
|
£29.38
|
£35.26
|
|
|
20 - ROUND NUT
BSD-3603342009.A9
3603342009
|
£14.91
|
£17.89
|
|
|
21 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A320
2910011128
|
£1.75
|
£2.10
|
|
|
22 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A310
2916690003
|
£1.75
|
£2.10
|
|
|
23 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A185
2916660010
|
£1.75
|
£2.10
|
|
|
24 - FLAT KEY
BSD-2602300007.A2
2602300007
|
-
|
|
|
|
101 - GEAR HOUSING
BSD-2607010003.A6
2607010003
|
-
|
|
|
|
102 - COVER DISC
BSD-2600522009.A32
2600522009
|
-
|
|
|
|
103 - POLE SHOE 220V
BSD-2604220319.A1
2604220319
|
-
|
|
|
|
104 - COMPRESSION SPRING
BSD-2604611024.A121
2604611024
|
£2.16
|
£2.59
|
|
|
105 - COMMUTATOR END SHIELD
BSD-2607010004.A52
2607010004
|
-
|
|
|
|
106 - SQUARE NUT M4
BSD-2603320001.A37
2603320001
|
£1.75
|
£2.10
|
|
|
107 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A309
2916690003
|
£1.75
|
£2.10
|
|
|
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A433
2910021125
|
£1.75
|
£2.10
|
|
|
113 - SPIRAL SPRING
BSD-2604652000.A36
2604652000
|
-
|
|
|
|
114 - CARBON-BRUSH SET
BSD-2604320902.A254
2604320902
|
-
|
|
|
|
115 - SOCKET HEAD CAP SCREW
BSD-2603410010.A123
2603410010
|
-
|
|
|
|
116 - NAMEPLATE
BSD-2601100038.A13
2601100038
|
-
|
|
|
|
117 - ARMATURE 220-240V
BSD-2604010453.A2
2604010453
|
-
|
|
|
|
118 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A68
1900905019
|
£14.91
|
£17.89
|
|
|
119 - FAN
BSD-2606610012.A1
2606610012
|
-
|
|
|
|
120 - SHIM 0.2 MM
BSD-2600101655.A55
2600101655
|
-
|
|
|
|
120 - SHIM 0.3 MM
BSD-2600101656.A126
2600101656
|
-
|
|
|
|
120 - SHIM 0.5 MM
BSD-2600101657.A55
2600101657
|
-
|
|
|
|
121 - SHIM
BSD-2600150003.A220
2600150003
|
£2.16
|
£2.59
|
|
|
122 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A389
2910211004
|
-
|
|
|
|
123 - SUPPRESSION CAPACITOR
BSD-2607329056.A18
2607329056
|
-
|
|
|
|
124 - ON-OFF SWITCH
BSD-2607200048.A36
2607200048
|
-
|
|
|
|
125 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A315
2603410023
|
-
|
|
|
|
126 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F
BSD-3604460138.A13
3604460138
|
-
|
|
|
|
127 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A267
2600703011
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1162
2600703012
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A212
2600703013
|
£2.61
|
£3.13
|
|
|
128 - CABLE CLIP
BSD-2601035001.A102
2601035001
|
£1.75
|
£2.10
|
|
|
129 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1892
2910211019
|
£1.75
|
£2.10
|
|
|
130 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A74
1601110013
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508028.A12
2600508028
|
-
|
|
|
|
132 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A70
2910601020
|
-
|
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A816
2607950511
|
£4.26
|
£5.11
|
|
