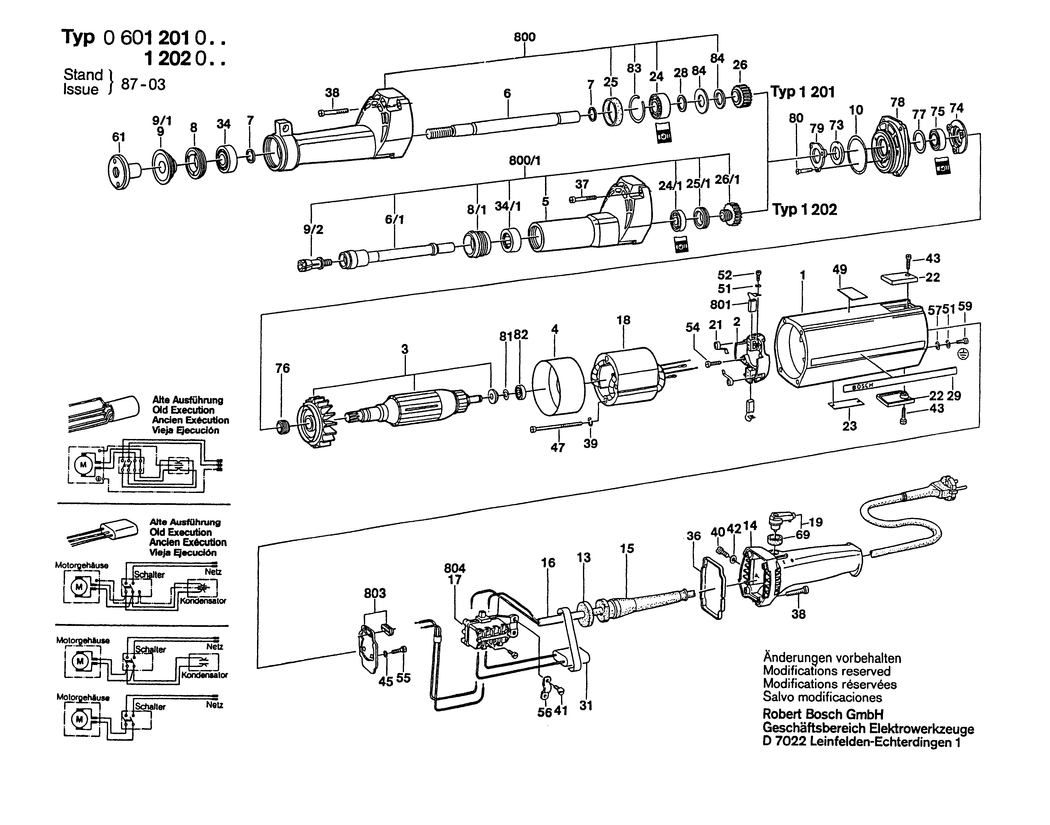

1 - MOTOR HOUSING
BSD-1605108042.A12
1605108042
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A51
1604336006
|
-
|
|
|
|
3 - ARMATURE 150V
BSD-1604010089.A1
1604010089
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A426
1600209002
|
£5.30
|
£6.36
|
|
|
5 - SPINDLE BEARING
BSD-1605806199.A30
1605806199
|
-
|
|
|
|
6/1 - GRINDING SPINDLE M8. SW22
BSD-1603124035.A20
1603124035
|
£120.11
|
£144.13
|
|
|
8/1 - THREADED BUSHING M 32x1
BSD-1600362018.A12
1600362018
|
£68.42
|
£82.10
|
|
|
9/1 - COLLET dia 8. M8. SW14
BSD-1608570041.A34
1608570041
|
£37.31
|
£44.77
|
|
|
10 - O-RING 54.0x3.0 MM
BSD-1600210004.A199
1600210004
|
£2.80
|
£3.36
|
|
|
13 - SEAL
BSD-1600113002.A98
1600113002
|
£1.75
|
£2.10
|
|
|
14 - HANDLE
BSD-3605132048.A270
3605132048
|
£63.50
|
£76.20
|
|
|
15 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A552
3600703011
|
£2.80
|
£3.36
|
|
|
16 - POWER SUPPLY CORD
BSD-1604461009.A41
1604461009
|
-
|
|
|
|
16 - POWER SUPPLY CORD
BSD-1607000391.A95
1607000391
|
£18.96
|
£22.75
|
|
|
17 - SWITCH KIT
BSD-1607000034.A305
1607000034
|
-
|
|
|
|
18 - POLE SHOE 150V
BSD-1604220030.A1
1604220030
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026030.A302
1602026030
|
£10.10
|
£12.12
|
|
|
21 - SPIRAL SPRING
BSD-1604652015.A506
1604652015
|
£2.80
|
£3.36
|
|
|
22 - SEALING CAP
BSD-3605500057.A129
3605500057
|
-
|
|
|
|
23 - NAMEPLATE
BSD-160111A3H3.A4106
160111A3H3
|
£2.61
|
£3.13
|
|
|
24/1 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A96
1900905121
|
£18.96
|
£22.75
|
|
|
25/1 - THREADED RING M30x1
BSD-1603344024.A5
1603344024
|
£23.86
|
£28.63
|
|
|
26/1 - CYLINDRICAL GEAR Z=29
BSD-1606320046.A12
1606320046
|
-
|
|
|
|
29 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A178
1601110003
|
-
|
|
|
|
31 - SUPPRESSION FILTER
BSD-1607328034.A77
1607328034
|
£4.26
|
£5.11
|
|
|
34 - CYL. ROLLER BEARING I-82 006 M DIN 5412
BSD-3600905110.A33
3600905110
|
£45.67
|
£54.80
|
|
|
36 - SEALING CORD
BSD-1601014000.A276
1601014000
|
£2.80
|
£3.36
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A298
2910011162
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM5x28-8.8
BSD-2910021165.A72
2910021165
|
-
|
|
|
|
39 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A47
2916680006
|
-
|
|
|
|
40 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A137
2910211006
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A44
2910021122
|
£2.16
|
£2.59
|
|
|
42 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A181
2916011005
|
£1.75
|
£2.10
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A833
2910021125
|
£1.75
|
£2.10
|
|
|
45 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A144
2916011006
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW
BSD-1603410008.A83
1603410008
|
-
|
|
|
|
49 - REFERENCE PLATE
BSD-1601110058.A107
1601110058
|
£1.75
|
£2.10
|
|
|
51 - SPRING WASHER DIN 137-A4
BSD-1600150006.A636
1600150006
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8
BSD-2910021120.A141
2910021120
|
£1.75
|
£2.10
|
|
|
54 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A143
2910211019
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A103
2910211004
|
-
|
|
|
|
56 - FASTENING CLAMP
BSD-1601302014.A324
1601302014
|
£2.61
|
£3.13
|
|
|
57 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A340
2916010410
|
-
|
|
|
|
59 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A273
2910110116
|
£1.75
|
£2.10
|
|
|
69 - FELT WASHER
BSD-1600205008.A364
1600205008
|
£1.75
|
£2.10
|
|
|
73 - FELT DISC
BSD-1600108018.A240
1600108018
|
£2.61
|
£3.13
|
|
|
74 - BEARING COVER
BSD-1600501019.A233
1600501019
|
£23.86
|
£28.63
|
|
|
75 - GROOVE BALL BEARING 17x35x10
BSD-1600900020.A72
1600900020
|
-
|
|
|
|
76 - THREADED RING
BSD-1603344031.A29
1603344031
|
£59.53
|
£71.44
|
|
|
77 - SHIM
BSD-1600102002.A106
1600102002
|
-
|
|
|
|
78 - BEARING FLANGE
BSD-1605820100.A17
1605820100
|
-
|
|
|
|
79 - COVER DISC
BSD-1600501024.A227
1600501024
|
£16.41
|
£19.69
|
|
|
80 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8
BSD-2910511130.A56
2910511130
|
-
|
|
|
|
81 - SHIM 0.10 MM
BSD-1420100023.A185
1420100023
|
-
|
|
|
|
81 - SHIM 0.2 MM
BSD-1600100632.A290
1600100632
|
£1.75
|
£2.10
|
|
|
82 - BALL BEARING 7x22x7
BSD-1900905018.A449
1900905018
|
£18.96
|
£22.75
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW14
BSD-1607950511.A11
1607950511
|
£5.45
|
£6.54
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW22
BSD-1607950505.A45
1607950505
|
£16.41
|
£19.69
|
|
|
800/1 - SPINDLE BEARING
BSD-1606200904.A22
1606200904
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014102.A167
1607014102
|
-
|
|
|
|
803 - SEALING PLATE
BSD-1602388007.A36
1602388007
|
£12.04
|
£14.45
|
|
|
804 - SWITCH KIT
BSD-1607000034.A306
1607000034
|
-
|
|
|
