Bosch GSA 1100 E / 3601F4C800 / EU 230 Volt Spare Parts

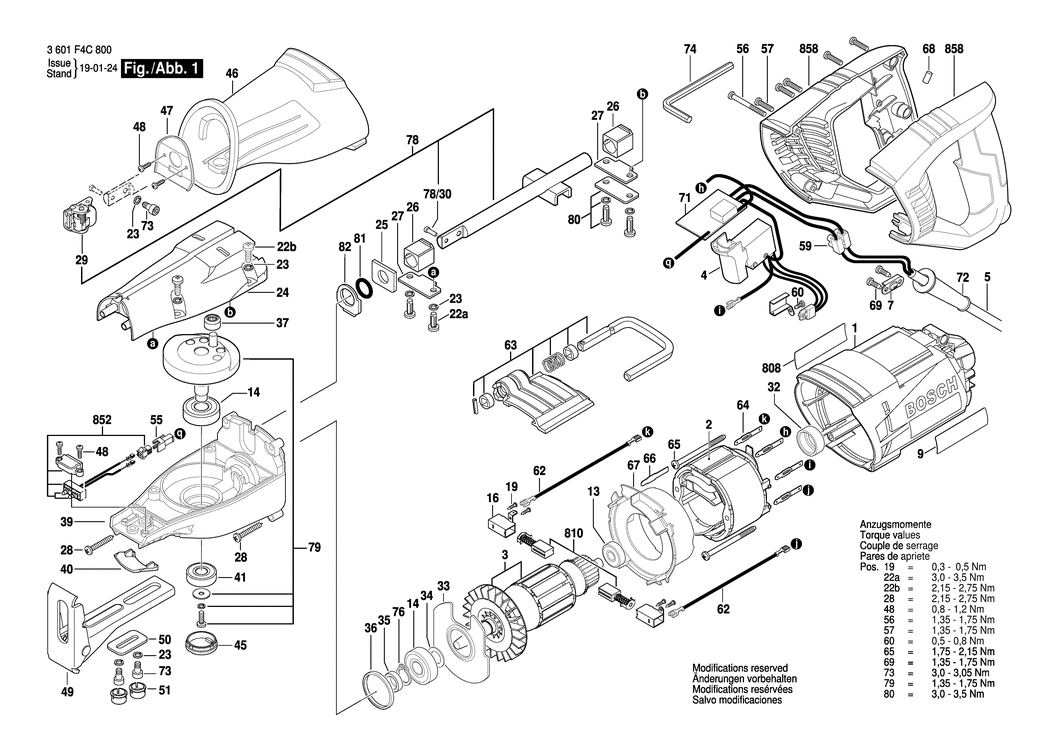

An exploded drawing and listing for the Bosch GSA 1100 E / 3601F4C800 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2610956877.A0 2610956877	£21.52	£25.83
2 - STATOR 230V BSD-2610956919.A2 2610956919	£21.68	£26.01
3 - ROTOR 230V BSD-2610956920.A0 2610956920	£33.45	£40.14
4 - SWITCH BSD-1619P05670.A2 1619P05670	£33.74	£40.49
5 - POWER SUPPLY CORD BSD-2610015553.A1 2610015553	£31.64	£37.97
7 - CABLE CLIP BSD-2610956868.A14 2610956868	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GSA 1100 E BSD-1619P05667.A3 1619P05667	£1.95	£2.34
13 - GROOVE BALL BEARING BSD-2610956882.A5 2610956882	£5.58	£6.70
14 - GROOVE BALL BEARING BSD-2610956893.A3 2610956893	£8.67	£10.41
16 - BRUSH HOLDER BSD-2610956874.A3 2610956874	£2.61	£3.13
19 - TAPPING SCREW BSD-2610956902.A3 2610956902	£1.75	£2.10
22 - THREAD-FORMING SCREW BSD-2610956894.A7 2610956894	£1.75	£2.10
23 - SPRING WASHER BSD-1619P04820.A9 1619P04820	£1.75	£2.10
24 - GEAR COVER BSD-1619PA1480.A3 1619PA1480	£12.04	£14.45
25 - FELT SEAL BSD-1619P04821.A1 1619P04821	£1.75	£2.10
26 - BUSHING BSD-2610956896.A7 2610956896	£6.52	£7.83
27 - SEALING PLATE BSD-2610956895.A3 2610956895	£2.16	£2.59
28 - SELF-CUTTING SCREW BSD-2610956899.A9 2610956899	£1.75	£2.10
29 - BLADE HOLDER BSD-1619PA4168.A9 1619PA4168	£16.41	£19.69
32 - BEARING HOLDER BSD-2610956881.A1 2610956881	£1.75	£2.10
33 - SEALING PLATE BSD-2610956887.A5 2610956887	£6.52	£7.83
34 - WASHER BSD-2610956884.A2 2610956884	£1.75	£2.10
35 - BUSHING BSD-2610956886.A1 2610956886	£1.75	£2.10
36 - RUBBER RING BSD-2610956885.A4 2610956885	£1.75	£2.10
37 - NEEDLE-ROLLER BEARING BSD-1619P04823.A9 1619P04823	£10.10	£12.12
39 - GEAR COVER BSD-2610956890.A1 2610956890	£21.52	£25.83
40 - SUPPORT PLATE BSD-1619P04824.A1 1619P04824	£2.80	£3.36
41 - GROOVE BALL BEARING BSD-2610956889.A5 2610956889	£7.36	£8.83
45 - COVER BSD-2610956888.A1 2610956888	£1.75	£2.10
46 - INSULATING SLEEVE BSD-2610956901.A1 2610956901	£21.52	£25.83
47 - SEALING PLATE BSD-1619P04826.A2 1619P04826	£2.16	£2.59
48 - THREAD-FORMING SCREW BSD-1619P04827.A1 1619P04827	£1.75	£2.10
49 - SUPPORTING FOOT BSD-2610956898.A1 2610956898	£12.04	£14.45
50 - CLAMP BSD-1619P04828.A9 1619P04828	£2.61	£3.13
51 - COVER BSD-2610956900.A1 2610956900	£2.16	£2.59
55 - RECEPTACLE BSD-1619P04831.A1 1619P04831	£1.75	£2.10
56 - TAPPING SCREW BSD-2610956864.A5 2610956864	£2.16	£2.59
57 - TAPPING SCREW BSD-2610956865.A9 2610956865	£2.16	£2.59
59 - TERMINAL BLOCK BSD-2610956870.A12 2610956870	£2.61	£3.13
60 - SCREW BSD-2610956869.A1 2610956869	£1.75	£2.10
62 - CONNECTING CABLE BSD-1619P04840.A3 1619P04840	£2.80	£3.36
63 - HOOK BSD-2610956907.A1 2610956907	£10.10	£12.12
64 - CONNECTING TERMINAL BSD-2610956878.A3 2610956878	£2.16	£2.59
65 - TAPPING SCREW BSD-1619P04833.A1 1619P04833	£2.16	£2.59
66 - BLADE TERMINAL BSD-1619P04834.A2 1619P04834	£1.75	£2.10
67 - AIR-DEFLECTOR RING BSD-2610956880.A1 2610956880	£3.72	£4.47
68 - RUBBER BSD-1619P04835.A1 1619P04835	£1.75	£2.10
69 - TAPPING SCREW BSD-2610956867.A1 2610956867	£1.75	£2.10
71 - PRINTED CIRCUIT BOARD BSD-2610956916.A1 2610956916	£5.58	£6.70
72 - CORD GUARD BSD-2610956866.A5 2610956866	£2.16	£2.59
73 - HEX SOCKET HEAD CAP SCREW BSD-1619P05408.A3 1619P05408	£2.16	£2.59
74 - HEXAGON SOCKET WRENCH BSD-1619P05422.A0 1619P05422	£5.58	£6.70
76 - CLIP BSD-1619P03340.A2 1619P03340	£1.75	£2.10
78 - SPINDLE ASSEMBLY BSD-1619PA0471.A1 1619PA0471	£27.23	£32.68
78/30 - PIN BSD-1619P04839.A3 1619P04839	£1.75	£2.10
79 - BEVEL GEAR BSD-1619PA0474.A2 1619PA0474	£30.28	£36.33
80 - PLATE BSD-1619PA0475.A1 1619PA0475	£3.72	£4.47
81 - O-RING SEAL BSD-1619PA1478.A2 1619PA1478	£10.10	£12.12
82 - PLATE BSD-1619PA1479.A1 1619PA1479	£1.75	£2.10
808 - NAMEPLATE BSD-2610956921.A0 2610956921	-
810 - CARBON-BRUSH SET BSD-2610956917.A1 2610956917	£5.30	£6.36
852 - PRINTED CIRCUIT BOARD BSD-1619P04837.A2 1619P04837	£10.10	£12.12
858 - SET OF HANDLES BSD-1619P05669.A0 1619P05669	£16.74	£20.09
