Bosch GCT-115 / 3601C91070 / GB 230 Volt Spare Parts

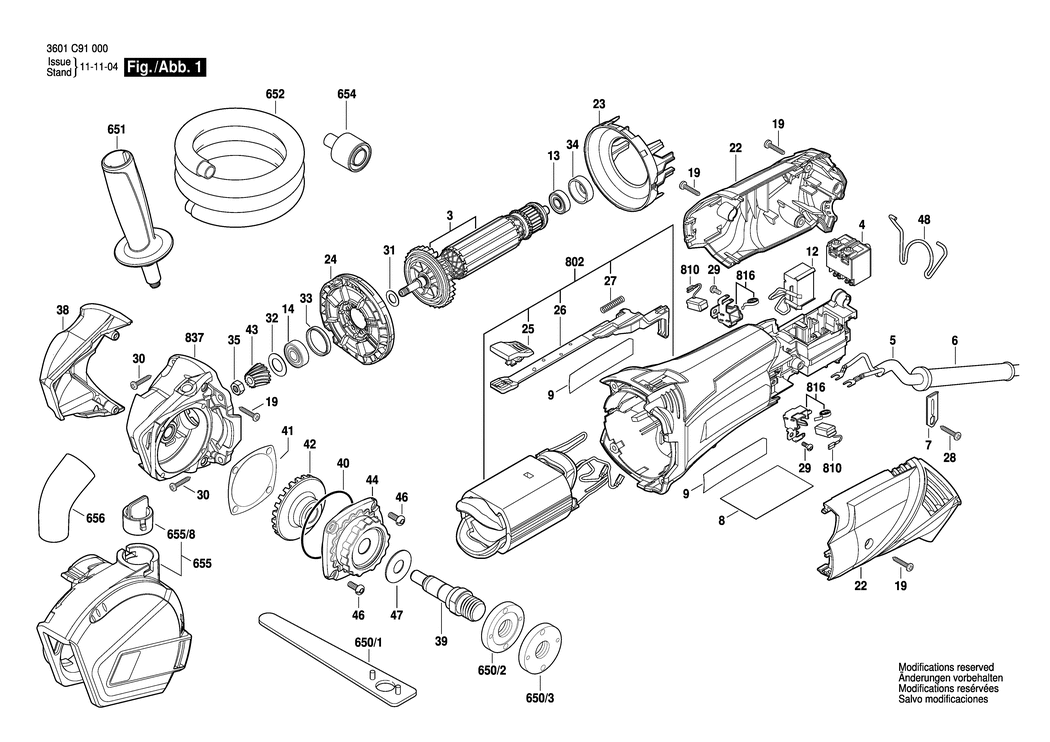

An exploded drawing and listing for the Bosch GCT-115 / 3601C91070 / GB 230 Volt

	Ex VAT	Inc VAT
3 - ARMATURE 230V BSD-2610015717.A1 2610015717	£59.53	£71.44
4 - ON-OFF SWITCH BSD-1607200179.A42 1607200179	£10.59	£12.71
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 0.75mm H05 VV-F BSD-1604460260.A10 1604460260	£11.30	£13.56
6 - CORD GUARD BSD-2610014651.A2 2610014651	£2.16	£2.59
7 - FASTENING CLAMP BSD-1601302017.A547 1601302017	£1.75	£2.10
8 - NAMEPLATE BSD-2610012430.A0 2610012430	£2.61	£3.13
9 - ADHESIVE LABEL BSD-2610012428.A2 2610012428	£2.80	£3.36
12 - SUPPRESSION FILTER BSD-1619P02827.A0 1619P02827	£5.58	£6.70
13 - BALL BEARING 7x19x6 MM BSD-1619P00456.A70 1619P00456	£2.80	£3.36
14 - BALL BEARING BSD-1619P00455.A1 1619P00455	£3.72	£4.47
19 - CROSS RECESSED-HEAD SCREW BSD-2615294035.A52 2615294035	£1.75	£2.10
22 - HOUSING SET BSD-2610012423.A2 2610012423	£16.41	£19.69
23 - BAFFLE BSD-2610008412.A1 2610008412	£3.72	£4.47
24 - DEFLECTOR BSD-2610008411.A1 2610008411	£3.72	£4.47
25 - BUTTON BSD-2610008406.A1 2610008406	£1.75	£2.10
26 - ADJUSTING SLIDE BSD-2610008422.A1 2610008422	£1.75	£2.10
27 - COMPRESSION SPRING BSD-1604611031.A142 1604611031	£2.80	£3.36
28 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A408 2603490021	£1.75	£2.10
29 - TORX OVAL-HEAD SCREW 3x8 BSD-1619P02849.A3 1619P02849	£1.75	£2.10
30 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1201 2603490023	£1.75	£2.10
31 - WASHER BSD-1619P00987.A37 1619P00987	£1.75	£2.10
32 - COVER DISC BSD-1600100033.A103 1600100033	£2.61	£3.13
33 - RUBBER RING BSD-1600206025.A771 1600206025	£2.16	£2.59
34 - INTERMEDIATE RING BSD-1600502023.A138 1600502023	£2.16	£2.59
35 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1478 2915011007	-
38 - HOUSING COVER BSD-2610012426.A0 2610012426	£8.67	£10.41
39 - GRINDING SPINDLE M 14. SW 17 BSD-1619P06419.A1 1619P06419	£11.30	£13.56
40 - O-RING 44.0x1.0 MM BSD-1619P02820.A19 1619P02820	£1.75	£2.10
41 - SHIM 0.1 MM BSD-1619P02821.A45 1619P02821	£1.75	£2.10
41 - SHIM 0.2 MM BSD-1619P02822.A28 1619P02822	£1.75	£2.10
42 - CROWN GEAR BSD-1619P02823.A44 1619P02823	£8.67	£10.41
43 - BEVEL GEAR BSD-1619P02825.A16 1619P02825	£5.30	£6.36
44 - BEARING FLANGE BSD-2610014653.A0 2610014653	£21.52	£25.83
46 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A65 1603435068	£1.75	£2.10
47 - SEALING DISK BSD-3600150021.A64 3600150021	£3.80	£4.56
48 - CLIP BSD-2610007229.A0 2610007229	£2.16	£2.59
650/1 - PIN-TYPE FACE-WRENCH BSD-2610008421.A0 2610008421	£6.52	£7.83
650/2 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A789 2605703014	£7.36	£8.83
650/3 - ROUND NUT M14 BSD-1603345043.A517 1603345043	£8.67	£10.41
652 - ASSEMBLY KIT BSD-2610013421.A0 2610013421	-
654 - ADAPTER BSD-2610004454.A2 2610004454	£12.04	£14.45
655 - GUARD BSD-2610014664.A2 2610014664	£27.23	£32.68
655/8 - PLUG BSD-2610001537.A0 2610001537	£2.16	£2.59
656 - ELBOW BSD-2610001533.A2 2610001533	£4.26	£5.11
802 - MOTOR HOUSING BSD-2610014655.A1 2610014655	£72.18	£86.62
810 - CARBON BRUSH BSD-2610013288.A1 2610013288	£13.12	£15.75
816 - BRUSH HOLDER BSD-1619P02845.A2 1619P02845	£2.80	£3.36
837 - GEAR HOUSING BSD-2610013289.A2 2610013289	£37.27	£44.72
