Bosch GCT-115 / 3601C91060 / GB 110 Volt Spare Parts

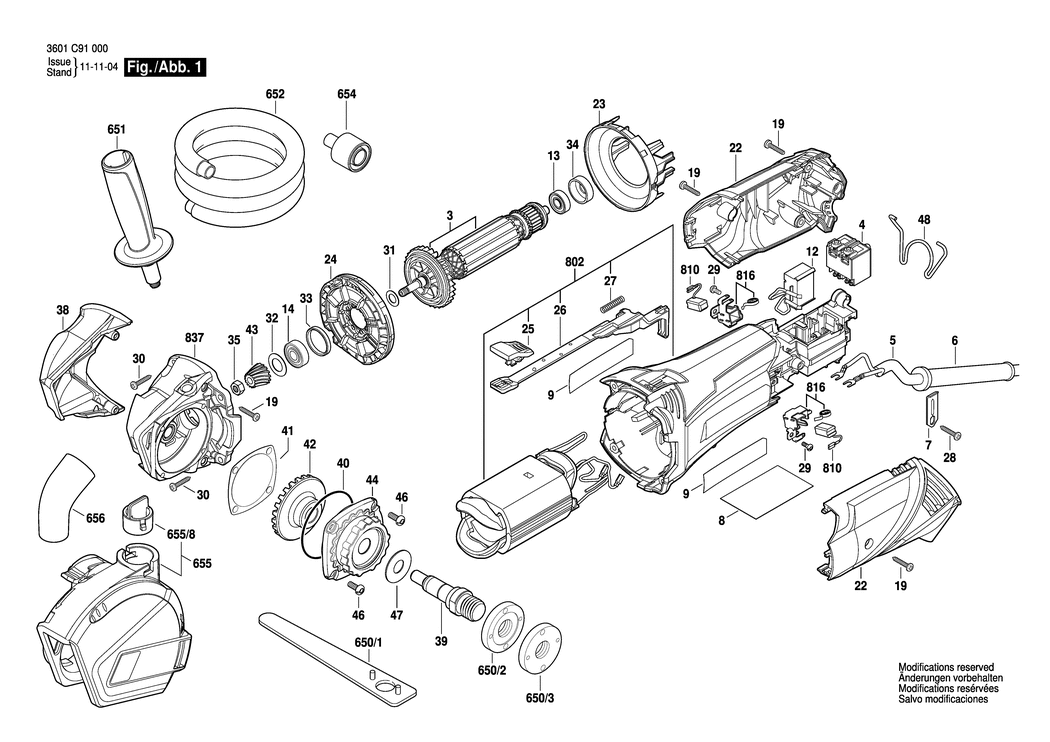

An exploded drawing and listing for the Bosch GCT-115 / 3601C91060 / GB 110 Volt

	Ex VAT	Inc VAT
3 - ARMATURE 110V BSD-2610011740.A0 2610011740	£59.53	£71.44
4 - SWITCH BSD-1607200146.A60 1607200146	£10.10	£12.12
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 RN-F BSD-1604460339.A7 1604460339	£12.04	£14.45
6 - CORD GUARD BSD-2610014651.A1 2610014651	£2.16	£2.59
7 - FASTENING CLAMP BSD-1601302017.A549 1601302017	£1.75	£2.10
8 - NAMEPLATE BSD-2610012429.A0 2610012429	£2.33	£2.80
9 - ADHESIVE LABEL BSD-2610012428.A1 2610012428	£2.80	£3.36
12 - SUPPRESSION FILTER BSD-1619P05304.A0 1619P05304	£5.01	£6.01
13 - BALL BEARING 7x19x6 MM BSD-1619P00456.A69 1619P00456	£2.80	£3.36
14 - BALL BEARING BSD-1619P00455.A2 1619P00455	£3.72	£4.47
19 - CROSS RECESSED-HEAD SCREW BSD-2615294035.A51 2615294035	£1.75	£2.10
22 - HOUSING SET BSD-2610012423.A1 2610012423	£16.41	£19.69
23 - BAFFLE BSD-2610008412.A0 2610008412	£3.72	£4.47
24 - DEFLECTOR BSD-2610008411.A2 2610008411	£3.72	£4.47
25 - BUTTON BSD-2610008406.A0 2610008406	£1.75	£2.10
26 - ADJUSTING SLIDE BSD-2610008422.A0 2610008422	£1.75	£2.10
27 - COMPRESSION SPRING BSD-1604611031.A141 1604611031	£2.80	£3.36
28 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A409 2603490021	£1.75	£2.10
29 - TORX OVAL-HEAD SCREW 3x8 BSD-1619P02849.A2 1619P02849	£1.75	£2.10
30 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1200 2603490023	£1.75	£2.10
31 - WASHER BSD-1619P00987.A38 1619P00987	£1.75	£2.10
32 - COVER DISC BSD-1600100033.A102 1600100033	£2.61	£3.13
33 - RUBBER RING BSD-1600206025.A773 1600206025	£2.16	£2.59
34 - INTERMEDIATE RING BSD-1600502023.A137 1600502023	£2.16	£2.59
35 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1479 2915011007	-
38 - HOUSING COVER BSD-2610012426.A1 2610012426	£8.67	£10.41
39 - GRINDING SPINDLE M 14. SW 17 BSD-1619P06419.A0 1619P06419	£11.30	£13.56
40 - O-RING 44.0x1.0 MM BSD-1619P02820.A20 1619P02820	£1.75	£2.10
41 - SHIM 0.1 MM BSD-1619P02821.A44 1619P02821	£1.75	£2.10
41 - SHIM 0.2 MM BSD-1619P02822.A29 1619P02822	£1.75	£2.10
42 - CROWN GEAR BSD-1619P02823.A43 1619P02823	£8.67	£10.41
43 - BEVEL GEAR BSD-1619P02825.A17 1619P02825	£5.30	£6.36
44 - BEARING FLANGE BSD-2610014653.A2 2610014653	£21.52	£25.83
46 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A66 1603435068	£1.75	£2.10
47 - SEALING DISK BSD-3600150021.A62 3600150021	£3.80	£4.56
48 - CLIP BSD-2610007229.A1 2610007229	£2.16	£2.59
650/1 - PIN-TYPE FACE-WRENCH BSD-2610008421.A2 2610008421	£6.52	£7.83
650/2 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A790 2605703014	£7.36	£8.83
650/3 - ROUND NUT M14 BSD-1603345043.A516 1603345043	£8.67	£10.41
652 - ASSEMBLY KIT BSD-2610013421.A1 2610013421	-
654 - ADAPTER BSD-2610004454.A1 2610004454	£12.04	£14.45
655 - GUARD BSD-2610014664.A0 2610014664	£27.23	£32.68
655/8 - PLUG BSD-2610001537.A1 2610001537	£2.16	£2.59
656 - ELBOW BSD-2610001533.A1 2610001533	£4.26	£5.11
802 - MOTOR HOUSING BSD-2610014656.A0 2610014656	-
810 - CARBON BRUSH BSD-2610013288.A0 2610013288	£13.12	£15.75
816 - BRUSH HOLDER BSD-1619P02845.A4 1619P02845	£2.80	£3.36
837 - GEAR HOUSING BSD-2610013289.A1 2610013289	£37.27	£44.72
