Bosch 1575 / 0601575048 / F 220 Volt Spare Parts

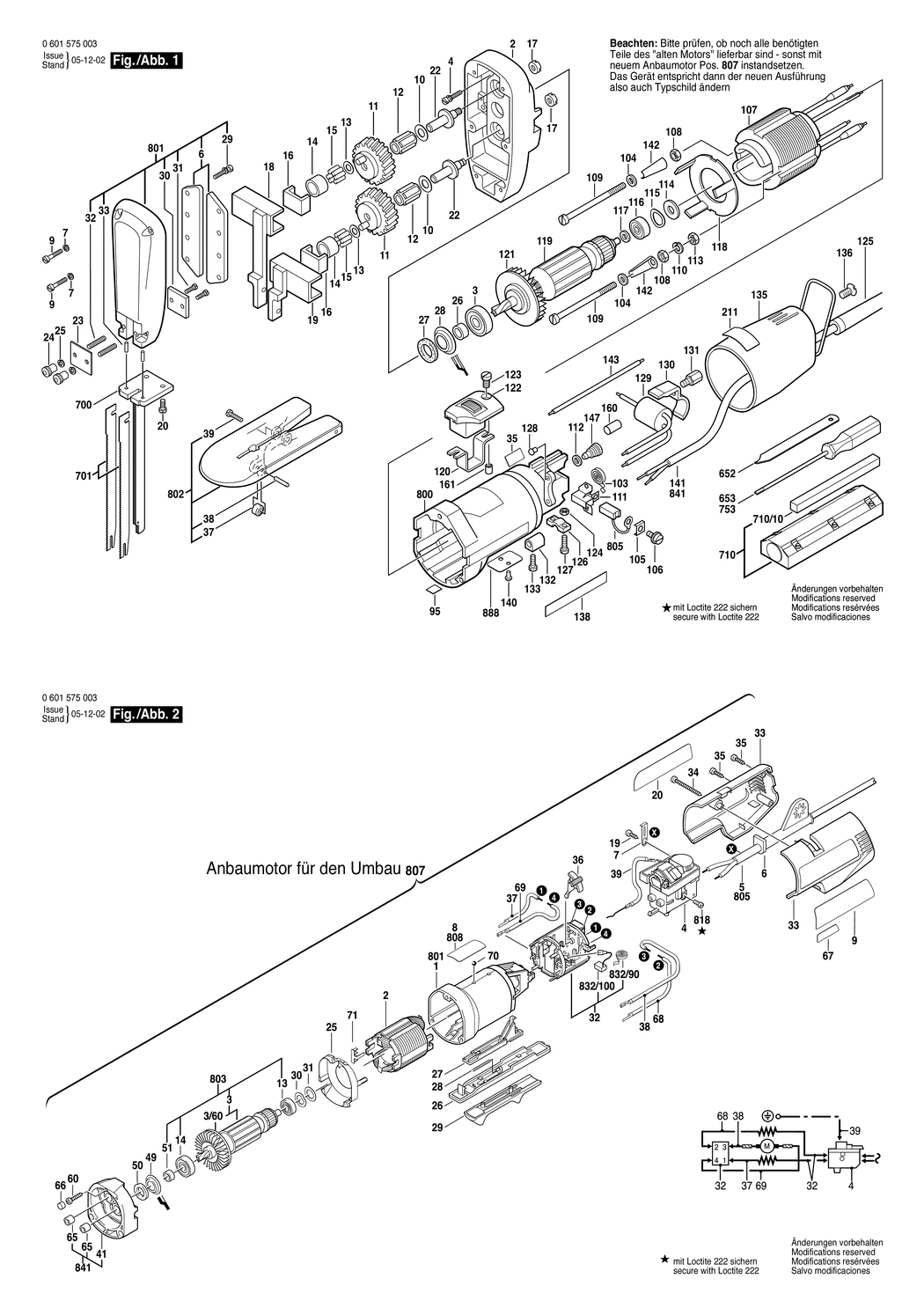

An exploded drawing and listing for the Bosch 1575 / 0601575048 / F 220 Volt

	Ex VAT	Inc VAT
2 - GEAR HOUSING BSD-2605806082.A4 2605806082	£72.18	£86.62
3 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A118 3600905039	£12.04	£14.45
4 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A217 2910021122	£2.16	£2.59
6 - GUIDE RAIL BSD-2601038001.A1 2601038001	£3.72	£4.47
7 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A612 2916690003	£1.75	£2.10
9 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A42 2910011128	£1.75	£2.10
10 - SHIM 0.10 MM BSD-2600100611.A1 2600100611	£1.75	£2.10
10 - SHIM 0.50 MM BSD-2600100613.A76 2600100613	£1.75	£2.10
11 - ECCENTRIC COG WHEEL Z=49 BSD-2606319007.A8 2606319007	£59.53	£71.44
12 - NEEDLE-ROLLER ASSEMBLY BSD-3600910000.A73 3600910000	£4.26	£5.11
13 - SHIM 0.20 MM BSD-2600100586.A42 2600100586	£1.75	£2.10
13 - SHIM 0.30 MM BSD-2600100587.A1 2600100587	£1.75	£2.10
13 - SHIM 0.5 MM BSD-2600100588.A98 2600100588	£1.75	£2.10
14 - ROLLER BSD-2600300005.A8 2600300005	£8.67	£10.41
15 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A28 2603201037	£2.61	£3.13
16 - RETAINING BRACKET BSD-2601320018.A10 2601320018	£2.80	£3.36
17 - SLOTTED ROUND NUT BSD-2603341007.A13 2603341007	£1.75	£2.10
18 - LIFTING ROD BSD-2602305016.A2 2602305016	£54.42	£65.30
19 - LIFTING ROD BSD-2602305014.A15 2602305014	£54.42	£65.30
20 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A186 2910021118	£1.75	£2.10
22 - BEARING BOLT BSD-2603520010.A3 2603520010	£16.41	£19.69
23 - PRESSURE PLATE BSD-2601034010.A9 2601034010	£6.52	£7.83
24 - ROUND NUT BSD-3603345016.A4 3603345016	£13.12	£15.75
25 - SPRING LOCK WASHER DIN128-A5-FST BSD-2916690002.A4 2916690002	£1.75	£2.10
26 - SEAL BUSHING BSD-2600300047.A20 2600300047	£2.61	£3.13
27 - FELT WASHER BSD-2600108026.A63 2600108026	£1.75	£2.10
28 - CUPPED WASHER BSD-2600500017.A70 2600500017	£1.75	£2.10
29 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A24 2910011082	£1.75	£2.10
30 - SUPPORT PLATE BSD-3602307009.A14 3602307009	£81.81	£98.17
31 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x8-5.8 BSD-2910011084.A10 2910011084	£1.75	£2.10
32 - STUD BSD-2603502015.A9 2603502015	£3.72	£4.47
33 - STRAIGHT PIN 4H8x8 DIN 7 BSD-2917500093.A9 2917500093	£1.75	£2.10
35 - REFERENCE PLATE BSD-3601110100.A7 3601110100	-
37 - ROLLER BSD-2600300011.A5 2600300011	£1.75	£2.10
38 - NEEDLE ROLLER BSD-1903201521.A13 1903201521	£1.75	£2.10
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A77 2910021132	£1.75	£2.10
103 - SPIRAL SPRING BSD-2604652000.A122 2604652000	-
104 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A58 2916011005	£1.75	£2.10
105 - CLAMPING SADDLE BSD-2601321005.A65 2601321005	-
106 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A55 2914501011	£1.75	£2.10
107 - FIELD 220-230V BSD-2604220269.A26 2604220269	-
108 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A115 2915011003	£1.75	£2.10
109 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A56 2910011074	£1.75	£2.10
110 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A126 2916690001	-
111 - BRUSH HOLDER BSD-2601323016.A0 2601323016	£2.80	£3.36
112 - PLAIN WASHER dia 2.6 MM-ST BSD-2916021007.A3 2916021007	-
113 - HEX NUT DIN 439-BM 3 BSD-2915051103.A10 2915051103	£1.75	£2.10
114 - SHIM BSD-2600100699.A90 2600100699	£1.75	£2.10
115 - SHIM BSD-2600150002.A79 2600150002	-
116 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A68 1900905015	£30.42	£36.51
117 - SHIM 0.3 MM BSD-2600100612.A58 2600100612	£2.61	£3.13
118 - SEAL RING BSD-2600113019.A2 2600113019	£2.80	£3.36
119 - ARMATURE 220V BSD-2604010281.A3 2604010281	-
120 - INSULATING PART BSD-2601322002.A90 2601322002	£1.75	£2.10
121 - FAN BSD-2606610038.A50 2606610038	-
122 - SWITCH BSD-2607200045.A20 2607200045	-
123 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A20 2910501048	-
125 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A581 2600703012	£2.80	£3.36
125 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A623 2600703011	£2.80	£3.36
126 - CABLE CLIP BSD-2601035005.A43 2601035005	£1.75	£2.10
128 - TUBULAR RIVET A2.5x0.3x4DIN7340-MS BSD-2917170554.A3 2917170554	£1.75	£2.10
129 - SUPPRESSION FILTER BSD-2607329048.A81 2607329048	-
130 - FASTENING CLAMP BSD-2601301002.A77 2601301002	£2.16	£2.59
131 - HEX SCREW BSD-2603527004.A73 2603527004	£1.75	£2.10
132 - CONNECTING TERMINAL BSD-2604490005.A20 2604490005	£1.75	£2.10
133 - SOCKET HEAD CAP SCREW BSD-2603410009.A22 2603410009	£1.32	£1.58
135 - HOUSING COVER BSD-3600508023.A72 3600508023	£13.41	£16.09
136 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A77 2910501084	-
138 - STICKER BSD-3601007011.A10 3601007011	-
140 - GROOVED NAIL BSD-3603133000.A650 3603133000	£2.61	£3.13
141 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A128 1604460427	£12.04	£14.45
142 - CABLE CLIP BSD-2601099015.A19 2601099015	£1.75	£2.10
143 - CABLE BSD-2604411061.A35 2604411061	-
147 - RETAINING PIN BSD-2603123013.A3 2603123013	-
160 - PRESS-IN NUT BSD-2603349039.A3 2603349039	£1.75	£2.10
161 - PRESS-IN NUT BSD-2603349038.A23 2603349038	-
652 - SCRAPER BSD-2601030010.A15 2601030010	£2.61	£3.13
700 - GUIDE 70 MM. T42D BSD-2608135023.A8 2608135023	£62.99	£75.59
700 - GUIDE 130 MM. T42A BSD-2608135020.A9 2608135020	£63.87	£76.64
700 - GUIDE 220 MM. T42B BSD-2608135021.A8 2608135021	£69.99	£83.99
700 - GUIDE 300 MM. T42C BSD-2608135022.A9 2608135022	£76.12	£91.34
701 - SAW BLADE SET 70 MM. T 43D BSD-2607018013.A6 2607018013	£20.99	£25.19
701 - SAW BLADE SET 130 MM. T43A BSD-2607018010.A11 2607018010	£27.12	£32.54
701 - SAW BLADE SET 220 MM. T43B BSD-2607018011.A6 2607018011	£27.12	£32.54
701 - SAW BLADE SET 300 MM. T43C BSD-2607018012.A11 2607018012	£29.74	£35.69
710 - SHARPENING SET BSD-2608133000.A6 2608133000	-
710/10 - WHETSTONE BSD-3607950012.A2 3607950012	-
800 - MOTOR HOUSING BSD-2605108032.A71 2605108032	-
801 - GEAR COVER BSD-2605500905.A4 2605500905	£120.11	£144.13
802 - BASE PLATE BSD-2608000908.A8 2608000908	£72.38	£86.86
805 - CARBON-BRUSH SET BSD-2604320905.A78 2604320905	-
888 - NAMEPLATE BSD-160111A3H3.A3907 160111A3H3	£2.61	£3.13
