Bosch GOF 900 CE / 0601614641 / GB 110 Volt Spare Parts

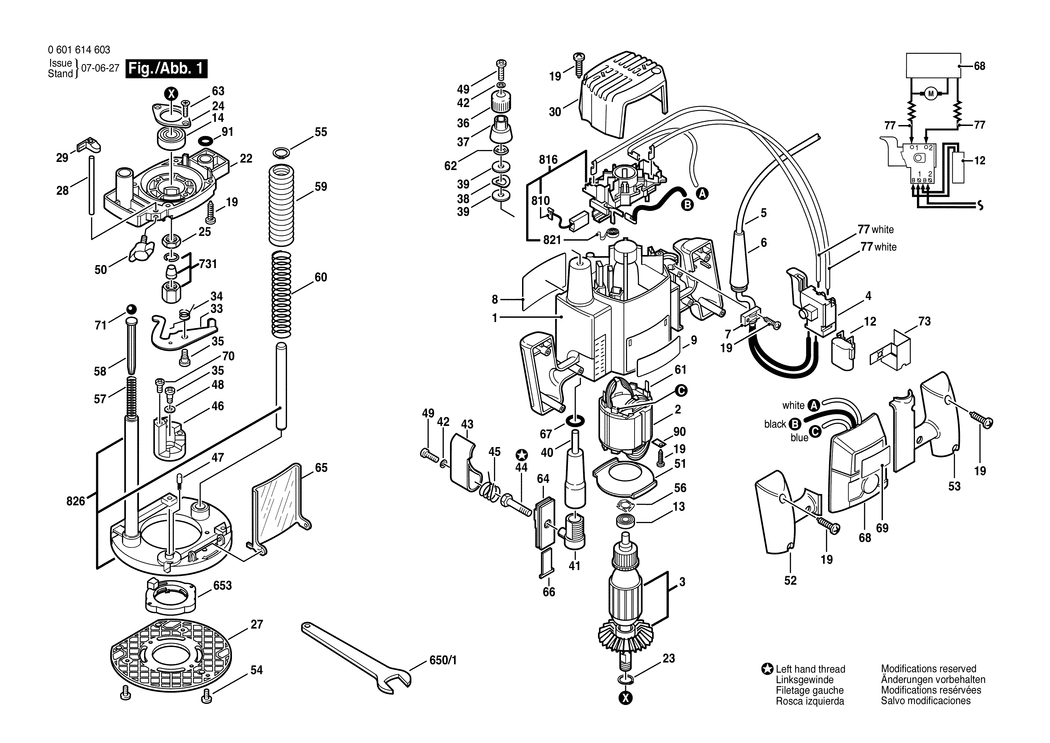

An exploded drawing and listing for the Bosch GOF 900 CE / 0601614641 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108581.A5 3605108581	£23.86	£28.63
2 - FIELD 110V BSD-1604220371.A0 1604220371	-
3 - ARMATURE 110-115V BSD-3604010500.A2 3604010500	£88.07	£105.68
4 - SWITCH BSD-2607200251.A5 2607200251	-
5 - POWER SUPPLY CORD GB 4.25m 2 x 1.5mm H05RR-F BSD-2610992448.A3 2610992448	£23.86	£28.63
6 - GROMMET dia7.4 MM BSD-3600703509.A6 3600703509	-
7 - CABLE CLIP BSD-2601035001.A2945 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-2610945935.A0 2610945935	-
9 - REFERENCE PLATE BSD-2610998945.A3 2610998945	£1.95	£2.34
12 - SUPPRESSION FILTER BSD-1617328025.A50 1617328025	£5.58	£6.70
13 - GROOVE BALL BEARING BSD-2610913173.A13 2610913173	£14.72	£17.67
14 - BALL BEARING BSD-3600905510.A16 3600905510	£6.61	£7.93
19 - TAPPING SCREW BSD-2610910566.A46 2610910566	£1.32	£1.58
22 - HOUSING BSD-2610997103.A0 2610997103	£58.76	£70.51
23 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A52 2916650006	£1.75	£2.10
24 - RETAINING PLATE BSD-3600034505.A16 3600034505	£3.72	£4.47
25 - HEX NUT M15 BSD-3603300501.A6 3603300501	£4.26	£5.11
27 - COVER PLATE BSD-2610997099.A16 2610997099	£21.52	£25.83
28 - ROD BSD-2610997093.A0 2610997093	£6.61	£7.93
29 - POINTER BSD-2610997094.A19 2610997094	£5.87	£7.04
30 - HOUSING COVER BSD-3605500595.A2 3605500595	£8.49	£10.19
33 - SWING-PLATE BSD-3601021509.A3 3601021509	£8.67	£10.41
34 - TORSION SPRING BSD-3604651502.A33 3604651502	£2.33	£2.80
35 - SHOULDER SCREW M4 BSD-3603415556.A11 3603415556	£2.33	£2.80
36 - KNOB BSD-3603231539.A37 3603231539	£2.33	£2.80
37 - INDICATOR RING BSD-3600209500.A8 3600209500	£3.80	£4.56
38 - SPRING WASHER BSD-3600100528.A7 3600100528	£1.95	£2.34
39 - WASHER BSD-3600100527.A36 3600100527	£2.52	£3.02
40 - ADJUSTING SLEEVE BSD-3600360507.A6 3600360507	-
41 - LOCKING PIECE BSD-3600400507.A35 3600400507	£2.80	£3.36
42 - SPRING LOCK WASHER B 4 DIN 127 BSD-2916680005.A24 2916680005	-
43 - LOCKING LEVER BSD-3602000510.A37 3602000510	£2.61	£3.13
44 - LOCK BOLT BSD-3603450503.A12 3603450503	£5.01	£6.01
45 - LOCK SPRING BSD-3604651503.A7 3604651503	£2.33	£2.80
46 - DEPTH-GAUGE BSD-2610997191.A32 2610997191	£13.41	£16.09
47 - RATCHET CAP BSD-2600590006.A568 2600590006	£1.75	£2.10
48 - SPRING WASHER BSD-3916060500.A16 3916060500	£1.75	£2.10
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A52 2910641122	£2.16	£2.59
50 - WING SCREW M6x25 MM BSD-1613480009.A60 1613480009	£1.88	£2.25
51 - AIR-DEFLECTOR RING BSD-3600590507.A6 3600590507	-
52 - HANDLE COVER LT BSD-3605133526.A3 3605133526	£8.49	£10.19
53 - HANDLE COVER RT BSD-3605133528.A12 3605133528	£10.10	£12.12
54 - SCREW BSD-2610915161.A17 2610915161	£3.34	£4.01
55 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A10 2916650003	£1.75	£2.10
56 - SPRING WASHER BSD-2610992432.A7 2610992432	£2.33	£2.80
57 - COMPRESSION SPRING BSD-3604613508.A10 3604613508	£2.33	£2.80
58 - GUIDE PIECE BSD-3603120502.A35 3603120502	£2.52	£3.02
59 - BELLOWS BSD-2610990698.A6 2610990698	£10.82	£12.99
60 - COMPRESSION SPRING BSD-2610997100.A3 2610997100	£2.33	£2.80
61 - BLADE TERMINAL BSD-1604477005.A33 1604477005	£2.61	£3.13
62 - RETAINING SNAP RING BSD-3604680502.A7 3604680502	£2.33	£2.80
63 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8 BSD-2910871122.A82 2910871122	-
64 - INSERT BSD-3601010519.A33 3601010519	£2.52	£3.02
65 - CHIP DEFLECTOR BSD-2610912599.A9 2610912599	-
66 - INSERT BSD-3601010517.A2 3601010517	£2.52	£3.02
67 - O-RING BSD-3600210507.A9 3600210507	£2.33	£2.80
68 - SPEED GOVERNOR 110V BSD-1607233150.A1 1607233150	-
69 - NAMEPLATE BSD-2610912471.A9 2610912471	£3.34	£4.01
70 - SOCKET HEAD CAP SCREW BSD-3603410504.A23 3603410504	£2.52	£3.02
71 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A500 1903230007	£1.75	£2.10
73 - SET RING BSD-2610996090.A34 2610996090	-
77 - CONNECTING CABLE BSD-2610945936.A1 2610945936	£1.75	£2.10
90 - TAB WASHER BSD-1601030022.A491 1601030022	£1.75	£2.10
91 - O-RING 12.0x2.0 MM BSD-1610210233.A28 1610210233	£2.80	£3.36
650/1 - SINGLE-HEAD ENG. WRENCH SW19 BSD-1907950511.A64 1907950511	£11.78	£14.13
653 - GUIDE SLEEVE BSD-2610991370.A6 2610991370	£31.64	£37.97
731 - COLLET 1/4 BSD-2608570101.A9 2608570101	£23.32	£27.99
731 - COLLET 8 MM BSD-2608570102.A6 2608570102	£24.99	£29.99
731 - COLLET 6 MM BSD-2608570100.A6 2608570100	£24.99	£29.99
810 - CARBON-BRUSH SET BSD-3604321513.A12 3604321513	£13.12	£15.75
816 - BRUSH HOLDER BSD-3604336511.A6 3604336511	£24.45	£29.34
821 - SPRING BSD-3604652501.A41 3604652501	£3.72	£4.47
826 - BASE BSD-2610997116.A3 2610997116	£51.22	£61.47
