Bosch GMF 1400 CE / 3601F17870 / GB 230 Volt Spare Parts

Home Details Reviews Delivery

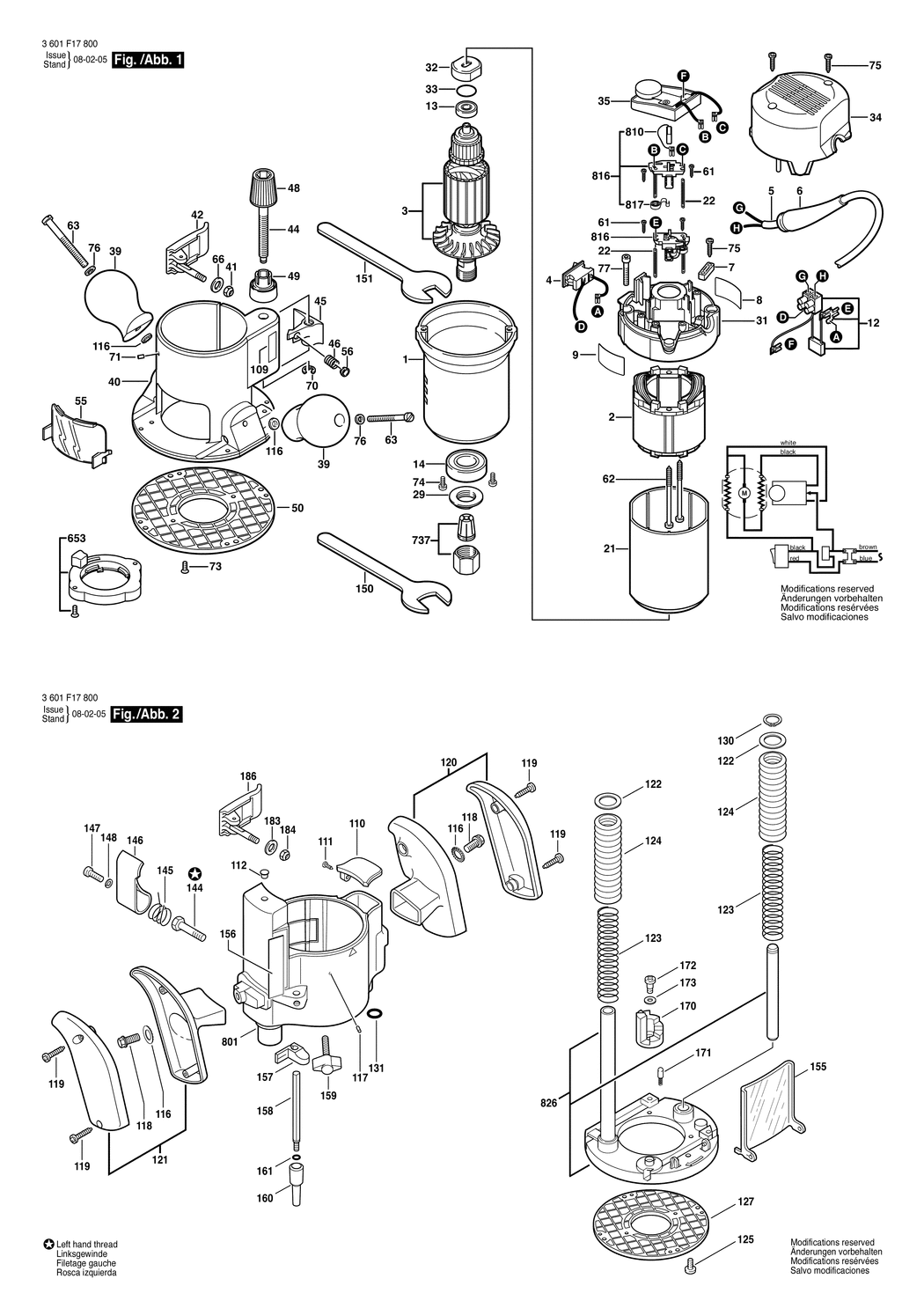

An exploded drawing and listing for the Bosch GMF 1400 CE / 3601F17870 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610922584.A2 2610922584	£33.74	£40.49
2 - FIELD 230V BSD-2610941203.A11 2610941203	£62.51	£75.01
3 - ARMATURE 230V BSD-2610941202.A2 2610941202	-
4 - ON-OFF SWITCH BSD-2610016526.A1 2610016526	-
5 - POWER SUPPLY CORD GB 3.50m 2 x 1.50mm H07 RN-F BSD-2610936548.A0 2610936548	-
6 - GROMMET dia 9.4 MM BSD-3600703508.A9 3600703508	£3.51	£4.21
7 - CABLE CLIP BSD-2601035001.A764 2601035001	£1.84	£2.21
8 - NAMEPLATE BSD-2610935839.A0 2610935839	-
9 - LABEL BSD-2610935603.A3 2610935603	-
12 - SUPPRESSION CAPACITOR BSD-2610938252.A0 2610938252	-
13 - BALL GUIDE BSD-3600905513.A29 3600905513	£12.64	£15.17
14 - BALL BEARING BSD-1600900088.A3 1600900088	-
21 - INSULATING SLEEVE BSD-2610009656.A3 2610009656	£10.61	£12.73
22 - BLADE TERMINAL BSD-1604477005.A114 1604477005	£2.74	£3.29
29 - NUT BSD-2610993582.A0 2610993582	£4.48	£5.37
31 - REAR HOUSING SECTION BSD-2610941007.A3 2610941007	£11.30	£13.56
32 - BEARING HOLDER BSD-2610991375.A4 2610991375	£5.87	£7.04
33 - O-RING BSD-1900210115.A3 1900210115	£2.74	£3.29
34 - SET OF HANDLES BSD-2610941008.A0 2610941008	£8.67	£10.41
35 - SPEED GOVERNOR 230V BSD-1607233135.A2 1607233135	£39.13	£46.96
39 - HANDLE BSD-2610991387.A0 2610991387	£12.04	£14.45
40 - BASE BSD-2610925365.A2 2610925365	£63.50	£76.20
41 - HEX NUT M6 BSD-1613300006.A117 1613300006	£1.38	£1.66
42 - CLAMPING LEVER BSD-2610915060.A2 2610915060	-
44 - ROD BSD-2610922527.A1 2610922527	£3.91	£4.69
45 - LEVER BSD-2610991385.A9 2610991385	£6.16	£7.39
46 - SPRING BSD-2610991371.A1 2610991371	£2.27	£2.72
48 - ADJUSTING DEVICE BSD-2610993576.A10 2610993576	-
49 - RING BSD-2610993577.A2 2610993577	£2.64	£3.17
50 - COVER PLATE BSD-2610928164.A5 2610928164	-
55 - CHIP DEFLECTOR BSD-2610991389.A1 2610991389	-
56 - COVER BSD-2610991372.A8 2610991372	£1.84	£2.21
61 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A18 2910611006	£1.84	£2.21
62 - TAPPING SCREW BSD-2610991306.A9 2610991306	£1.75	£2.10
63 - SOCKET HEAD CAP SCREW DIN 84-BM6x70-5.8 BSD-2910011219.A4 2910011219	£1.84	£2.21
66 - PLAIN WASHER DIN 126-9-A2 BSD-2918660004.A49 2918660004	£1.75	£2.10
70 - RETAINING SNAP RING BSD-2610996054.A11 2610996054	£1.75	£2.10
71 - PIN BSD-2610994492.A12 2610994492	£1.75	£2.10
73 - SCREW BSD-2610915161.A50 2610915161	-
74 - OVAL-HEAD SCREW BSD-2910641120.A2 2910641120	£1.84	£2.21
75 - TAPPING SCREW BSD-2610910566.A5 2610910566	£1.38	£1.66
76 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A64 2916011013	£1.75	£2.10
77 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A136 2910141166	£1.84	£2.21
109 - LABEL BSD-2610935604.A0 2610935604	-
110 - PROTECTION COVER BSD-2610912594.A2 2610912594	£3.80	£4.56
111 - SCREW BSD-2610990022.A6 2610990022	£1.75	£2.10
112 - PLUG BSD-2610914852.A2 2610914852	-
116 - SERRATED LOCK-WASHER BSD-2916079032.A2 2916079032	£1.75	£2.10
117 - PIN BSD-2610994492.A13 2610994492	£1.75	£2.10
118 - SCREW BSD-2610996143.A13 2610996143	£1.84	£2.21
119 - SCREW BSD-2610913441.A14 2610913441	£1.84	£2.21
120 - HANDLE BSD-2610912597.A3 2610912597	£17.22	£20.67
121 - HANDLE BSD-2610996107.A6 2610996107	£19.91	£23.89
122 - DISC BSD-2610914639.A2 2610914639	-
123 - COMPRESSION SPRING BSD-2610912598.A2 2610912598	£1.75	£2.10
124 - BELLOWS BSD-3605510548.A26 3605510548	£5.58	£6.70
125 - SCREW BSD-2610915161.A51 2610915161	-
127 - COVER PLATE BSD-2610997099.A11 2610997099	£22.60	£27.12
130 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A255 2916650003	£1.75	£2.10
131 - O-RING 12x3 MM BSD-1900210111.A3 1900210111	£2.45	£2.94
144 - LOCK BOLT BSD-3603450504.A23 3603450504	£5.30	£6.36
145 - LOCK SPRING BSD-3604651503.A22 3604651503	£2.45	£2.94
146 - LOCKING LEVER BSD-3602000510.A24 3602000510	£2.74	£3.29
147 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A23 2910641122	£2.27	£2.72
148 - SPRING LOCK WASHER B 4 DIN 127 BSD-2916680005.A18 2916680005	-
150 - SINGLE-HEAD ENG. WRENCH BSD-2610992417.A8 2610992417	£16.41	£19.69
151 - CHUCK WRENCH BSD-2610991388.A2 2610991388	-
155 - CHIP DEFLECTOR BSD-2610912599.A15 2610912599	-
156 - LABEL BSD-2610935605.A3 2610935605	-
157 - POINTER BSD-2610997094.A12 2610997094	£6.16	£7.39
158 - ROD BSD-2610912600.A3 2610912600	£9.97	£11.96
159 - WING SCREW M6x20 MM BSD-1613480008.A242 1613480008	£1.84	£2.21
160 - KNOB BSD-2610912601.A2 2610912601	£6.16	£7.39
161 - O-RING BSD-2610068154.A5 2610068154	£1.84	£2.21
170 - DEPTH-GAUGE BSD-3600232503.A15 3600232503	£11.37	£13.64
171 - RATCHET CAP BSD-2600590006.A1065 2600590006	£1.84	£2.21
172 - SHOULDER SCREW M4 BSD-3603415556.A66 3603415556	£2.45	£2.94
173 - SPRING WASHER BSD-3916060500.A28 3916060500	£1.84	£2.21
183 - PLAIN WASHER DIN 126-9-A2 BSD-2918660004.A53 2918660004	£1.75	£2.10
184 - HEX NUT M6 BSD-1613300006.A120 1613300006	£1.38	£1.66
186 - CLAMPING LEVER BSD-2610915060.A0 2610915060	-
653 - GUIDE SLEEVE BSD-2610991370.A17 2610991370	£33.22	£39.87
737 - COLLET 6 MM BSD-2608570103.A31 2608570103	£25.82	£30.99
737 - COLLET 1/4 BSD-2608570104.A5 2608570104	£25.72	£30.86
737 - COLLET 8 MM BSD-2608570105.A27 2608570105	£28.48	£34.17
737 - COLLET 3/8 BSD-2608570106.A5 2608570106	£27.99	£33.59
737 - COLLET 12 MM BSD-2608570107.A31 2608570107	£27.12	£32.54
737 - COLLET 1/2 BSD-2608570108.A0 2608570108	£28.32	£33.99
801 - BASE BSD-2610924454.A0 2610924454	£75.79	£90.95
810 - CARBON-BRUSH SET BSD-2610007957.A4 2610007957	£11.87	£14.24
816 - BRUSH HOLDER BSD-3604336506.A3 3604336506	-
817 - SPRING BSD-3604652501.A22 3604652501	£3.91	£4.69
826 - BASE BSD-2610997115.A15 2610997115	£61.98	£74.38
