Bosch GKF 600 / 3601F0A161 / GB 110 Volt Spare Parts

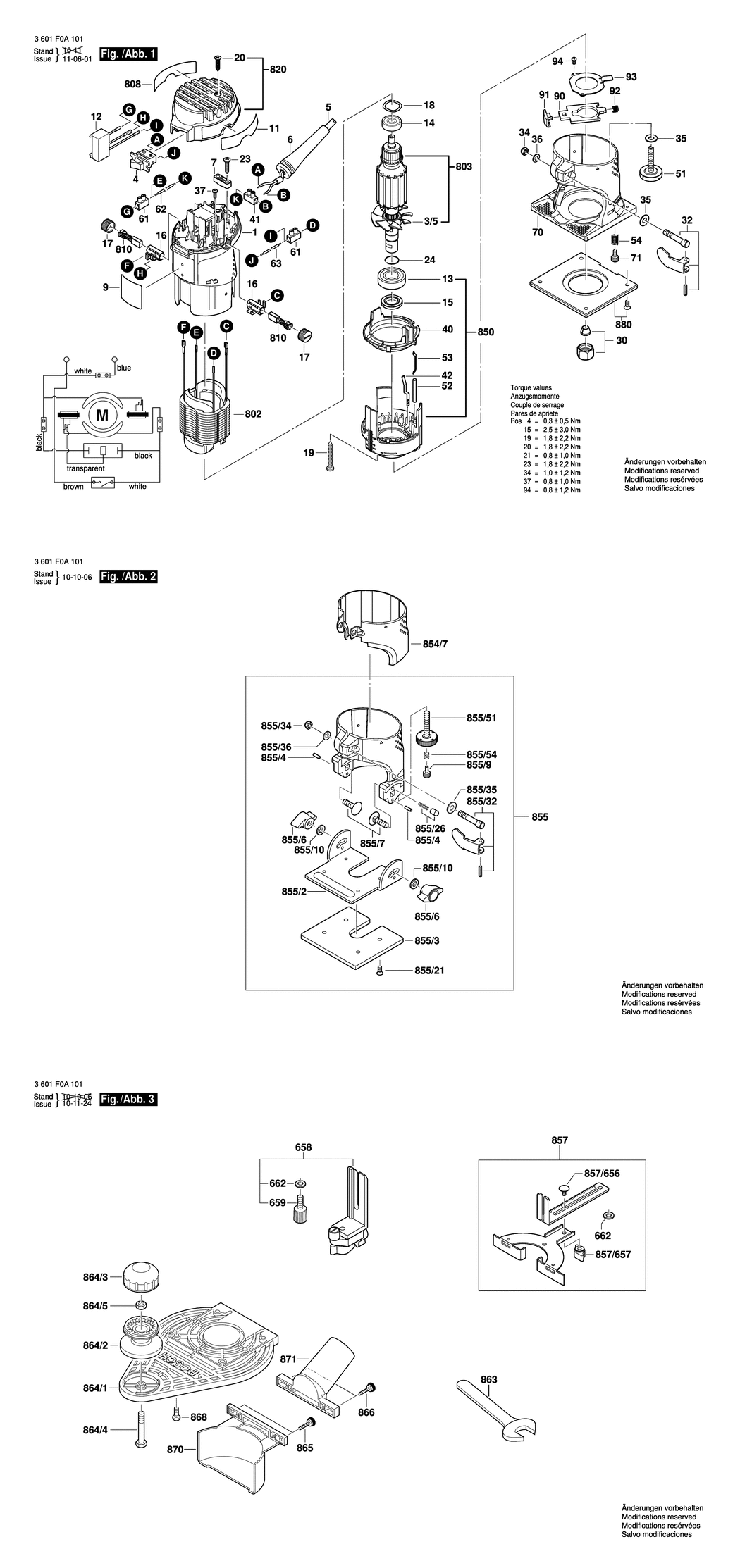

An exploded drawing and listing for the Bosch GKF 600 / 3601F0A161 / GB 110 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2610035222.A2 2610035222	£13.12	£15.75
3/5 - FAN BSD-2609100246.A2 2609100246	£2.16	£2.59
4 - SWITCH BSD-2609120274.A5 2609120274	£13.12	£15.75
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05RN-F BSD-2604460211.A0 2604460211	-
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A643 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A771 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2609131379.A1 2609131379	£2.16	£2.59
11 - NAMEPLATE BSD-2609131380.A6 2609131380	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-2609120229.A1 2609120229	£12.04	£14.45
13 - GROOVE BALL BEARING BSD-160090008A.A13 160090008A	£6.53	£7.84
14 - GROOVE BALL BEARING BSD-160090008A.A4 160090008A	£6.53	£7.84
15 - SELF-LOCKING NUT BSD-2609110253.A3 2609110253	£2.80	£3.36
16 - BRUSH HOLDER BSD-2609110217.A3 2609110217	£1.75	£2.10
17 - BRUSH-COVER BSD-2609100203.A4 2609100203	£1.75	£2.10
18 - SPRING WASHER BSD-2609110294.A3 2609110294	£1.75	£2.10
19 - TAPPING SCREW BSD-2910611093.A0 2910611093	£1.75	£2.10
20 - TAPPING SCREW BSD-2609110490.A3 2609110490	£1.75	£2.10
23 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A250 2910611020	£1.75	£2.10
24 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A443 2916650006	£1.75	£2.10
30 - COLLET BSD-2610008122.A0 2610008122	£11.30	£13.56
32 - CLAMPING LEVER BSD-2609199041.A10 2609199041	£5.30	£6.36
34 - HEX NUT BSD-2609110289.A7 2609110289	£1.75	£2.10
35 - CONICAL SPRING WASHER BSD-2609110282.A7 2609110282	£1.75	£2.10
36 - WASHER BSD-2609110290.A8 2609110290	£1.75	£2.10
37 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A988 2603490017	£2.16	£2.59
40 - AIR-DEFLECTOR RING BSD-2609100247.A4 2609100247	£2.61	£3.13
41 - CONNECTING TERMINAL BSD-2609120153.A4 2609120153	£1.75	£2.10
42 - CONTACT STRAP BSD-2609110297.A3 2609110297	£1.75	£2.10
51 - SCREW BSD-2609110241.A7 2609110241	£3.72	£4.47
52 - PRESSURE SPINDLE BSD-2609110245.A3 2609110245	£1.75	£2.10
53 - SPRING PLATE BSD-2609110246.A4 2609110246	£1.75	£2.10
54 - COMPRESSION SPRING DIN 17223. 2076 GRADE B BSD-2609110306.A7 2609110306	£1.75	£2.10
61 - TERMINAL BLOCK BSD-2609120177.A7 2609120177	£1.75	£2.10
62 - CONNECTING CABLE BSD-2609120180.A0 2609120180	£2.61	£3.13
63 - CONNECTING CABLE BSD-2609120256.A0 2609120256	£2.61	£3.13
70 - BASE PLATE BSD-2609110307.A3 2609110307	£27.23	£32.68
71 - BOLT BSD-2609110283.A3 2609110283	£2.16	£2.59
90 - PLATE BSD-2609110741.A3 2609110741	£2.80	£3.36
91 - BUTTON BSD-2609100248.A3 2609100248	£1.75	£2.10
92 - COMPRESSION SPRING BSD-2609110255.A3 2609110255	£1.75	£2.10
93 - COVER PLATE BSD-2609110480.A4 2609110480	£1.75	£2.10
94 - SCREW M 3x6 BSD-2609110367.A4 2609110367	£1.75	£2.10
658 - EDGE GUIDE BSD-2610008117.A4 2610008117	£40.80	£48.96
659 - KNURLED THUMBSCREW BSD-2609100568.A3 2609100568	£2.80	£3.36
662 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A195 2916011014	£1.75	£2.10
802 - STATOR 120V BSD-2610008119.A1 2610008119	£45.67	£54.80
803 - ARMATURE 120V BSD-2610008120.A0 2610008120	£59.53	£71.44
808 - NAMEPLATE BSD-2610045344.A0 2610045344	-
810 - CARBON-BRUSH SET BSD-2610008121.A1 2610008121	£12.04	£14.45
820 - HOUSING COVER BSD-2609199109.A4 2609199109	£8.67	£10.41
850 - BEARING FLANGE BSD-2610008123.A4 2610008123	£31.64	£37.97
854/7 - COVER BSD-2609100386.A4 2609100386	£8.67	£10.41
855 - BASE BSD-2610008115.A3 2610008115	£72.18	£86.62
855/2 - BASE PLATE BSD-2609110372.A3 2609110372	£5.58	£6.70
855/3 - BASE BSD-2609100381.A4 2609100381	£6.52	£7.83
855/4 - PIN BSD-2609110455.A3 2609110455	£1.75	£2.10
855/6 - WING NUT BSD-2609199008.A20 2609199008	£1.75	£2.10
855/7 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A80 2910281201	£1.75	£2.10
855/9 - PIN BSD-2609110483.A3 2609110483	£1.75	£2.10
855/10 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A196 2916011014	£1.75	£2.10
855/21 - SCREW BSD-2609110347.A4 2609110347	£1.75	£2.10
855/26 - RATCHET CAP BSD-2600590006.A1075 2600590006	£1.75	£2.10
855/32 - CLAMPING LEVER BSD-2609199041.A9 2609199041	£5.30	£6.36
855/34 - HEX NUT BSD-2609110289.A8 2609110289	£1.75	£2.10
855/35 - CONICAL SPRING WASHER BSD-2609110282.A8 2609110282	£1.75	£2.10
855/36 - WASHER BSD-2609110290.A7 2609110290	£1.75	£2.10
855/51 - SCREW BSD-2609110241.A8 2609110241	£3.72	£4.47
855/54 - COMPRESSION SPRING DIN 17223. 2076 GRADE B BSD-2609110306.A8 2609110306	£1.75	£2.10
857 - EDGE GUIDE BSD-2610008113.A4 2610008113	£21.52	£25.83
857/656 - SCREW BSD-2609110364.A3 2609110364	£1.75	£2.10
857/657 - WING NUT BSD-2609199008.A19 2609199008	£1.75	£2.10
863 - SINGLE-HEAD ENG. WRENCH SW 17 BSD-2609110438.A4 2609110438	£5.58	£6.70
864/1 - BASE PLATE BSD-2609100383.A4 2609100383	£21.52	£25.83
864/2 - HANDLE BSD-2609100423.A4 2609100423	£3.72	£4.47
864/3 - CAP-HANDLE BSD-2609100140.A15 2609100140	£5.30	£6.36
864/4 - SCREW BSD-2609110607.A3 2609110607	£2.16	£2.59
864/5 - NUT BSD-2609110548.A3 2609110548	£1.95	£2.34
865 - KNURLED THUMBSCREW BSD-2609199114.A2 2609199114	£8.67	£10.41
866 - SCREW BSD-2609199100.A2 2609199100	£1.75	£2.10
868 - SCREW BSD-2609110553.A4 2609110553	£1.75	£2.10
870 - DUST CHAMBER BSD-2609100384.A3 2609100384	£7.36	£8.83
871 - CHUTE BSD-2609100385.A4 2609100385	£8.67	£10.41
880 - BASE PLATE BSD-2610008124.A3 2610008124	£11.30	£13.56

Attribute Name	Value
Brand	Bosch
