Bosch 19051 / 0601905270 / EU 220 Volt Spare Parts

Home Details Reviews Delivery

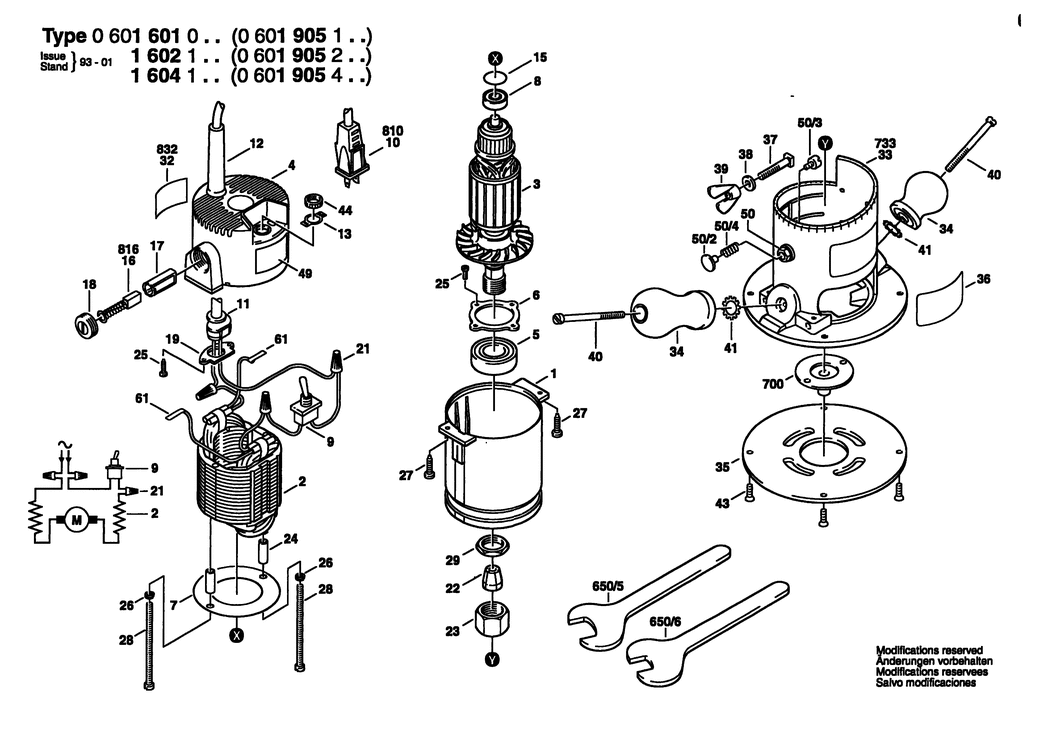

An exploded drawing and listing for the Bosch 19051 / 0601905270 / EU 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108552.A0 3605108552	£35.42	£42.51
2 - FIELD 220V BSD-3604220545.A0 3604220545	-
3 - ARMATURE 220V BSD-3604011559.A0 3604011559	-
4 - SEALING CAP BSD-3605500583.A2 3605500583	-
5 - GROOVE BALL BEARING BSD-3600900516.A0 3600900516	-
6 - FRONT PANEL BSD-3600034500.A0 3600034500	-
7 - PROTECTIVE WASHER BSD-3600133500.A2 3600133500	-
8 - GROOVE BALL BEARING BSD-3600900515.A2 3600900515	£25.68	£30.81
9 - TOGGLE SWITCH BSD-3607200505.A1 3607200505	£18.96	£22.75
10 - POWER SUPPLY CORD 4.25m 2 x 1.0mm H07RN-F BSD-3604460614.A2 3604460614	-
11 - COMPRESSION-GLAND FITTING BSD-3600390500.A0 3600390500	-
12 - GROMMET BSD-3600703500.A6 3600703500	£4.48	£5.37
13 - SWITCH PLATE BSD-3601023500.A1 3601023500	-
15 - O-RING BSD-3600210502.A2 3600210502	-
17 - BRUSH HOLDER BSD-3600492500.A0 3600492500	-
18 - DEVICE CAP BSD-1619X01268.A2 1619X01268	£1.75	£2.10
19 - FIXING PLATE BSD-3601023501.A1 3601023501	-
22 - COLLET 3/8 BSD-3600499507.A0 3600499507	-
23 - UNION NUT BSD-3603313502.A0 3603313502	-
24 - SPACER BSD-3600410502.A0 3600410502	-
25 - CYL HEAD TAPPING SCREW BSD-3603429508.A2 3603429508	-
26 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A373 2916680006	-
27 - SOCKET HEAD CAP SCREW BSD-3603410501.A2 3603410501	-
28 - SOCKET HEAD CAP SCREW BSD-3603415537.A1 3603415537	-
29 - HEX NUT BSD-3603301514.A1 3603301514	-
31 - SPEED INDICATOR BSD-3601119581.A1 3601119581	-
35 - NAMEPLATE BSD-1601110449.A2 1601110449	-
37 - THREADED RING BSD-3603340500.A0 3603340500	-
38 - INNER RING BSD-3600200532.A1 3600200532	-
39 - OUTER RING BSD-3600200533.A0 3600200533	-
41 - COLLET dia 1/2 BSD-3600499520.A3 3600499520	-
44 - NAMEPLATE BSD-3601119600.A5 3601119600	-
46 - CONDENSER BSD-3607328513.A1 3607328513	-
49 - NAMEPLATE BSD-1601110449.A3 1601110449	-
810 - NAMEPLATE BSD-3601119600.A6 3601119600	-
816 - CARBON-BRUSH SET BSD-3607014510.A3 3607014510	-
888 - NAMEPLATE BSD-160111A3H3.A2771 160111A3H3	£2.74	£3.29

Attribute Name	Value
Brand	Bosch
