Bosch UBH 6/35 D / 0611206032 / CH 220 Volt Spare Parts

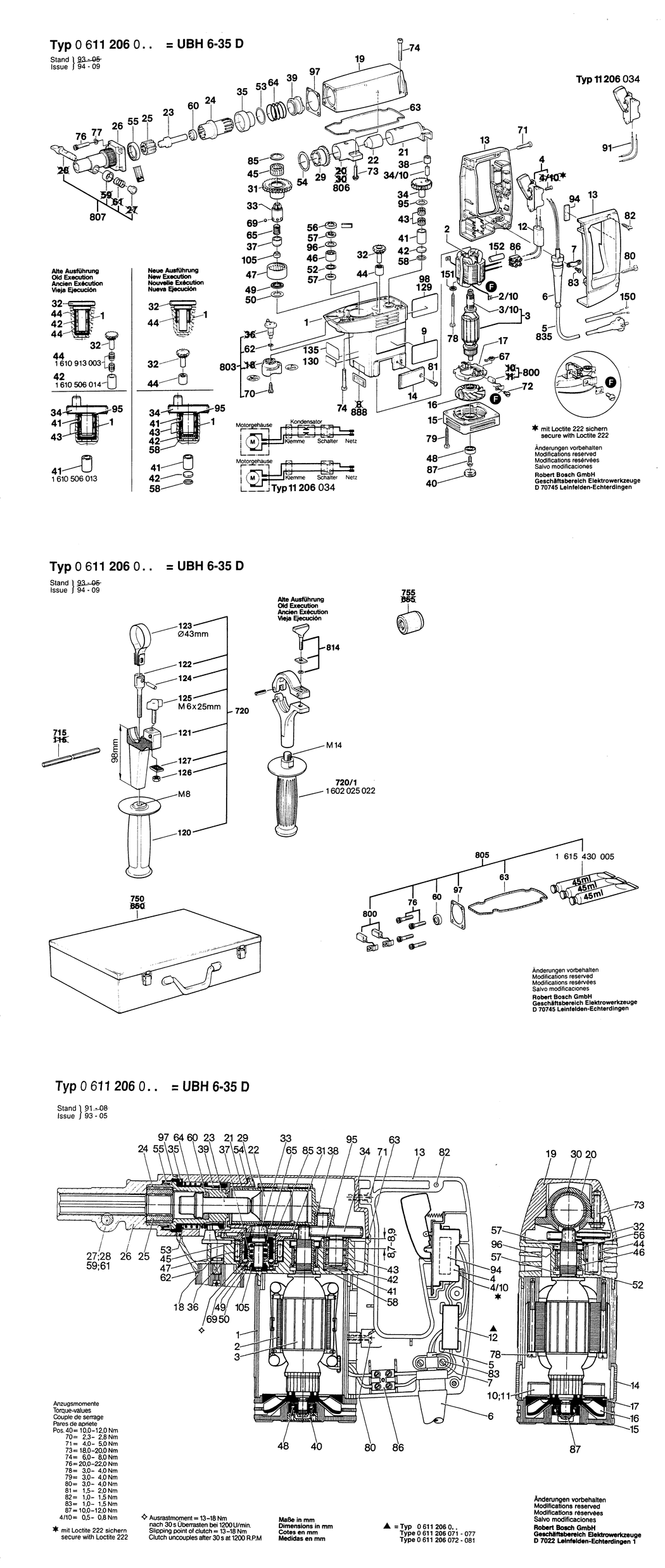

An exploded drawing and listing for the Bosch UBH 6/35 D / 0611206032 / CH 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102137.A6 1615102137	-
2 - FIELD 220-230V BSD-1614220054.A10 1614220054	-
2/10 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A272 1901350003	£1.75	£2.10
3 - ARMATURE 220-230V BSD-1614010013.A9 1614010013	-
3/10 - BUSHING BSD-1610300045.A1 1610300045	-
4 - ON-OFF SWITCH BSD-1617200017.A82 1617200017	-
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07 RN-F BSD-1614460006.A10 1614460006	£19.45	£23.34
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1482 3600703011	£2.80	£3.36
6 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A448 1600703009	£5.58	£6.70
7 - FASTENING CLAMP BSD-1601302014.A624 1601302014	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1611110475.A0 1611110475	-
12 - SUPPRESSION FILTER BSD-1617328002.A81 1617328002	-
13 - HANDLE BSD-1615132019.A3 1615132019	-
14 - SEALING CAP BSD-1615500283.A16 1615500283	-
15 - BEARING COVER BSD-1615808070.A18 1615808070	-
16 - FAN BSD-1616610053.A16 1616610053	-
17 - BRUSH HOLDER BSD-1614336000.A23 1614336000	-
19 - GEAR HOUSING BSD-1615806026.A9 1615806026	-
21 - HAMMER PISTON BSD-1618700041.A9 1618700041	-
22 - STRIKER BSD-1618710038.A3 1618710038	-
23 - STRIKER PIN BSD-1613124029.A9 1613124029	-
24 - GUIDE BUSHING BSD-1616490007.A16 1616490007	-
25 - CARRIER BSD-1616490005.A2 1616490005	-
26 - TOOLHOLDER BSD-1618597023.A21 1618597023	-
29 - BEVEL GEAR Z=31 BSD-1616333010.A2 1616333010	-
31 - CYLINDRICAL GEAR Z=51 BSD-1616303001.A2 1616303001	-
32 - TOOTHED SHAFT Z=14/22 BSD-1616312000.A9 1616312000	-
33 - BEVEL GEAR Z=8 BSD-1616333011.A9 1616333011	-
34 - ECCENTRIC SHAFT Z=36 BSD-1616110025.A3 1616110025	-
34/10 - BEARING BOLT BSD-1613100011.A9 1613100011	£3.72	£4.47
35 - GUIDE SLEEVE BSD-1610328011.A3 1610328011	-
37 - GUIDE SLEEVE BSD-1610506015.A18 1610506015	-
38 - BUSHING BSD-1610300046.A22 1610300046	-
39 - CLUTCH SLEEVE BSD-1616490008.A1 1616490008	-
40 - THREADED RING BSD-1613344002.A21 1613344002	-
41 - BEARING SLEEVE BSD-1610400029.A21 1610400029	-
42 - COVER DISC BSD-1610000002.A8 1610000002	-
43 - NEEDLE-ROLLER ASSEMBLY dia13 MM BSD-1610913004.A8 1610913004	£3.80	£4.56
44 - NEEDLE BEARING BSD-1610910067.A15 1610910067	-
45 - NEEDLE-ROLLER ASSEMBLY BSD-1610913002.A10 1610913002	-
46 - NEEDLE BEARING BSD-1600910011.A21 1600910011	£16.41	£19.69
47 - NEEDLE BEARING BSD-1610910058.A3 1610910058	-
48 - BALL BEARING 9x26x8 BSD-1900905025.A122 1900905025	£21.52	£25.83
49 - THRUST NEEDLE RIM BSD-1610920001.A11 1610920001	£3.72	£4.47
50 - THRUST BEARING DISC BSD-1610101608.A56 1610101608	£2.16	£2.59
52 - SUPPORTING DISC 1.5 MM BSD-1610101607.A3 1610101607	-
53 - SUPPORTING DISC 0.5 MM BSD-1610102615.A1 1610102615	-
54 - SUPPORTING DISC 1.0 MM BSD-1610102614.A10 1610102614	-
55 - SEAL RING BSD-1610283013.A3 1610283013	-
56 - RETAINING SNAP RING BSD-1610500004.A32 1610500004	-
57 - FELT WASHER BSD-1610205002.A24 1610205002	£1.75	£2.10
58 - O-RING 20.0x1.5 MM BSD-1610210075.A1 1610210075	£2.61	£3.13
60 - BACKUP RING BSD-1610290003.A9 1610290003	-
62 - O-RING 8x2 MM BSD-1900210104.A11 1900210104	£1.75	£2.10
63 - SEALING FRAME BSD-1611015018.A14 1611015018	-
64 - COMPRESSION SPRING BSD-1614616003.A0 1614616003	-
65 - COMPRESSION SPRING BSD-1614619004.A10 1614619004	-
67 - SPIRAL SPRING BSD-1604652006.A120 1604652006	£1.75	£2.10
69 - BALL DIN 5401-6 G28 BSD-1903230011.A97 1903230011	£2.61	£3.13
70 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A120 2910211020	£2.16	£2.59
70 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A951 2910021122	£2.16	£2.59
71 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8 BSD-2910011164.A249 2910011164	-
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1484 2910021118	£1.75	£2.10
73 - HEX SCREW BSD-1613454002.A9 1613454002	-
74 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A15 2910141168	£3.80	£4.56
76 - HEX SOCKET HEAD CAP SCREW M 6X30 BSD-1613414006.A15 1613414006	-
77 - SPRING LOCK WASHER M6 BSD-2916690005.A65 2916690005	-
78 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A293 1603435008	£1.32	£1.58
79 - TAPPING SCREW DIN 7971-BZ4.8x32 BSD-2910211037.A8 2910211037	£1.75	£2.10
80 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A158 2910211036	£1.75	£2.10
81 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A98 2910601118	£1.75	£2.10
82 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A115 2910211011	£1.75	£2.10
83 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A9 2910211018	£1.75	£2.10
83 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A277 2910021116	£2.16	£2.59
85 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A143 2916660012	£1.75	£2.10
86 - STRIP TERMINAL BSD-1901091110.A10 1901091110	£1.75	£2.10
87 - HEX SCREW BSD-1613454001.A15 1613454001	-
94 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A584 1602381001	-
95 - SUPPORTING DISC 0.5 MM BSD-1610101609.A2 1610101609	-
96 - SUPPORTING DISC 1.5 MM BSD-1610102017.A15 1610102017	£1.95	£2.34
97 - SEALING PLATE BSD-1611015020.A9 1611015020	£1.75	£2.10
105 - SPRING RETAINING RING BSD-1610502005.A7 1610502005	-
120 - AUXILIARY HANDLE M8 BSD-1612025019.A29 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP BSD-1618040077.A125 1618040077	-
122 - STUD BOLT M8 BSD-1613521001.A176 1613521001	£5.58	£6.70
123 - CLAMPING BAND dia43 MM BSD-1611316003.A144 1611316003	£2.61	£3.13
124 - STRAIGHT PIN BSD-1613100012.A161 1613100012	£2.61	£3.13
125 - WING SCREW M6x25 MM BSD-1613480009.A113 1613480009	£1.88	£2.25
126 - HEX NUT M6 BSD-1613300006.A134 1613300006	£1.32	£1.58
127 - CLAMPING PLATE BSD-1611030009.A95 1611030009	-
129 - MANUFACTURER'S NAMEPLATE BSD-1611110476.A3 1611110476	-
135 - REFERENCE PLATE BSD-1611110387.A14 1611110387	£1.75	£2.10
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A605 1900452012	£1.75	£2.10
655 - PROTECTIVE CAP BSD-2600508019.A39 2600508019	£1.75	£2.10
700 - CHUCK dia5-dia13 MM BSD-1618571009.A6 1618571009	-
700 - CHUCK WRENCH BSD-1617950006.A5 1617950006	-
706 - BIT HOLDER 1/2 - 20 UNF-2 A BSD-1618598094.A5 1618598094	-
708 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A217 1608571069	£23.86	£28.63
708 - CHUCK WRENCH SG2 BSD-2607950007.A1303 2607950007	£6.52	£7.83
715 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A113 1613001003	£4.25	£5.10
720 - AUXILIARY HANDLE BSD-1612025020.A76 1612025020	£26.12	£31.35
720/1 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A9 2602025075	£10.30	£12.36
750 - CARRYING CASE BSD-1615438142.A18 1615438142	-
755 - PROTECTIVE CAP BSD-1610508014.A24 1610508014	-
800 - CARBON-BRUSH SET BSD-1617014108.A8 1617014108	£18.96	£22.75
803 - PARTS SET BSD-1617000079.A6 1617000079	-
805 - WEAR AND TEAR PART SET BSD-1617000057.A8 1617000057	-
806 - BEARING PEDESTAL BSD-1615819002.A4 1615819002	-
807 - LOCKING BOLT SET BSD-1617000014.A153 1617000014	£24.45	£29.34
814 - PARTS SET BSD-1617000038.A35 1617000038	-
888 - NAMEPLATE BSD-160111A3H3.A2868 160111A3H3	£2.61	£3.13
