Bosch GBH 5-40 DCE / 3611B64001 / EU 230 Volt Spare Parts

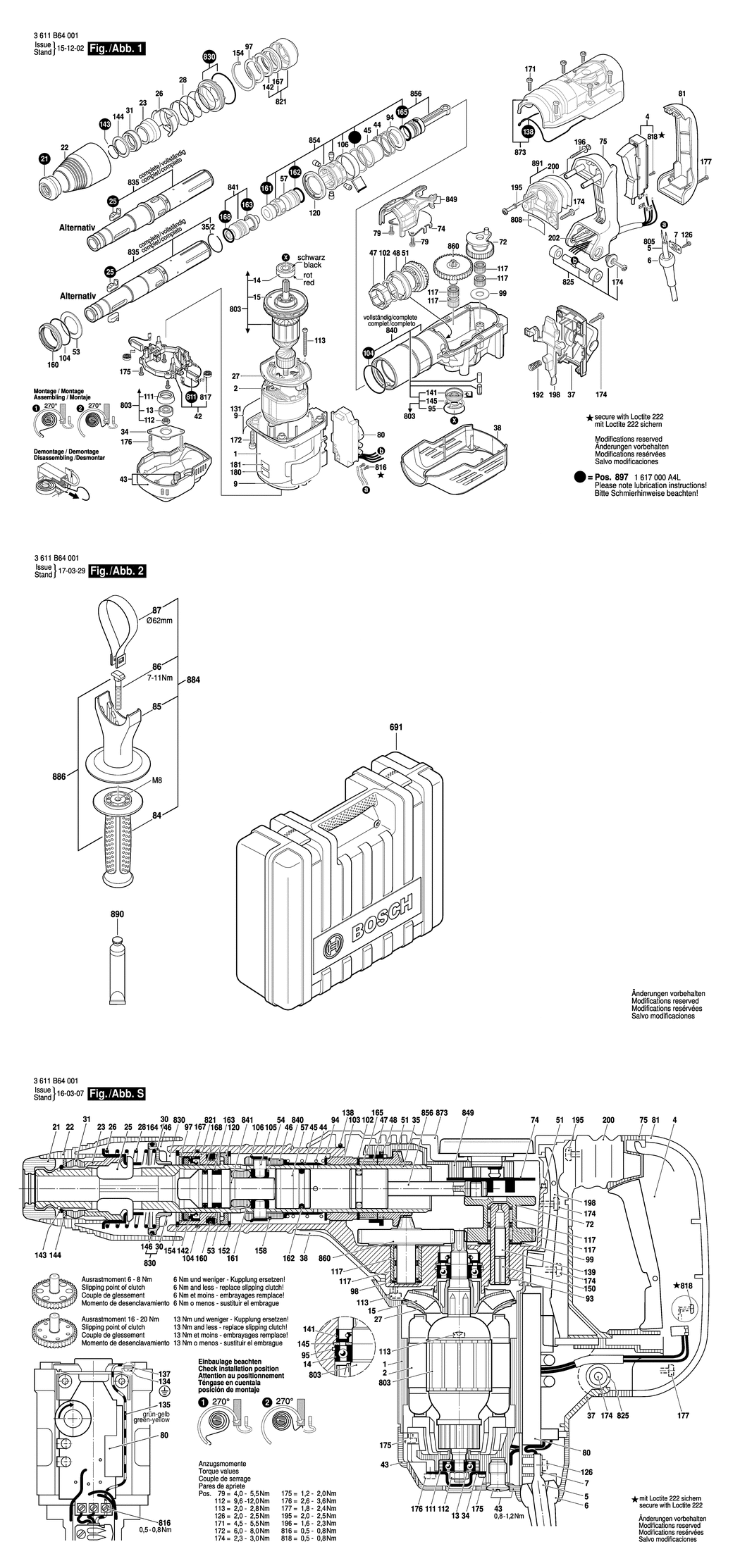

An exploded drawing and listing for the Bosch GBH 5-40 DCE / 3611B64001 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102161.A9 1615102161	£27.23	£32.68
2 - FIELD 220-240V BSD-1614220123.A28 1614220123	£40.80	£48.96
4 - SWITCH BSD-1617200120.A8 1617200120	£19.45	£23.34
6 - GROMMET dia8.7-dia9.6x66 MM BSD-1600703035.A25 1600703035	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A153 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0U6.A2 160111C0U6	£2.61	£3.13
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A70 1610900026	£12.04	£14.45
14 - GROOVE BALL BEARING 12x32x10 BSD-1610905028.A49 1610905028	£16.41	£19.69
15 - FAN BSD-1616610090.A16 1616610090	£12.04	£14.45
21 - PROTECTIVE CAP BSD-1610508038.A58 1610508038	£8.13	£9.76
22 - PROTECTION SLEEVE BSD-1610591027.A10 1610591027	£6.52	£7.83
23 - STOP SLEEVE BSD-1610520001.A9 1610520001	£12.04	£14.45
25 - STOPPING DEVICE BSD-1612300036.A2 1612300036	£13.12	£15.75
26 - INDEXING DISK BSD-1610290076.A20 1610290076	£6.52	£7.83
27 - AIR-DEFLECTOR RING BSD-1610591028.A4 1610591028	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621000.A125 1614621000	£2.80	£3.36
31 - DAMPING RING BSD-1610290049.A43 1610290049	£2.80	£3.36
34 - FLANGE BSD-1610516013.A50 1610516013	£1.75	£2.10
35/2 - SPRING RETAINING RING BSD-160015001F.A0 160015001F	£2.16	£2.59
37 - BEARING PEDESTAL BSD-1615500393.A0 1615500393	£8.67	£10.41
38 - COVERING HOOD BSD-1615190159.A5 1615190159	£16.41	£19.69
42 - BRUSH HOLDER BSD-1614336085.A11 1614336085	£37.27	£44.72
43 - FAN COVER BSD-1615500410.A16 1615500410	£13.12	£15.75
44 - COMPRESSION SPRING BSD-1614617004.A3 1614617004	£2.80	£3.36
45 - CONTROL BUSHING BSD-1610499070.A2 1610499070	£18.96	£22.75
47 - GEAR SLEEVE BSD-1610300064.A22 1610300064	£6.52	£7.83
48 - CLUTCH SLEEVE BSD-1616334012.A17 1616334012	£5.30	£6.36
51 - CROWN GEAR BSD-1616333041.A26 1616333041	£36.63	£43.96
53 - SUPPORT DISC BSD-1610290068.A10 1610290068	£3.72	£4.47
57 - STRIKER BSD-1618710091.A7 1618710091	£27.23	£32.68
72 - ECCENTRIC COG WHEEL BSD-1600A00ZZ3.A8 1600A00ZZ3	£70.24	£84.29
74 - GUIDE PLATE BSD-1611921001.A25 1611921001	£2.61	£3.13
75 - HANDLE BSD-1615132118.A9 1615132118	£48.38	£58.06
79 - TORX OVAL-HEAD SCREW M5x12-TORX.T25 BSD-1613435015.A10 1613435015	£2.61	£3.13
80 - SPEED GOVERNOR BSD-1617233047.A6 1617233047	£72.18	£86.62
81 - HANDLE COVER BSD-1615132088.A23 1615132088	£21.68	£26.01
84 - AUXILIARY HANDLE BSD-160202507H.A401 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1618040074.A27 1618040074	£5.30	£6.36
86 - T-HEAD BOLT M8x40 MM BSD-1613490002.A138 1613490002	£4.26	£5.11
87 - CLAMPING BAND dia62 MM BSD-1611316019.A31 1611316019	£4.26	£5.11
94 - FRICTION WASHER BSD-1610102056.A12 1610102056	£2.80	£3.36
95 - O-RING 32.0x1.5 MM BSD-1610210173.A26 1610210173	£2.16	£2.59
97 - LOCKING WASHER BSD-1610031005.A22 1610031005	£3.72	£4.47
99 - SUPPORT DISC BSD-1610102059.A21 1610102059	£2.61	£3.13
102 - SHIM 0.3 MM BSD-1610102057.A21 1610102057	£1.75	£2.10
102 - SHIM 0.2 MM BSD-1610102058.A12 1610102058	£1.75	£2.10
104 - O-RING 52.0x2.0 MM BSD-1610210160.A3 1610210160	£3.72	£4.47
106 - RETAINING SNAP RING BSD-1610499073.A14 1610499073	£6.52	£7.83
111 - BUSHING BSD-1610290064.A50 1610290064	£1.75	£2.10
112 - HEX NUT DIN 936-M8x1-8 BSD-1613300008.A53 1613300008	£2.61	£3.13
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A265 1613435009	£1.75	£2.10
117 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A22 1610913029	£4.26	£5.11
120 - STOP SLEEVE BSD-1610590019.A11 1610590019	£18.96	£22.75
126 - SCREW 4x16 BSD-2603490022.A879 2603490022	£1.75	£2.10
138 - SEALING FRAME BSD-1611015053.A8 1611015053	£12.04	£14.45
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A49 1610290066	£10.10	£12.12
142 - ROTARY SHAFT LIP SEAL BSD-1610290069.A21 1610290069	£5.58	£6.70
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A83 1614601021	£7.36	£8.83
144 - SUPPORTING DISC BSD-1610251006.A40 1610251006	£5.58	£6.70
145 - SPRING RETAINING RING BSD-1610119012.A36 1610119012	£2.61	£3.13
154 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A14 2916660023	£5.30	£6.36
160 - DAMPING RING BSD-1610290095.A13 1610290095	£11.30	£13.56
161 - DAMPING RING BSD-1610290094.A6 1610290094	£4.26	£5.11
162 - O-RING 22.5x3.5 MM BSD-1610210204.A9 1610210204	£5.58	£6.70
163 - SEAL RING BSD-1610290065.A12 1610290065	£8.13	£9.76
165 - O-RING 22.0x4.0 MM BSD-1610210079.A39 1610210079	£5.58	£6.70
167 - ROTARY SHAFT LIP SEAL BSD-1610283033.A19 1610283033	£6.52	£7.83
168 - O-RING 22.0x3.0 MM BSD-1610210144.A52 1610210144	£5.30	£6.36
171 - TORX OVAL-HEAD SCREW M5x20-TORX.T25 BSD-1613435016.A24 1613435016	£2.16	£2.59
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A12 1613435013	£2.16	£2.59
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A93 1613435012	£2.16	£2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A457 2912401018	£1.75	£2.10
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A92 1613435012	£2.16	£2.59
177 - TAPPING SCREW ST3.9x32 BSD-1603435051.A7 1603435051	£1.95	£2.34
192 - COMPRESSION SPRING BSD-1614611019.A6 1614611019	£2.61	£3.13
195 - TORX OVAL-HEAD SCREW BSD-1613490015.A10 1613490015	£2.61	£3.13
196 - SCREW AND WASHER ASSEMBLY BSD-1613435019.A2 1613435019	£1.75	£2.10
198 - CONTROL LEVER BSD-1618900001.A4 1618900001	£5.58	£6.70
200 - BELLOWS BSD-1610284000.A15 1610284000	£10.10	£12.12
202 - SWITCH HOOK BSD-1611010006.A12 1611010006	£5.30	£6.36
661 - GREASE TUBE 30 ML BSD-1615430010.A261 1615430010	£6.52	£7.83
691 - CARRYING CASE BSD-1615438461.A7 1615438461	£45.67	£54.80
803 - ARMATURE 220-240V BSD-1614011098.A21 1614011098	£103.14	£123.77
805 - POWER SUPPLY CORD BSD-1617000723.A14 1617000723	£27.23	£32.68
808 - NAMEPLATE BSD-160111A3H5.A399 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617014144.A7 1617014144	£21.52	£25.83
816 - SOCKET HEAD CAP SCREW BSD-1609271281.A23 1609271281	£1.75	£2.10
817 - SPIRAL SPRING BSD-1614652004.A79 1614652004	£7.36	£8.83
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A75 2910011082	£1.75	£2.10
821 - BUSHING BSD-1617000A02.A1 1617000A02	£23.86	£28.63
825 - BEARING SHAFT BSD-1617000706.A12 1617000706	£12.04	£14.45
830 - SUPPORTING DISC BSD-1617000478.A9 1617000478	£7.36	£8.83
835 - HAMMER PIPE BSD-1617000A4J.A0 1617000A4J	£156.22	£187.46
840 - IMPACT MECHANISM HOUSING BSD-1617000A03.A8 1617000A03	£116.15	£139.38
841 - STRIKER PIN BSD-1617000899.A15 1617000899	£40.80	£48.96
849 - CONTROL FORK BSD-1617000839.A20 1617000839	£23.86	£28.63
854 - GUIDE BUSHING BSD-1617000718.A5 1617000718	£31.64	£37.97
856 - HAMMER PISTON BSD-1617000A04.A1 1617000A04	£23.86	£28.63
860 - SPUR WHEEL CLUTCH BSD-1617000A37.A8 1617000A37	£103.14	£123.77
873 - HOUSING COVER BSD-1617000A05.A8 1617000A05	£63.50	£76.20
884 - AUXILIARY HANDLE dia62 MM BSD-1612025055.A32 1612025055	£40.80	£48.96
886 - AUXILIARY HANDLE M8 BSD-1617000459.A31 1617000459	£13.12	£15.75
890 - GREASE TUBE 225 ML BSD-1615430015.A10 1615430015	£37.27	£44.72
891 - SPRING PACK BSD-1617000A26.A6 1617000A26	£23.86	£28.63
897 - WEAR AND TEAR PART SET BSD-1617000A4L.A4 1617000A4L	£59.53	£71.44
