Bosch DD 525 / 0611224776 / EU 230 Volt Spare Parts

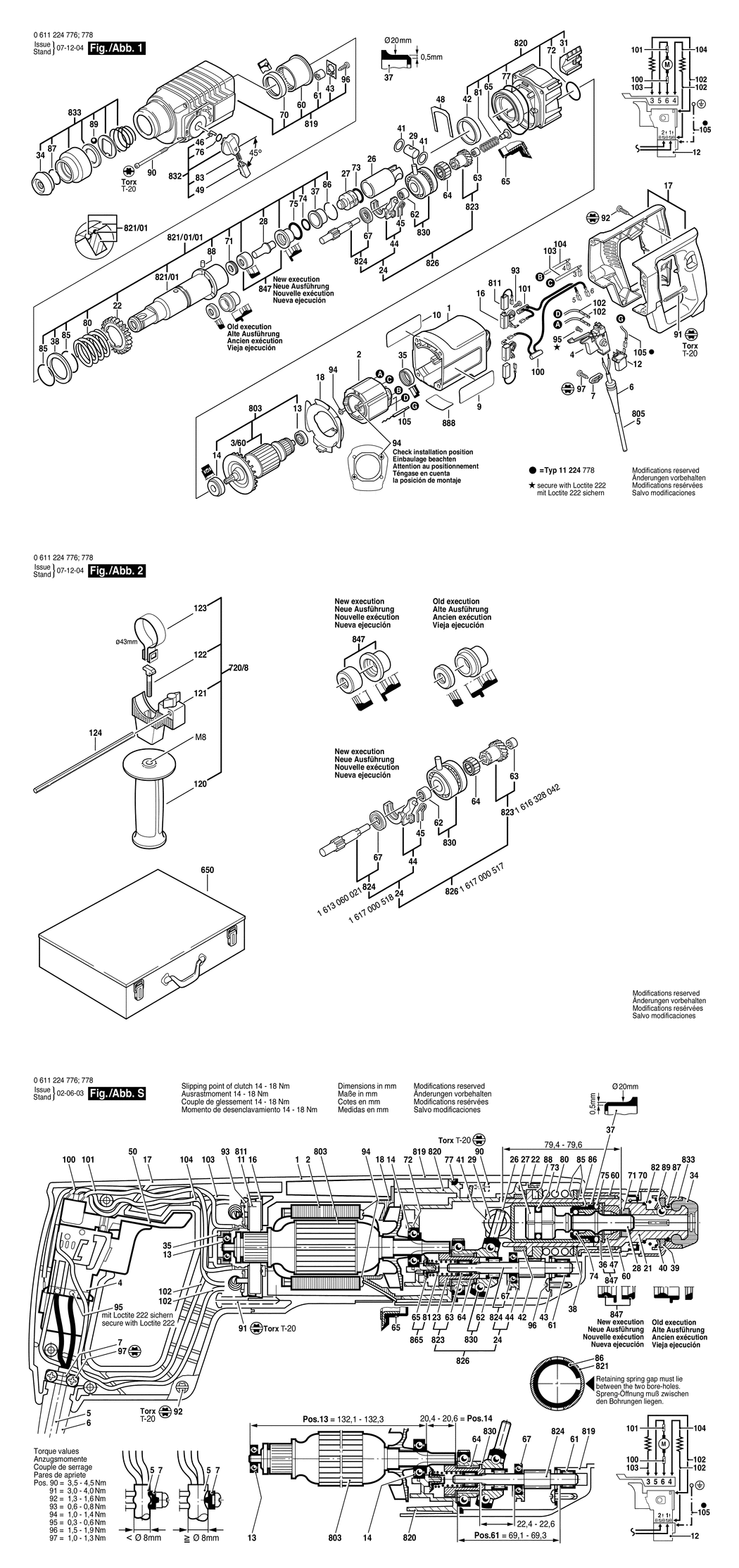

An exploded drawing and listing for the Bosch DD 525 / 0611224776 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108066.A5 1615108066	-
2 - FIELD 220-240V BSD-1604220254.A122 1604220254	£21.68	£26.01
3/60 - FAN BSD-1616610072.A0 1616610072	£2.16	£2.59
4 - SWITCH BSD-1617200063.A0 1617200063	£68.42	£82.10
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A267 2600703017	£2.61	£3.13
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A252 2600703018	£2.61	£3.13
6 - GROMMET dia8.7-dia9.6x76 MM BSD-2600703019.A15 2600703019	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A191 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110907.A0 1611110907	-
10 - MANUFACTURER'S NAMEPLATE BSD-1611110908.A0 1611110908	-
12 - SUPPRESSION FILTER BSD-1607328044.A0 1607328044	-
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A113 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A331 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-1617000343.A71 1617000343	£11.30	£13.56
17 - HANDLE BSD-1615132053.A5 1615132053	£18.96	£22.75
18 - AIR-DEFLECTOR RING BSD-1610522009.A86 1610522009	£1.32	£1.58
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A43 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A121 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A63 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A72 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A72 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A295 1613105012	£3.72	£4.47
31 - PROTECTIVE GRILLE BSD-1615510003.A22 1615510003	£2.61	£3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A228 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A275 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390017.A41 1610390017	£5.30	£6.36
38 - SUPPORTING DISC BSD-1610102026.A102 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A150 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A93 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A48 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A59 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A51 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A51 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A187 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026069.A18 1612026069	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A85 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A84 1610910098	£3.72	£4.47
62 - NEEDLE BEARING BSD-1610910074.A41 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A133 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A86 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A0 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A85 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A63 1610283019	£7.36	£8.83
71 - SCRAPER BSD-1610290029.A43 1610290029	£3.72	£4.47
72 - O-RING 24.0x2.5 MM BSD-1610210068.A217 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A199 1610210187	£2.16	£2.59
74 - O-RING 11.0x3.5 MM BSD-1610210104.A87 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210105.A48 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A61 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A87 1610210106	£2.61	£3.13
80 - COMPRESSION SPRING BSD-1614634005.A41 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A3 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A372 1614611006	£3.72	£4.47
85 - RETAINING RING BSD-1614601011.A93 1614601011	£1.75	£2.10
86 - RETAINING RING BSD-1614601024.A9 1614601024	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A174 2916540012	-
88 - ROLLER BSD-1613200007.A61 1613200007	£1.75	£2.10
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A642 1903230013	£2.16	£2.59
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A56 1603435036	£1.75	£2.10
91 - TAPPING SCREW ST4.8x39/35-C-TORX.T20 BSD-1613435006.A0 1613435006	£1.75	£2.10
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A69 2603490023	£1.75	£2.10
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A492 2910211005	£1.75	£2.10
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A591 2603435015	£2.16	£2.59
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2735 2603410001	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A83 2912401018	£1.75	£2.10
97 - SCREW 4x16 BSD-2603490022.A3016 2603490022	£1.75	£2.10
100 - SUPPRESSION FILTER L=241 MM BSD-1614465009.A5 1614465009	-
101 - SUPPRESSION FILTER L=201 MM BSD-1614465010.A0 1614465010	£6.52	£7.83
102 - CONNECTING CABLE L=310 MM BSD-1614448028.A0 1614448028	£1.75	£2.10
103 - CONNECTING CABLE L=138 MM BSD-1614448030.A5 1614448030	£1.75	£2.10
104 - CONNECTING CABLE L=193 MM BSD-1614448031.A0 1614448031	£1.75	£2.10
105 - EARTH CONDUCTOR BSD-2604448170.A153 2604448170	-
120 - AUXILIARY HANDLE M8 BSD-1612025019.A159 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A151 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A360 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A231 1611316006	£2.61	£3.13
124 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A109 1613001009	£3.72	£4.47
650 - CARRYING CASE BSD-1615438252.A0 1615438252	-
720/8 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A88 2602025070	£14.91	£17.89
803 - ARMATURE WITH FAN 220-230V BSD-1614010227.A34 1614010227	£63.50	£76.20
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A32 1614460026	£18.96	£22.75
811 - CARBON-BRUSH SET BSD-1617014134.A28 1617014134	£8.67	£10.41
819 - GEAR HOUSING BSD-1615806093.A47 1615806093	£48.38	£58.06
820 - INTERMEDIATE FLANGE BSD-1617000981.A0 1617000981	£27.23	£32.68
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A48 1616490061	£59.53	£71.44
821/01/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A49 1616490060	£72.18	£86.62
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A37 1616328042	£40.80	£48.96
824 - TOOTHED SHAFT Z=9 BSD-1613060021.A0 1613060021	-
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A4 1617000517	£72.18	£86.62
830 - DRIVE BEARING BSD-1615819018.A37 1615819018	£51.22	£61.47
832 - CLAMP HANDLE BSD-1612026068.A2 1612026068	£3.72	£4.47
833 - PROTECTION SLEEVE BSD-1617000163.A163 1617000163	£7.36	£8.83
847 - GUIDE RING BSD-1617000348.A62 1617000348	£14.91	£17.89
888 - NAMEPLATE BSD-160111A3HD.A97 160111A3HD	£2.61	£3.13
