Bosch ---- / 0611203050 / I 220 Volt Spare Parts

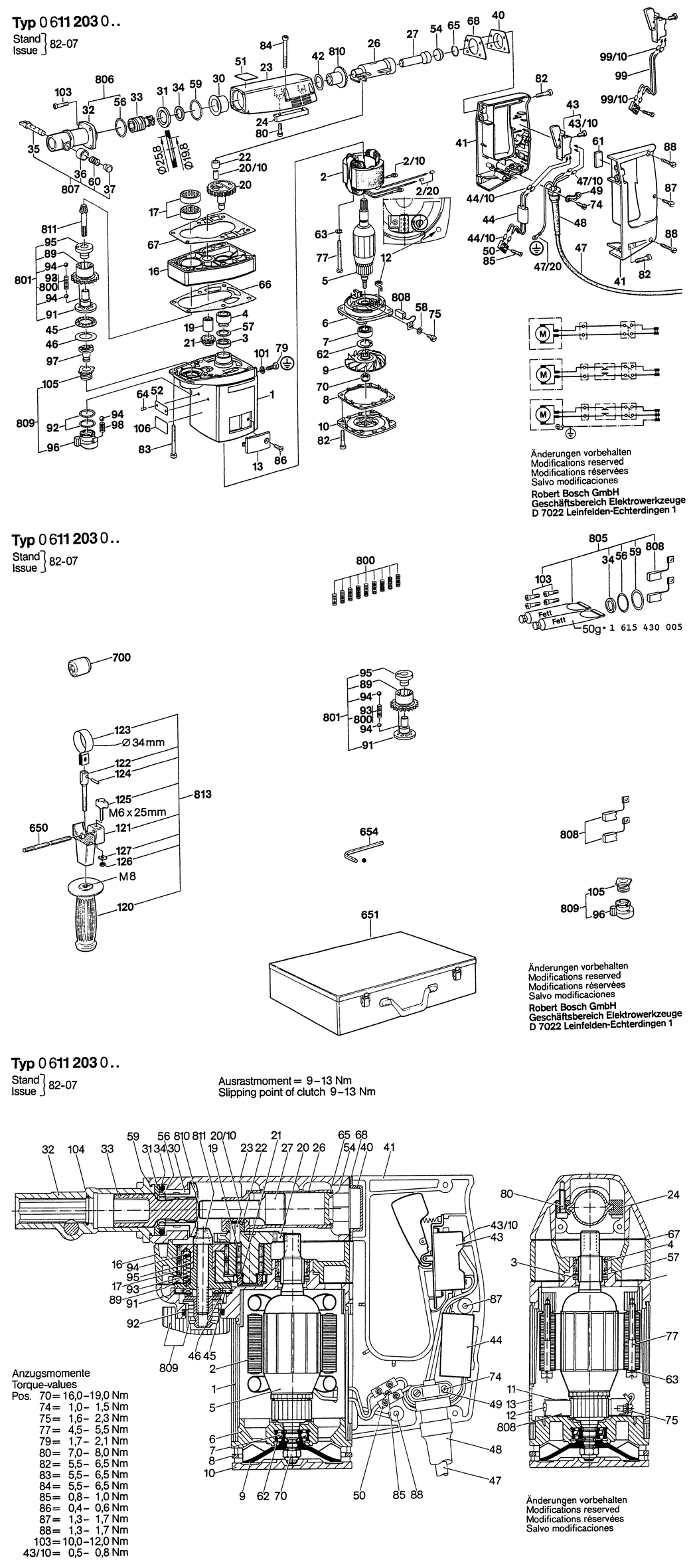

An exploded drawing and listing for the Bosch ---- / 0611203050 / I 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102072.A7 1615102072	-
2 - FIELD 220-230V BSD-3614220503.A4 3614220503	-
2/10 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A249 1901350003	£1.75	£2.10
2/20 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A44 1610452003	-
3 - SEAL RING BSD-1610205000.A0 1610205000	-
4 - NEEDLE-ROLLER BEARING BSD-1610910052.A40 1610910052	£21.68	£26.01
5 - ARMATURE WITH FAN 220-230V BSD-1614011030.A4 1614011030	-
6 - FLANGED BEARING BSD-1615805045.A14 1615805045	-
7 - GROOVE BALL BEARING BSD-1610905000.A14 1610905000	-
8 - INTERMEDIATE PLATE BSD-1611038015.A20 1611038015	-
9 - FAN BSD-1616610044.A40 1616610044	-
10 - HOUSING COVER BSD-1615500123.A14 1615500123	-
12 - SPIRAL SPRING BSD-1614652000.A1 1614652000	-
13 - SEALING CAP BSD-3615500502.A14 3615500502	-
16 - BEARING HOUSING BSD-1615820050.A1 1615820050	-
17 - NEEDLE BEARING dia35xdia42x12 MM BSD-1610910051.A0 1610910051	-
19 - NEEDLE BEARING BSD-1610910048.A20 1610910048	-
20 - ECCENTRIC SHAFT Z=47 BSD-1616110019.A0 1616110019	-
20/10 - BEARING BOLT BSD-1613100007.A25 1613100007	£5.87	£7.04
21 - CYLINDRICAL GEAR Z=18 BSD-1616317013.A34 1616317013	-
22 - BUSHING BSD-1610300043.A34 1610300043	£12.04	£14.45
23 - GEAR HOUSING BSD-1615806017.A14 1615806017	-
24 - GUIDE RAIL BSD-1612317003.A34 1612317003	-
26 - HAMMER PISTON BSD-1618700033.A14 1618700033	-
27 - STRIKER BSD-1618710030.A40 1618710030	-
30 - SPACER BUSHING BSD-1610322004.A34 1610322004	-
31 - SUPPORTING DISC BSD-1610114012.A34 1610114012	£11.30	£13.56
33 - BIT HOLDER BSD-1618598062.A0 1618598062	-
34 - RETAINING SNAP RING BSD-1610224001.A31 1610224001	£1.75	£2.10
40 - SEALING CAP BSD-1615500194.A0 1615500194	-
41 - HANDLE BSD-1615133019.A0 1615133019	-
42 - SHIM dia32xdia25x0.3 MM BSD-2100102016.A34 2100102016	-
43 - ON-OFF SWITCH BSD-1617200017.A50 1617200017	-
43/10 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A31 2603410001	£1.75	£2.10
44 - SUPPRESSION FILTER BSD-1617328002.A70 1617328002	-
44/10 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A46 1610452003	-
45 - THRUST NEEDLE RIM BSD-1610920000.A0 1610920000	£4.26	£5.11
46 - THRUST BEARING DISC 1.0 MM BSD-1610102015.A1 1610102015	£2.80	£3.36
47 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A160 1607000227	£23.86	£28.63
47/10 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A45 1610452003	-
47/20 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A250 1901350003	£1.75	£2.10
48 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A640 1600703009	£5.58	£6.70
48 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1128 3600703011	£2.80	£3.36
49 - FASTENING CLAMP BSD-1601302013.A191 1601302013	£1.75	£2.10
50 - RUBBER BUFFER BSD-1611091004.A17 1611091004	-
52 - NAMEPLATE BSD-160111A3H3.A313 160111A3H3	£2.61	£3.13
54 - SEALING CAP BSD-1610501031.A1 1610501031	-
56 - O-RING 35.0x1.5 MM BSD-1600210010.A158 1600210010	£2.80	£3.36
56 - RETAINING RING 22 DIN 9045 BSD-2916603012.A44 2916603012	-
57 - PLAIN WASHER 1.0 MM BSD-1600102623.A52 1600102623	£1.32	£1.58
58 - SPRING WASHER DIN 137-A4 BSD-1600150006.A404 1600150006	-
59 - O-RING 28.0x6.0 MM BSD-1610210015.A6 1610210015	-
61 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A425 1602381001	-
62 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A118 2916660011	£1.75	£2.10
63 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A213 2916680006	-
64 - ROUND-HEAD GROOVED PIN DIN 1476-2x8-ST BSD-2917721035.A1 2917721035	-
65 - RETAINING RING 26 DIN 9045 BSD-2916600014.A8 2916600014	-
66 - SEALING PLATE BSD-1611015006.A40 1611015006	-
67 - SEALING PLATE BSD-1611015007.A0 1611015007	£3.34	£4.01
68 - SEALING PLATE 1.5 MM BSD-1611015015.A14 1611015015	£1.95	£2.34
70 - HEX NUT DIN 985-M8-8 BSD-2915061005.A105 2915061005	£2.61	£3.13
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A445 2910021116	£2.16	£2.59
74 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A289 2910211018	£1.75	£2.10
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1019 2910021118	£1.75	£2.10
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8 BSD-2910011120.A277 2910011120	£1.75	£2.10
77 - SOCKET HEAD CAP SCREW DIN 84-BM5x50-8.8 BSD-2910021174.A7 2910021174	£1.32	£1.58
80 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A47 3603414028	£1.75	£2.10
80 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A0 1613414005	-
82 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9 BSD-2910151164.A63 2910151164	£1.75	£2.10
83 - PARTS SET BSD-1617000120.A27 1617000120	-
84 - HEX SOCKET HEAD CAP SCREW BSD-1617000121.A26 1617000121	-
85 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A88 2910211007	£1.75	£2.10
86 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A95 2910601118	£1.75	£2.10
87 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A140 2910211011	£1.75	£2.10
88 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A862 2910211021	£1.75	£2.10
89 - CYLINDRICAL GEAR Z=43 BSD-1616309006.A7 1616309006	-
91 - KICK-OUT COUPLING BSD-1616490004.A1 1616490004	-
92 - O-RING 25x2.5 MM BSD-1900210125.A16 1900210125	£7.36	£8.83
94 - BALL DIN 5401-5 G28 BSD-1903230009.A355 1903230009	£1.75	£2.10
95 - KICK-OUT COUPLING BSD-1616490004.A0 1616490004	-
97 - COUPLING HALF BSD-1616432004.A0 1616432004	-
98 - COMPRESSION SPRING BSD-1614612001.A5 1614612001	-
99/10 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A50 1610452003	-
103 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A73 2910141199	£3.72	£4.47
103 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A1 1613414005	-
106 - MANUFACTURER'S NAMEPLATE BSD-1611110194.A8 1611110194	-
650 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A65 1613001003	£4.25	£5.10
651 - CARRYING CASE BSD-1615438142.A14 1615438142	-
651 - CARRYING CASE BSD-1615438065.A0 1615438065	-
654 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A8 2607950004	£1.75	£2.10
700 - SEALING CAP BSD-2600508018.A31 2600508018	£2.61	£3.13
701 - BIT HOLDER BSD-1618598006.A1 1618598006	-
800 - PARTS SET BSD-1617000022.A13 1617000022	-
801 - KICK-OUT COUPLING BSD-1616490004.A2 1616490004	-
805 - WEAR AND TEAR PART SET BSD-1617000018.A48 1617000018	-
806 - TOOL HOLDER SET BSD-1617000016.A0 1617000016	-
807 - LOCKING BOLT SET BSD-1617000014.A115 1617000014	£24.45	£29.34
808 - CARBON-BRUSH SET BSD-1617014110.A18 1617014110	£18.96	£22.75
809 - PARTS SET BSD-1617010004.A1 1617010004	-
810 - BEVEL GEAR Z=29 BSD-1616333001.A0 1616333001	-
811 - TOOTHED SHAFT Z=8 BSD-1616333004.A7 1616333004	-
813 - WEAR AND TEAR PART SET BSD-1617000018.A47 1617000018	-

Attribute Name	Value
Brand	Bosch
