Bosch ---- / 0611202903 / EU 220 Volt Spare Parts

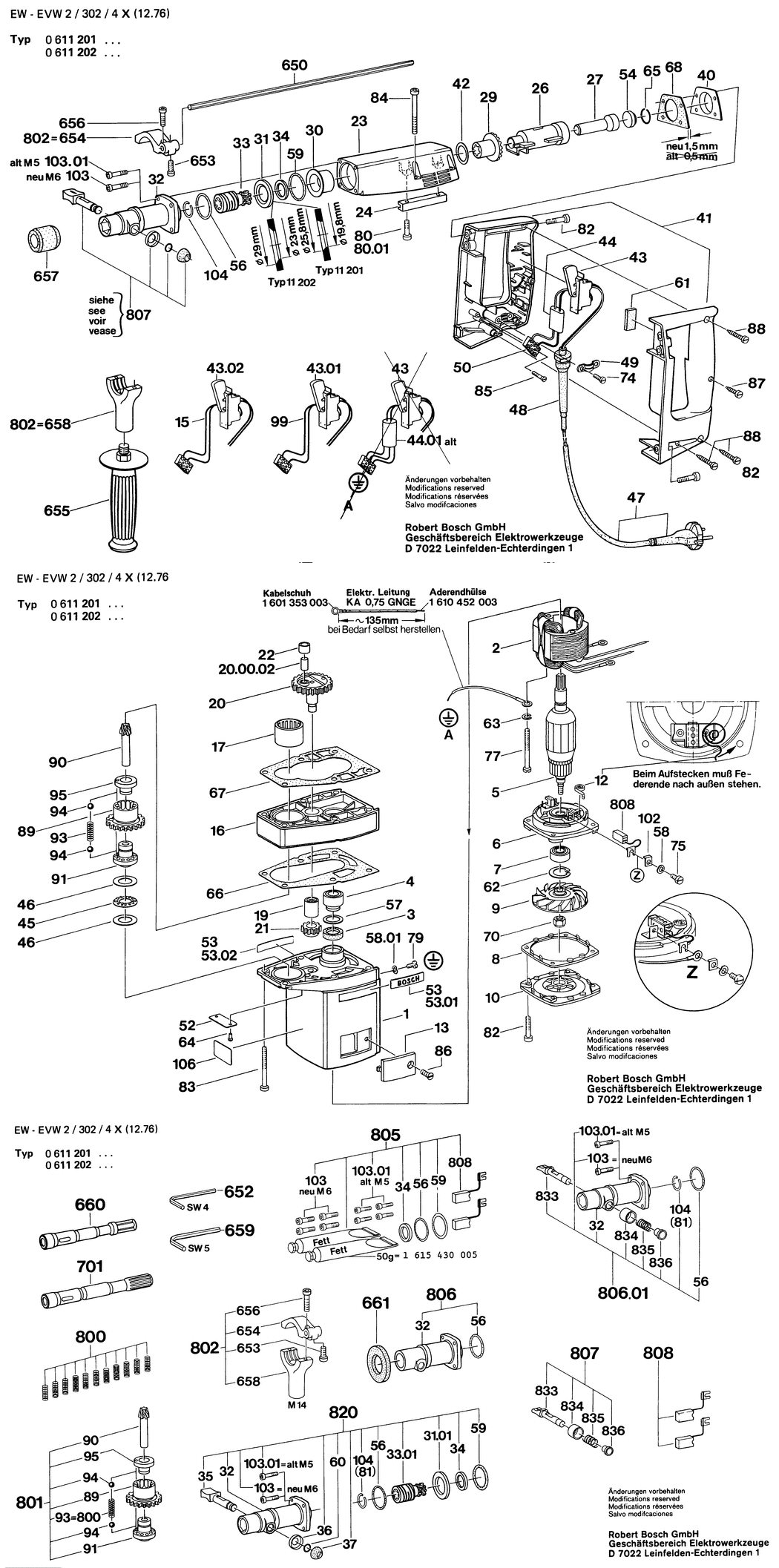

An exploded drawing and listing for the Bosch ---- / 0611202903 / EU 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102052.A14 1615102052	-
2 - POLE SHOE 220-230V BSD-1614220042.A12 1614220042	-
3 - SEAL RING BSD-1610205000.A22 1610205000	-
4 - NEEDLE-ROLLER BEARING BSD-1610910052.A18 1610910052	£21.68	£26.01
5 - ARMATURE 220-230V BSD-1614011023.A5 1614011023	-
6 - FLANGED BEARING BSD-1615805045.A25 1615805045	-
7 - GROOVE BALL BEARING BSD-1610905000.A35 1610905000	-
8 - INTERMEDIATE PLATE BSD-1611038015.A35 1611038015	-
9 - FAN BSD-1616610044.A19 1616610044	-
10 - HOUSING COVER BSD-1615500123.A24 1615500123	-
12 - SPIRAL SPRING BSD-1614652000.A19 1614652000	-
13 - SEALING CAP BSD-3615500502.A24 3615500502	-
16 - BEARING HOUSING BSD-1615820045.A2 1615820045	-
17 - NEEDLE BEARING BSD-1610910044.A18 1610910044	-
19 - NEEDLE BEARING BSD-1610910048.A14 1610910048	-
20 - ECCENTRIC SHAFT Z=46 BSD-1616110013.A18 1616110013	-
21 - CYLINDRICAL GEAR Z=18 BSD-1616317013.A17 1616317013	-
22 - BUSHING BSD-1610300043.A19 1610300043	£12.04	£14.45
23 - GEAR HOUSING BSD-1615806017.A37 1615806017	-
24 - GUIDE RAIL BSD-1612317003.A33 1612317003	-
26 - HAMMER PISTON BSD-1618700033.A33 1618700033	-
27 - STRIKER BSD-1618710030.A21 1618710030	-
29 - BEVEL GEAR Z=29 BSD-1616333001.A24 1616333001	-
30 - SPACER BUSHING BSD-1610322004.A27 1610322004	-
31 - SUPPORTING DISC BSD-1610114012.A19 1610114012	£11.30	£13.56
33 - BIT HOLDER BSD-1618598062.A15 1618598062	-
34 - RETAINING SNAP RING BSD-1610224001.A53 1610224001	£1.75	£2.10
40 - SEALING CAP BSD-1615500194.A23 1615500194	-
41 - HANDLE BSD-1615133019.A13 1615133019	-
42 - SHIM dia32xdia25x0.3 MM BSD-2100102016.A29 2100102016	-
43 - ON-OFF SWITCH BSD-1617200017.A68 1617200017	-
44 - SUPPRESSION FILTER BSD-1617328002.A57 1617328002	-
45 - THRUST NEEDLE RIM BSD-1610913000.A74 1610913000	£2.80	£3.36
46 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A108 1610101008	-
47 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A558 1607000228	£23.86	£28.63
50 - SOCKET-TERMINAL STRIP 3x6 MM BSD-1901091013.A12 1901091013	-
52 - NAMEPLATE BSD-160111A3H3.A348 160111A3H3	£2.61	£3.13
54 - SEALING CAP BSD-1610501031.A13 1610501031	-
56 - O-RING 35.0x1.5 MM BSD-1600210010.A142 1600210010	£2.80	£3.36
57 - PLAIN WASHER 1.0 MM BSD-1600102623.A40 1600102623	£1.32	£1.58
59 - O-RING 28.0x6.0 MM BSD-1610210015.A19 1610210015	-
61 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A435 1602381001	-
62 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A104 2916660011	£1.75	£2.10
64 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A18 2917721034	£1.75	£2.10
65 - RETAINING RING 26 DIN 9045 BSD-2916601014.A4 2916601014	-
66 - SEALING PLATE BSD-1611015006.A19 1611015006	-
67 - SEALING PLATE BSD-1611015007.A21 1611015007	£3.34	£4.01
68 - SEALING PLATE 1.5 MM BSD-1611015015.A26 1611015015	£1.95	£2.34
70 - HEX NUT DIN 985-M8-8 BSD-2915061005.A132 2915061005	£2.61	£3.13
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A63 2910021120	£1.75	£2.10
77 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8 BSD-2910021176.A91 2910021176	-
80 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A38 3603414028	£1.75	£2.10
80 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A27 1613414005	-
82 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9 BSD-2910151164.A47 2910151164	£1.75	£2.10
83 - PARTS SET BSD-1617000120.A39 1617000120	-
84 - HEX SOCKET HEAD CAP SCREW BSD-1617000121.A14 1617000121	-
85 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A104 2910211007	£1.75	£2.10
86 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A84 2910601118	£1.75	£2.10
87 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A123 2910211011	£1.75	£2.10
88 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A817 2910211021	£1.75	£2.10
89 - CYLINDRICAL GEAR Z=43 BSD-1616309007.A3 1616309007	-
90 - TOOTHED SHAFT Z=8 BSD-1616333003.A15 1616333003	-
91 - CLUTCH ELEMENT BSD-1610320008.A27 1610320008	-
94 - BALL DIN 5401-5 G28 BSD-1903230009.A314 1903230009	£1.75	£2.10
95 - CLUTCH ELEMENT BSD-1610320009.A5 1610320009	-
103 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A95 2910141199	£3.72	£4.47
103 - HEX SOCKET HEAD CAP SCREW M5x20 MM BSD-1613414005.A26 1613414005	-
104 - RETAINING RING 22 DIN 9045 BSD-2916603012.A38 2916603012	-
650 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A72 1613001003	£4.25	£5.10
652 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A23 2607950004	£1.75	£2.10
655 - AUXILIARY HANDLE M14 BSD-1602025022.A673 1602025022	£13.41	£16.09
656 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A37 3603414028	£1.75	£2.10
657 - SEALING CAP BSD-2600508018.A16 2600508018	£2.61	£3.13
701 - BIT HOLDER BSD-1618598066.A7 1618598066	-
800 - PARTS SET BSD-1617000022.A33 1617000022	-
801 - CYLINDRICAL GEAR Z=43/8 BSD-1616309009.A28 1616309009	-
802 - WEAR AND TEAR PART SET BSD-1617000018.A20 1617000018	-
806 - TOOL HOLDER SET BSD-1617000016.A15 1617000016	-
807 - LOCKING BOLT SET BSD-1617000014.A137 1617000014	£24.45	£29.34
