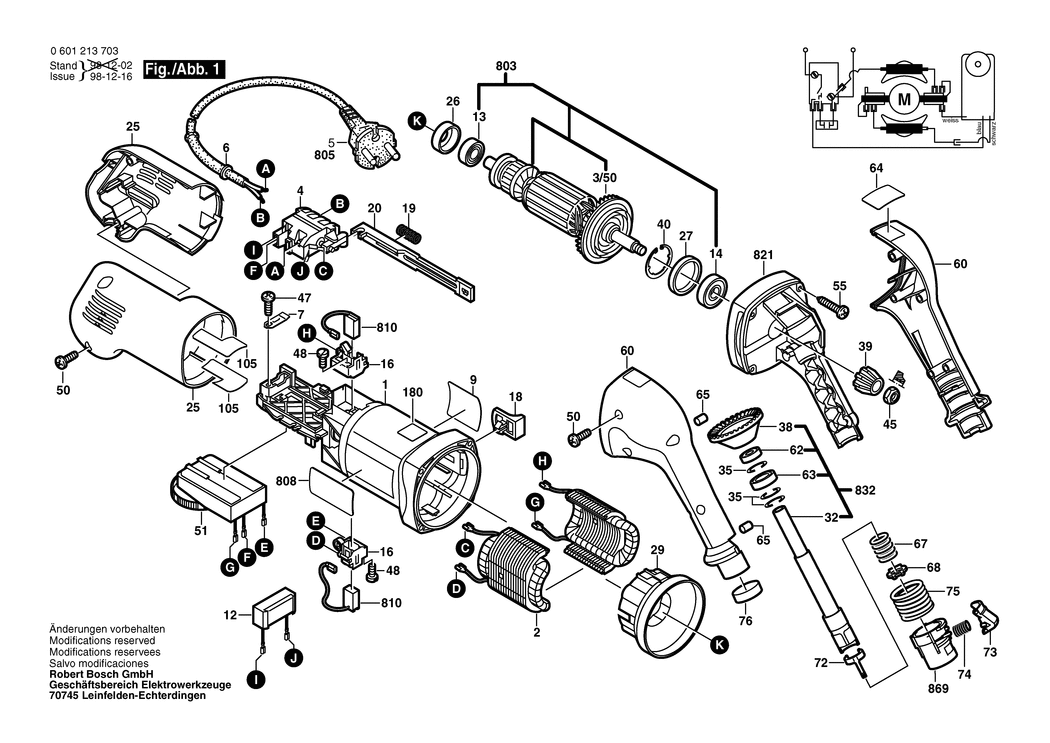

1 - MOTOR HOUSING
BSD-1605108213.A21
1605108213
|
£8.67
|
£10.41
|
|
|
2 - FIELD 220-240V
BSD-1604220301.A73
1604220301
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-1606610129.A192
1606610129
|
£2.16
|
£2.59
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A290
1607200086
|
£11.87
|
£14.24
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A633
2910110048
|
£1.84
|
£2.21
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A109
2600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A988
1601302017
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118791.A4
1601118791
|
£3.91
|
£4.69
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328042.A135
1607328042
|
£6.85
|
£8.22
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A764
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905016.A11
1600905016
|
£10.10
|
£12.12
|
|
|
16 - BRUSH HOLDER
BSD-1601323025.A259
1601323025
|
£3.91
|
£4.69
|
|
|
18 - SWITCH HANDLE
BSD-1602026057.A432
1602026057
|
£2.07
|
£2.48
|
|
|
19 - COMPRESSION SPRING
BSD-1604611026.A570
1604611026
|
£1.84
|
£2.21
|
|
|
20 - ADJUSTING SLIDE
BSD-1602319010.A115
1602319010
|
£1.84
|
£2.21
|
|
|
25 - HOUSING COVER
BSD-1605190144.A2
1605190144
|
-
|
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A283
1600502023
|
£2.27
|
£2.72
|
|
|
27 - RUBBER RING
BSD-1600206025.A1077
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A0
1600591025
|
£2.61
|
£3.13
|
|
|
32 - DRIVE SHAFT
BSD-2603020028.A6
2603020028
|
£43.71
|
£52.45
|
|
|
35 - SHIM 0.2 MM
BSD-2600101088.A20
2600101088
|
£1.84
|
£2.21
|
|
|
35 - SHIM 0.3 MM
BSD-2600101089.A23
2600101089
|
-
|
|
|
|
35 - SHIM 0.4 MM
BSD-2600101090.A11
2600101090
|
-
|
|
|
|
35 - SHIM 0.5 MM
BSD-2600101091.A24
2600101091
|
£2.16
|
£2.59
|
|
|
38 - CROWN GEAR Z=36
BSD-2606100064.A11
2606100064
|
£14.08
|
£16.89
|
|
|
39 - PINION Z=10
BSD-2606333034.A5
2606333034
|
£9.49
|
£11.39
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A496
1600119011
|
£2.27
|
£2.72
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A460
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A415
2912401018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A20
2912401005
|
£1.84
|
£2.21
|
|
|
50 - TAPPING SCREW TORX-T20
BSD-1603435061.A3
1603435061
|
£1.95
|
£2.34
|
|
|
51 - SPEED GOVERNOR 230-240V
BSD-1607233130.A6
1607233130
|
-
|
|
|
|
55 - THREAD-FORMING TAP. SCREW
BSD-1603435062.A5
1603435062
|
-
|
|
|
|
60 - HOUSING SECTION
BSD-1605132133.A5
1605132133
|
-
|
|
|
|
62 - GROOVE BALL BEARING
BSD-1600900042.A8
1600900042
|
£5.58
|
£6.70
|
|
|
63 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A316
1900905121
|
£18.96
|
£22.75
|
|
|
64 - WARNING PLATE
BSD-1601118792.A0
1601118792
|
£3.51
|
£4.21
|
|
|
65 - DAMPING RUBBER
BSD-2603100056.A192
2603100056
|
£1.84
|
£2.21
|
|
|
67 - COMPRESSION SPRING
BSD-2604616009.A5
2604616009
|
£1.84
|
£2.21
|
|
|
68 - CONICAL SPRING WASHER
BSD-2600190089.A3
2600190089
|
£2.64
|
£3.17
|
|
|
72 - HOLDING SPRING
BSD-2601290022.A7
2601290022
|
£2.05
|
£2.46
|
|
|
73 - SWITCH SLIDE
BSD-2602319016.A12
2602319016
|
£2.33
|
£2.80
|
|
|
74 - COMPRESSION SPRING
BSD-2604611046.A13
2604611046
|
-
|
|
|
|
75 - COMPRESSION SPRING
BSD-2604615013.A11
2604615013
|
£1.32
|
£1.58
|
|
|
76 - CLAMPING RING
BSD-2600290038.A13
2600290038
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008006.A0
1601008006
|
-
|
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010640.A19
1604010640
|
£59.53
|
£71.44
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A313
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2230
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A391
1607014176
|
£13.78
|
£16.54
|
|
|
821 - GEAR HOUSING
BSD-1605806485.A3
1605806485
|
-
|
|
|
|
832 - DRIVE SHAFT
BSD-1607000861.A6
1607000861
|
-
|
|
|
|
869 - ACTUATING ELEMENT
BSD-2600499053.A14
2600499053
|
-
|
|
|
