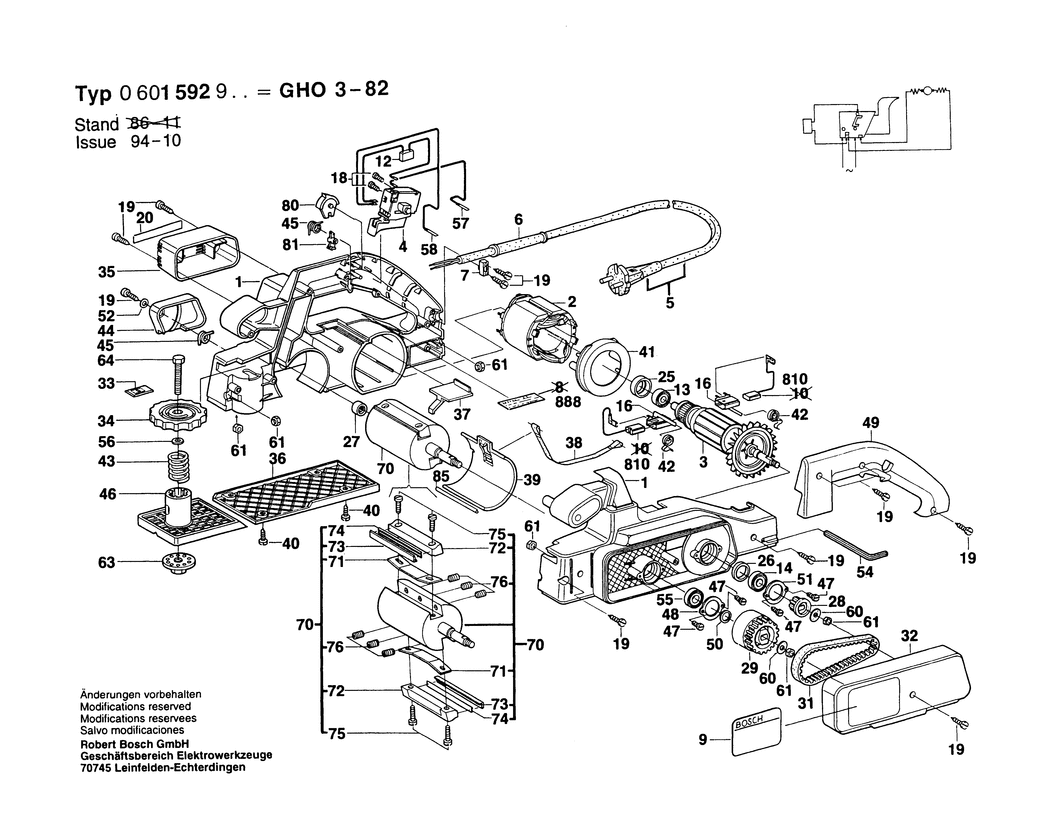

1 - HOUSING SECTION
BSD-2605104981.A1
2605104981
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220231.A33
1604220231
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604010286.A11
1604010286
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A388
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD
BSD-1607000391.A56
1607000391
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A472
2600703012
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A719
2600703011
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A675
2600703013
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1931
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110507.A1
2601110507
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A367
1607328028
|
£5.57
|
£6.68
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1944
2600905032
|
£5.57
|
£6.68
|
|
|
14 - BALL BEARING 9x26x8
BSD-1900905025.A6
1900905025
|
£21.52
|
£25.83
|
|
|
16 - BRUSH HOLDER
BSD-2604337002.A19
2604337002
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1422
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A441
2910611019
|
£2.94
|
£3.53
|
|
|
20 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A357
1601110481
|
£2.27
|
£2.72
|
|
|
25 - RUBBER BUSHING
BSD-1600502020.A374
1600502020
|
£2.74
|
£3.29
|
|
|
26 - INTERMEDIATE RING
BSD-1600206026.A140
1600206026
|
£1.84
|
£2.21
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A306
2600910001
|
£4.48
|
£5.37
|
|
|
28 - TOOTHED BELT WHEEL Z=19
BSD-1606625026.A45
1606625026
|
-
|
|
|
|
29 - TOOTHED BELT WHEEL Z=43
BSD-1606625025.A3
1606625025
|
-
|
|
|
|
31 - TOOTHED BELT 14 MM. Z=85
BSD-2604736002.A23
2604736002
|
£10.10
|
£12.12
|
|
|
32 - GEAR COVER
BSD-3605500024.A24
3605500024
|
-
|
|
|
|
33 - SCALE WINDOW
BSD-1601099010.A45
1601099010
|
-
|
|
|
|
34 - GRADUATED DIAL
BSD-2606621001.A37
2606621001
|
-
|
|
|
|
35 - COVERING HOOD
BSD-3605510012.A0
3605510012
|
£3.80
|
£4.56
|
|
|
36 - BASE PLATE
BSD-2608000067.A12
2608000067
|
-
|
|
|
|
37 - ADJUSTING SLIDE
BSD-3601320001.A20
3601320001
|
-
|
|
|
|
38 - RUBBER BAND
BSD-1601006006.A42
1601006006
|
-
|
|
|
|
39 - PROTECTIVE COVER
BSD-1605510142.A7
1605510142
|
-
|
|
|
|
40 - REC CT-SUNK TAPPING SCREW DIN7982-ST3.9x19-C-H
BSD-2910601320.A2
2910601320
|
£1.32
|
£1.58
|
|
|
41 - AIR-DEFLECTOR RING
BSD-3600290011.A24
3600290011
|
-
|
|
|
|
42 - SPIRAL SPRING
BSD-2604652008.A102
2604652008
|
-
|
|
|
|
43 - COMPRESSION SPRING
BSD-1604619017.A15
1604619017
|
£2.16
|
£2.59
|
|
|
44 - PROTECTIVE COVER
BSD-1605510139.A41
1605510139
|
-
|
|
|
|
45 - COMPRESSION SPRING
BSD-1604651007.A17
1604651007
|
-
|
|
|
|
46 - ADJUSTING DISC
BSD-2608000059.A0
2608000059
|
-
|
|
|
|
47 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A764
2603490017
|
£2.27
|
£2.72
|
|
|
48 - TAB WASHER
BSD-1600190016.A23
1600190016
|
-
|
|
|
|
49 - HANDLE COVER
BSD-2605500081.A0
2605500081
|
-
|
|
|
|
50 - SHIM
BSD-2600100033.A4
2600100033
|
-
|
|
|
|
51 - TAB WASHER
BSD-2600190008.A24
2600190008
|
-
|
|
|
|
52 - SHIM 0.5 MM
BSD-2600100588.A141
2600100588
|
£1.84
|
£2.21
|
|
|
54 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A48
1907950004
|
£5.87
|
£7.04
|
|
|
55 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A891
2600905052
|
£7.72
|
£9.27
|
|
|
56 - SHIM 0.5 MM
BSD-3600100005.A35
3600100005
|
-
|
|
|
|
57 - CONNECTING CABLE L=238 MM
BSD-3604431005.A22
3604431005
|
-
|
|
|
|
58 - CONNECTING CABLE L=383 MM
BSD-3604431006.A2
3604431006
|
-
|
|
|
|
60 - DISC SPRING DIN 2093-A12.5-GR-1
BSD-2916160003.A24
2916160003
|
-
|
|
|
|
61 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A412
2915011007
|
-
|
|
|
|
63 - ADJUSTING NUT
BSD-3603342003.A43
3603342003
|
£1.75
|
£2.10
|
|
|
64 - HEX SCREW
BSD-3603450005.A43
3603450005
|
-
|
|
|
|
70 - PLANER HEAD
BSD-2603204900.A36
2603204900
|
-
|
|
|
|
71 - LEAF SPRING
BSD-1601234002.A2
1601234002
|
-
|
|
|
|
72 - PRESSURE BAR
BSD-2608040027.A18
2608040027
|
-
|
|
|
|
73 - SUPPORT CLAMP
BSD-2601334006.A18
2601334006
|
-
|
|
|
|
74 - PLANING KNIFE
BSD-2608635341.A1
2608635341
|
£16.41
|
£19.69
|
|
|
75 - OVAL-HEAD SCREW
BSD-2603410041.A24
2603410041
|
-
|
|
|
|
76 - SET SCREW M 6x12 DIN 915-45H
BSD-2912081193.A4
2912081193
|
-
|
|
|
|
80 - ROTARY KNOB
BSD-1602026055.A8
1602026055
|
£2.05
|
£2.46
|
|
|
81 - LOCKING LEVER
BSD-2602061000.A0
2602061000
|
-
|
|
|
|
85 - SLOTTED SPRING PIN
BSD-1600410003.A2
1600410003
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320909.A0
2604320909
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4799
160111A3H3
|
£2.74
|
£3.29
|
|
