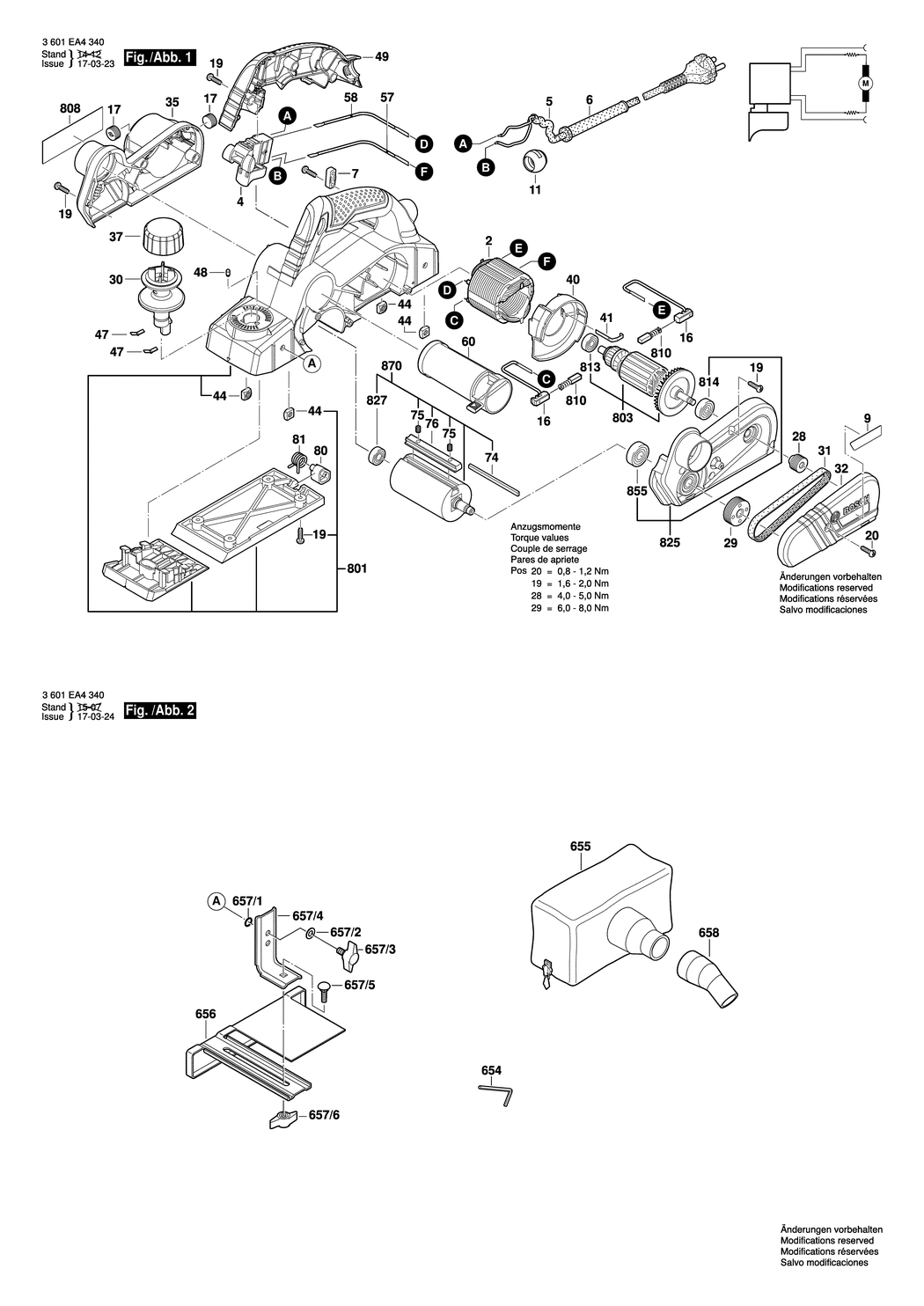

2 - FIELD 230-240V
BSD-2604220480.A3
2604220480
|
£21.68
|
£26.01
|
|
|
4 - SWITCH
BSD-160720030F.A2
160720030F
|
£10.10
|
£12.12
|
|
|
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460402.A4
1604460402
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A899
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A752
2601035001
|
£1.75
|
£2.10
|
|
|
11 - BALL JOINT
BSD-2609100929.A36
2609100929
|
£1.75
|
£2.10
|
|
|
16 - CARBON BRUSH HOLDER
BSD-2604449055.A11
2604449055
|
£2.16
|
£2.59
|
|
|
17 - COVER
BSD-2609100087.A3
2609100087
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A649
2603490022
|
£1.75
|
£2.10
|
|
|
20 - SCREW
BSD-2609112128.A1
2609112128
|
£1.75
|
£2.10
|
|
|
28 - PULLEY
BSD-2609110268.A20
2609110268
|
£2.80
|
£3.36
|
|
|
29 - PULLEY
BSD-2609110267.A1
2609110267
|
£4.26
|
£5.11
|
|
|
30 - ROTARY KNOB
BSD-2609101576.A1
2609101576
|
£5.30
|
£6.36
|
|
|
31 - V-BELT
BSD-2609100410.A6
2609100410
|
£10.10
|
£12.12
|
|
|
32 - BELT COVER
BSD-2609101439.A2
2609101439
|
£3.72
|
£4.47
|
|
|
35 - BRUSH-COVER
BSD-2609101403.A3
2609101403
|
£7.36
|
£8.83
|
|
|
37 - CAP-HANDLE
BSD-2609101440.A4
2609101440
|
£2.16
|
£2.59
|
|
|
40 - AIR-DEFLECTOR RING
BSD-2609100028.A15
2609100028
|
£2.61
|
£3.13
|
|
|
41 - CONTACT STRAP
BSD-2601329053.A5
2601329053
|
£1.75
|
£2.10
|
|
|
44 - SQUARE NUT M6
BSD-2603320004.A68
2603320004
|
£1.75
|
£2.10
|
|
|
47 - RATCHET SPRING
BSD-2601254000.A58
2601254000
|
£1.75
|
£2.10
|
|
|
48 - RATCHET CAP
BSD-2600590006.A1051
2600590006
|
£1.75
|
£2.10
|
|
|
49 - HANDLE COVER
BSD-2609101517.A2
2609101517
|
£5.58
|
£6.70
|
|
|
57 - CONNECTING CABLE L=233 MM
BSD-2604448181.A14
2604448181
|
£2.16
|
£2.59
|
|
|
58 - CONNECTING CABLE L=213 MM
BSD-2604448118.A55
2604448118
|
£1.75
|
£2.10
|
|
|
60 - DEFLECTOR PIPE
BSD-2609100148.A9
2609100148
|
£11.30
|
£13.56
|
|
|
74 - PLANING KNIFE
BSD-2608635341.A62
2608635341
|
£16.41
|
£19.69
|
|
|
75 - SET SCREW
BSD-2603400016.A21
2603400016
|
£1.75
|
£2.10
|
|
|
76 - GRIPPING WEDGE
BSD-2603111001.A27
2603111001
|
£13.12
|
£15.75
|
|
|
80 - KNIFE GUARD
BSD-2609100088.A14
2609100088
|
£4.26
|
£5.11
|
|
|
81 - SPRING
BSD-2609110109.A9
2609110109
|
£2.80
|
£3.36
|
|
|
654 - OFFSET SCREWDRIVER DIN 911 SW2.5
BSD-1907950003.A44
1907950003
|
£2.61
|
£3.13
|
|
|
655 - DUST BAG
BSD-2609170013.A3
2609170013
|
£27.23
|
£32.68
|
|
|
656 - STOP BRACKET
BSD-2608005015.A57
2608005015
|
£11.30
|
£13.56
|
|
|
657/1 - O-RING 4.0x1.5 MM
BSD-1610210043.A95
1610210043
|
£1.75
|
£2.10
|
|
|
657/2 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A198
2916011014
|
£1.75
|
£2.10
|
|
|
657/3 - WING SCREW M 6x16 MM
BSD-2603480003.A146
2603480003
|
£2.61
|
£3.13
|
|
|
657/4 - STOP BRACKET
BSD-1601332018.A98
1601332018
|
£3.72
|
£4.47
|
|
|
657/5 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A74
2910281201
|
£1.75
|
£2.10
|
|
|
657/6 - WING NUT
BSD-2609199008.A7
2609199008
|
£1.75
|
£2.10
|
|
|
658 - ADAPTER MODULE
BSD-2609101408.A4
2609101408
|
£2.80
|
£3.36
|
|
|
801 - MOTOR HOUSING
BSD-2609199975.A0
2609199975
|
£33.74
|
£40.49
|
|
|
803 - ARMATURE SET 230-240V
BSD-2609199946.A4
2609199946
|
£27.23
|
£32.68
|
|
|
808 - NAMEPLATE
BSD-1600A00Y93.A0
1600A00Y93
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-2609120637.A3
2609120637
|
£6.52
|
£7.83
|
|
|
813 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A517
1610905025
|
£6.52
|
£7.83
|
|
|
814 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A58
2600905052
|
£7.36
|
£8.83
|
|
|
825 - BEARING FLANGE
BSD-2609199949.A3
2609199949
|
£18.96
|
£22.75
|
|
|
827 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A516
1610905025
|
£6.52
|
£7.83
|
|
|
855 - GROOVE BALL BEARING 10x26x8
BSD-2600905064.A52
2600905064
|
£11.30
|
£13.56
|
|
|
870 - PLANER HEAD
BSD-2609110193.A6
2609110193
|
£59.53
|
£71.44
|
|
