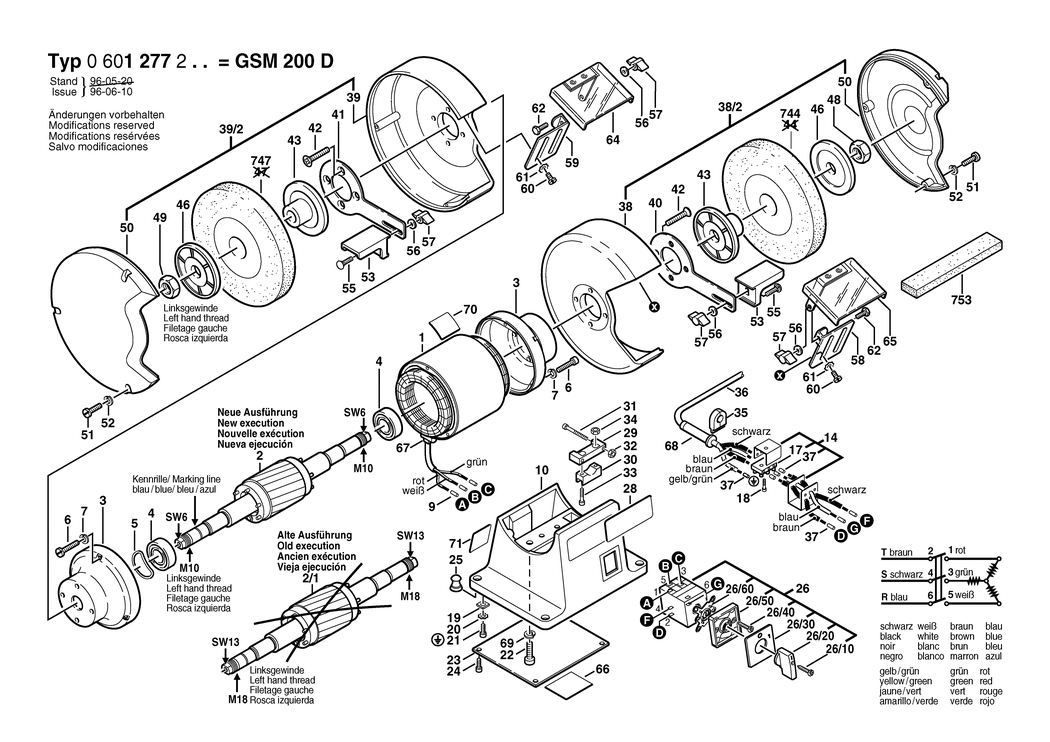

1 - STATOR 230V
BSD-1609203284.A0
1609203284
|
£89.79
|
£107.75
|
|
|
2 - ROTOR 230V
BSD-1609203649.A2
1609203649
|
£52.15
|
£62.58
|
|
|
3 - END SHIELD
BSD-1609203298.A6
1609203298
|
£21.68
|
£26.01
|
|
|
4 - GROOVE BALL BEARING 20x42x12
BSD-1900905124.A10
1900905124
|
£57.05
|
£68.46
|
|
|
5 - CORRUGATED WASHER
BSD-1609203230.A3
1609203230
|
£1.66
|
£1.99
|
|
|
6 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8
BSD-2910011166.A11
2910011166
|
£1.66
|
£1.99
|
|
|
7 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A102
2916690004
|
£1.66
|
£1.99
|
|
|
9 - END SPLICE
BSD-1609203247.A15
1609203247
|
-
|
|
|
|
10 - BASE PLATE
BSD-1609203226.A5
1609203226
|
£33.74
|
£40.49
|
|
|
14 - CONNECTING CABLE
BSD-1609203287.A2
1609203287
|
-
|
|
|
|
17 - SOCKET-TERMINAL STRIP
BSD-1609203290.A0
1609203290
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW DIN 84-AM3X14-5.8
BSD-2910011058.A9
2910011058
|
-
|
|
|
|
19 - CLAMPING PLATE
BSD-1609203238.A6
1609203238
|
£1.66
|
£1.99
|
|
|
20 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST
BSD-2916030006.A14
2916030006
|
£1.66
|
£1.99
|
|
|
21 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-4.8
BSD-2910001118.A18
2910001118
|
-
|
|
|
|
22 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A106
2910022197
|
-
|
|
|
|
23 - BASE PLATE
BSD-1609203239.A1
1609203239
|
£5.30
|
£6.36
|
|
|
24 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A129
2910011120
|
£1.66
|
£1.99
|
|
|
25 - RUBBER BASE
BSD-1609203240.A7
1609203240
|
£1.66
|
£1.99
|
|
|
26 - ROTARY SWITCH
BSD-1609203291.A0
1609203291
|
£45.67
|
£54.80
|
|
|
28 - MANUFACTURER'S NAMEPLATE
BSD-1601118396.A0
1601118396
|
£2.33
|
£2.80
|
|
|
29 - CLAMPING PLATE
BSD-1609203243.A7
1609203243
|
£1.66
|
£1.99
|
|
|
30 - CLAMPING PLATE
BSD-1609203244.A1
1609203244
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM3x25-5.8
BSD-2910011064.A3
2910011064
|
-
|
|
|
|
32 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A126
2915011003
|
£1.66
|
£1.99
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8
BSD-2910021130.A2
2910021130
|
£1.66
|
£1.99
|
|
|
34 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A1
2915011005
|
£1.66
|
£1.99
|
|
|
35 - CABLE PASSAGE
BSD-1609203245.A7
1609203245
|
£1.66
|
£1.99
|
|
|
36 - POWER SUPPLY CORD
BSD-1609203292.A0
1609203292
|
£21.52
|
£25.83
|
|
|
37 - END SPLICE
BSD-1609203247.A14
1609203247
|
-
|
|
|
|
38 - PROTECTIVE COVER
BSD-1609203642.A4
1609203642
|
£52.15
|
£62.58
|
|
|
38 - PROTECTIVE COVER
BSD-1609203278.A4
1609203278
|
£40.80
|
£48.96
|
|
|
38/2 - PROTECTIVE COVER
BSD-1609203643.A1
1609203643
|
£45.67
|
£54.80
|
|
|
39 - PROTECTIVE COVER
BSD-1609203644.A4
1609203644
|
£52.15
|
£62.58
|
|
|
39 - PROTECTIVE COVER
BSD-1609203279.A1
1609203279
|
£40.80
|
£48.96
|
|
|
39/2 - PROTECTIVE COVER
BSD-1609203645.A1
1609203645
|
£52.15
|
£62.58
|
|
|
40 - CONNECTING CARRIER
BSD-1609203276.A4
1609203276
|
£5.30
|
£6.36
|
|
|
41 - CONNECTING CARRIER
BSD-1609203302.A0
1609203302
|
£5.30
|
£6.36
|
|
|
42 - COUNTERSUNK-HEAD SCREW DIN 965-M6x25-8.8-Z
BSD-2912341203.A1
2912341203
|
£1.66
|
£1.99
|
|
|
43 - CLAMPING FLANGE
BSD-1609203252.A1
1609203252
|
£7.36
|
£8.83
|
|
|
46 - COUNTERFLANGE dia 10 MM
BSD-1609203640.A5
1609203640
|
£6.52
|
£7.83
|
|
|
46 - COUNTERFLANGE dia18 MM
BSD-1609203253.A7
1609203253
|
£5.58
|
£6.70
|
|
|
48 - HEX NUT DIN 934-M 10-m-8
BSD-2915011010.A5
2915011010
|
-
|
|
|
|
48 - HEX NUT DIN 934 M18-8-A
BSD-2915011014.A3
2915011014
|
£1.66
|
£1.99
|
|
|
49 - HEX NUT M10
BSD-1609203621.A5
1609203621
|
£1.66
|
£1.99
|
|
|
49 - HEX NUT M18
BSD-1609203299.A0
1609203299
|
£1.66
|
£1.99
|
|
|
50 - LATERAL GUARD
BSD-1609203647.A4
1609203647
|
£57.05
|
£68.46
|
|
|
50 - LATERAL GUARD
BSD-1609203282.A4
1609203282
|
-
|
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8
BSD-2910021126.A20
2910021126
|
£1.66
|
£1.99
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8
BSD-2910021126.A21
2910021126
|
£1.66
|
£1.99
|
|
|
52 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A23
2916681005
|
£1.66
|
£1.99
|
|
|
52 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A24
2916681005
|
£1.66
|
£1.99
|
|
|
53 - SUPPORT PLATE
BSD-1609203300.A8
1609203300
|
£7.36
|
£8.83
|
|
|
55 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A18
2910281201
|
£1.66
|
£1.99
|
|
|
56 - PLAIN WASHER DIN 433-6.4-ST 50
BSD-2916011013.A45
2916011013
|
£1.66
|
£1.99
|
|
|
57 - WING NUT
BSD-1609203258.A1
1609203258
|
£2.80
|
£3.36
|
|
|
58 - GUARD PLATE
BSD-1609203259.A7
1609203259
|
£6.52
|
£7.83
|
|
|
59 - GUARD PLATE
BSD-1609203260.A1
1609203260
|
£1.95
|
£2.34
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-8.8
BSD-2910021152.A9
2910021152
|
-
|
|
|
|
61 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A128
2916060006
|
£1.32
|
£1.58
|
|
|
62 - HEX SCREW ISO-4017-M6x14-5.6
BSD-2911051195.A2
2911051195
|
£1.66
|
£1.99
|
|
|
64 - PROTECTIVE GLASS
BSD-1609203261.A7
1609203261
|
£16.41
|
£19.69
|
|
|
65 - PROTECTIVE GLASS
BSD-1609203295.A8
1609203295
|
£18.96
|
£22.75
|
|
|
66 - REFERENCE PLATE
BSD-1601118386.A1
1601118386
|
£3.72
|
£4.47
|
|
|
67 - SEAL
BSD-1609203293.A0
1609203293
|
-
|
|
|
|
68 - GROMMET
BSD-1609203296.A0
1609203296
|
£1.66
|
£1.99
|
|
|
69 - SPRING LOCK WASHER M6
BSD-2916690005.A70
2916690005
|
-
|
|
|
|
70 - REFERENCE PLATE
BSD-1601118388.A7
1601118388
|
£3.72
|
£4.47
|
|
|
71 - NAMEPLATE
BSD-1601118393.A0
1601118393
|
£2.33
|
£2.80
|
|
|
744 - GRINDING WHEEL dia200x25x32 MM. A 36
BSD-2608600111.A4
2608600111
|
-
|
|
|
|
744 - GRINDING WHEEL dia200x25x32MM. C 50
BSD-2608600106.A4
2608600106
|
-
|
|
|
|
747 - GRINDING WHEEL dia200x25x32 MM. A 60
BSD-2608600112.A1
2608600112
|
-
|
|
|
|
753 - WHETSTONE
BSD-1607929000.A2
1607929000
|
-
|
|
|
