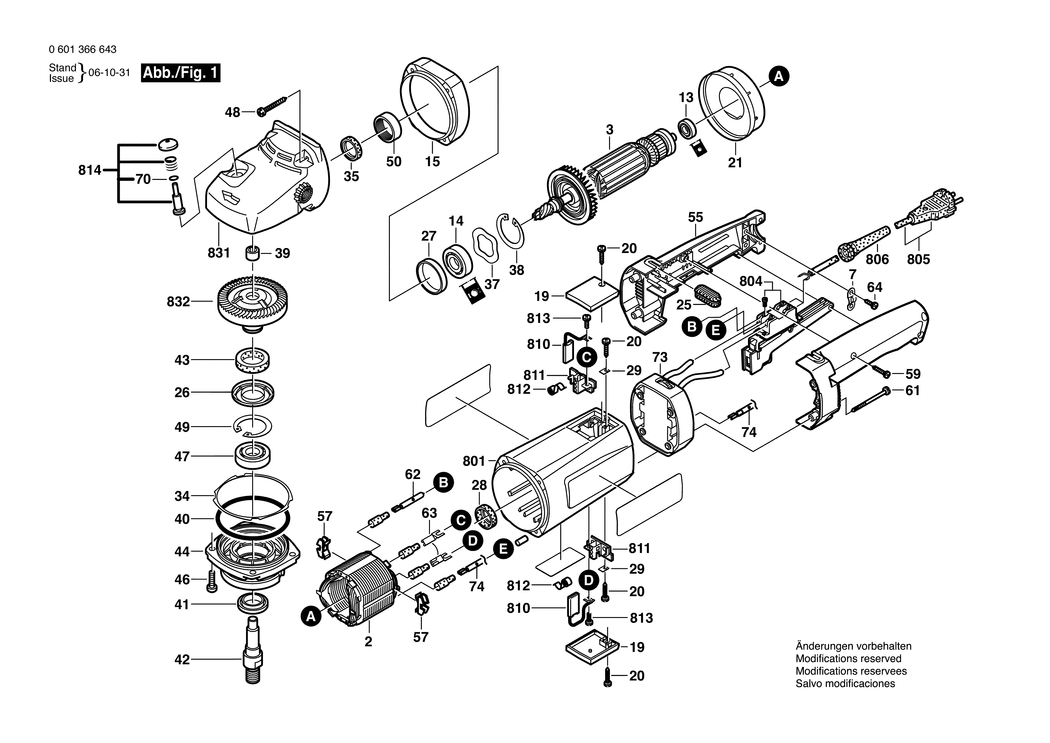

2 - FIELD 220 V
BSD-F000607063.A1
F000607063
|
£40.80
|
£48.96
|
|
|
3 - ARMATURE 220 V
BSD-F000605112.A0
F000605112
|
£81.81
|
£98.17
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A433
1601302013
|
£1.66
|
£1.99
|
|
|
13 - GROOVE BALL BEARING DIN 607-2Z-C3
BSD-1600900024.A0
1600900024
|
-
|
|
|
|
14 - BALL BEARING 9x26x8
BSD-1900905025.A19
1900905025
|
£21.52
|
£25.83
|
|
|
15 - INTERMEDIATE FLANGE
BSD-9618086661.A0
9618086661
|
£7.36
|
£8.83
|
|
|
19 - SEALING CAP
BSD-1605500089.A161
1605500089
|
-
|
|
|
|
20 - TAPPING SCREW 4x16 MM
BSD-9618087099.A26
9618087099
|
£1.66
|
£1.99
|
|
|
21 - AIR-DEFLECTOR RING
BSD-F000600528.A0
F000600528
|
£7.36
|
£8.83
|
|
|
25 - STORAGE LEDGE
BSD-1602388029.A318
1602388029
|
£1.66
|
£1.99
|
|
|
26 - RETAINING SNAP RING
BSD-1600290019.A486
1600290019
|
£1.66
|
£1.99
|
|
|
27 - INTERMEDIATE RING
BSD-1600206026.A123
1600206026
|
£1.66
|
£1.99
|
|
|
28 - INTERMEDIATE RING
BSD-1600502011.A301
1600502011
|
£1.66
|
£1.99
|
|
|
29 - TAB WASHER
BSD-1601030022.A573
1601030022
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A213
1600190020
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A614
1600190021
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A214
1600190022
|
£1.66
|
£1.99
|
|
|
35 - ROTARY SHAFT LIP SEAL
BSD-1600290018.A0
1600290018
|
£4.26
|
£5.11
|
|
|
37 - CONICAL SPRING WASHER
BSD-F000616014.A0
F000616014
|
-
|
|
|
|
38 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A94
2916660012
|
£1.66
|
£1.99
|
|
|
39 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A478
2600910001
|
£4.26
|
£5.11
|
|
|
40 - O-RING 79.0x1.78 MM
BSD-1600210033.A773
1600210033
|
£1.66
|
£1.99
|
|
|
41 - SEAL RING
BSD-1600290036.A398
1600290036
|
£1.95
|
£2.34
|
|
|
42 - GRINDING SPINDLE
BSD-F000600150.A3
F000600150
|
£13.12
|
£15.75
|
|
|
43 - FELT WASHER
BSD-1600205034.A190
1600205034
|
£1.66
|
£1.99
|
|
|
44 - BEARING FLANGE
BSD-1605805138.A2
1605805138
|
£14.91
|
£17.89
|
|
|
46 - SCREW
BSD-9618086638.A4
9618086638
|
£1.66
|
£1.99
|
|
|
47 - GROOVE BALL BEARING
BSD-3600905134.A154
3600905134
|
£11.30
|
£13.56
|
|
|
48 - TAPPING SCREW
BSD-F000600216.A1
F000600216
|
£1.66
|
£1.99
|
|
|
49 - RETAINING CLIP
BSD-1600119010.A505
1600119010
|
£1.66
|
£1.99
|
|
|
50 - THREADED RING
BSD-9618089058.A0
9618089058
|
£11.30
|
£13.56
|
|
|
55 - HANDLE
BSD-9618086678.A0
9618086678
|
£16.41
|
£19.69
|
|
|
57 - WIRE GUIDE
BSD-1601025001.A138
1601025001
|
£1.66
|
£1.99
|
|
|
59 - TAPPING SCREW 4x20 MM
BSD-9618087100.A0
9618087100
|
£1.66
|
£1.99
|
|
|
61 - HEADLESS SCREW
BSD-2603435017.A75
2603435017
|
£2.33
|
£2.80
|
|
|
62 - CONNECTING CABLE
BSD-F000600313.A0
F000600313
|
£2.33
|
£2.80
|
|
|
63 - BLADE TERMINAL
BSD-F000612021.A0
F000612021
|
£1.66
|
£1.99
|
|
|
64 - SOCKET HEAD CAP SCREW DIN 84-AM4x5-8.8
BSD-2910021115.A10
2910021115
|
-
|
|
|
|
70 - O-RING 4.0x1.0 MM
BSD-1600210034.A60
1600210034
|
£1.66
|
£1.99
|
|
|
73 - EL FIELD REGULATOR
BSD-1600A003MA.A0
1600A003MA
|
£81.81
|
£98.17
|
|
|
74 - STRANDED HOOK-UP WIRE
BSD-F000610007.A0
F000610007
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-9618089263.A0
9618089263
|
£27.23
|
£32.68
|
|
|
804 - ON-OFF SWITCH
BSD-9618086632.A0
9618086632
|
-
|
|
|
|
805 - POWER SUPPLY CORD CN 2.65m 2 x 1.00mm H05 VV-F
BSD-1619P00057.A0
1619P00057
|
-
|
|
|
|
806 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A12
3600703011
|
£2.80
|
£3.36
|
|
|
810 - CARBON-BRUSH SET
BSD-9618086921.A0
9618086921
|
£14.91
|
£17.89
|
|
|
811 - BRUSH HOLDER
BSD-3604336012.A191
3604336012
|
£5.58
|
£6.70
|
|
|
812 - SPIRAL SPRING
BSD-1604652006.A342
1604652006
|
£1.66
|
£1.99
|
|
|
813 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A924
2910021118
|
£1.66
|
£1.99
|
|
|
814 - SPARE PART
BSD-9618086834.A1
9618086834
|
£2.52
|
£3.02
|
|
|
831 - MOTOR HOUSING
BSD-9618086845.A0
9618086845
|
-
|
|
|
|
832 - CROWN GEAR
BSD-9618086713.A0
9618086713
|
-
|
|
|
