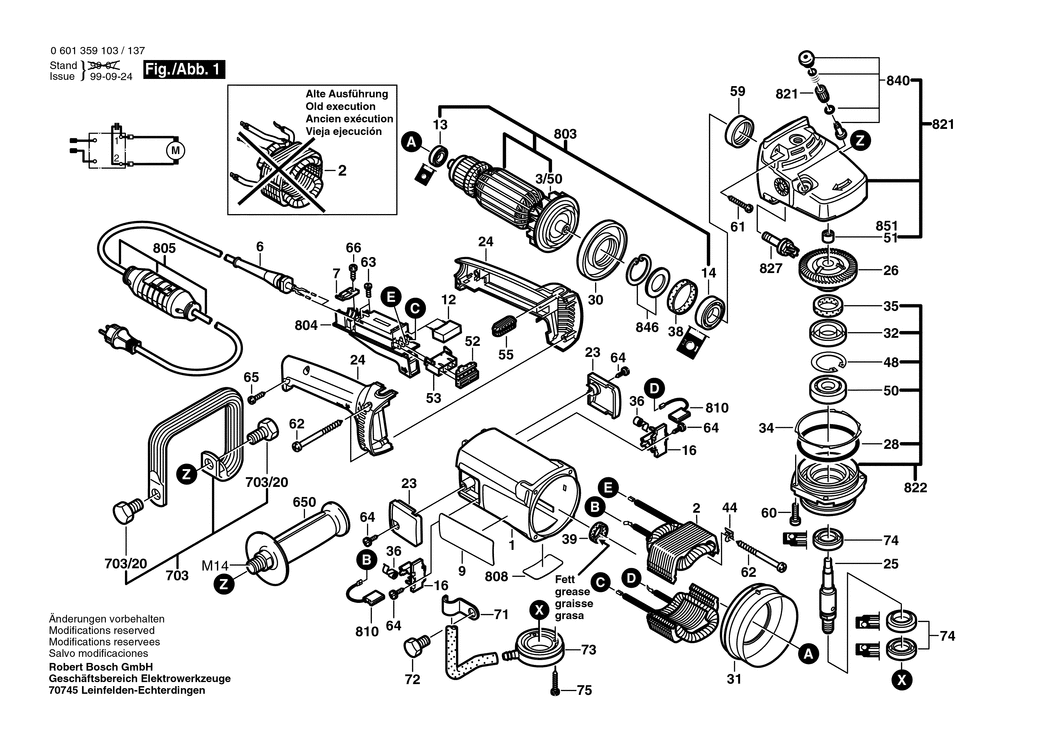

1 - MOTOR HOUSING
BSD-1605108144.A79
1605108144
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-1604220389.A0
1604220389
|
£46.82
|
£56.18
|
|
|
3/50 - FAN
BSD-1606610127.A28
1606610127
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A338
1600703023
|
£2.33
|
£2.80
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A68
1601302018
|
£1.66
|
£1.99
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-3601119171.A0
3601119171
|
£3.72
|
£4.47
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A90
1607328035
|
£4.26
|
£5.11
|
|
|
14 - GROOVE BALL BEARING
BSD-1600905028.A312
1600905028
|
£12.04
|
£14.45
|
|
|
16 - BRUSH HOLDER
BSD-1604336027.A1
1604336027
|
£21.52
|
£25.83
|
|
|
23 - SEALING CAP
BSD-1605500150.A42
1605500150
|
£3.72
|
£4.47
|
|
|
24 - HANDLE
BSD-1605132117.A15
1605132117
|
£11.30
|
£13.56
|
|
|
25 - GRINDING SPINDLE M14
BSD-1603523104.A3
1603523104
|
£72.18
|
£86.62
|
|
|
26 - CROWN GEAR Z=57
BSD-1606333255.A0
1606333255
|
-
|
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A26
1600210033
|
£1.66
|
£1.99
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A35
1600591010
|
£1.95
|
£2.34
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A143
1600591011
|
£1.66
|
£1.99
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A63
1600290019
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A798
1600190020
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A29
1600190021
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A798
1600190022
|
£1.66
|
£1.99
|
|
|
35 - FELT WASHER
BSD-1600205034.A653
1600205034
|
£1.66
|
£1.99
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A116
1604652015
|
£1.66
|
£1.99
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A422
1600206020
|
£1.66
|
£1.99
|
|
|
39 - RUBBER RING
BSD-1600206030.A194
1600206030
|
£1.66
|
£1.99
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A128
1601334008
|
£1.66
|
£1.99
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A95
1600119010
|
£1.66
|
£1.99
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A80
3600905134
|
£11.30
|
£13.56
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A463
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A165
1602388027
|
£1.66
|
£1.99
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A131
1605190038
|
£1.66
|
£1.99
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A88
1602388029
|
£1.66
|
£1.99
|
|
|
59 - THREADED RING
BSD-1603344065.A1
1603344065
|
£16.74
|
£20.09
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A184
1603435023
|
£1.66
|
£1.99
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A608
2912401038
|
£1.66
|
£1.99
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A140
1603435024
|
£1.66
|
£1.99
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A603
1603410014
|
£1.66
|
£1.99
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A404
1603435042
|
£1.66
|
£1.99
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A673
2912401020
|
£1.66
|
£1.99
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2439
2910211019
|
£1.66
|
£1.99
|
|
|
71 - CLAMP
BSD-1601300004.A30
1601300004
|
£1.95
|
£2.34
|
|
|
72 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A97
2603450007
|
£5.58
|
£6.70
|
|
|
73 - CONNECTING FLANGE
BSD-1605703061.A30
1605703061
|
-
|
|
|
|
74 - ROTARY SHAFT LIP SEAL dia35x22x6/6.5 MM
BSD-1600283004.A31
1600283004
|
£7.36
|
£8.83
|
|
|
75 - THREAD-FORMING TAP. SCREW TT M5x30 MM
BSD-1603435022.A27
1603435022
|
£1.66
|
£1.99
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A979
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A97
1602025030
|
£18.96
|
£22.75
|
|
|
703 - PARTS SET
BSD-1607000209.A2
1607000209
|
£55.99
|
£67.19
|
|
|
703/20 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A96
2603450007
|
£5.58
|
£6.70
|
|
|
803 - ARMATURE 230-240V
BSD-1604011160.A1
1604011160
|
£216.12
|
£259.35
|
|
|
804 - SWITCH
BSD-1607200103.A24
1607200103
|
£27.23
|
£32.68
|
|
|
805 - POWER SUPPLY CORD
BSD-3604460128.A0
3604460128
|
£134.16
|
£160.99
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1821
160111A3H3
|
£2.33
|
£2.80
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A39
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1607000945.A3
1607000945
|
-
|
|
|
|
822 - BEARING FLANGE
BSD-1607000946.A1
1607000946
|
-
|
|
|
|
827 - BEVEL GEAR
BSD-1607000948.A2
1607000948
|
£114.88
|
£137.86
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A85
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A239
1607000342
|
£3.72
|
£4.47
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A623
2600910001
|
£4.26
|
£5.11
|
|
