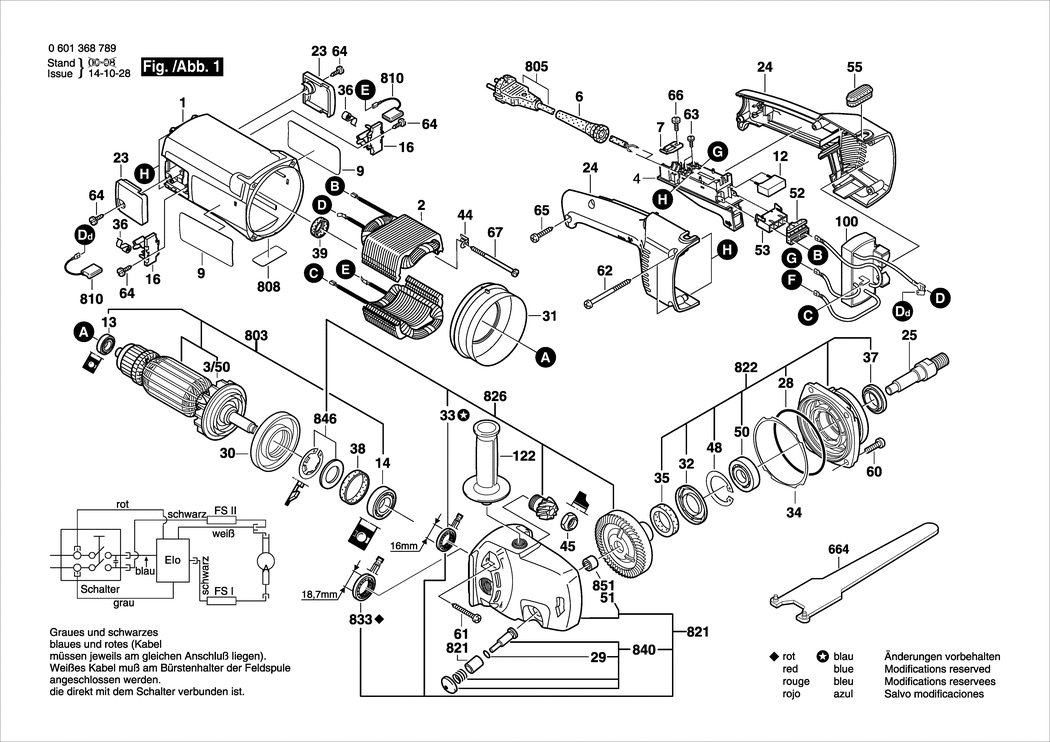

An exploded drawing and listing for the Bosch GNF 65 A / 0601368789 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108160.A4 1605108160 -
2 - FIELD 220-230V BSD-160422051P.A69 160422051P £45.67 £54.80
3/50 - FAN BSD-1606610127.A195 1606610127 £2.80 £3.36
4 - SWITCH BSD-3607200064.A6 3607200064 £37.27 £44.72
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A31 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A819 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE GNF 65A BSD-3601119292.A1 3601119292 £5.58 £6.70
12 - SUPPRESSION FILTER BSD-1607328035.A131 1607328035 £4.26 £5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A574 1600905011 £5.58 £6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A159 1600905023 £12.04 £14.45
16 - BRUSH HOLDER BSD-1604336021.A99 1604336021 £2.80 £3.36
23 - SEALING CAP BSD-1605500167.A9 1605500167 -
24 - HANDLE BSD-1605132119.A9 1605132119 £11.30 £13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A102 1603523100 £14.91 £17.89
28 - O-RING 79.0x1.78 MM BSD-1600210033.A657 1600210033 £1.75 £2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A83 1600210034 £1.75 £2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A104 1600591010 £2.16 £2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A74 1600591011 £1.75 £2.10
32 - RETAINING SNAP RING BSD-1600290019.A633 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A369 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A26 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A801 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A26 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A397 1600190037 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A47 1600205034 £1.75 £2.10
36 - SPIRAL SPRING BSD-1604652015.A339 1604652015 £2.80 £3.36
37 - SEAL RING BSD-1600290020.A47 1600290020 £1.75 £2.10
38 - RUBBER RING 7 MM BSD-1600206020.A669 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A26 1600206030 £1.75 £2.10
44 - HOLDING BRACKET BSD-1601334008.A46 1601334008 £2.61 £3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A129 1603300019 £1.75 £2.10
48 - RETAINING CLIP BSD-1600119010.A645 1600119010 £1.75 £2.10
50 - GROOVE BALL BEARING DIN 625-6203-RS/C3 BSD-1600900035.A0 1600900035 -
51 - PLAIN BEARING dia14 MM BSD-1600200031.A494 1600200031 £2.80 £3.36
52 - CABLE ROUTING BSD-1602388027.A331 1602388027 £2.61 £3.13
53 - SOCKET HOUSING BSD-1605190038.A40 1605190038 £1.75 £2.10
55 - STORAGE LEDGE BSD-1602388029.A267 1602388029 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW BSD-1603435076.A153 1603435076 £2.61 £3.13
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A10 2912401038 £1.75 £2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A245 1603435024 £1.75 £2.10
63 - PAN HEAD SCREW M 3.5x10 MM BSD-3603410009.A6 3603410009 £1.32 £1.58
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A604 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A88 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A191 2910211019 £1.75 £2.10
67 - LENS HEAD SCREW BSD-3603435040.A22 3603435040 £1.75 £2.10
100 - SPEED GOVERNOR 220-240V BSD-1607233040.A1 1607233040 £68.42 £82.10
122 - AUXILIARY HANDLE M14 BSD-1602025022.A1447 1602025022 £13.41 £16.09
122 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1334 1602025030 £18.96 £22.75
664 - PIN-TYPE FACE-WRENCH BSD-1607950061.A563 1607950061 £5.42 £6.50
803 - ARMATURE 230-240V BSD-1604011156.A17 1604011156 £135.25 £162.30
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A458 1607000227 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A3673 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A487 1607014171 £14.91 £17.89
821 - GEAR HOUSING BSD-1605805592.A55 1605805592 £72.18 £86.62
822 - BEARING FLANGE dia 230 MM BSD-1607000922.A70 1607000922 £45.67 £54.80
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A84 1600A005BH £45.67 £54.80
833 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A186 1600290013 £2.61 £3.13
840 - PUSH-BUTTON BSD-1607000206.A186 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000C3E.A256 1607000C3E £12.04 £14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A165 2600910001 £4.26 £5.11
