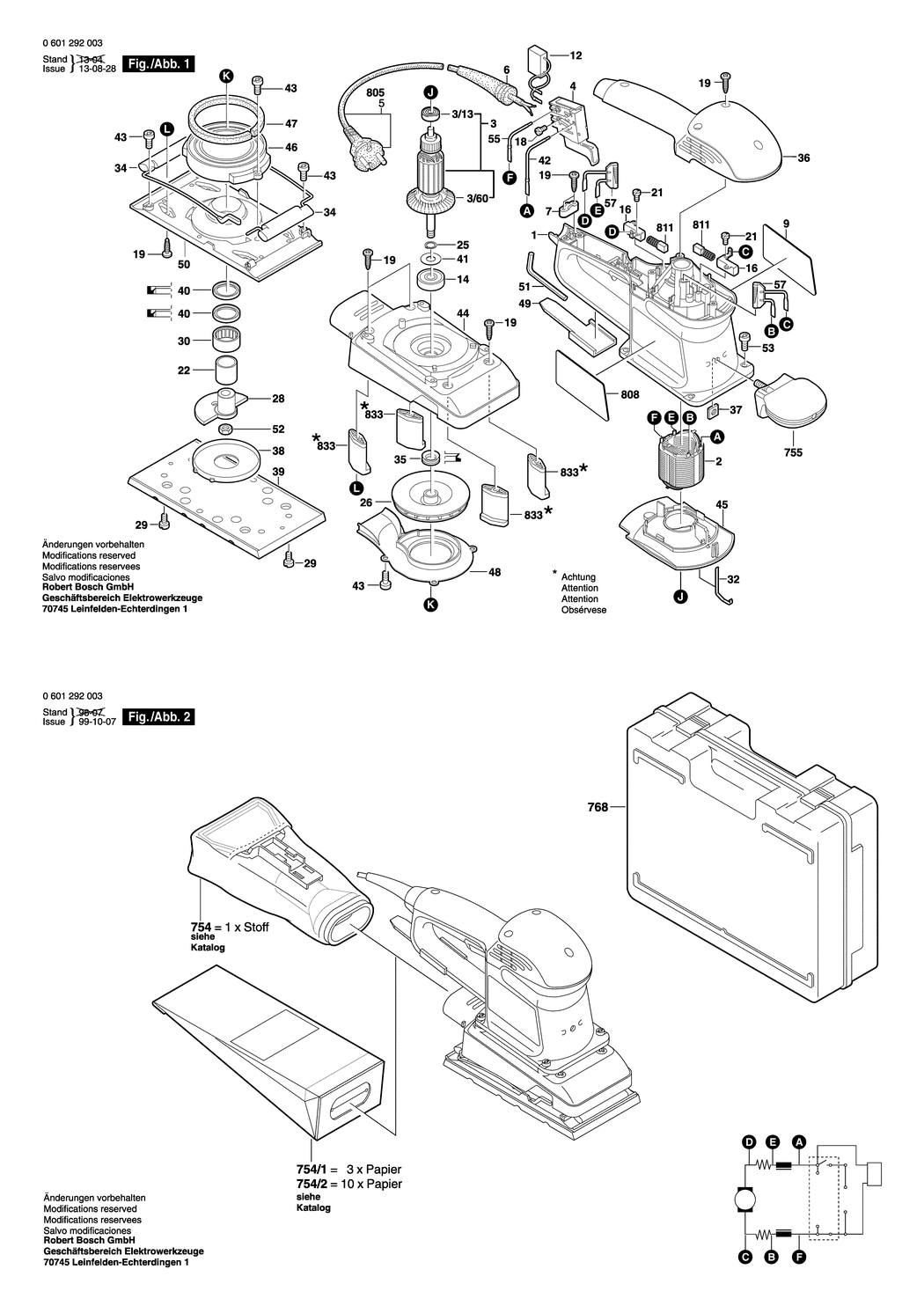

1 - MOTOR HOUSING
BSD-2605104538.A27
2605104538
|
£16.41
|
£19.69
|
|
|
2 - FIELD 230-240V
BSD-2604220529.A33
2604220529
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 230-240V
BSD-2604011110.A1
2604011110
|
£33.74
|
£40.49
|
|
|
3/13 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A541
1610905025
|
£6.85
|
£8.22
|
|
|
3/60 - FAN
BSD-2606610076.A98
2606610076
|
£3.91
|
£4.69
|
|
|
4 - SWITCH
BSD-2607200260.A0
2607200260
|
£11.87
|
£14.24
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A779
2600703017
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-2601035001.A72
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119322.A2
2601119322
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1617328026.A4
1617328026
|
£7.36
|
£8.83
|
|
|
14 - GROOVE BALL BEARING
BSD-1619P00290.A25
1619P00290
|
£6.85
|
£8.22
|
|
|
16 - BRUSH HOLDER
BSD-2604337016.A0
2604337016
|
£1.75
|
£2.10
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A277
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1498
2603490022
|
£1.84
|
£2.21
|
|
|
21 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1226
2603490017
|
£2.27
|
£2.72
|
|
|
22 - INNER RING
BSD-2600400035.A27
2600400035
|
£10.10
|
£12.12
|
|
|
25 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A180
2916640006
|
£1.84
|
£2.21
|
|
|
26 - FAN
BSD-2606610085.A2
2606610085
|
£9.11
|
£10.93
|
|
|
28 - ECCENTRIC
BSD-2600499041.A0
2600499041
|
£22.60
|
£27.12
|
|
|
29 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A233
2603410048
|
£1.84
|
£2.21
|
|
|
30 - NEEDLE BEARING
BSD-2600910012.A10
2600910012
|
£5.30
|
£6.36
|
|
|
32 - CONTACT STRAP
BSD-2601329053.A19
2601329053
|
£1.84
|
£2.21
|
|
|
34 - TENSIONING LEVER
BSD-2608045022.A5
2608045022
|
£8.67
|
£10.41
|
|
|
35 - V-RING
BSD-2600290030.A0
2600290030
|
£2.94
|
£3.53
|
|
|
36 - HOUSING COVER
BSD-2605500125.A14
2605500125
|
£10.10
|
£12.12
|
|
|
37 - SQUARE NUT DIN 562-M6-04
BSD-2915121006.A90
2915121006
|
£2.74
|
£3.29
|
|
|
38 - SEALING COVER
BSD-2600500019.A20
2600500019
|
£1.75
|
£2.10
|
|
|
39 - SANDER PLATE
BSD-2608000165.A3
2608000165
|
£33.74
|
£40.49
|
|
|
40 - SHAFT SEAL
BSD-2600290031.A29
2600290031
|
£2.80
|
£3.36
|
|
|
41 - SEALING DISK
BSD-2600590013.A23
2600590013
|
£2.16
|
£2.59
|
|
|
43 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A156
2603435042
|
£1.75
|
£2.10
|
|
|
44 - SUCTION HOOD
BSD-2600282017.A20
2600282017
|
£39.13
|
£46.96
|
|
|
45 - AIR GUIDE PLATE
BSD-2601328055.A41
2601328055
|
£2.74
|
£3.29
|
|
|
46 - SUCTION SOCKET
BSD-2601328053.A20
2601328053
|
£2.74
|
£3.29
|
|
|
47 - FELT STRIP
BSD-2601005017.A56
2601005017
|
£1.75
|
£2.10
|
|
|
48 - AIR-DEFLECTOR RING
BSD-2600034006.A3
2600034006
|
£9.11
|
£10.93
|
|
|
49 - PUSHER
BSD-2601035002.A86
2601035002
|
£2.27
|
£2.72
|
|
|
50 - SWING-PLATE
BSD-2608000166.A19
2608000166
|
£22.60
|
£27.12
|
|
|
51 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A472
1907950006
|
£4.48
|
£5.37
|
|
|
52 - HEX NUT DIN 439-BM8-04
BSD-2915051107.A72
2915051107
|
£1.84
|
£2.21
|
|
|
53 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603410049.A203
2603410049
|
£1.84
|
£2.21
|
|
|
55 - CONNECTING CABLE L=110 MM
BSD-2604448146.A53
2604448146
|
£1.84
|
£2.21
|
|
|
57 - SUPPRESSION FILTER
BSD-2604465090.A45
2604465090
|
£7.72
|
£9.27
|
|
|
754 - DUST BAG
BSD-2605411112.A29
2605411112
|
£8.74
|
£10.49
|
|
|
754/1 - DUST BAG
BSD-2605411113.A0
2605411113
|
£6.42
|
£7.71
|
|
|
754/2 - DUST BAG
BSD-2605411114.A29
2605411114
|
£18.37
|
£22.04
|
|
|
755 - AUXILIARY HANDLE
BSD-2602026069.A31
2602026069
|
£5.57
|
£6.68
|
|
|
768 - CARRYING CASE
BSD-2605438368.A0
2605438368
|
£23.49
|
£28.19
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A108
1607000386
|
£22.60
|
£27.12
|
|
|
808 - MANUFACTURER'S NAMEPLATE
BSD-2601119347.A0
2601119347
|
-
|
|
|
|
811 - CARBON BRUSH
BSD-1607014117.A63
1607014117
|
£10.61
|
£12.73
|
|
|
833 - SPRING
BSD-2608005902.A1
2608005902
|
£16.41
|
£19.69
|
|
