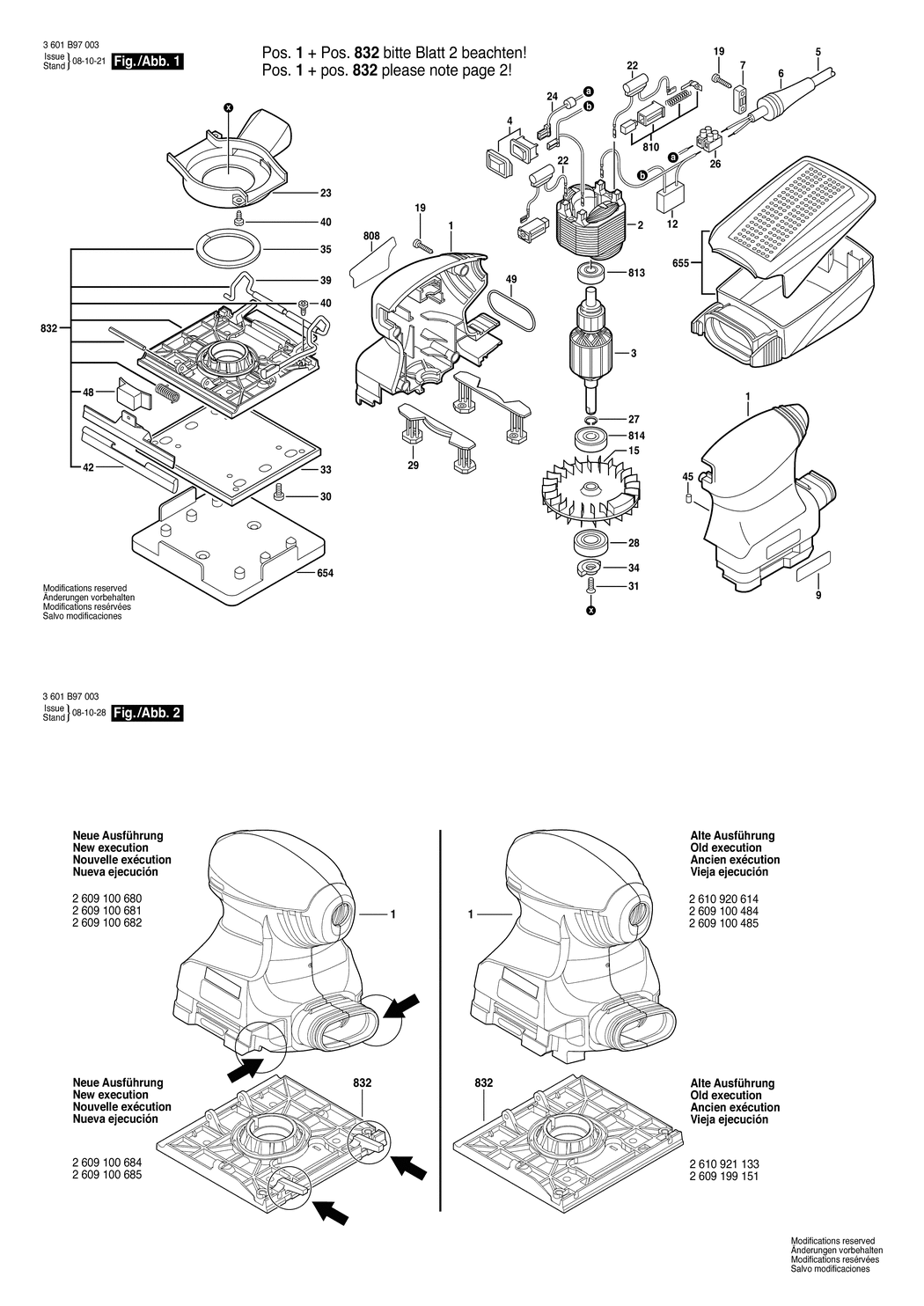

1 - HOUSING
BSD-2609100680.A7
2609100680
|
£23.86
|
£28.63
|
|
|
2 - STATOR 230V
BSD-2609120299.A8
2609120299
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230V
BSD-1604010A29.A4
1604010A29
|
£45.67
|
£54.80
|
|
|
4 - SWITCH
BSD-1607200190.A14
1607200190
|
£10.10
|
£12.12
|
|
|
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460400.A26
1604460400
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A211
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A3158
2601035001
|
£1.75
|
£2.10
|
|
|
9 - REFERENCE PLATE
BSD-2610921050.A7
2610921050
|
£1.75
|
£2.10
|
|
|
12 - SUPPRESSION FILTER
BSD-2610920617.A10
2610920617
|
£2.61
|
£3.13
|
|
|
15 - FAN
BSD-2610920618.A2
2610920618
|
£7.36
|
£8.83
|
|
|
19 - SCREW 4x16
BSD-2603490022.A3213
2603490022
|
£1.75
|
£2.10
|
|
|
22 - SUPPRESSION FILTER
BSD-2610920619.A19
2610920619
|
£3.72
|
£4.47
|
|
|
23 - FAN COVER
BSD-2610920620.A2
2610920620
|
£6.52
|
£7.83
|
|
|
24 - CABLE
BSD-2610928031.A9
2610928031
|
£5.30
|
£6.36
|
|
|
26 - CONNECTION BLOCK
BSD-2610910009.A9
2610910009
|
£2.16
|
£2.59
|
|
|
27 - RETAINING RING DIN 7993-A8
BSD-2916540005.A27
2916540005
|
£1.75
|
£2.10
|
|
|
28 - BALL BEARING
BSD-2609110748.A12
2609110748
|
£7.36
|
£8.83
|
|
|
29 - VIBRATION FOOT
BSD-2610921132.A7
2610921132
|
£5.87
|
£7.04
|
|
|
30 - SCREW
BSD-2610915161.A40
2610915161
|
-
|
|
|
|
31 - SCREW
BSD-2610991395.A2
2610991395
|
£1.75
|
£2.10
|
|
|
33 - FOAM PANEL
BSD-2610920631.A0
2610920631
|
£18.96
|
£22.75
|
|
|
34 - COUNTERWEIGHT
BSD-2610920634.A13
2610920634
|
£3.72
|
£4.47
|
|
|
35 - FELT
BSD-2610920635.A0
2610920635
|
£1.75
|
£2.10
|
|
|
39 - CLAMP HANDLE
BSD-2610925983.A7
2610925983
|
£16.41
|
£19.69
|
|
|
40 - TORX OVAL-HEAD SCREW 4x8
BSD-2603490020.A117
2603490020
|
£1.75
|
£2.10
|
|
|
42 - RUBBER BAR
BSD-2609101232.A9
2609101232
|
£1.75
|
£2.10
|
|
|
45 - PIN
BSD-2610350103.A11
2610350103
|
£1.75
|
£2.10
|
|
|
48 - PUSH BUTTON
BSD-2610920651.A0
2610920651
|
£2.16
|
£2.59
|
|
|
49 - O-RING
BSD-2610920652.A12
2610920652
|
£2.16
|
£2.59
|
|
|
654 - PUNCHING TOOL
BSD-2610920650.A14
2610920650
|
£8.67
|
£10.41
|
|
|
655 - DUST CONTAINER
BSD-2609199193.A6
2609199193
|
£10.10
|
£12.12
|
|
|
808 - NAMEPLATE
BSD-2609131476.A0
2609131476
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-2610924701.A8
2610924701
|
£10.10
|
£12.12
|
|
|
813 - BALL BEARING
BSD-2610917489.A29
2610917489
|
£10.10
|
£12.12
|
|
|
814 - BALL BEARING
BSD-2610917489.A30
2610917489
|
£10.10
|
£12.12
|
|
|
832 - SWING-PLATE
BSD-2609100684.A6
2609100684
|
£31.64
|
£37.97
|
|
