Bosch GSS 140 / 3601BA80G0 / --- 127 Volt Spare Parts

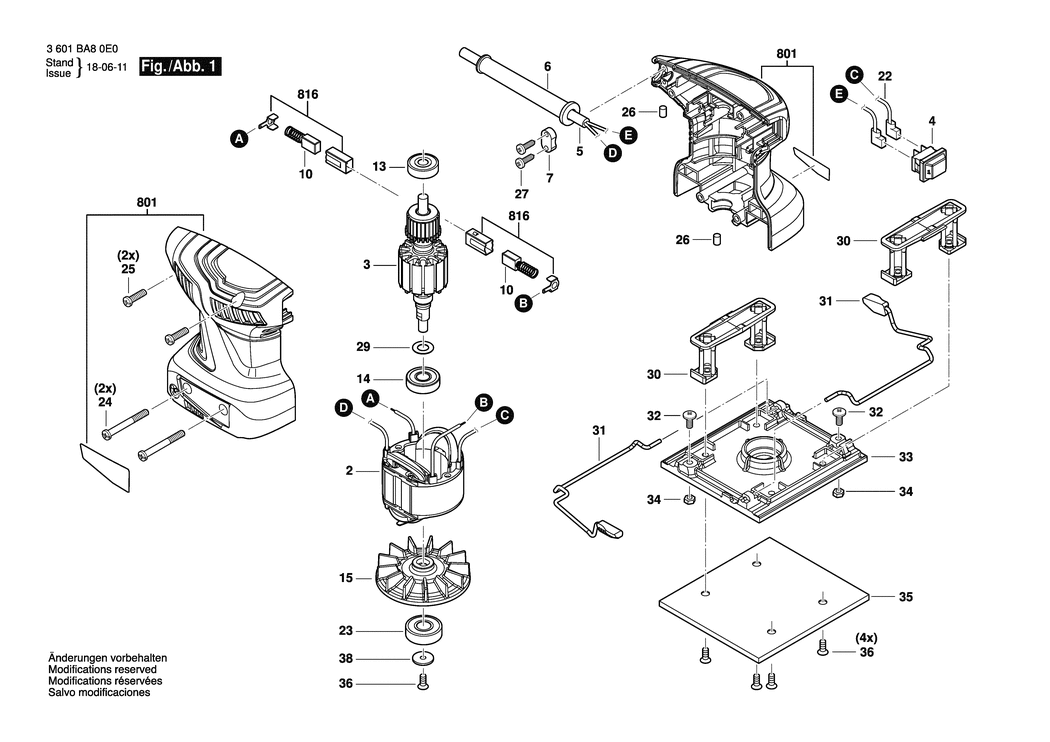

An exploded drawing and listing for the Bosch GSS 140 / 3601BA80G0 / --- 127 Volt

	Ex VAT	Inc VAT
2 - FIELD BSD-1604220579.A0 1604220579	-
3 - ARMATURE BSD-1604010B9S.A0 1604010B9S	-
4 - SWITCH BSD-160720035P.A0 160720035P	-
5 - POWER SUPPLY CORD BSD-160446076U.A0 160446076U	-
6 - GROMMET BSD-1600703040.A6 1600703040	£2.16	£2.59
7 - CABLE CLIP BSD-2615650007.A37 2615650007	£2.61	£3.13
10 - CARBON BRUSH BSD-160432117D.A0 160432117D	-
13 - GROOVE BALL BEARING BSD-9618089547.A5 9618089547	£12.04	£14.45
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905005.A4 1610905005	£14.91	£17.89
15 - FAN BSD-1607000CX3.A0 1607000CX3	-
22 - CABLE BSD-2609120579.A7 2609120579	£1.75	£2.10
23 - GROOVE BALL BEARING 6000-2RS DIN 625 BSD-1900905173.A0 1900905173	£5.30	£6.36
24 - CROSS RECESSED-HEAD SCREW BSD-F000616012.A0 F000616012	£1.75	£2.10
25 - TAPPING SCREW 4x16 MM BSD-9618087099.A25 9618087099	£1.75	£2.10
26 - PIN BSD-2610350103.A8 2610350103	£1.75	£2.10
27 - TORX OVAL-HEAD SCREW 3.5x16 BSD-1613490027.A6 1613490027	£1.75	£2.10
29 - PLAIN WASHER 0.5 MM BSD-1600101653.A31 1600101653	-
30 - BRACKET BSD-1600A014L1.A0 1600A014L1	-
31 - CLAMP BSD-1600A014L2.A0 1600A014L2	-
32 - SCREW BSD-2610991395.A7 2610991395	£1.75	£2.10
33 - BASE PLATE BSD-1600A014L3.A0 1600A014L3	-
34 - HEX NUT BSD-1609902684.A5 1609902684	£1.75	£2.10
35 - PAD BSD-1600A014L4.A0 1600A014L4	-
36 - SCREW BSD-2610915161.A37 2610915161	-
38 - WASHER BSD-1609B00662.A32 1609B00662	£1.75	£2.10
801 - MOTOR HOUSING BSD-1607000CX2.A0 1607000CX2	-
816 - BRUSH HOLDER BSD-16070312E0.A0 16070312E0	-

Attribute Name	Value
Brand	Bosch
