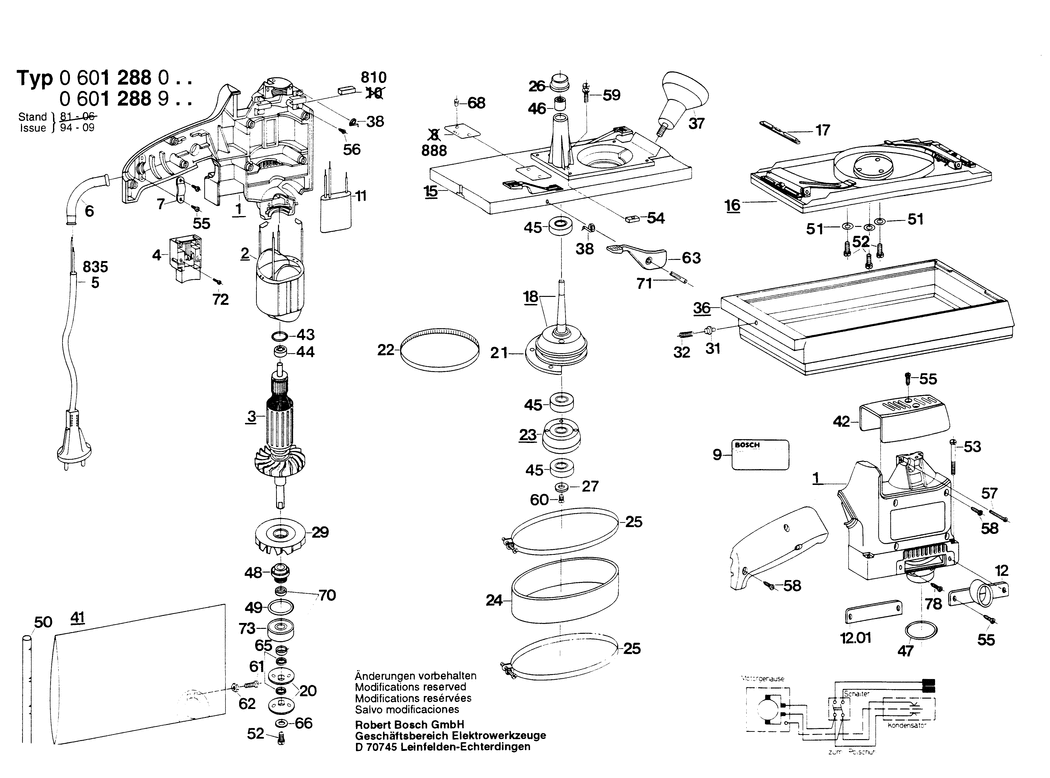

1 - HOUSING SECTION
BSD-2605104940.A23
2605104940
|
-
|
|
|
|
2 - FIELD 220V
BSD-2604220394.A17
2604220394
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604010499.A9
2604010499
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200060.A22
2607200060
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A264
1600703016
|
£1.75
|
£2.10
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A1071
1601302014
|
£2.61
|
£3.13
|
|
|
12 - SUPPORT
BSD-2603373000.A3
2603373000
|
-
|
|
|
|
15 - INTERMEDIATE FLANGE
BSD-2605700920.A1
2605700920
|
-
|
|
|
|
16 - SWING-PLATE
BSD-2601001900.A13
2601001900
|
-
|
|
|
|
17 - PRESSURE BAR
BSD-2602329022.A46
2602329022
|
-
|
|
|
|
18 - PULLEY
BSD-2606600901.A6
2606600901
|
-
|
|
|
|
20 - CONICAL SPRING WASHER
BSD-2600120046.A1
2600120046
|
-
|
|
|
|
21 - PULLEY
BSD-2606600900.A14
2606600900
|
-
|
|
|
|
22 - V-BELT
BSD-2604735002.A14
2604735002
|
-
|
|
|
|
23 - BEARING FLANGE
BSD-2605703900.A5
2605703900
|
-
|
|
|
|
24 - SEAL RING
BSD-2600290012.A1
2600290012
|
-
|
|
|
|
25 - HOSE CLAMP
BSD-2601316000.A16
2601316000
|
-
|
|
|
|
26 - PROTECTIVE CAP
BSD-2600502016.A5
2600502016
|
-
|
|
|
|
27 - CONICAL SPRING WASHER
BSD-1600114038.A41
1600114038
|
-
|
|
|
|
29 - FAN
BSD-2606610041.A6
2606610041
|
-
|
|
|
|
31 - DETENT PIN
BSD-2603126005.A3
2603126005
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-1604626004.A14
1604626004
|
-
|
|
|
|
36 - OUTER RIM
BSD-2608005901.A6
2608005901
|
-
|
|
|
|
37 - HANDLE
BSD-1603481001.A24
1603481001
|
-
|
|
|
|
38 - SPIRAL SPRING
BSD-1604652004.A209
1604652004
|
£2.61
|
£3.13
|
|
|
41 - DUST BAG
BSD-2605411900.A21
2605411900
|
£22.74
|
£27.29
|
|
|
42 - HOUSING COVER
BSD-2605500068.A12
2605500068
|
-
|
|
|
|
43 - O-RING 15x2 MM
BSD-1900210012.A83
1900210012
|
£1.75
|
£2.10
|
|
|
44 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A243
1900905015
|
£30.42
|
£36.51
|
|
|
45 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A1
2600905013
|
-
|
|
|
|
46 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A200
1610910057
|
£2.80
|
£3.36
|
|
|
47 - O-RING 38x2.5MM
BSD-1900210139.A17
1900210139
|
-
|
|
|
|
48 - SEAL RING
BSD-2600220024.A2
2600220024
|
-
|
|
|
|
49 - O-RING 28.2x2.62 MM
BSD-2600210027.A2
2600210027
|
-
|
|
|
|
50 - SUPPORT CLAMP
BSD-2601314002.A27
2601314002
|
-
|
|
|
|
51 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A7
2916060006
|
£1.32
|
£1.58
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A24
2910021154
|
£1.75
|
£2.10
|
|
|
53 - PAN HEAD SCREW
BSD-2603410025.A66
2603410025
|
-
|
|
|
|
54 - SQUARE NUT M4
BSD-2603320001.A45
2603320001
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7981-BZ3.9x9.5-A2
BSD-2910611417.A34
2910611417
|
-
|
|
|
|
56 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A148
2910601004
|
-
|
|
|
|
57 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A2
2910211007
|
£1.75
|
£2.10
|
|
|
58 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A338
2910611019
|
£2.80
|
£3.36
|
|
|
59 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A358
1613435034
|
£1.75
|
£2.10
|
|
|
60 - COUNTERSUNK-HEAD SCREW DIN 963-M 4x8-5.8
BSD-2910775118.A31
2910775118
|
-
|
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A35
2910021128
|
-
|
|
|
|
62 - HEX NUT DIN 439-BM 4-04
BSD-2915051104.A18
2915051104
|
-
|
|
|
|
63 - CONTROL LEVER
BSD-2602098011.A3
2602098011
|
-
|
|
|
|
65 - SHIM 0.3 MM
BSD-2600100576.A78
2600100576
|
-
|
|
|
|
66 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A171
2916011014
|
£1.75
|
£2.10
|
|
|
68 - GROOVED NAIL
BSD-3603133000.A333
3603133000
|
£2.61
|
£3.13
|
|
|
70 - SPACER RING
BSD-2600200019.A16
2600200019
|
-
|
|
|
|
71 - SPLIT PIN
BSD-2604681000.A23
2604681000
|
-
|
|
|
|
72 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A305
2603410023
|
-
|
|
|
|
73 - GROOVE BALL BEARING
BSD-2600905020.A16
2600905020
|
-
|
|
|
|
78 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A188
2910211020
|
£2.16
|
£2.59
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A26
2604321904
|
£10.10
|
£12.12
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A625
160111A3H3
|
£2.61
|
£3.13
|
|
