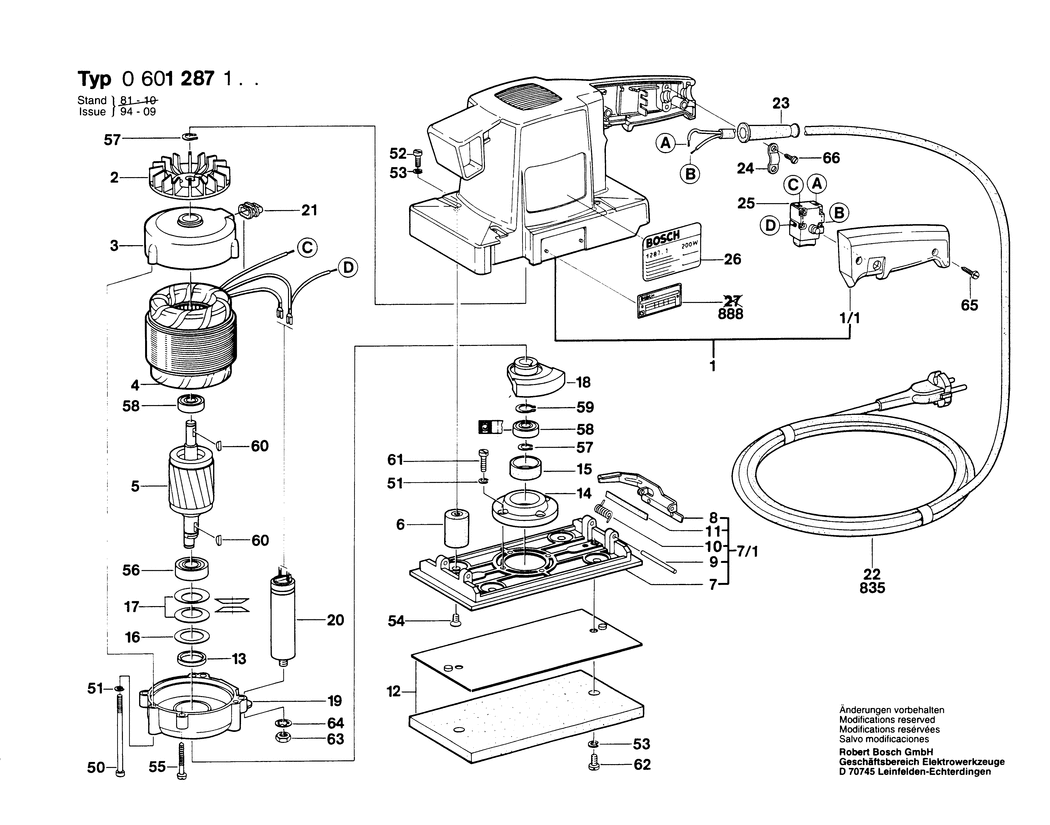

1 - MOTOR HOUSING
BSD-1609330033.A0
1609330033
|
-
|
|
|
|
2 - FAN
BSD-1609330007.A5
1609330007
|
-
|
|
|
|
3 - FLANGED BEARING
BSD-1609330008.A5
1609330008
|
-
|
|
|
|
5 - ARMATURE 220V
BSD-1609330002.A4
1609330002
|
-
|
|
|
|
6 - RUBBER-METAL
BSD-1609330011.A4
1609330011
|
£7.78
|
£9.33
|
|
|
7 - BASE PLATE
BSD-1609330012.A6
1609330012
|
-
|
|
|
|
7/1 - BASE PLATE
BSD-1609330044.A0
1609330044
|
-
|
|
|
|
8 - CLAMPING SADDLE
BSD-1609330035.A6
1609330035
|
-
|
|
|
|
9 - RIVET-HEADED PIN
BSD-1609330014.A3
1609330014
|
-
|
|
|
|
10 - PARALLEL KEY
BSD-1609330015.A7
1609330015
|
-
|
|
|
|
11 - PRESSURE BAR
BSD-2605510008.A8
2605510008
|
-
|
|
|
|
12 - RUBBER PLATE
BSD-1609330017.A4
1609330017
|
-
|
|
|
|
13 - SEAL RING
BSD-1609330018.A6
1609330018
|
-
|
|
|
|
14 - BEARING COVER
BSD-1609330019.A4
1609330019
|
-
|
|
|
|
15 - BUSHING
BSD-1609330020.A6
1609330020
|
-
|
|
|
|
16 - SEALING DISK
BSD-1609330021.A4
1609330021
|
-
|
|
|
|
17 - DISC SPRING
BSD-1609330022.A6
1609330022
|
-
|
|
|
|
18 - FLYWEIGHT
BSD-1609330023.A4
1609330023
|
-
|
|
|
|
19 - INTERMEDIATE PLATE
BSD-1609330024.A6
1609330024
|
-
|
|
|
|
21 - GROMMET
BSD-1609330025.A4
1609330025
|
-
|
|
|
|
23 - GROMMET
BSD-1609330036.A0
1609330036
|
-
|
|
|
|
24 - FASTENING CLAMP
BSD-1601302014.A1058
1601302014
|
£2.61
|
£3.13
|
|
|
25 - ON-OFF SWITCH
BSD-1609330037.A6
1609330037
|
-
|
|
|
|
26 - MANUFACTURER'S NAMEPLATE
BSD-1601110155.A1
1601110155
|
-
|
|
|
|
50 - HEX SOCKET HEAD CAP SCREW
BSD-1609330041.A5
1609330041
|
-
|
|
|
|
51 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A108
2916681005
|
£1.75
|
£2.10
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A0
2910021154
|
£1.75
|
£2.10
|
|
|
53 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A275
2916680006
|
-
|
|
|
|
54 - COUNTERSUNK-HEAD SCREW M5x10 DIN 963-8.8
BSD-2910781152.A3
2910781152
|
-
|
|
|
|
55 - TAPPING SCREW DIN 7971-BZ4.8x32
BSD-2910211037.A4
2910211037
|
£1.75
|
£2.10
|
|
|
56 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A19
1900905234
|
£31.64
|
£37.97
|
|
|
57 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A185
2916640006
|
£1.75
|
£2.10
|
|
|
58 - GROOVE BALL BEARING 9x26x8
BSD-1900905046.A7
1900905046
|
-
|
|
|
|
59 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A559
2916650006
|
£1.75
|
£2.10
|
|
|
60 - PARALLEL KEY
BSD-1609330027.A5
1609330027
|
-
|
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A512
2910021122
|
£2.16
|
£2.59
|
|
|
62 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-8.8
BSD-2910021152.A18
2910021152
|
-
|
|
|
|
63 - HEX NUT DIN 439-BM8-04
BSD-2915051107.A82
2915051107
|
£1.75
|
£2.10
|
|
|
64 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A24
2916680009
|
-
|
|
|
|
65 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A54
2910211220
|
-
|
|
|
|
66 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A262
2910211017
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A135
1607000227
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A601
160111A3H3
|
£2.61
|
£3.13
|
|
