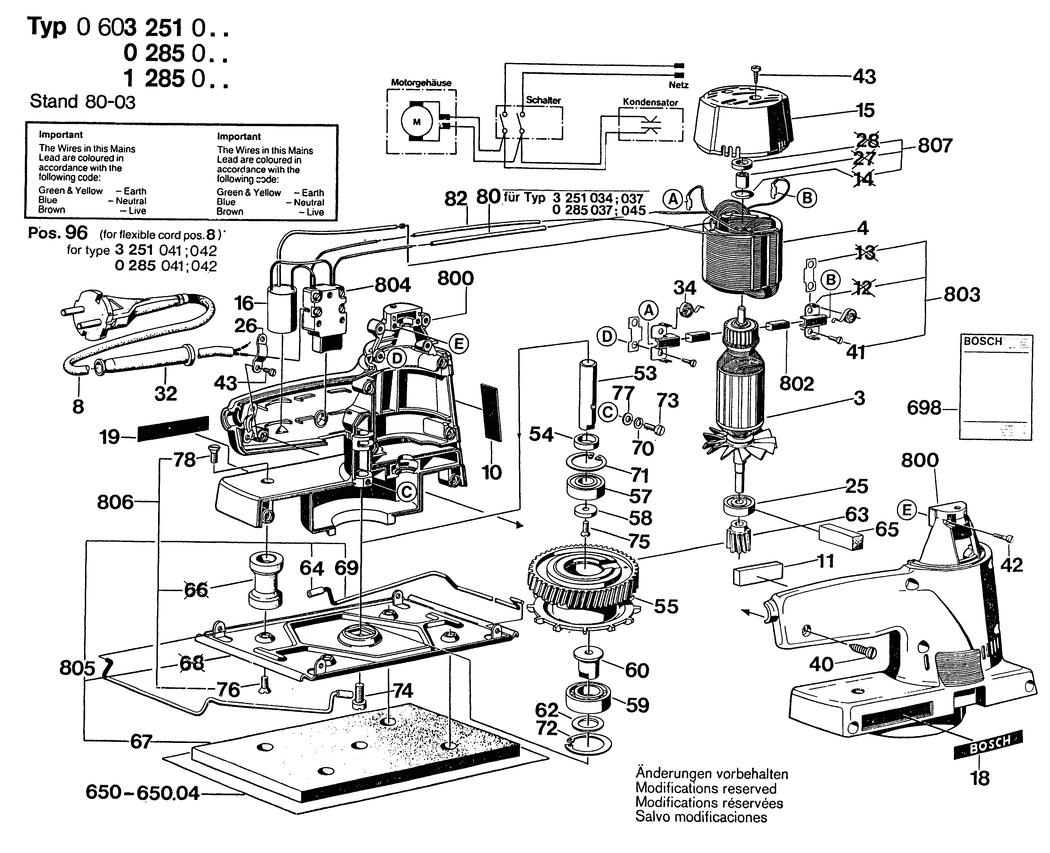

3 - ARMATURE 220V
BSD-1604010127.A2
1604010127
|
-
|
|
|
|
4 - POLE SHOE 220V
BSD-1604220071.A14
1604220071
|
-
|
|
|
|
8 - POWER SUPPLY CORD
BSD-1604460083.A1
1604460083
|
-
|
|
|
|
10 - NAMEPLATE
BSD-160111A3H3.A4037
160111A3H3
|
£2.61
|
£3.13
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A183
1602381001
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A124
1605500066
|
-
|
|
|
|
16 - SUPPRESSION FILTER
BSD-1607328034.A46
1607328034
|
£4.26
|
£5.11
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A458
1601110481
|
£2.16
|
£2.59
|
|
|
19 - REFERENCE PLATE
BSD-1601110053.A6
1601110053
|
-
|
|
|
|
25 - GROOVE BALL BEARING DIN 625 RSY-C3-627-2
BSD-1900905042.A5
1900905042
|
-
|
|
|
|
26 - FASTENING CLAMP
BSD-1601302014.A344
1601302014
|
£2.61
|
£3.13
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A95
1600703016
|
£1.75
|
£2.10
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A59
1604652004
|
£2.61
|
£3.13
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A161
2910211019
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A57
2910601004
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A184
2910211006
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A22
2910211017
|
-
|
|
|
|
53 - BEARING BOLT
BSD-1603159005.A19
1603159005
|
-
|
|
|
|
54 - SPACER RING
BSD-1600200020.A0
1600200020
|
-
|
|
|
|
55 - CYLINDRICAL GEAR Z=59
BSD-1606320067.A26
1606320067
|
-
|
|
|
|
57 - GROOVE BALL BEARING
BSD-1600905003.A91
1600905003
|
-
|
|
|
|
58 - CONICAL SPRING WASHER
BSD-1600114038.A49
1600114038
|
-
|
|
|
|
59 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A42
1900905102
|
-
|
|
|
|
60 - ROUND NUT
BSD-1603345031.A7
1603345031
|
-
|
|
|
|
62 - PLAIN WASHER
BSD-1600101019.A7
1600101019
|
-
|
|
|
|
63 - CYLINDRICAL GEAR Z=12
BSD-1606320065.A0
1606320065
|
-
|
|
|
|
64 - PROTECTIVE CAP
BSD-1600510001.A11
1600510001
|
-
|
|
|
|
65 - RUBBER PLATE
BSD-1602380010.A19
1602380010
|
-
|
|
|
|
67 - RUBBER PLATE 114x227x88 MM
BSD-1602388017.A18
1602388017
|
-
|
|
|
|
69 - CLAMPING SADDLE
BSD-1608045012.A18
1608045012
|
-
|
|
|
|
70 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A759
2916690003
|
£1.75
|
£2.10
|
|
|
71 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A177
2916660011
|
£1.75
|
£2.10
|
|
|
72 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A626
2916660013
|
£2.16
|
£2.59
|
|
|
73 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A138
2910011120
|
£1.75
|
£2.10
|
|
|
74 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8
BSD-2910021193.A0
2910021193
|
£1.75
|
£2.10
|
|
|
75 - COUNTERSUNK-HEAD SCREW DIN 963-M4x8-8.8
BSD-2910781118.A0
2910781118
|
-
|
|
|
|
76 - COUNTERSUNK-HEAD SCREW DIN 63-AM 5x8-63
BSD-2910511150.A18
2910511150
|
-
|
|
|
|
77 - PLAIN WASHER A 4.3 DIN 125 ST
BSD-2916021010.A19
2916021010
|
-
|
|
|
|
78 - COUNTERSUNK-HEAD SCREW M5x10 DIN 963-8.8
BSD-2910781152.A32
2910781152
|
-
|
|
|
|
800 - MOTOR HOUSING
BSD-1605104918.A0
1605104918
|
-
|
|
|
|
802 - CARBON BRUSH
BSD-1604321900.A81
1604321900
|
-
|
|
|
|
803 - BRUSH HOLDER
BSD-1601323901.A84
1601323901
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-1607200060.A0
1607200060
|
-
|
|
|
|
805 - ASSEMBLY OF SERVICE PARTS
BSD-1601038902.A11
1601038902
|
-
|
|
|
|
806 - PARTS SET
BSD-1607000045.A0
1607000045
|
-
|
|
|
|
807 - SINTERED-METAL BUSHING
BSD-1600301900.A0
1600301900
|
-
|
|
|
