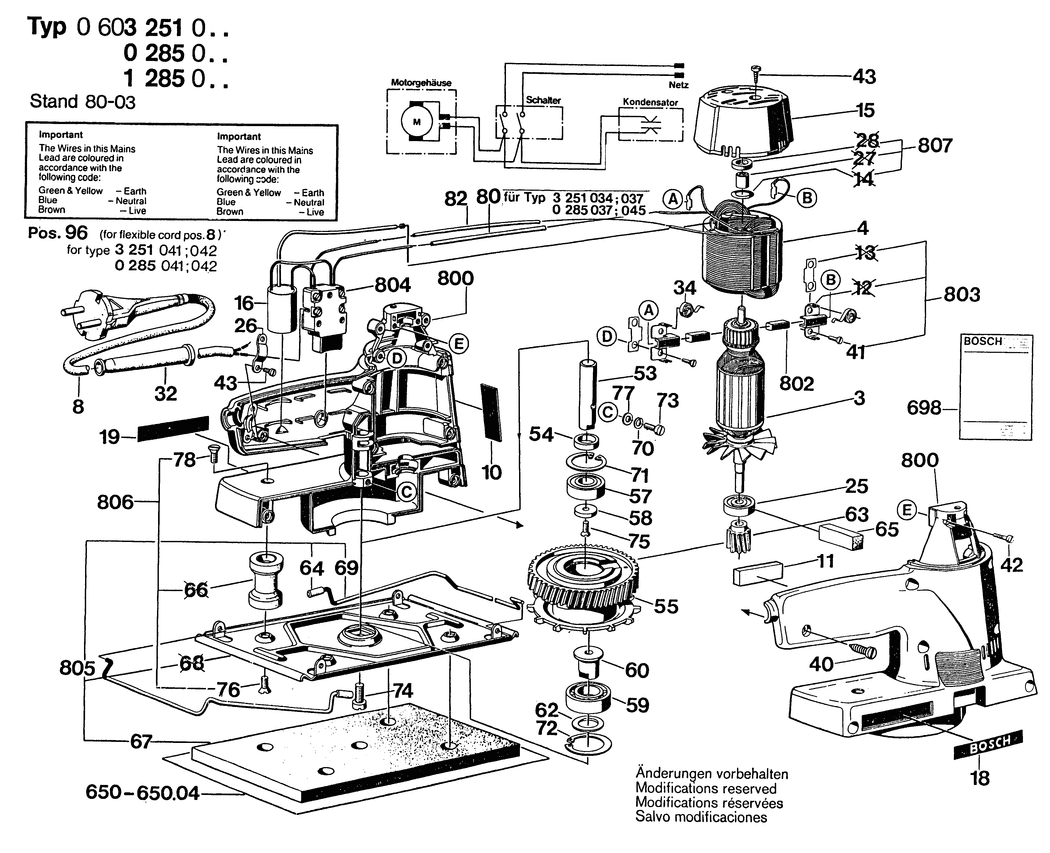

3 - ARMATURE 100-115V
BSD-1604010128.A2
1604010128
|
-
|
|
|
|
4 - POLE SHOE 110-115V
BSD-1604220070.A4
1604220070
|
-
|
|
|
|
8 - POWER SUPPLY CORD
BSD-1604460057.A17
1604460057
|
-
|
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A290
1602381001
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A16
1605500066
|
-
|
|
|
|
16 - SUPPRESSION FILTER
BSD-1607328034.A472
1607328034
|
£4.26
|
£5.11
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A191
1601110481
|
£1.95
|
£2.34
|
|
|
19 - REFERENCE PLATE
BSD-1601110053.A13
1601110053
|
-
|
|
|
|
25 - GROOVE BALL BEARING DIN 625 RSY-C3-627-2
BSD-1900905042.A12
1900905042
|
-
|
|
|
|
26 - FASTENING CLAMP
BSD-1601302014.A969
1601302014
|
£1.66
|
£1.99
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A306
1600703016
|
£1.66
|
£1.99
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A205
1604652004
|
£2.33
|
£2.80
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1783
2910211019
|
£1.66
|
£1.99
|
|
|
41 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A112
2910601004
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A753
2910211006
|
£1.66
|
£1.99
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A250
2910211017
|
-
|
|
|
|
53 - BEARING BOLT
BSD-1603159005.A17
1603159005
|
-
|
|
|
|
54 - SPACER RING
BSD-1600200020.A8
1600200020
|
-
|
|
|
|
55 - CYLINDRICAL GEAR Z=59
BSD-1606320067.A17
1606320067
|
-
|
|
|
|
57 - GROOVE BALL BEARING
BSD-1600905003.A52
1600905003
|
-
|
|
|
|
58 - CONICAL SPRING WASHER
BSD-1600114038.A44
1600114038
|
-
|
|
|
|
59 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A89
1900905102
|
-
|
|
|
|
60 - ROUND NUT
BSD-1603345031.A22
1603345031
|
-
|
|
|
|
62 - PLAIN WASHER
BSD-1600101019.A12
1600101019
|
-
|
|
|
|
63 - CYLINDRICAL GEAR Z=12
BSD-1606320065.A10
1606320065
|
-
|
|
|
|
64 - PROTECTIVE CAP
BSD-1600510001.A6
1600510001
|
-
|
|
|
|
65 - RUBBER PLATE
BSD-1602380010.A15
1602380010
|
-
|
|
|
|
67 - RUBBER PLATE 114x227x88 MM
BSD-1602388017.A7
1602388017
|
-
|
|
|
|
69 - CLAMPING SADDLE
BSD-1608045012.A7
1608045012
|
-
|
|
|
|
70 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A186
2916690003
|
£1.66
|
£1.99
|
|
|
71 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A86
2916660011
|
£1.66
|
£1.99
|
|
|
72 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A312
2916660013
|
£1.95
|
£2.34
|
|
|
73 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A265
2910011120
|
£1.66
|
£1.99
|
|
|
74 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8
BSD-2910021193.A62
2910021193
|
£1.66
|
£1.99
|
|
|
75 - COUNTERSUNK-HEAD SCREW DIN 963-M4x8-8.8
BSD-2910781118.A20
2910781118
|
-
|
|
|
|
76 - COUNTERSUNK-HEAD SCREW DIN 63-AM 5x8-63
BSD-2910511150.A3
2910511150
|
-
|
|
|
|
77 - PLAIN WASHER A 4.3 DIN 125 ST
BSD-2916021010.A3
2916021010
|
-
|
|
|
|
78 - COUNTERSUNK-HEAD SCREW M5x10 DIN 963-8.8
BSD-2910781152.A13
2910781152
|
-
|
|
|
|
800 - MOTOR HOUSING
BSD-1605104918.A8
1605104918
|
-
|
|
|
|
802 - CARBON BRUSH
BSD-1604321900.A209
1604321900
|
-
|
|
|
|
803 - BRUSH HOLDER
BSD-1601323901.A34
1601323901
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-1607200060.A94
1607200060
|
-
|
|
|
|
805 - ASSEMBLY OF SERVICE PARTS
BSD-1601038902.A7
1601038902
|
-
|
|
|
|
806 - PARTS SET
BSD-1607000045.A14
1607000045
|
-
|
|
|
|
807 - SINTERED-METAL BUSHING
BSD-1600301900.A283
1600301900
|
-
|
|
|
