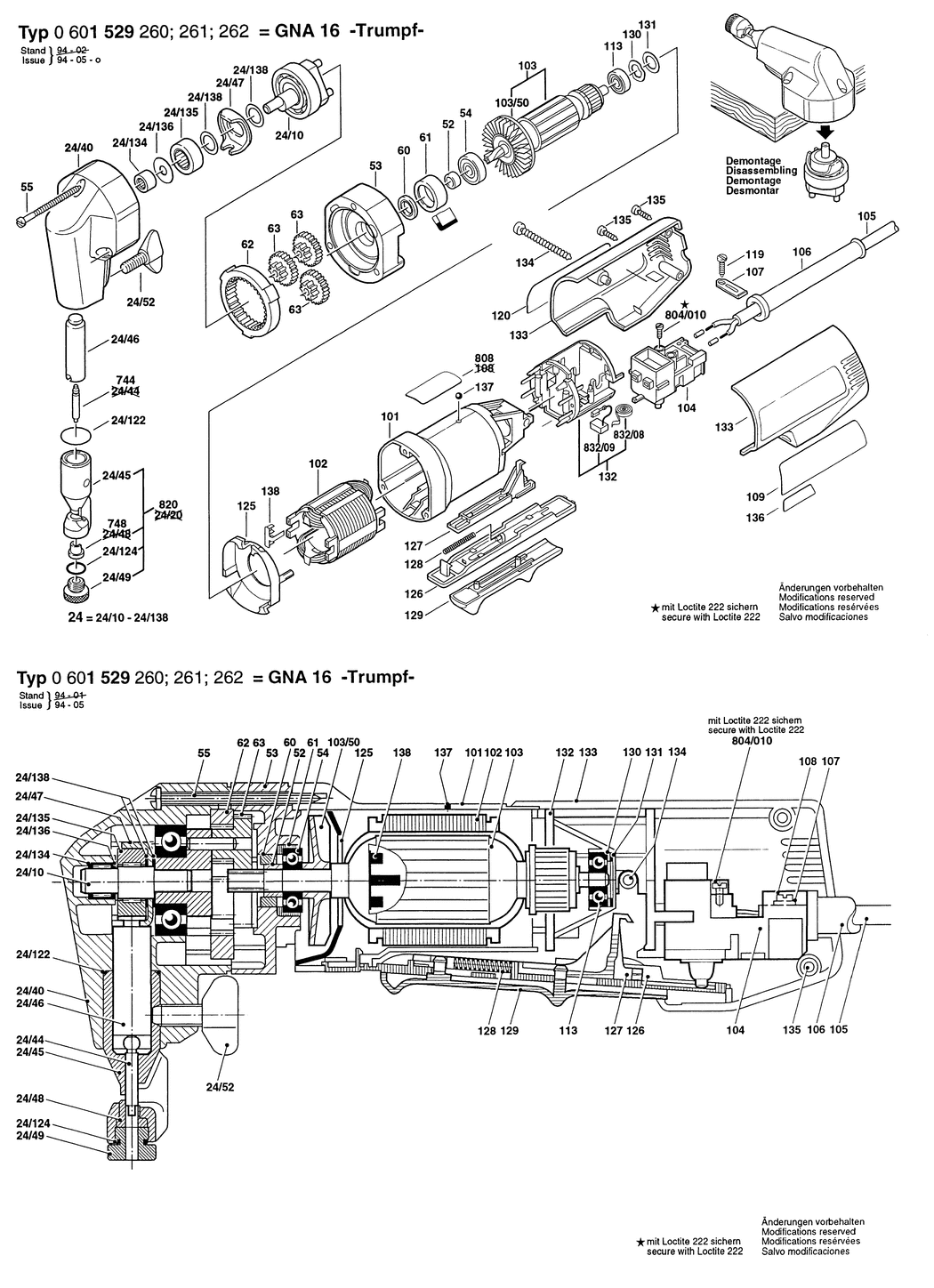

24 - ASSEMBLY KIT
BSD-3607000091.A1
3607000091
|
-
|
|
|
|
24/10 - PLANETARY-GEAR CARRIER
BSD-3609202089.A0
3609202089
|
£135.25
|
£162.30
|
|
|
24/40 - HOUSING
BSD-3609202097.A0
3609202097
|
-
|
|
|
|
24/45 - DIE CARRIER
BSD-3606455044.A3
3606455044
|
£243.45
|
£292.14
|
|
|
24/46 - TAPPET
BSD-3603100045.A8
3603100045
|
£22.60
|
£27.12
|
|
|
24/47 - U-SHEET
BSD-3602311052.A1
3602311052
|
£4.26
|
£5.11
|
|
|
24/49 - ROUND NUT
BSD-3603301020.A3
3603301020
|
£13.12
|
£15.75
|
|
|
24/52 - WING SCREW
BSD-3603480005.A3
3603480005
|
£13.78
|
£16.54
|
|
|
24/122 - O-RING 20.0x1.0 MM
BSD-3600210012.A85
3600210012
|
£2.94
|
£3.53
|
|
|
24/124 - O-RING 8.6x2.4 MM
BSD-3609202093.A1
3609202093
|
£2.80
|
£3.36
|
|
|
24/134 - NEEDLE BEARING DIN 618-8x12x10-HK 0810
BSD-3609202085.A13
3609202085
|
-
|
|
|
|
24/135 - TRACK-SUPPORTING ROLLER
BSD-3600905158.A6
3600905158
|
£21.68
|
£26.01
|
|
|
24/136 - SHIM RING DIN 988-8x20x0.5
BSD-3609202087.A0
3609202087
|
£1.95
|
£2.34
|
|
|
24/138 - SHIM RING
BSD-3603435021.A5
3603435021
|
£2.74
|
£3.29
|
|
|
52 - SEAL BUSHING
BSD-2600300047.A35
2600300047
|
£2.74
|
£3.29
|
|
|
53 - BEARING FLANGE
BSD-3605700136.A1
3605700136
|
£47.95
|
£57.54
|
|
|
54 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A16
2600905039
|
£12.64
|
£15.17
|
|
|
55 - TAPPING SCREW
BSD-1603490A0M.A0
1603490A0M
|
£1.84
|
£2.21
|
|
|
60 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A410
1600290016
|
£2.74
|
£3.29
|
|
|
61 - RUBBER RING
BSD-3600290052.A7
3600290052
|
£1.84
|
£2.21
|
|
|
62 - RING GEAR
BSD-3600112004.A9
3600112004
|
£5.30
|
£6.36
|
|
|
63 - WHEEL
BSD-3600112005.A7
3600112005
|
£3.72
|
£4.47
|
|
|
101 - MOTOR HOUSING
BSD-2605108061.A0
2605108061
|
£14.08
|
£16.89
|
|
|
102 - FIELD 220-230V
BSD-2604220502.A9
2604220502
|
£35.42
|
£42.51
|
|
|
103 - ARMATURE
BSD-1604010B6W.A3
1604010B6W
|
£59.53
|
£71.44
|
|
|
103/50 - FAN
BSD-2606610081.A4
2606610081
|
£6.85
|
£8.22
|
|
|
104 - SWITCH
BSD-2607200286.A6
2607200286
|
£15.65
|
£18.78
|
|
|
105 - POWER SUPPLY CORD
BSD-3607030489.A35
3607030489
|
£31.64
|
£37.97
|
|
|
106 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A209
2600703011
|
£2.94
|
£3.53
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1315
2600703012
|
£2.94
|
£3.53
|
|
|
107 - FASTENING CLAMP
BSD-1601302017.A482
1601302017
|
£1.84
|
£2.21
|
|
|
109 - MANUFACTURER'S NAMEPLATE
BSD-3601110377.A2
3601110377
|
-
|
|
|
|
113 - BALL BEARING 7x19x6
BSD-2600905032.A340
2600905032
|
£5.57
|
£6.68
|
|
|
119 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1639
2910211019
|
£1.84
|
£2.21
|
|
|
120 - MANUFACTURER'S NAMEPLATE
BSD-3601110378.A1
3601110378
|
-
|
|
|
|
125 - COVER DISC
BSD-2601328002.A7
2601328002
|
£2.80
|
£3.36
|
|
|
126 - SWITCH ROCKER
BSD-2608001015.A6
2608001015
|
£2.61
|
£3.13
|
|
|
127 - SWITCH SLIDE
BSD-2608001008.A12
2608001008
|
£2.16
|
£2.59
|
|
|
128 - COMPRESSION SPRING
BSD-2604611033.A0
2604611033
|
£2.16
|
£2.59
|
|
|
129 - SWITCH HANDLE
BSD-2608001010.A18
2608001010
|
£2.80
|
£3.36
|
|
|
130 - SHIM
BSD-2600150003.A212
2600150003
|
£2.16
|
£2.59
|
|
|
131 - SHIM 0.3 MM
BSD-2600101617.A16
2600101617
|
£1.84
|
£2.21
|
|
|
132 - BRUSH HOLDER
BSD-3604336011.A5
3604336011
|
£57.14
|
£68.57
|
|
|
133 - HOUSING COVER
BSD-2605104485.A3
2605104485
|
£10.10
|
£12.12
|
|
|
134 - TAPPING SCREW DIN 7971-B3.9x45
BSD-2910211283.A4
2910211283
|
£2.74
|
£3.29
|
|
|
135 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A29
2910211007
|
£1.75
|
£2.10
|
|
|
136 - STICKER
BSD-3601110380.A0
3601110380
|
-
|
|
|
|
137 - BALL
BSD-2603230001.A1
2603230001
|
-
|
|
|
|
138 - CONTACT SPRING
BSD-2601329037.A29
2601329037
|
£1.75
|
£2.10
|
|
|
744 - NIBBLING PUNCH
BSD-2608639027.A1
2608639027
|
£16.66
|
£19.99
|
|
|
748 - LOWER DIE
BSD-2608639028.A5
2608639028
|
£34.12
|
£40.94
|
|
|
804/010 - SOCKET HEAD CAP SCREW M 3.5x7 MM
BSD-3607030229.A13
3607030229
|
£5.58
|
£6.70
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1144
160111A3H3
|
£2.74
|
£3.29
|
|
|
820 - LOWER DIE RING
BSD-3607030493.A4
3607030493
|
£229.32
|
£275.19
|
|
|
832/08 - SPIRAL SPRING
BSD-1604652013.A549
1604652013
|
£1.84
|
£2.21
|
|
|
832/09 - CARBON-BRUSH SET
BSD-3607014001.A12
3607014001
|
£12.64
|
£15.17
|
|
