Bosch STP 60 E / 0601584670 / EU 230 Volt Spare Parts

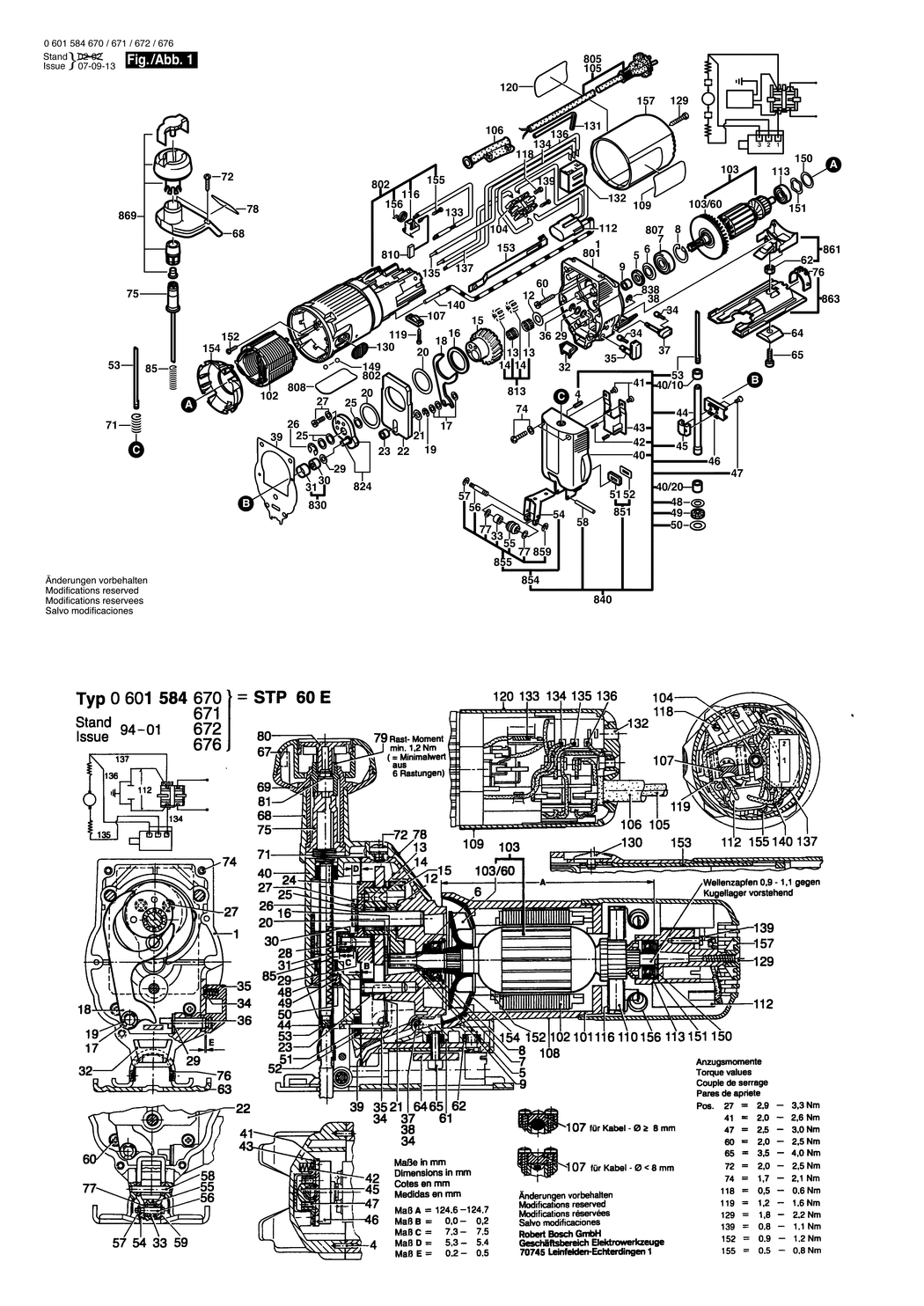

An exploded drawing and listing for the Bosch STP 60 E / 0601584670 / EU 230 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A67 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A486 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A563 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A389 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A394 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A471 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A145 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A25 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A78 2603201037	£2.61	£3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A165 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A50 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A40 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A185 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A193 2601923004	£2.80	£3.36
19 - LOCKING WASHER 4 DIN 6799 BSD-2916080907.A25 2916080907	£2.16	£2.59
20 - SHIM 0.5 MM BSD-2600102652.A178 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A86 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A152 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A81 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A191 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A155 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A201 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A52 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A265 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A52 2600100577	£1.75	£2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A157 2916080910	£2.16	£2.59
27 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A51 2914551176	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A58 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A275 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A83 2600100607	£1.75	£2.10
30 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A153 2600914010	£2.80	£3.36
31 - BEARING SLEEVE BSD-2600400012.A67 2600400012	£4.26	£5.11
32 - AIR ELIMINATOR BSD-2602305042.A146 2602305042	£1.75	£2.10
33 - NEEDLE BEARING BSD-2600917000.A0 2600917000	£5.58	£6.70
34 - RATCHET CAP BSD-2600590006.A165 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A66 2602026036	-
36 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A74 2916080908	£1.75	£2.10
37 - ROTARY KNOB BSD-2602026037.A118 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A187 2601015050	£2.61	£3.13
40/10 - SINTERED-METAL BUSHING BSD-2600301046.A177 2600301046	£3.72	£4.47
40/20 - BUSHING BSD-2600301045.A50 2600301045	£2.80	£3.36
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A68 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A85 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-1616B00224.A5 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-1619P12765.A131 1619P12765	£16.41	£19.69
45 - CLAMPING SADDLE BSD-2602329011.A92 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A102 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A137 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A146 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A184 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A282 2600101612	£1.75	£2.10
51 - SEALING PLATE BSD-2601015055.A16 2601015055	£1.95	£2.34
52 - FIXING PLATE 0.6 MM BSD-2601015008.A8 2601015008	£2.16	£2.59
53 - CLAMP SCREW BSD-2603490011.A5 2603490011	£6.52	£7.83
54 - ROLLER LEVER BSD-2601321046.A14 2601321046	£7.78	£9.33
55 - GUIDE ROLLER BSD-2600326019.A4 2600326019	£5.58	£6.70
56 - BEARING BOLT BSD-2603105089.A26 2603105089	£1.75	£2.10
57 - LOCKING WASHER BSD-2600116011.A13 2600116011	£2.16	£2.59
58 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A55 2917530101	£2.80	£3.36
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A594 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A540 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A37 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A467 2910141197	£1.75	£2.10
68 - FLANGED FITTING BSD-2605702016.A51 2605702016	£7.36	£8.83
71 - COMPRESSION SPRING BSD-2604617003.A29 2604617003	-
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A148 2603410054	£2.61	£3.13
74 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A359 2603410049	£1.75	£2.10
75 - COUPLING HALF BSD-2606491015.A22 2606491015	£6.52	£7.83
76 - SCALE PLATE BSD-2601328044.A68 2601328044	£2.61	£3.13
77 - SHIM 0.2 MM BSD-2600100032.A27 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110930.A52 2601110930	£1.32	£1.58
85 - COMPRESSION SPRING BSD-2604610040.A74 2604610040	£1.75	£2.10
102 - FIELD 220-240V BSD-2604220709.A90 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A35 2604010578	£48.38	£58.06
103/60 - FAN BSD-2606610049.A105 2606610049	£2.16	£2.59
104 - SWITCH BSD-2607200674.A177 2607200674	£16.41	£19.69
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A26 2600703027	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A1835 2601035001	£1.75	£2.10
109 - MANUFACTURER'S NAMEPLATE BSD-2601116198.A0 2601116198	£3.72	£4.47
112 - SUPPRESSION FILTER BSD-2607329104.A34 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A193 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A107 1600A003G4	£3.72	£4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1852 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A1951 2603490022	£1.75	£2.10
120 - REFERENCE PLATE BSD-2601116199.A4 2601116199	£3.72	£4.47
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A79 2910601321	-
130 - SWITCH HANDLE BSD-2602026015.A33 2602026015	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1058 1907950006	£4.26	£5.11
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A85 2607230115	-
133 - SUPPRESSION FILTER BSD-1619P15513.A35 1619P15513	£4.75	£5.70
134 - CONNECTING CABLE L=86MM BSD-2604448044.A40 2604448044	£1.75	£2.10
135 - CABLE L=103MM BSD-2604448140.A32 2604448140	£1.32	£1.58
136 - CONNECTING CABLE L=128MM BSD-2604448046.A36 2604448046	£1.32	£1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A69 2604448040	£2.61	£3.13
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A299 2910611006	£1.75	£2.10
140 - INSULATION TUBING BSD-2600409017.A21 2600409017	£1.75	£2.10
149 - PLUG BSD-2603231032.A26 2603231032	-
150 - SHIM WASHER 0.3 MM BSD-2600101027.A271 2600101027	£1.75	£2.10
151 - SHIM BSD-2600150004.A709 2600150004	£2.16	£2.59
152 - TAPPING SCREW BSD-2603435086.A55 2603435086	£1.75	£2.10
153 - ADJUSTING SLIDE BSD-2602319005.A135 2602319005	£1.75	£2.10
154 - COVER DISC BSD-2601328045.A207 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A573 2603490017	£2.16	£2.59
156 - SPIRAL SPRING BSD-2604652009.A84 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508014.A3 2600508014	-
680 - SPLINTERING PROTECTOR BSD-2601016065.A101 2601016065	£5.30	£6.36
801 - GEAR HOUSING BSD-2605808917.A81 2605808917	£63.50	£76.20
802 - MOTOR HOUSING BSD-2605108906.A0 2605108906	£14.72	£17.67
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A64 1607000385	£14.91	£17.89
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A387 2600905021	£8.67	£10.41
808 - NAMEPLATE BSD-160111A3HC.A242 160111A3HC	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604320912.A139 2604320912	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A54 2607001130	£5.58	£6.70
824 - ECCENTRIC DISC BSD-2601072901.A174 2601072901	£7.36	£8.83
830 - NEEDLE BEARING BSD-2600917900.A150 2600917900	£8.67	£10.41
838 - SPRING RETAINING RING BSD-2600116009.A107 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808921.A19 2605808921	£81.81	£98.17
851 - SEALING PLATE BSD-2601015901.A29 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A155 2601321902	-
855 - ROLLER SET BSD-1619P01375.A24 1619P01375	£11.30	£13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A111 2916080005	-
861 - FAN COVER BSD-2605500900.A168 2605500900	£4.26	£5.11
863 - BASE PLATE BSD-2601016903.A46 2601016903	£16.41	£19.69
869 - HANDLE BSD-2602026900.A22 2602026900	-
