Bosch STP 140 EXACT-S / 3601E14004 / EU 230 Volt Spare Parts

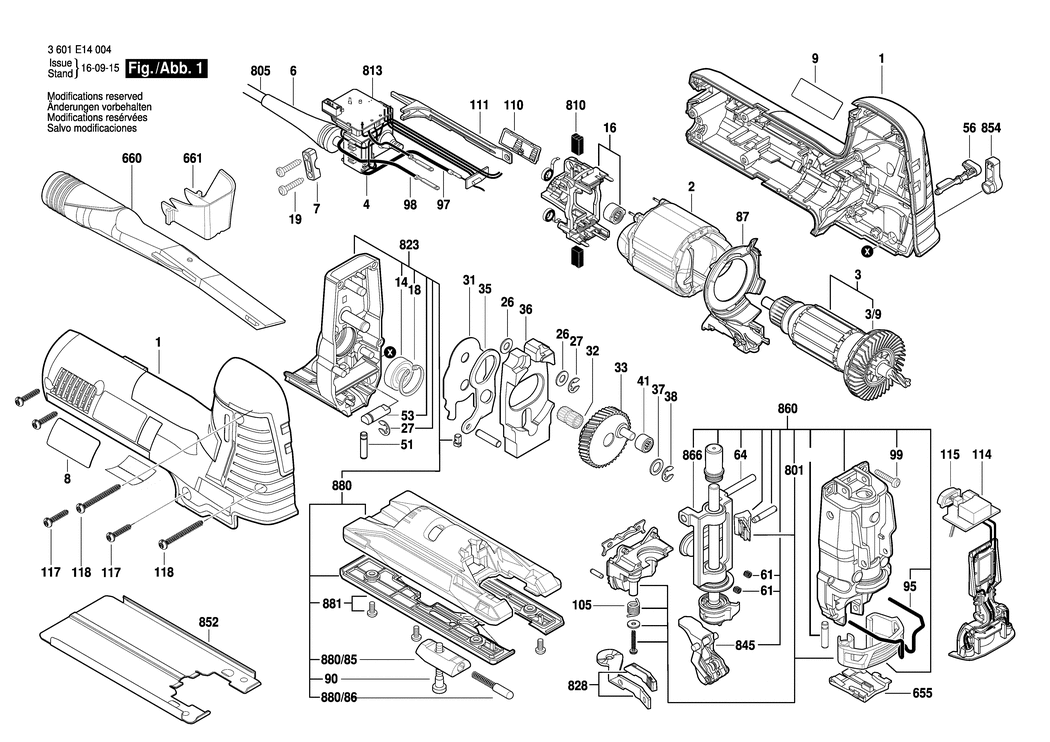

An exploded drawing and listing for the Bosch STP 140 EXACT-S / 3601E14004 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105187.A2 2605105187	£33.74	£40.49
2 - FIELD 230-240V BSD-2604220740.A1 2604220740	£37.26	£44.71
3 - ARMATURE 230-240V BSD-2604011420.A3 2604011420	£54.42	£65.30
3/9 - FAN BSD-2606610089.A50 2606610089	£5.30	£6.36
4 - SWITCH BSD-2607200684.A2 2607200684	£21.52	£25.83
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A597 2600703017	£2.61	£3.13
7 - CABLE CLIP BSD-2601035004.A96 2601035004	£2.16	£2.59
8 - NAMEPLATE BSD-2601112380.A0 2601112380	-
9 - MANUFACTURER'S NAMEPLATE WÃ¼rth BSD-2601112292.A2 2601112292	-
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905112.A43 2600905112	£12.04	£14.45
16 - BRUSH PLATE BSD-2605807137.A3 2605807137	£21.68	£26.01
18 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A477 2916660008	£2.16	£2.59
19 - SCREW 4x16 BSD-2603490022.A616 2603490022	£1.75	£2.10
26 - SHIM BSD-2600100040.A72 2600100040	£1.75	£2.10
27 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A174 2916080908	£1.75	£2.10
31 - SHIM BSD-2600101124.A1 2600101124	£1.75	£2.10
32 - NEEDLE-ROLLER ASSEMBLY BSD-2600913040.A70 2600913040	£5.58	£6.70
33 - ECCENTRIC COG WHEEL BSD-2606320107.A1 2606320107	£21.52	£25.83
35 - FORK LEVER BSD-2601923015.A44 2601923015	£2.80	£3.36
36 - COUNTERWEIGHT BSD-2601098120.A2 2601098120	£18.96	£22.75
37 - SHIM 0.3 MM BSD-2600101047.A420 2600101047	£1.75	£2.10
38 - LOCKING WASHER DIN 6799-6-FST BSD-2916080909.A48 2916080909	£1.75	£2.10
41 - NEEDLE BEARING BSD-2600917900.A354 2600917900	£8.67	£10.41
51 - BEARING BOLT BSD-2603105131.A43 2603105131	£2.16	£2.59
53 - CONTROL SHAFT BSD-2603124157.A1 2603124157	£5.30	£6.36
56 - ROTARY KNOB BSD-2602026189.A5 2602026189	£2.16	£2.59
61 - COMPRESSION SPRING BSD-2604610140.A21 2604610140	£1.75	£2.10
64 - STRAIGHT PIN BSD-2601322045.A3 2601322045	£1.75	£2.10
87 - AIR-DEFLECTOR RING BSD-2605500206.A1 2605500206	£10.10	£12.12
90 - HEX SOCKET HEAD CAP SCREW DIN 7984 M6x30-8.8 BSD-2910131205.A34 2910131205	£2.16	£2.59
95 - PROTECTING COVER BSD-2603101060.A20 2603101060	£4.26	£5.11
97 - EARTH CONDUCTOR BSD-2604448351.A1 2604448351	£2.61	£3.13
98 - CONNECTING CABLE BSD-1619P07299.A7 1619P07299	£2.61	£3.13
99 - THREAD-FORMING TAP. SCREW BSD-2603410051.A88 2603410051	£1.75	£2.10
105 - TORSION SPRING BSD-2604690060.A1 2604690060	£1.75	£2.10
110 - OPERATING ELEMENT BSD-2602026169.A2 2602026169	£2.80	£3.36
111 - ADJUSTING SLIDE BSD-2601099223.A2 2601099223	£3.72	£4.47
114 - EL LUMA MODULE 230V BSD-1607233384.A18 1607233384	£31.64	£37.97
115 - HEADLAMP SWITCH BSD-2600030030.A16 2600030030	£2.61	£3.13
117 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1098 2603490023	£1.75	£2.10
118 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A91 2603490027	£1.75	£2.10
655 - SPLINTERING PROTECTOR BSD-2601016093.A49 2601016093	£4.26	£5.11
660 - SUCTION SOCKET BSD-2605730061.A1 2605730061	£18.96	£22.75
661 - COVERING HOOD BSD-2605510296.A2 2605510296	£3.72	£4.47
801 - EJECTION LEVER BSD-2607990070.A3 2607990070	£11.30	£13.56
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A274 1607000386	£21.52	£25.83
810 - CARBON-BRUSH SET BSD-2604320918.A2 2604320918	£12.04	£14.45
813 - SPEED GOVERNOR 230V BSD-1607233381.A1 1607233381	£59.53	£71.44
823 - GEAR HOUSING BSD-2605806869.A3 2605806869	£120.11	£144.13
828 - TENSIONING LEVER BSD-2602098024.A26 2602098024	£6.52	£7.83
845 - ROLLER LEVER BSD-2601321909.A1 2601321909	£46.37	£55.64
852 - WORK BOARD BSD-2601098121.A35 2601098121	£18.96	£22.75
854 - ROTARY KNOB BSD-2602026912.A6 2602026912	£2.80	£3.36
860 - GEAR COVER BSD-2605808939.A1 2605808939	-
866 - LIFTING ROD BSD-1600A00HG1.A15 1600A00HG1	£63.50	£76.20
880 - BASE PLATE BSD-2601016911.A5 2601016911	£48.38	£58.06
880/85 - CLAMPING PIECE BSD-2602317067.A37 2602317067	£4.26	£5.11
880/86 - RATCHET CAP BSD-2600590018.A37 2600590018	£2.80	£3.36
881 - WORK BOARD BSD-2601099900.A43 2601099900	£14.91	£17.89
