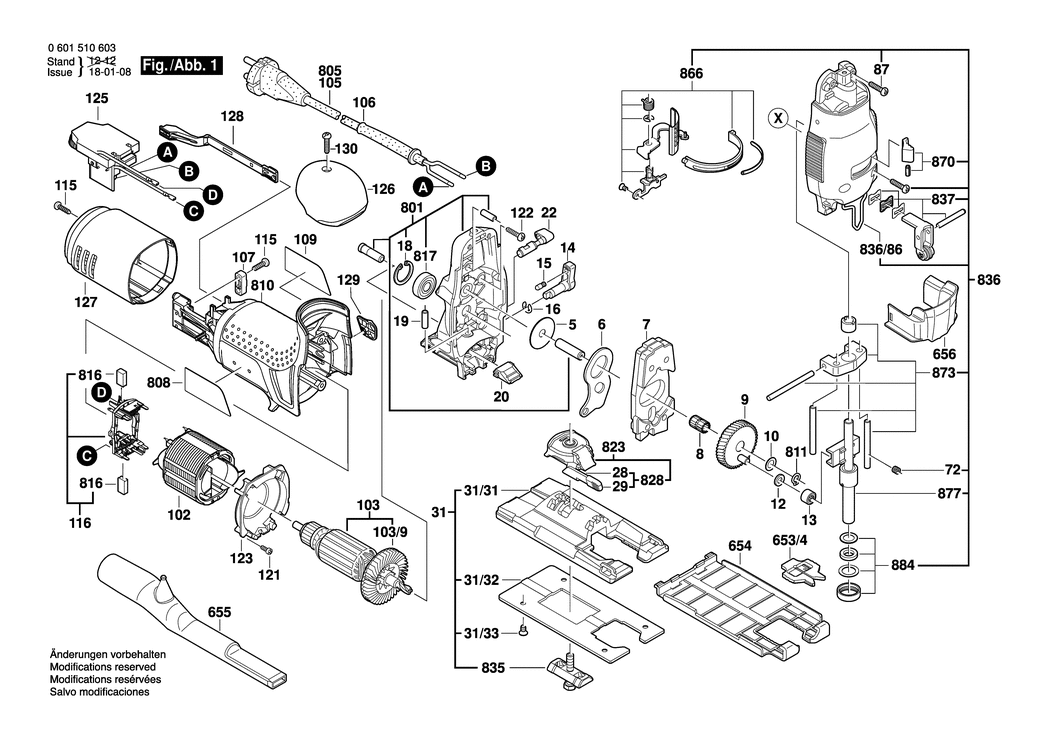

5 - SHIM 0.5 MM
BSD-2600101048.A83
2600101048
|
£1.75
|
£2.10
|
|
|
6 - FORK LEVER
BSD-2601923010.A16
2601923010
|
£2.52
|
£3.02
|
|
|
7 - COUNTERWEIGHT
BSD-2601098087.A14
2601098087
|
-
|
|
|
|
8 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913040.A182
2600913040
|
£5.58
|
£6.70
|
|
|
9 - ECCENTRIC COG WHEEL
BSD-2606320101.A74
2606320101
|
£27.23
|
£32.68
|
|
|
10 - SHIM 0.3 MM
BSD-2600101047.A224
2600101047
|
£1.75
|
£2.10
|
|
|
12 - INTERMEDIATE RING
BSD-2600200038.A80
2600200038
|
£1.75
|
£2.10
|
|
|
13 - NEEDLE BEARING
BSD-2600917900.A130
2600917900
|
£8.67
|
£10.41
|
|
|
14 - ROTARY KNOB
BSD-2602026140.A2
2602026140
|
£3.80
|
£4.56
|
|
|
15 - RATCHET CAP
BSD-2600590006.A128
2600590006
|
£1.75
|
£2.10
|
|
|
16 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A110
2916080908
|
£1.75
|
£2.10
|
|
|
18 - SPRING RETAINING RING
BSD-2600118013.A14
2600118013
|
£2.16
|
£2.59
|
|
|
19 - BEARING BOLT
BSD-2603105104.A6
2603105104
|
£1.75
|
£2.10
|
|
|
20 - AIR ELIMINATOR
BSD-2602305051.A7
2602305051
|
-
|
|
|
|
22 - ROTARY KNOB
BSD-2602026141.A6
2602026141
|
£2.61
|
£3.13
|
|
|
28 - TENSIONING LEVER
BSD-2602098018.A10
2602098018
|
£3.80
|
£4.56
|
|
|
29 - CAP-HANDLE
BSD-2600591022.A9
2600591022
|
£2.52
|
£3.02
|
|
|
31 - BASE PLATE
BSD-2608000925.A20
2608000925
|
£27.23
|
£32.68
|
|
|
31/31 - BASE PLATE
BSD-2608000305.A23
2608000305
|
£18.96
|
£22.75
|
|
|
31/32 - WORK BOARD
BSD-2601098099.A13
2601098099
|
£6.61
|
£7.93
|
|
|
31/33 - THREAD-FORMING TAP. SCREW
BSD-2603421014.A66
2603421014
|
£1.75
|
£2.10
|
|
|
72 - COMPRESSION SPRING
BSD-2604610042.A15
2604610042
|
£2.33
|
£2.80
|
|
|
87 - THREAD-FORMING TAP. SCREW
BSD-2603410051.A7
2603410051
|
£1.75
|
£2.10
|
|
|
102 - FIELD 220-240V
BSD-2604220715.A6
2604220715
|
£18.96
|
£22.75
|
|
|
103 - ARMATURE 220-240V
BSD-2604011343.A7
2604011343
|
£33.74
|
£40.49
|
|
|
103/9 - FAN
BSD-2606610093.A61
2606610093
|
£2.80
|
£3.36
|
|
|
105 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460311.A4
2604460311
|
£14.91
|
£17.89
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A198
2600703012
|
£2.80
|
£3.36
|
|
|
107 - CABLE CLIP
BSD-2601035001.A1857
2601035001
|
£1.75
|
£2.10
|
|
|
109 - MANUFACTURER'S NAMEPLATE
BSD-2601116894.A0
2601116894
|
-
|
|
|
|
115 - SCREW 4x16
BSD-2603490022.A1994
2603490022
|
£1.75
|
£2.10
|
|
|
116 - BRUSH PLATE
BSD-2605807108.A30
2605807108
|
£18.96
|
£22.75
|
|
|
121 - TAPPING SCREW
BSD-2603435086.A21
2603435086
|
£1.75
|
£2.10
|
|
|
122 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A599
2603490023
|
£1.75
|
£2.10
|
|
|
123 - COVER DISC
BSD-2601328073.A10
2601328073
|
£2.52
|
£3.02
|
|
|
125 - SPEED GOVERNOR 220-240V
BSD-2607230082.A0
2607230082
|
£36.63
|
£43.96
|
|
|
126 - MUSHROOM HANDLE
BSD-2605190572.A0
2605190572
|
£6.61
|
£7.93
|
|
|
127 - HOUSING COVER
BSD-2600508058.A4
2600508058
|
£7.78
|
£9.33
|
|
|
128 - ADJUSTING SLIDE
BSD-2601099111.A9
2601099111
|
£2.33
|
£2.80
|
|
|
129 - SWITCH HANDLE
BSD-2602026142.A3
2602026142
|
£2.16
|
£2.59
|
|
|
130 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603410049.A341
2603410049
|
£1.75
|
£2.10
|
|
|
653/4 - SPLINTERING PROTECTOR
BSD-2601016087.A24
2601016087
|
£4.26
|
£5.11
|
|
|
654 - PAD
BSD-2608000309.A4
2608000309
|
-
|
|
|
|
655 - SUCTION NOZZLE
BSD-2605730040.A19
2605730040
|
£5.01
|
£6.01
|
|
|
656 - COVERING HOOD
BSD-2605510205.A20
2605510205
|
-
|
|
|
|
801 - GEAR HOUSING
BSD-2605806889.A20
2605806889
|
£48.38
|
£58.06
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A360
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-2601116898.A1
2601116898
|
£3.72
|
£4.47
|
|
|
810 - MOTOR HOUSING
BSD-2605108917.A1
2605108917
|
-
|
|
|
|
811 - LOCKING WASHER
BSD-2600916900.A19
2600916900
|
£2.16
|
£2.59
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321941.A34
2604321941
|
£10.10
|
£12.12
|
|
|
817 - BALL BEARING 9x24x7
BSD-2600905095.A263
2600905095
|
£12.04
|
£14.45
|
|
|
823 - FAN COVER
BSD-2601990907.A8
2601990907
|
-
|
|
|
|
828 - TENSIONING LEVER
BSD-2601990042.A20
2601990042
|
£2.33
|
£2.80
|
|
|
835 - CLAMPING PIECE
BSD-2602317900.A16
2602317900
|
£6.61
|
£7.93
|
|
|
836 - GEAR COVER
BSD-2605808933.A2
2605808933
|
£116.15
|
£139.38
|
|
|
836/86 - PROTECTING COVER
BSD-2603101046.A89
2603101046
|
£1.75
|
£2.10
|
|
|
837 - ROLLER LEVER
BSD-2601321907.A20
2601321907
|
£18.96
|
£22.75
|
|
|
866 - CONTROL UNIT
BSD-2601990911.A20
2601990911
|
£13.41
|
£16.09
|
|
|
870 - CAP-HANDLE
BSD-2600591901.A0
2600591901
|
£2.16
|
£2.59
|
|
|
873 - CARRIER
BSD-2601322901.A19
2601322901
|
£14.72
|
£17.67
|
|
|
877 - LIFTING ROD
BSD-2600780911.A73
2600780911
|
-
|
|
|
|
884 - SEAL KIT
BSD-2600290903.A10
2600290903
|
£5.30
|
£6.36
|
|
