Bosch GST 85 PAE / 0601584860 / EU 230 Volt Spare Parts

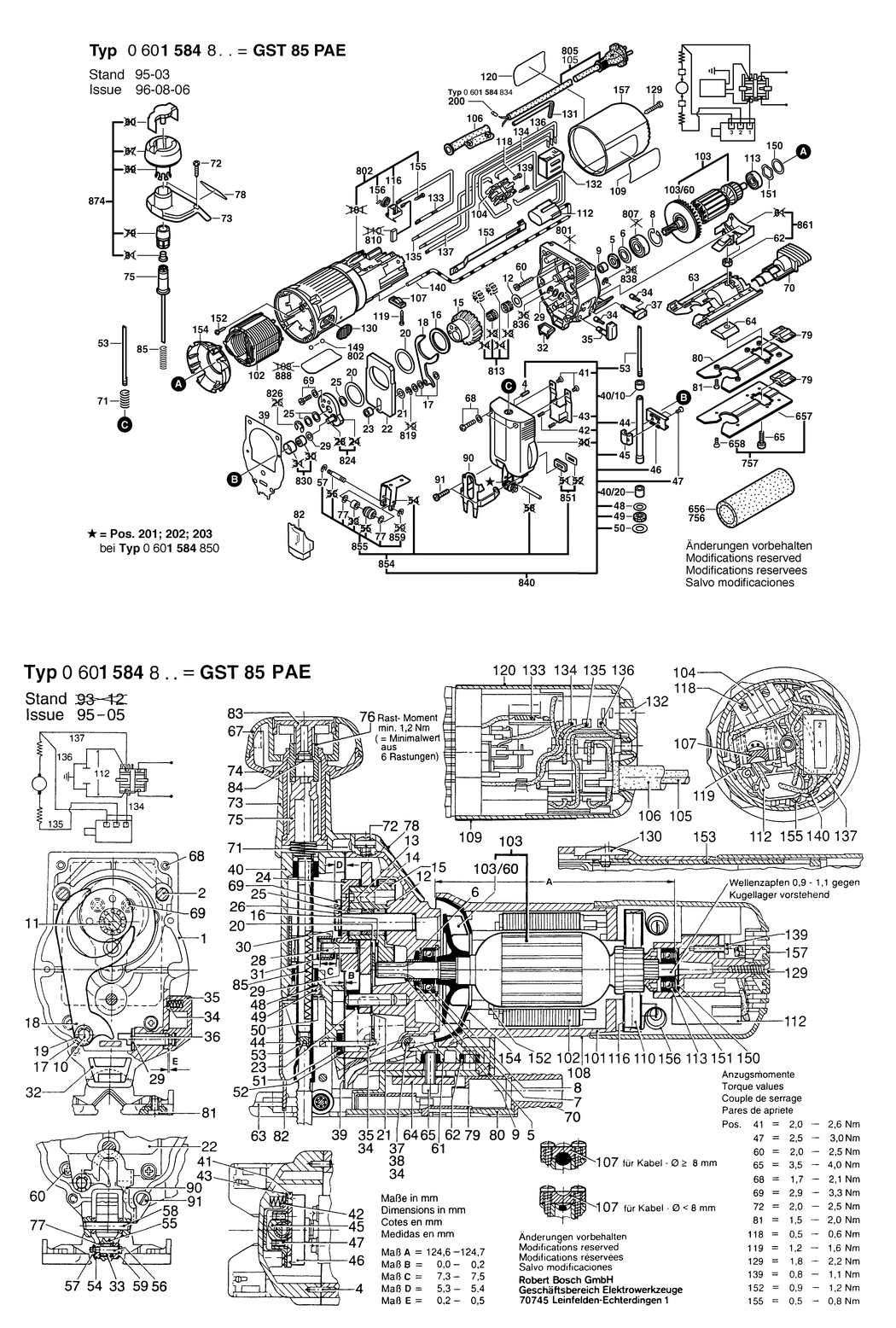

An exploded drawing and listing for the Bosch GST 85 PAE / 0601584860 / EU 230 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A309 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A246 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A254 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A610 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A51 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A427 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A15 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A134 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A232 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A4 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A106 2601923004	£2.80	£3.36
20 - SHIM 0.5 MM BSD-2600102652.A94 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A145 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A83 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A173 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A107 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A20 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A82 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A273 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A17 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A275 2600100577	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A258 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A17 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A641 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A19 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A796 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A113 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A71 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A5 2601015050	£2.61	£3.13
40/10 - SINTERED-METAL BUSHING BSD-2600301046.A122 2600301046	£3.72	£4.47
40/20 - BUSHING BSD-2600301045.A105 2600301045	£2.80	£3.36
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A264 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A192 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-2601322010.A159 2601322010	£3.80	£4.56
44 - LIFTING ROD BSD-1619P12765.A34 1619P12765	£16.41	£19.69
45 - CLAMPING SADDLE BSD-2602329011.A250 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A39 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A88 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A51 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A111 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A15 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603490011.A41 2603490011	£6.52	£7.83
57 - LOCKING WASHER BSD-2600116011.A96 2600116011	£2.16	£2.59
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A470 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1179 2915011007	-
63 - BASE PLATE BSD-2608000073.A33 2608000073	£21.68	£26.01
64 - PROFILE BEADING BSD-2601030007.A18 2601030007	£2.52	£3.02
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A19 2910141197	£1.75	£2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A170 2603410049	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A145 2914551176	£1.75	£2.10
70 - SUCTION NOZZLE BSD-2605730033.A36 2605730033	£2.33	£2.80
71 - COMPRESSION SPRING BSD-2604617003.A53 2604617003	-
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A82 2603410054	£2.61	£3.13
73 - FLANGED FITTING BSD-2605702016.A7 2605702016	£7.36	£8.83
75 - COUPLING HALF BSD-2606491015.A9 2606491015	£6.52	£7.83
77 - SHIM 0.2 MM BSD-2600100032.A50 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110930.A7 2601110930	£1.32	£1.58
79 - PLATE BSD-2601099013.A29 2601099013	£4.26	£5.11
80 - WORK BOARD BSD-2601098011.A0 2601098011	£12.04	£14.45
81 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A24 2910861118	£1.75	£2.10
82 - COVERING HOOD BSD-2601320022.A29 2601320022	£1.32	£1.58
85 - COMPRESSION SPRING BSD-2604610040.A23 2604610040	£1.75	£2.10
90 - SAFETY DEVICE BSD-2601322021.A78 2601322021	£4.26	£5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A272 2910011128	£1.75	£2.10
102 - FIELD 220-240V BSD-2604220709.A29 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A79 2604010578	£48.38	£58.06
103/60 - FAN BSD-2606610049.A532 2606610049	£2.16	£2.59
104 - SWITCH BSD-2607200674.A53 2607200674	£16.41	£19.69
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A73 2600703027	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A270 2601035001	£1.75	£2.10
109 - STICKER BSD-2601118484.A8 2601118484	£2.61	£3.13
112 - SUPPRESSION FILTER BSD-2607329104.A126 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A881 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A291 1600A003G4	£3.72	£4.47
116 - BRUSH HOLDER BSD-2601323022.A89 2601323022	£2.80	£3.36
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A157 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A1595 2603490022	£1.75	£2.10
120 - REFERENCE PLATE BSD-2601118526.A17 2601118526	-
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A131 2910601321	-
130 - SWITCH HANDLE BSD-2602026015.A101 2602026015	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A466 1907950006	£4.26	£5.11
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A10 2607230115	-
133 - SUPPRESSION FILTER BSD-1619P15513.A48 1619P15513	£4.75	£5.70
134 - CONNECTING CABLE L=86MM BSD-2604448044.A74 2604448044	£1.75	£2.10
135 - CABLE L=103MM BSD-2604448140.A70 2604448140	£1.32	£1.58
136 - CONNECTING CABLE L=128MM BSD-2604448046.A46 2604448046	£1.32	£1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A36 2604448040	£2.61	£3.13
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A54 2910611006	£1.75	£2.10
140 - INSULATION TUBING BSD-2600409017.A109 2600409017	£1.75	£2.10
149 - PLUG BSD-2603231032.A105 2603231032	-
150 - SHIM WASHER 0.3 MM BSD-2600101027.A40 2600101027	£1.75	£2.10
150 - SHIM 0.2 MM BSD-2600101022.A481 2600101022	£1.75	£2.10
150 - SHIM 0.5 MM BSD-2600101020.A168 2600101020	£1.75	£2.10
151 - SHIM BSD-2600150004.A134 2600150004	£2.16	£2.59
152 - TAPPING SCREW BSD-2603435086.A303 2603435086	£1.75	£2.10
153 - ADJUSTING SLIDE BSD-2602319005.A38 2602319005	£1.75	£2.10
154 - COVER DISC BSD-2601328045.A16 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1167 2603490017	£2.16	£2.59
156 - SPIRAL SPRING BSD-2604652009.A228 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508037.A5 2600508037	£7.36	£8.83
656 - HOSE FITTING BSD-2600306004.A4 2600306004	-
658 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A23 2910861118	£1.75	£2.10
757 - WORK BOARD BSD-2607001085.A30 2607001085	£11.30	£13.56
801 - GEAR HOUSING BSD-2605808917.A39 2605808917	£63.50	£76.20
802 - MOTOR HOUSING BSD-2605108904.A148 2605108904	£23.86	£28.63
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A165 1607000385	£14.91	£17.89
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A11 2600905039	£12.04	£14.45
810 - CARBON-BRUSH SET BSD-2604320912.A29 2604320912	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A163 2607001130	£5.58	£6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A246 2916080007	£2.61	£3.13
824 - ECCENTRIC DISC BSD-2601072901.A40 2601072901	£7.36	£8.83
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A331 2916080910	£2.16	£2.59
830 - NEEDLE BEARING BSD-2600917900.A290 2600917900	£8.67	£10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A149 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A19 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808921.A31 2605808921	£81.81	£98.17
851 - SEALING PLATE BSD-2601015901.A117 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A35 2601321902	-
855 - ROLLER SET BSD-1619P01375.A114 1619P01375	£11.30	£13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A231 2916080005	-
861 - FAN COVER BSD-2605500900.A19 2605500900	£4.26	£5.11
874 - HANDLE BSD-2602026900.A48 2602026900	-
888 - NAMEPLATE BSD-160111A3H3.A971 160111A3H3	£2.61	£3.13
