Bosch GST 85 P / 0601584161 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

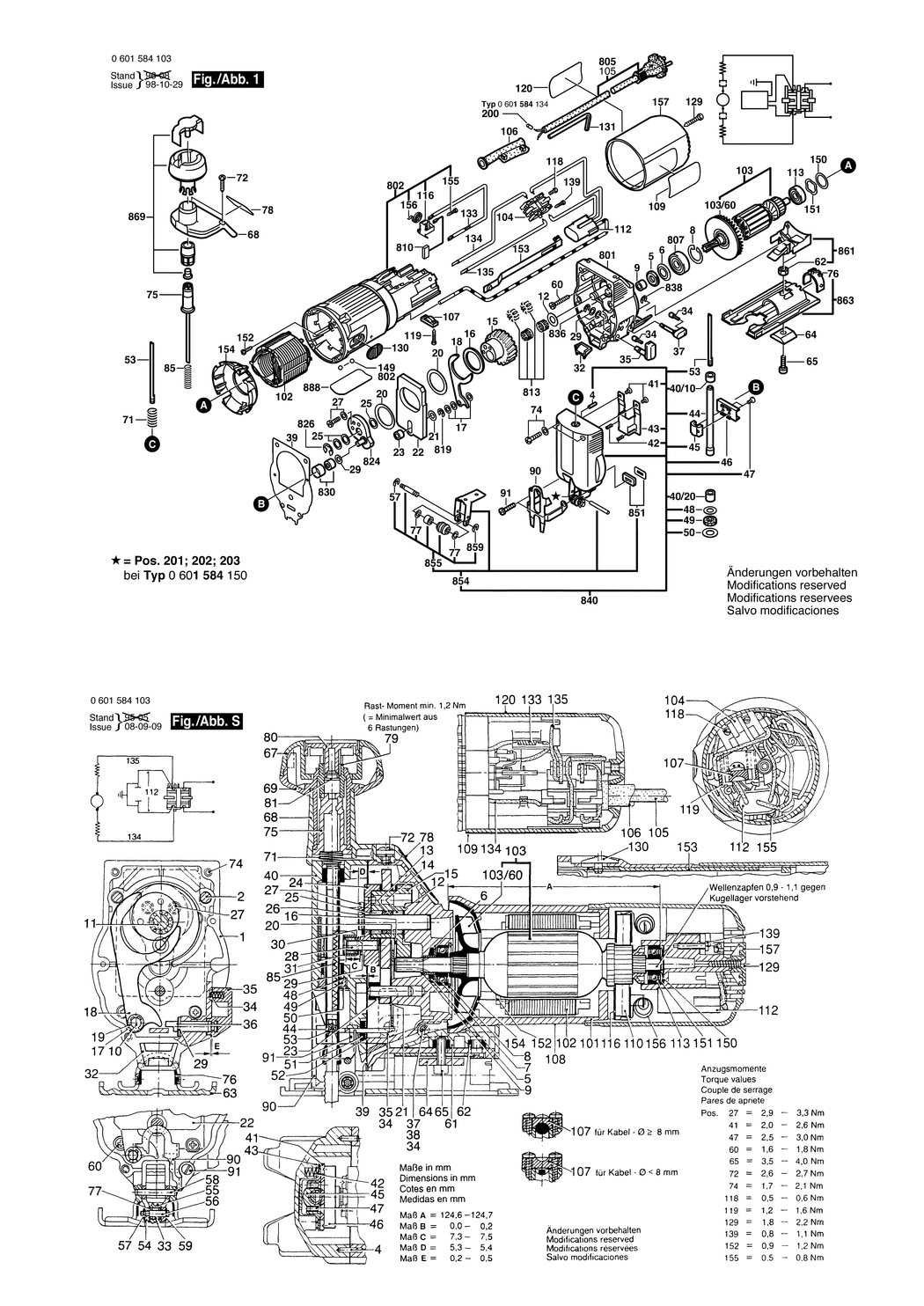

An exploded drawing and listing for the Bosch GST 85 P / 0601584161 / CH 230 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A51 1903201042	£2.27	£2.72
5 - FELT WASHER BSD-2600108077.A490 2600108077	£1.84	£2.21
6 - CUPPED WASHER BSD-2600500002.A557 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A386 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A484 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A141 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A152 1619P02581	£22.76	£27.31
16 - SHIM 1.0 MM BSD-2600102653.A46 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A54 2600100515	£2.74	£3.29
17 - SHIM 0.5 MM BSD-2600100516.A171 2600100516	£2.27	£2.72
18 - FORK LEVER BSD-2601923004.A184 2601923004	£2.94	£3.53
20 - SHIM 0.5 MM BSD-2600102652.A182 2600102652	£1.84	£2.21
21 - SHIM 0.1 MM BSD-2600100625.A100 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A138 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A95 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A177 2600100628	£1.84	£2.21
22 - COUNTERWEIGHT BSD-2601098003.A168 2601098003	£9.11	£10.93
23 - SPACER SLEEVE BSD-2600309009.A206 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A65 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A252 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A65 2600100577	£1.84	£2.21
27 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A57 2914551176	£1.84	£2.21
29 - SHIM 0.5 MM BSD-2600100568.A72 2600100568	£1.84	£2.21
29 - SHIM 1.0 MM BSD-2600100569.A261 2600100569	£1.84	£2.21
29 - SHIM 0.3 MM BSD-2600100607.A68 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A140 2602305042	£1.84	£2.21
34 - RATCHET CAP BSD-2600590006.A182 2600590006	£1.84	£2.21
35 - ROTARY KNOB BSD-2602026036.A72 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A112 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A199 2601015050	£2.74	£3.29
40/10 - SINTERED-METAL BUSHING BSD-2600301046.A172 2600301046	£3.91	£4.69
40/20 - BUSHING BSD-2600301045.A55 2600301045	£2.94	£3.53
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A75 2603410048	£1.84	£2.21
42 - COMPRESSION SPRING BSD-2604613000.A83 2604613000	£1.84	£2.21
43 - GUIDE BRACKET BSD-1616B00224.A17 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-1619P12765.A126 1619P12765	£17.22	£20.67
45 - CLAMPING SADDLE BSD-2602329011.A99 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A109 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A145 2603421040	£1.84	£2.21
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A140 2600112031	£1.84	£2.21
49 - SEAL RING 0.5 MM BSD-2600290017.A193 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A288 2600101612	£1.84	£2.21
53 - CLAMP SCREW BSD-2603490011.A13 2603490011	£6.85	£8.22
57 - LOCKING WASHER BSD-2600116011.A8 2600116011	£2.27	£2.72
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A586 2603490024	£1.84	£2.21
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A532 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A25 2601030019	£2.74	£3.29
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A459 2910141197	£1.84	£2.21
68 - FLANGED FITTING BSD-2605702016.A52 2605702016	£7.72	£9.27
71 - COMPRESSION SPRING BSD-2604617003.A31 2604617003	-
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A155 2603410054	£2.61	£3.13
74 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A352 2603410049	£1.84	£2.21
75 - COUPLING HALF BSD-2606491015.A35 2606491015	£6.52	£7.83
76 - SCALE PLATE BSD-2601328044.A57 2601328044	£2.74	£3.29
77 - SHIM 0.2 MM BSD-2600100032.A14 2600100032	£1.75	£2.10
78 - STICKER BSD-2601110930.A54 2601110930	£1.38	£1.66
85 - COMPRESSION SPRING BSD-2604610040.A67 2604610040	£1.84	£2.21
90 - SAFETY DEVICE BSD-2601322021.A137 2601322021	£4.48	£5.37
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A161 2910011128	£1.84	£2.21
102 - FIELD 220-240V BSD-2604220709.A96 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A29 2604010578	£50.80	£60.96
103/60 - FAN BSD-2606610049.A92 2606610049	£2.27	£2.72
104 - SWITCH BSD-2607200674.A178 2607200674	£16.41	£19.69
105 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A103 1604460427	£12.04	£14.45
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A30 2600703027	£1.84	£2.21
107 - CABLE CLIP BSD-2601035001.A1847 2601035001	£1.84	£2.21
109 - MANUFACTURER'S NAMEPLATE BSD-2601118482.A6 2601118482	£2.64	£3.17
112 - SUPPRESSION FILTER BSD-2607329104.A27 2607329104	£10.10	£12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A206 1900905018	£19.91	£23.89
116 - BRUSH HOLDER BSD-1600A003G4.A95 1600A003G4	£3.72	£4.47
116 - BRUSH HOLDER BSD-2601323022.A22 2601323022	£2.94	£3.53
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1845 2603410001	£1.84	£2.21
119 - SCREW 4x16 BSD-2603490022.A1958 2603490022	£1.84	£2.21
120 - REFERENCE PLATE BSD-2601118526.A37 2601118526	-
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A86 2910601321	-
130 - SWITCH HANDLE BSD-2602026015.A28 2602026015	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1073 1907950006	£4.48	£5.37
133 - SUPPRESSION FILTER BSD-1619P15513.A25 1619P15513	£4.75	£5.70
134 - CONNECTING CABLE L=86MM BSD-2604448044.A37 2604448044	£1.75	£2.10
135 - CONNECTING CABLE L=136MM BSD-2604448056.A23 2604448056	-
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A292 2910611006	£1.84	£2.21
149 - PLUG BSD-2603231032.A33 2603231032	-
150 - SHIM WASHER 0.3 MM BSD-2600101027.A283 2600101027	£1.84	£2.21
150 - SHIM 0.2 MM BSD-2600101022.A12 2600101022	£1.84	£2.21
150 - SHIM 0.5 MM BSD-2600101020.A620 2600101020	£1.84	£2.21
151 - SHIM BSD-2600150004.A715 2600150004	£2.27	£2.72
152 - TAPPING SCREW BSD-2603435086.A49 2603435086	£1.84	£2.21
153 - ADJUSTING SLIDE BSD-2602319005.A129 2602319005	£1.84	£2.21
154 - COVER DISC BSD-2601328045.A217 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A567 2603490017	£2.27	£2.72
156 - SPIRAL SPRING BSD-2604652009.A96 2604652009	£1.84	£2.21
157 - HOUSING COVER BSD-2600508036.A7 2600508036	£10.61	£12.73
801 - GEAR HOUSING BSD-2605808917.A94 2605808917	£63.50	£76.20
802 - MOTOR HOUSING BSD-2605108904.A32 2605108904	£25.05	£30.06
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A422 2600905039	£12.64	£15.17
810 - CARBON-BRUSH SET BSD-2604320912.A132 2604320912	£10.61	£12.73
810 - CARBON-BRUSH SET 10 x 2 604 320 912 BSD-1607000486.A4 1607000486	£66.68	£80.01
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A67 2607001130	£5.87	£7.04
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A424 2916080007	£2.74	£3.29
824 - ECCENTRIC DISC BSD-2601072901.A162 2601072901	£7.72	£9.27
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A167 2916080910	£2.16	£2.59
830 - NEEDLE BEARING BSD-2600917900.A157 2600917900	£9.11	£10.93
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A84 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A114 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808921.A5 2605808921	£85.90	£103.08
851 - SEALING PLATE BSD-2601015901.A36 2601015901	£2.94	£3.53
854 - ROLLER LEVER BSD-2601321902.A163 2601321902	-
855 - ROLLER SET BSD-1619P01375.A35 1619P01375	£11.87	£14.24
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A118 2916080005	-
861 - FAN COVER BSD-2605500900.A182 2605500900	£4.48	£5.37
863 - BASE PLATE BSD-2601016903.A58 2601016903	£17.22	£20.67
869 - HANDLE BSD-2602026900.A29 2602026900	-
888 - NAMEPLATE BSD-160111A3H3.A5392 160111A3H3	£2.74	£3.29
