Bosch GST 60 PBE / 0601581542 / GB 230 Volt Spare Parts

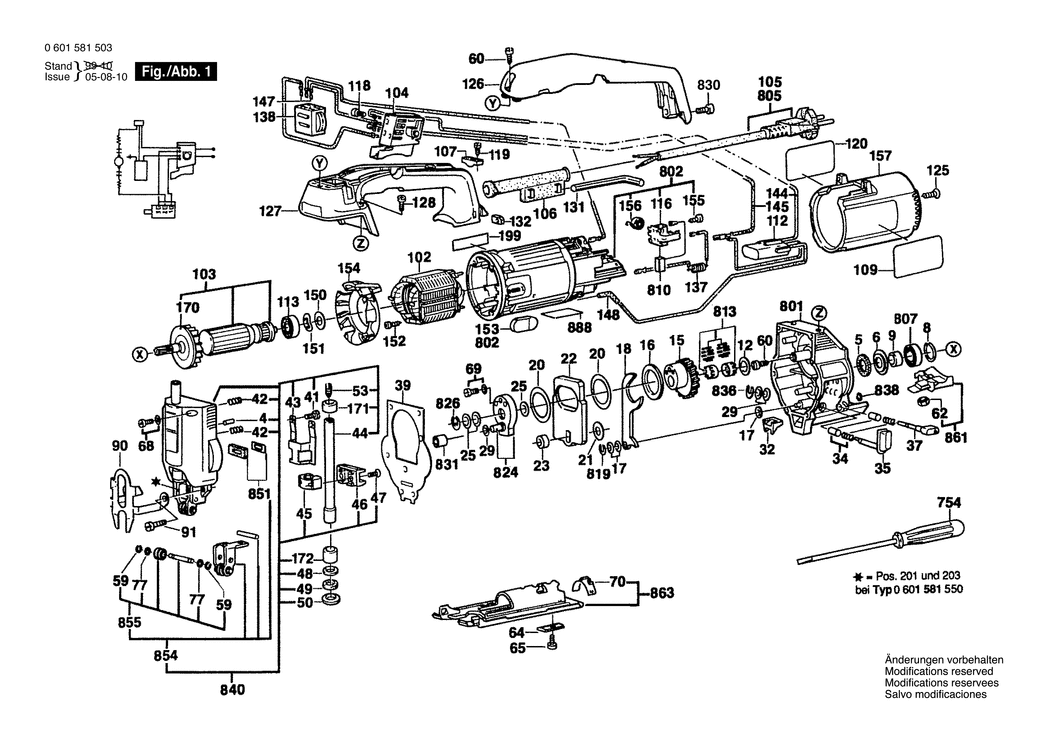

An exploded drawing and listing for the Bosch GST 60 PBE / 0601581542 / GB 230 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A483 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A145 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A94 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A879 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A213 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A248 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A67 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A181 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A158 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A73 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A32 2601923004	£2.80	£3.36
20 - SHIM 0.5 MM BSD-2600102652.A47 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A211 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A17 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A240 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A21 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A104 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A48 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A208 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A106 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A215 2600100577	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A198 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A88 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A844 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A85 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A1303 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A176 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A19 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A79 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A435 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A257 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-1616B00224.A114 1616B00224	£11.32	£13.58
44 - LIFTING ROD BSD-1619P12765.A57 1619P12765	£16.41	£19.69
45 - CLAMPING SADDLE BSD-2602329011.A169 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A66 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A43 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A84 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A27 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A164 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A252 2603400000	£4.26	£5.11
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A310 2916080005	-
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A72 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A986 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A160 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A180 2910141197	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A74 2914551176	£1.75	£2.10
70 - SCALE PLATE BSD-2601328044.A91 2601328044	£2.61	£3.13
77 - SHIM 0.2 MM BSD-2600100032.A126 2600100032	£1.75	£2.10
90 - SAFETY DEVICE BSD-2601322021.A18 2601322021	£4.26	£5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A245 2910011128	£1.75	£2.10
102 - FIELD 220-240V BSD-2604220709.A62 2604220709	£27.23	£32.68
103 - ARMATURE 230-240V BSD-2604010578.A136 2604010578	£48.38	£58.06
104 - SWITCH BSD-2607200260.A103 2607200260	£11.30	£13.56
105 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460168.A10 2604460168	£21.52	£25.83
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A118 2600703027	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A1029 2601035001	£1.75	£2.10
109 - MANUFACTURER'S NAMEPLATE BSD-2601116647.A5 2601116647	-
112 - SUPPRESSION FILTER BSD-2607329105.A26 2607329105	-
113 - BALL BEARING 7x22x7 BSD-1900905018.A1258 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-1600A003G4.A450 1600A003G4	£3.72	£4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A759 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A215 2603490022	£1.75	£2.10
120 - REFERENCE PLATE BSD-2601117544.A5 2601117544	£3.72	£4.47
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A187 2910601321	-
126 - STRAP-SHAPED HANDLE BSD-2602025040.A17 2602025040	£11.78	£14.13
127 - STRAP-SHAPED HANDLE BSD-2602025041.A19 2602025041	£8.49	£10.19
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A20 2603410054	£2.61	£3.13
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A193 1907950006	£4.26	£5.11
132 - SQUARE NUT M4 BSD-2603320001.A106 2603320001	£1.75	£2.10
137 - SUPPRESSION FILTER BSD-1619P15513.A67 1619P15513	£4.75	£5.70
138 - SPEED GOVERNOR 220-240V BSD-2607230115.A42 2607230115	-
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A49 2604448012	£1.32	£1.58
145 - CONNECTING CABLE L = 288 MM BSD-2604448062.A79 2604448062	£1.32	£1.58
147 - CONNECTING CABLE L=124 MM BSD-2604448018.A56 2604448018	£2.33	£2.80
148 - INSULATION TUBING BSD-2600409017.A76 2600409017	£1.75	£2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A119 2600101027	£1.75	£2.10
150 - SHIM 0.2 MM BSD-2600101022.A297 2600101022	£1.75	£2.10
150 - SHIM 0.5 MM BSD-2600101020.A335 2600101020	£1.75	£2.10
151 - SHIM BSD-2600150004.A387 2600150004	£2.16	£2.59
152 - TAPPING SCREW BSD-2603435086.A413 2603435086	£1.75	£2.10
153 - PLUG BSD-2603231032.A52 2603231032	-
154 - COVER DISC BSD-2601328045.A138 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1426 2603490017	£2.16	£2.59
157 - HOUSING COVER BSD-2600508038.A51 2600508038	-
166 - SPIRAL SPRING BSD-2604652009.A174 2604652009	£1.75	£2.10
170 - FAN BSD-2606610049.A314 2606610049	£2.16	£2.59
171 - SINTERED-METAL BUSHING BSD-2600301046.A20 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A207 2600301045	£2.80	£3.36
801 - GEAR HOUSING BSD-2605808915.A19 2605808915	£37.72	£45.27
802 - MOTOR HOUSING BSD-2605108904.A86 2605108904	£23.86	£28.63
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A185 2600905039	£12.04	£14.45
810 - CARBON-BRUSH SET BSD-2604320912.A90 2604320912	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A93 2607001130	£5.58	£6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A106 2916080007	£2.61	£3.13
824 - ECCENTRIC DISC BSD-2601072901.A72 2601072901	£7.36	£8.83
830 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A61 2914501021	£1.75	£2.10
831 - NEEDLE BEARING BSD-2600917900.A423 2600917900	£8.67	£10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A243 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A43 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808919.A18 2605808919	-
851 - SEALING PLATE BSD-2601015901.A169 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A71 2601321902	-
855 - ROLLER SET BSD-1619P01375.A167 1619P01375	£11.30	£13.56
861 - FAN COVER BSD-2605500900.A91 2605500900	£4.26	£5.11
863 - BASE PLATE BSD-2601016903.A73 2601016903	£16.41	£19.69
888 - NAMEPLATE BSD-160111A3H3.A1669 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
